Yale Sparta Offset Lever/Pad Door Handles

Yale Sparta Offset Lever/Pad Door Handles

SKU: YAL-2236-1001
MPN: 0750-2002-CH

£20.99

Sale Sold out

Tax included. Shipping calculated at checkout.

10+ in stock

Order within

h m s

for Same Day Despatch

Measuring Guide

Quantity

View full details

Description

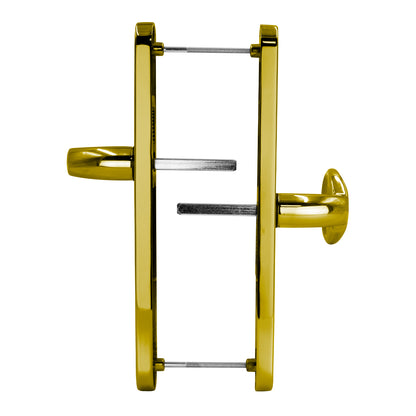

Gold Yale Trojan Sparta Offset Lever/Pad uPVC Door handle

Trojan Sparta Offset Lever/Pad Door Handles from Yale

Name: Yale Sparta Offset Lever/Pad Door Handles
Brand: Yale
SKU: YAL-2236-1001
Price: 20.99 GBP
Availability: InStock

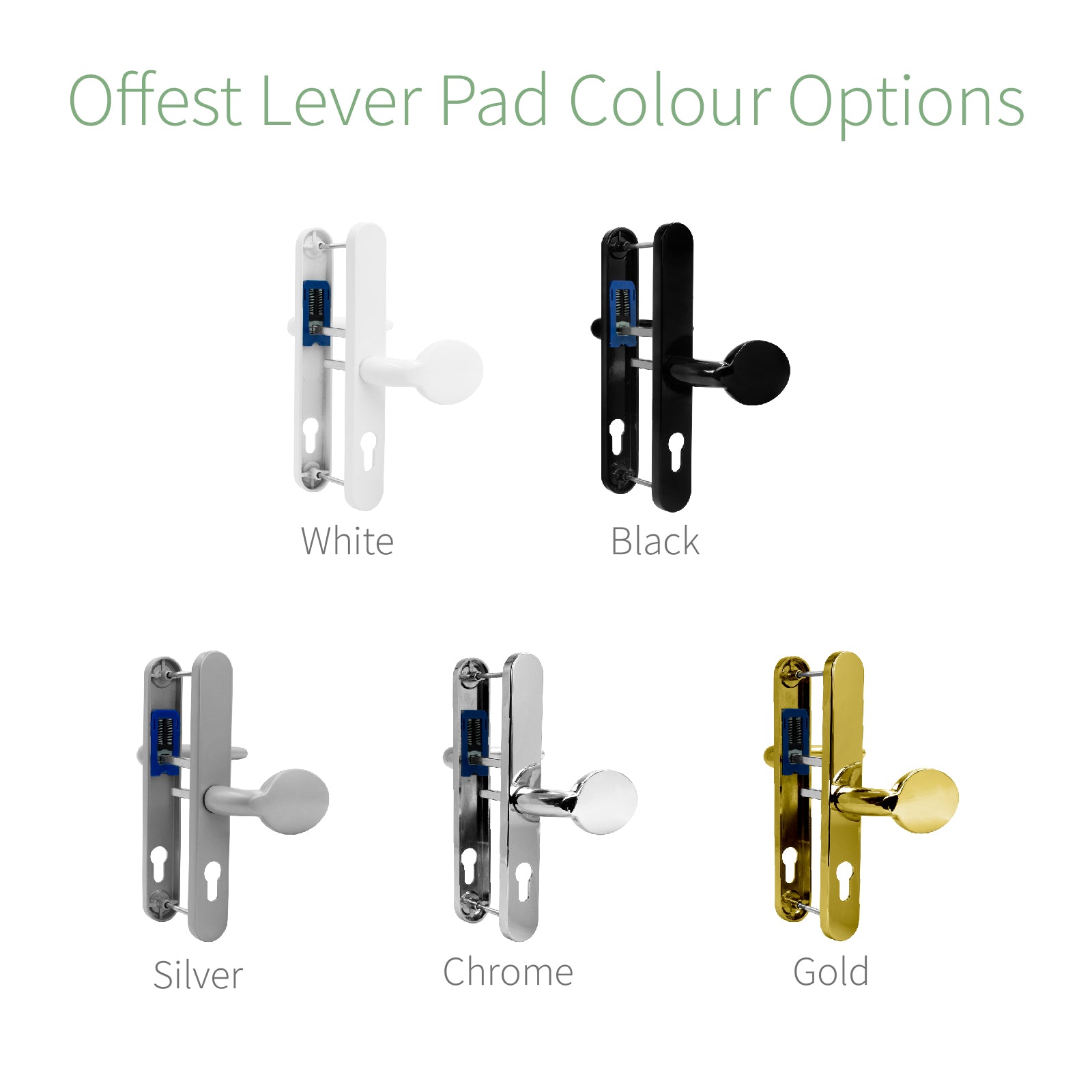

(Choice of 5 popular finishes)

Improve front door security with secure on close operation!

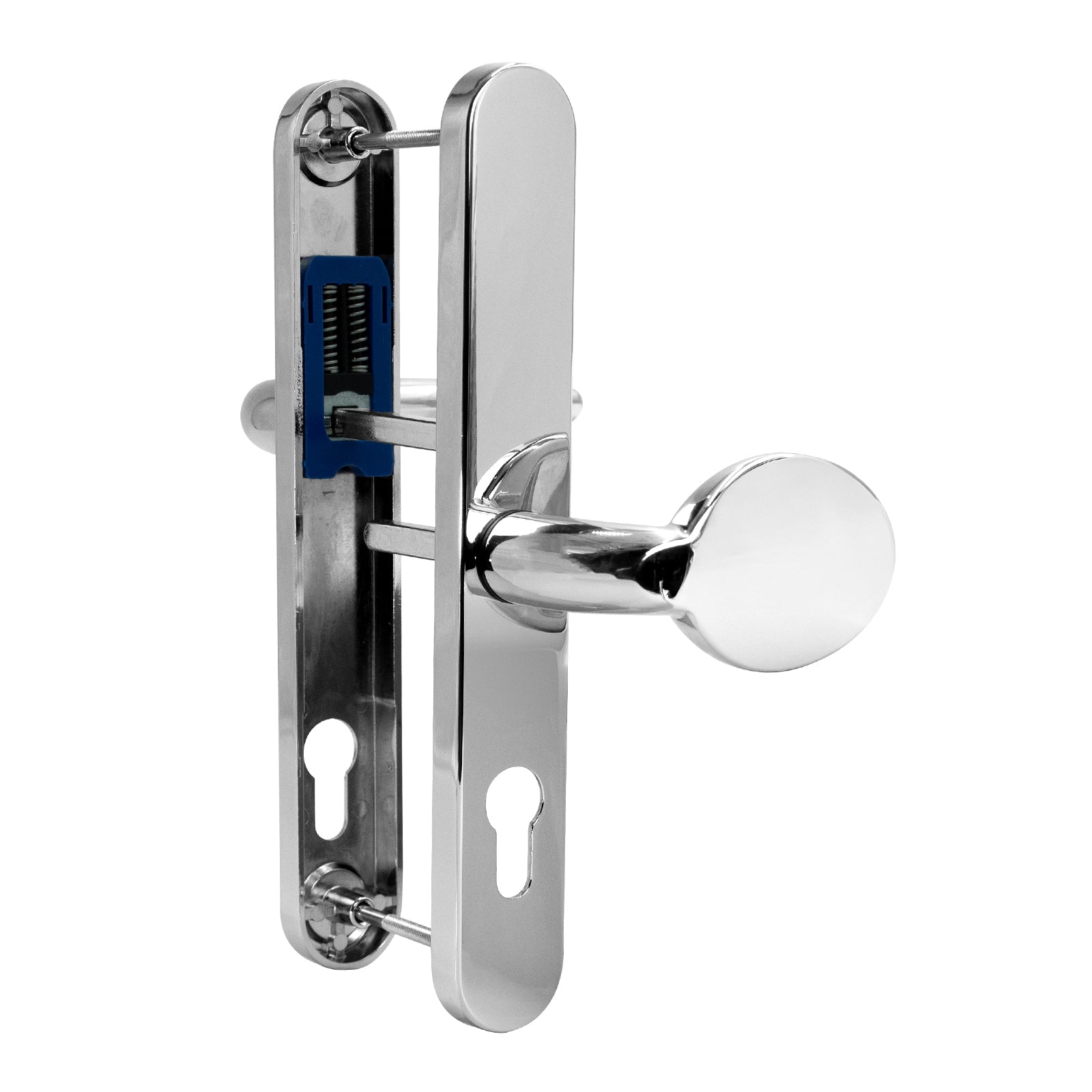

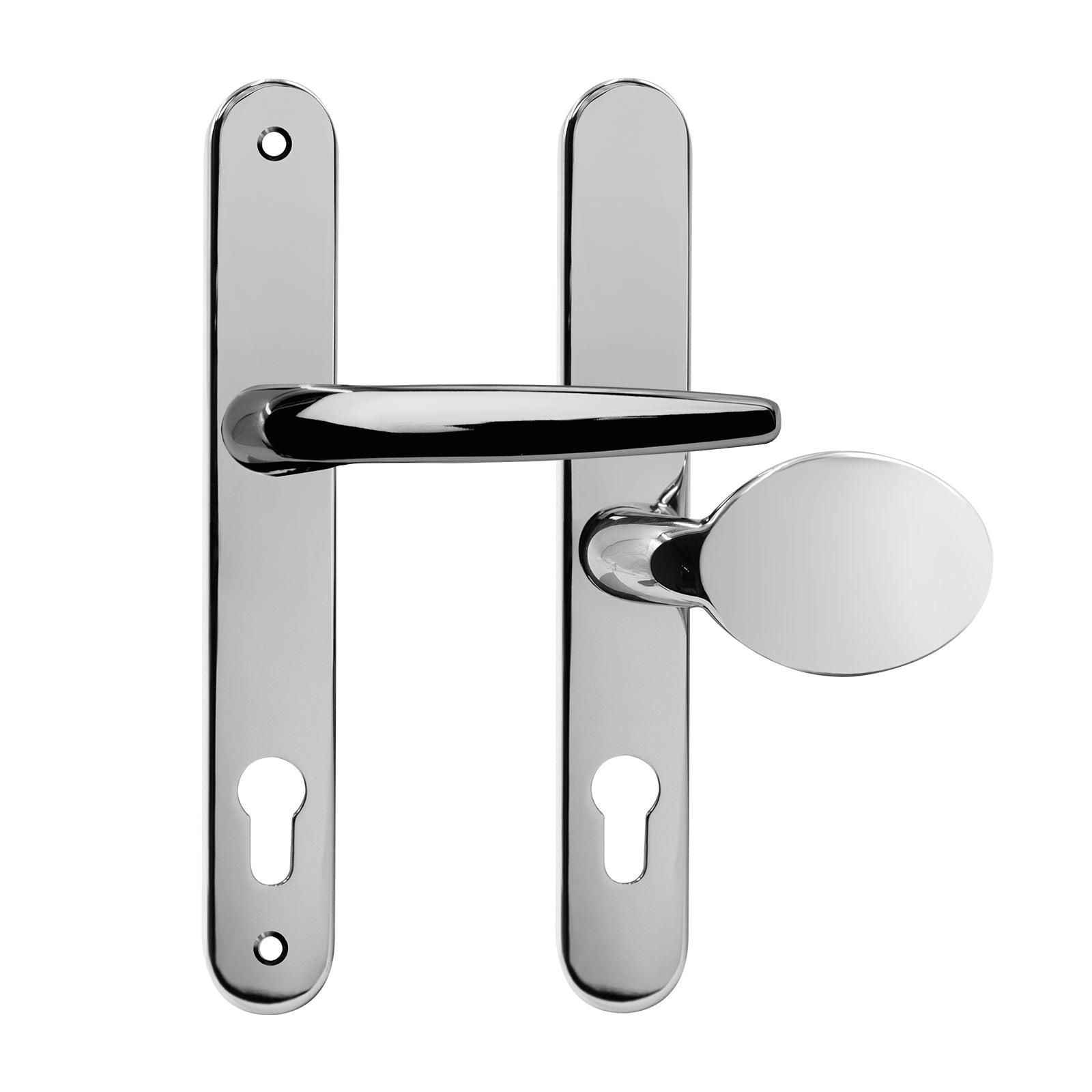

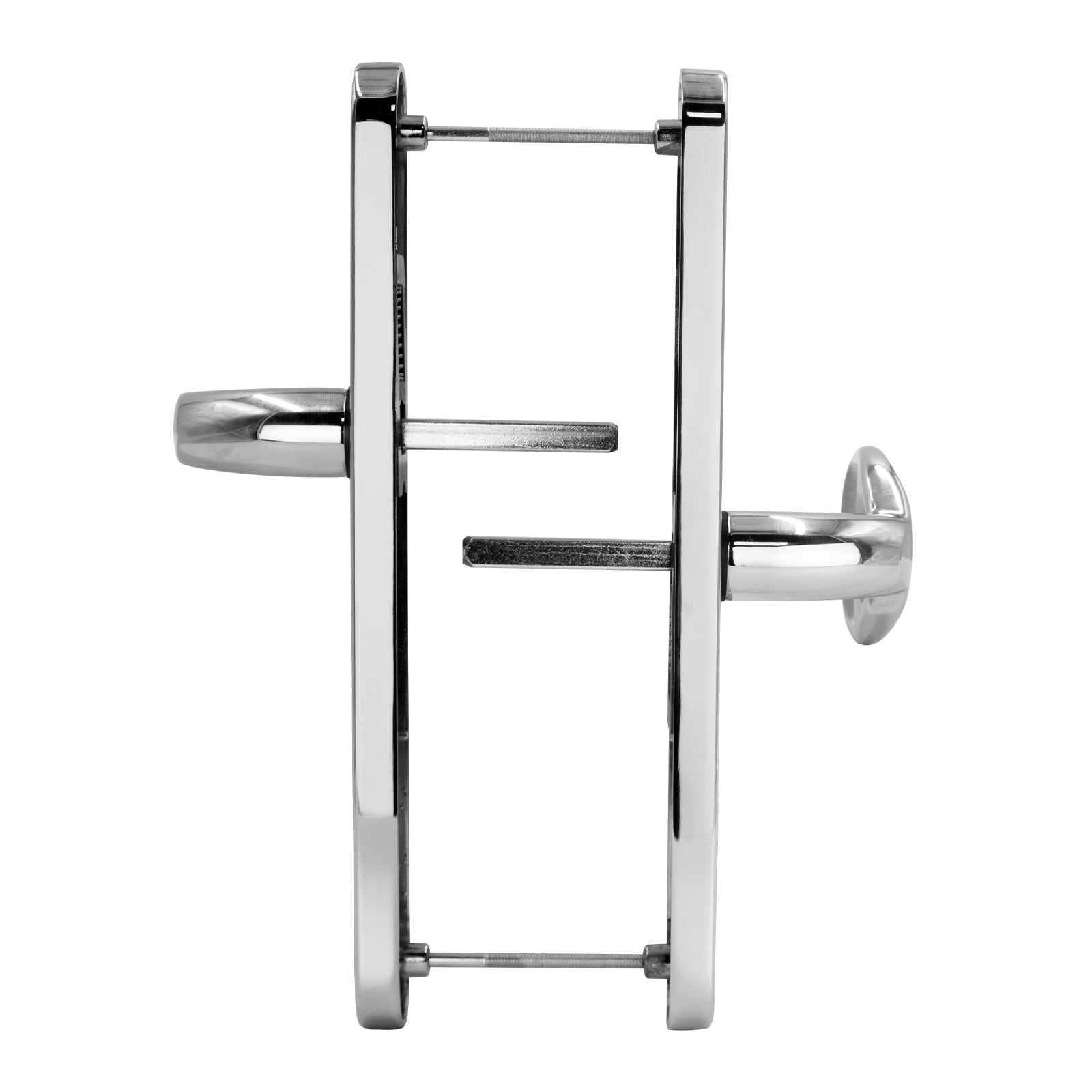

Stylish offset door handles with lever operation to the inside, and secure-on-close pad operation to the outside. Features twin spindles on long backplates, with reversible handles that are suitable for left or right hung doors of 44mm to 75mm thickness, with 92/62 PZ measurement.

Two offset spindles allow the internal lever and the exterior pad to operate independently of each other. The lever provides standard opening of an unlocked door from the inside, whilst the secure-on-close exterior pad, will not allow even an unlocked door to be opened without a key.

Features & Benefits

Popular colour and finish - looks good for longer
Secure-on-close handle - opening from outside requires key
Strong material and construction - tough die cast zinc
Spring cassettes included - stops handles drooping
Part of the Sparta suite - matches finish and styling

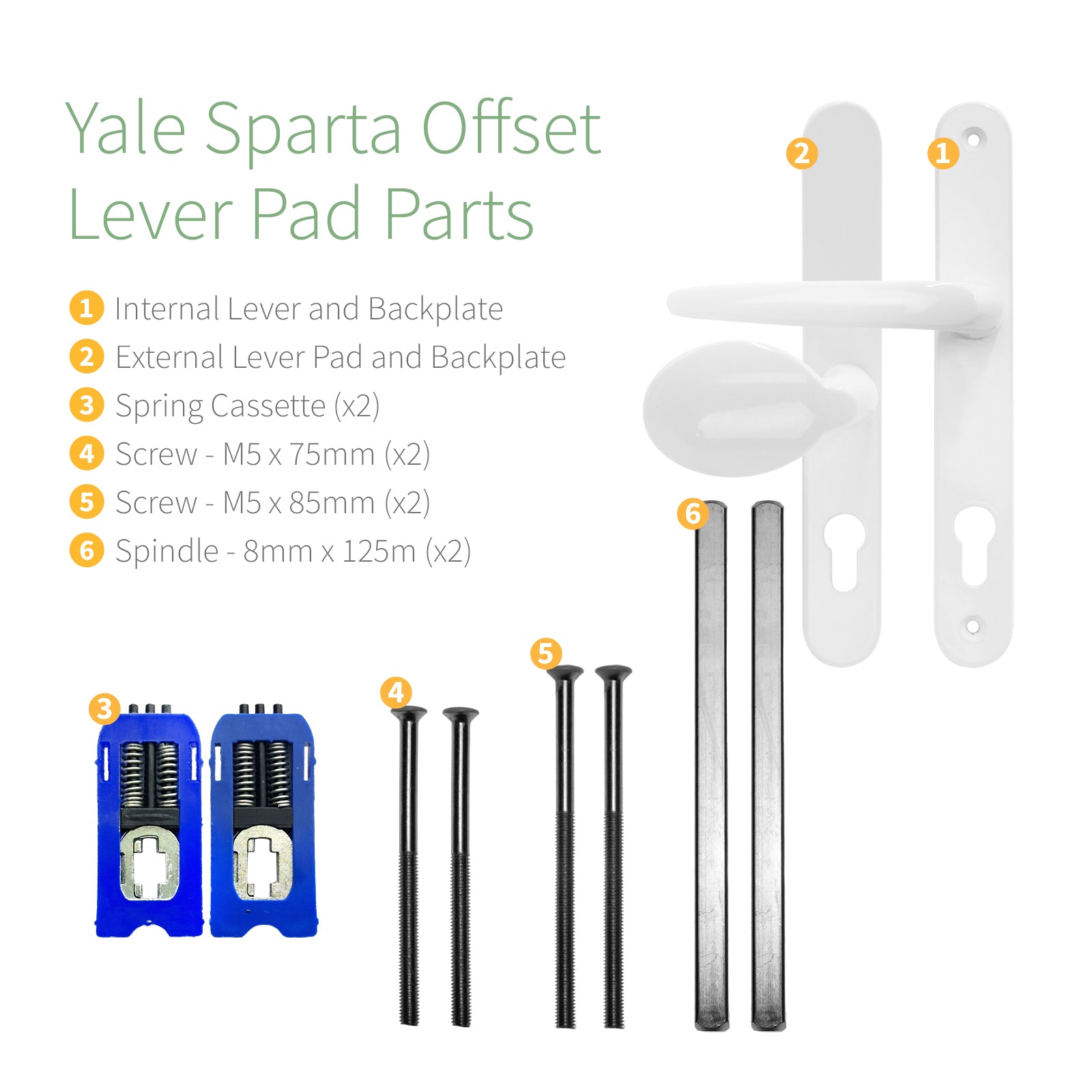

All fixings included - supplied ready to fit
10-year guarantee - abuse and endurance tested

DID YOU KNOW? The handle alone does not provide the secure-on-close operation, it requires a compatible gearbox within the door. It is therefore vital that you compare the dimensions of your existing handle, with the dimensions of this. Always check compatibility before purchase.

Part of the highly regarded Sparta range of suited window and door hardware, which share the same sleek appearance, and ergonomic design. The Sparta range was originally branded Trojan, until ASSA ABLOY's acquisition of Trojan in 2016. The Sparta range was integrated into their Yale brand, to reinforce their residential offering. A new name, but the same trusted quality.

Specification

Measurement	Value
Backplate Height	243mm
Backplate Width	35mm
Backplate Depth	12mm
Screw Centres (Position)	210mm (above and below)
PZ Measurement	92mm (inside lever) / 62mm (outside pad)
Door Thickness	44mm-75mm
Material	Zinc/aluminium die-cast components, and Nylon 66 plastic parts
Corrosion Resistance	Tested to BS EN 1670
Neutral Salt Spray Testing (NSST)	Painted surface Grade 5 (480hrs), plated finishes Grade 4 (240hrs).
Abusive Load Resistance	Tested to BS 6462
Endurance Tested	50,000 cycles
Handle Conformance	BS1906
Mechanical Guarantee	10 years
Surface Finish Guarantee	12 months

Contents

Fitting & Usage

How to check that these handles will fit your door

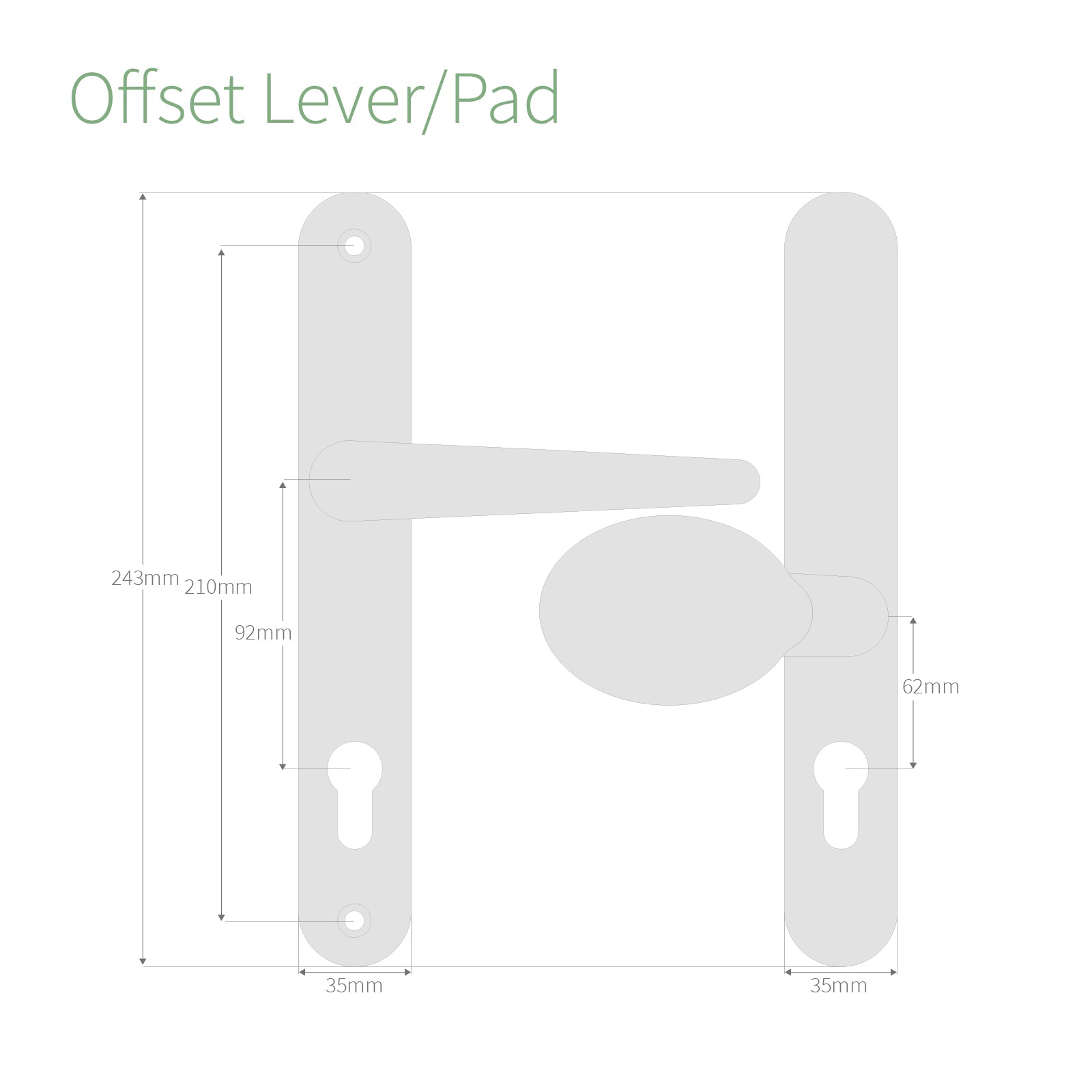

Measuring your existing handle correctly, will help you determine whether this handle will fit your door. There are some critical sizes to take into consideration when measuring your door handle.

Measure the distance between the centre of the lever handle, and the centre of it's cylinder barrel. This measurement should equal 92mm.
Measure the distance between the centre of the pad handle, and the centre of it's cylinder barrel. This measurement should equal 62mm.
Measure the distance between the centre of your top screw, and the centre of your bottom screw, which should equal 210mm.
A less important measurement is the overall length of your existing backplate. This handle has a 243mm long backplate.

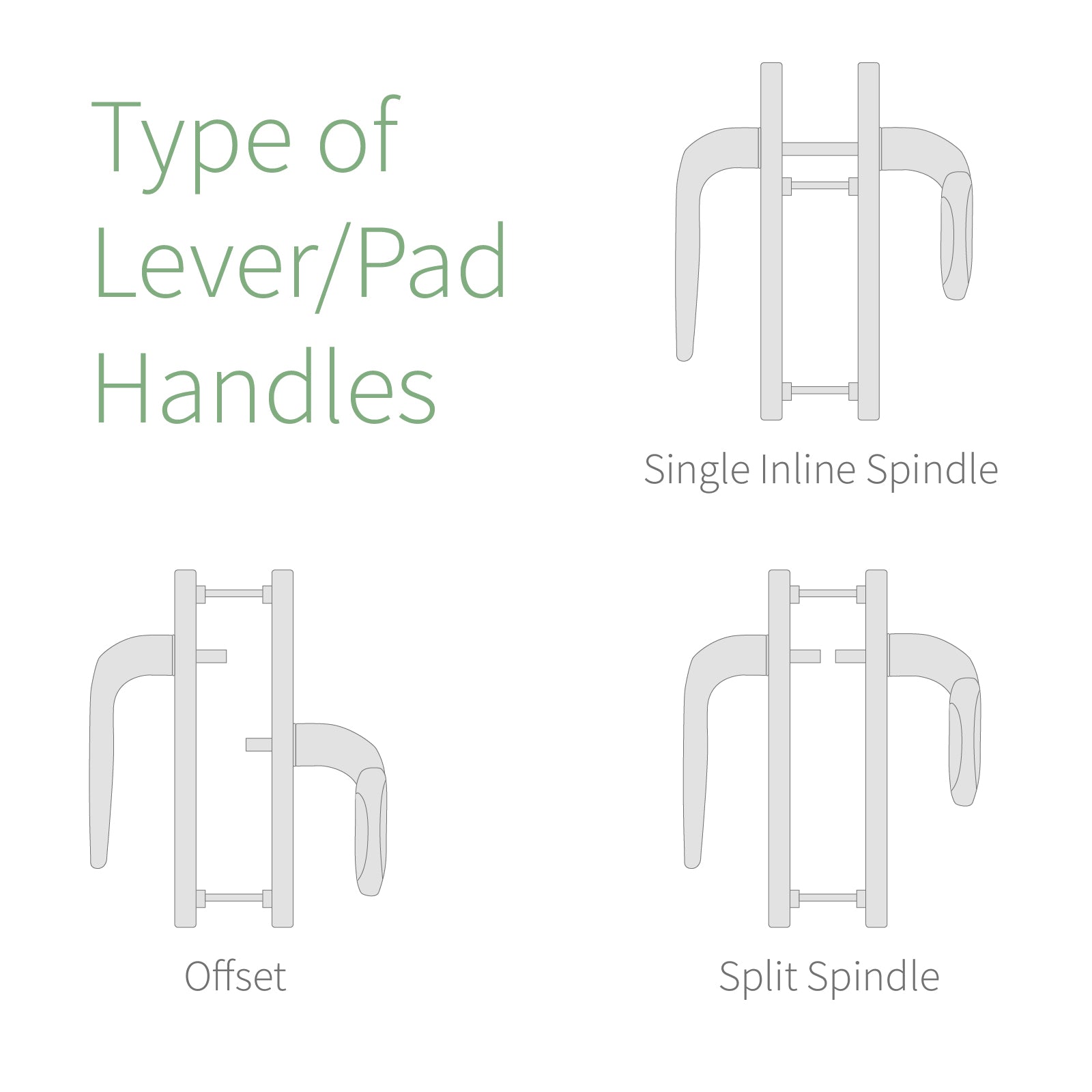

These handles can be used as a direct replacement to handles that use a single solid spindle. However, if you're replacing handles that use inline split spindles, and would like to retain the security of the external pad requiring key for entry, then you would need to replace the solid spindle supplied, with a split spindle. This handle should not be used as a replacement to the two spindle offset handles.

How to fit the Yale Sparta Lever/Pad Handles

The Yale Sparta Lever/Pad door handles can be fitted quickly and easily, as the following summary demonstrates.

Start by removing existing handles from the door. Simply remove any screws (normally visible on the internal backplate) and pull apart.
Choose which of the supplied screw sizes should be used with the spindle. If fitting to narrower composite or wooden doors, you may need to cut down with a hacksaw.
Swing handles to the correct side of the backplate for fitting to your door. The handle with screw holes mush be fitted to the inside, and the pad handle to the outside.
Insert the supplied spindles into the external handle, and fit spring cassettes into the handle backplates, if not already fitted.
With spindle fitted to external handle, feed spindles through the door and the lock mechanism inside. Push internal backplate into position with the spindles fed through the internal cassette.
Place 2 screws provided through fixing holes and tighten.
Check operation of handles before closing the door.

How to care for your handles

To keep your handle looking great, wipe with very mild detergent or soap, then rinse with warm clean water, and drying with a soft cloth. Do not use abrasive, chemical or brass cleaners, wire brushes, scrubbers and wire wool etc.
A light machine oil or a silicone spray lubricant can be used twice a year over moving parts, to keep things moving freely.
From time to time, check that the screw fixings are tight, as the handle should remain fixed to ensure correct operation.

Measuring Guide

How to check that these handles will fit your door

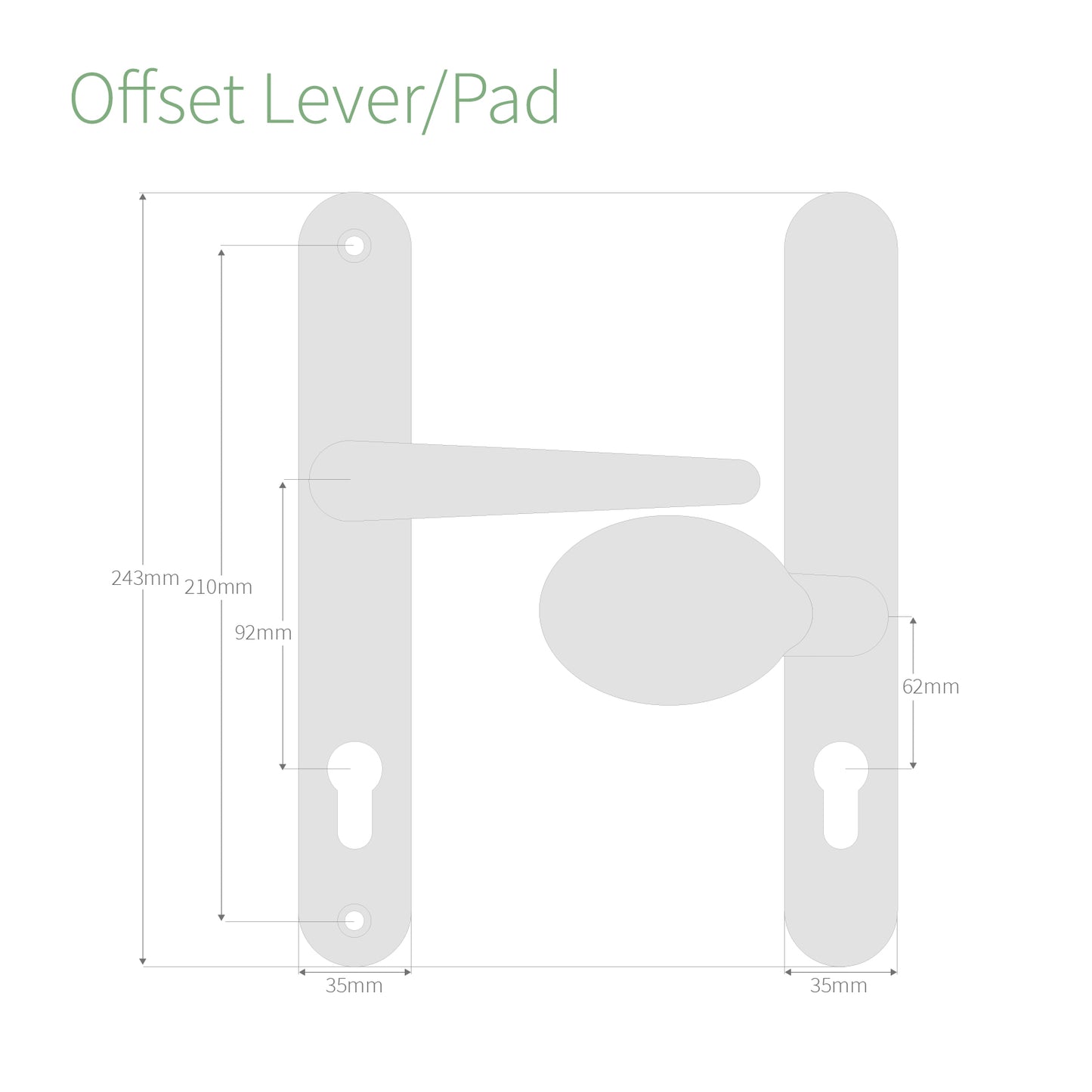

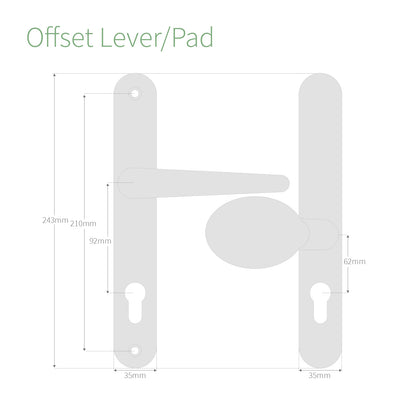

Measuring your existing handle correctly, will help you determine whether this handle will fit your door. There are some critical sizes to take into consideration when measuring your door handle.

Measure the distance between the centre of the lever handle, and the centre of it's cylinder barrel. This measurement should equal 92mm.
Measure the distance between the centre of the pad handle, and the centre of it's cylinder barrel. This measurement should equal 62mm.
Measure the distance between the centre of your top screw, and the centre of your bottom screw, which should equal 210mm.
A less important measurement is the overall length of your existing backplate. This handle is 212mm long, and the Long version is 243mm.
