Yale Neon uPVC Door Butt Hinge

Yale Neon uPVC Door Butt Hinge

SKU: YAL-2241-1001
MPN: HIN12000

£9.11

Sale Sold out

Tax included. Shipping calculated at checkout.

10+ in stock

Order before 1pm for same day despatch.

Order within

h m s

for Same Day Despatch

Quantity

View full details

Description

Yale Neon uPVC Door Butt Hinge

Name: Yale Neon uPVC Door Butt Hinge
Brand: Yale
SKU: YAL-2241-1001
Price: 9.11 GBP
Availability: InStock

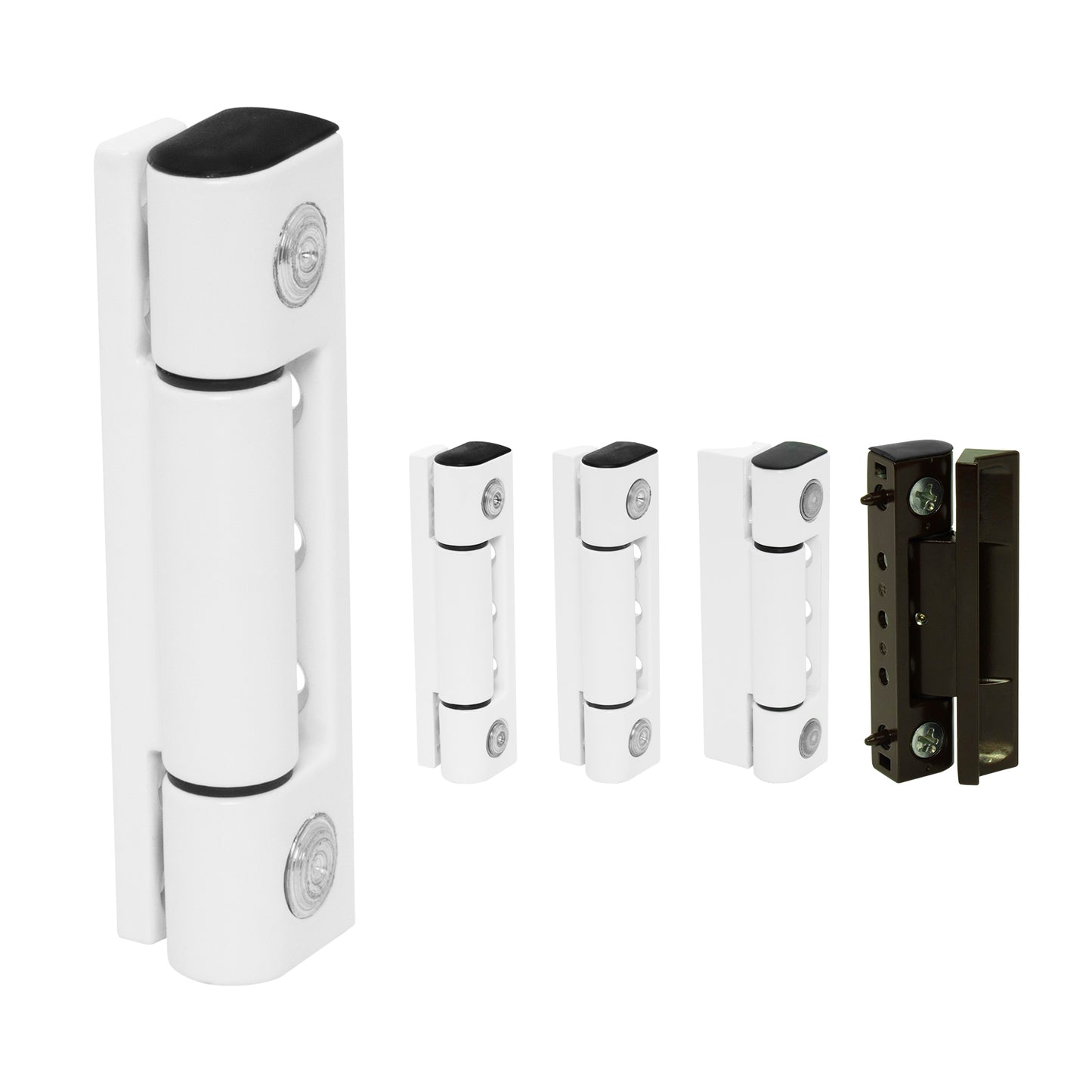

(Choice of edge profile and colour)

Easily adjusted - with door fitted!

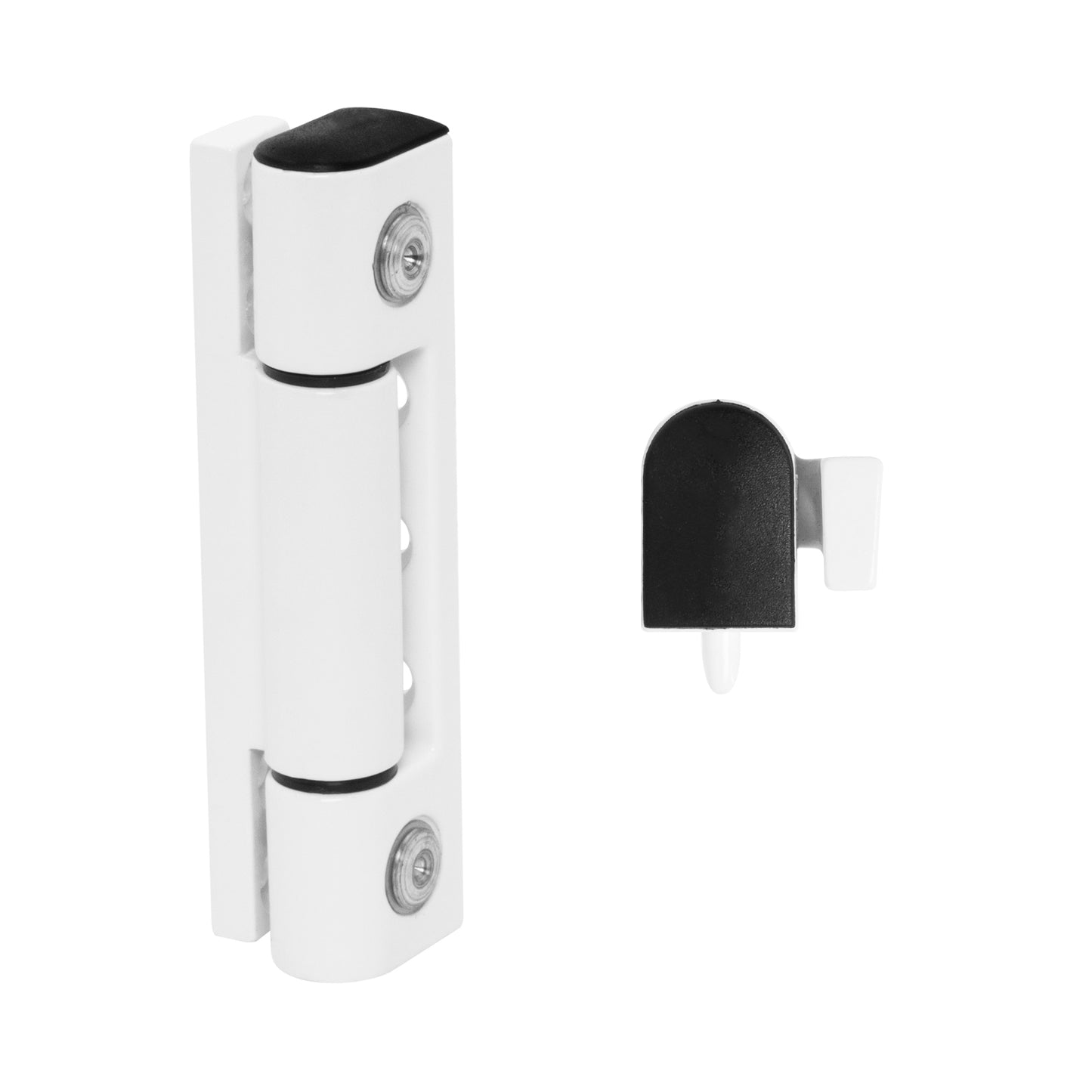

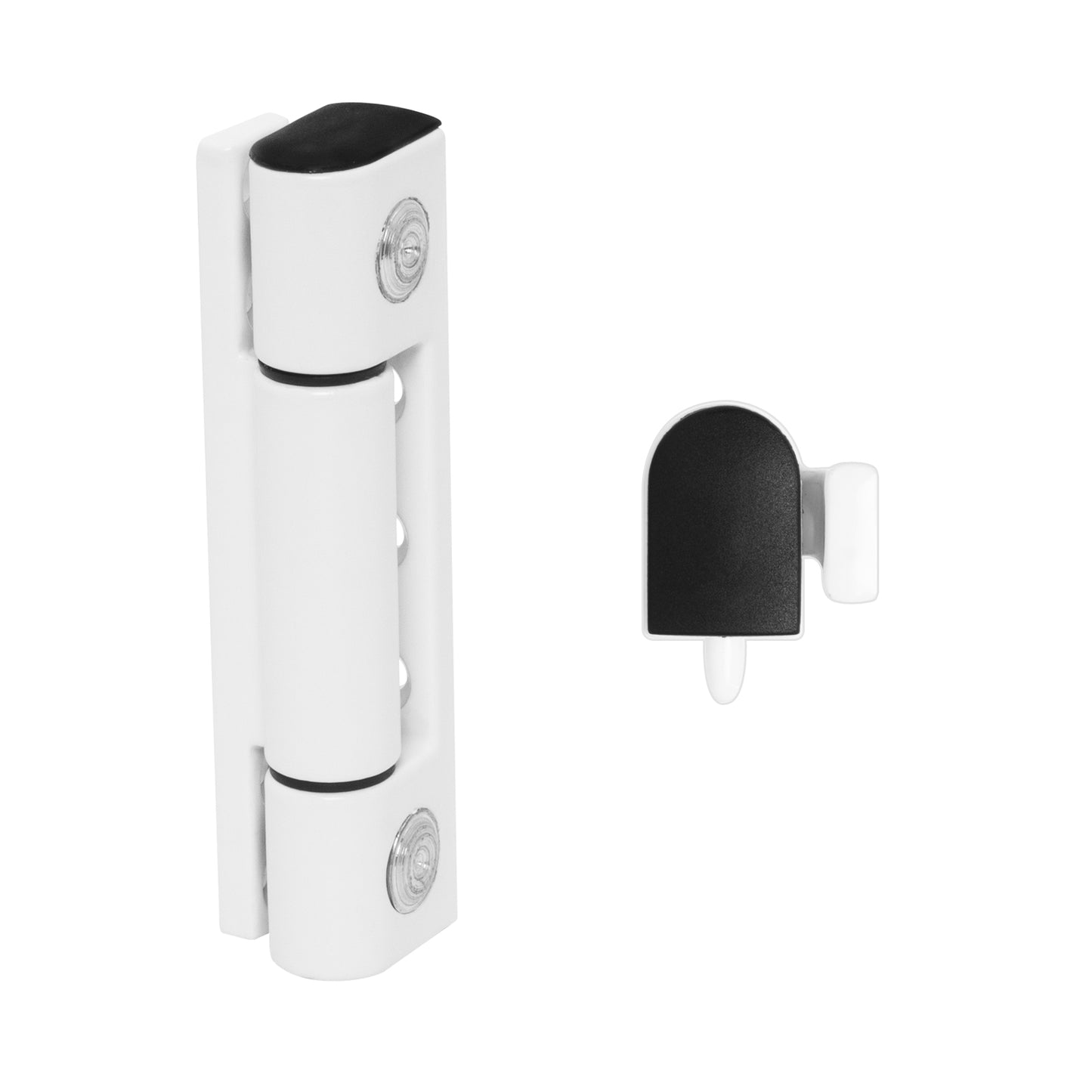

Strong and durable, high quality cast zinc butt hinge for PVC-u doors. Holds up to 80kg per hinge, with each easily adjusted, without having to remove the sash. Versatile 100mm hinge suits edge profiles of 0°, 5°, 15° and 45°.

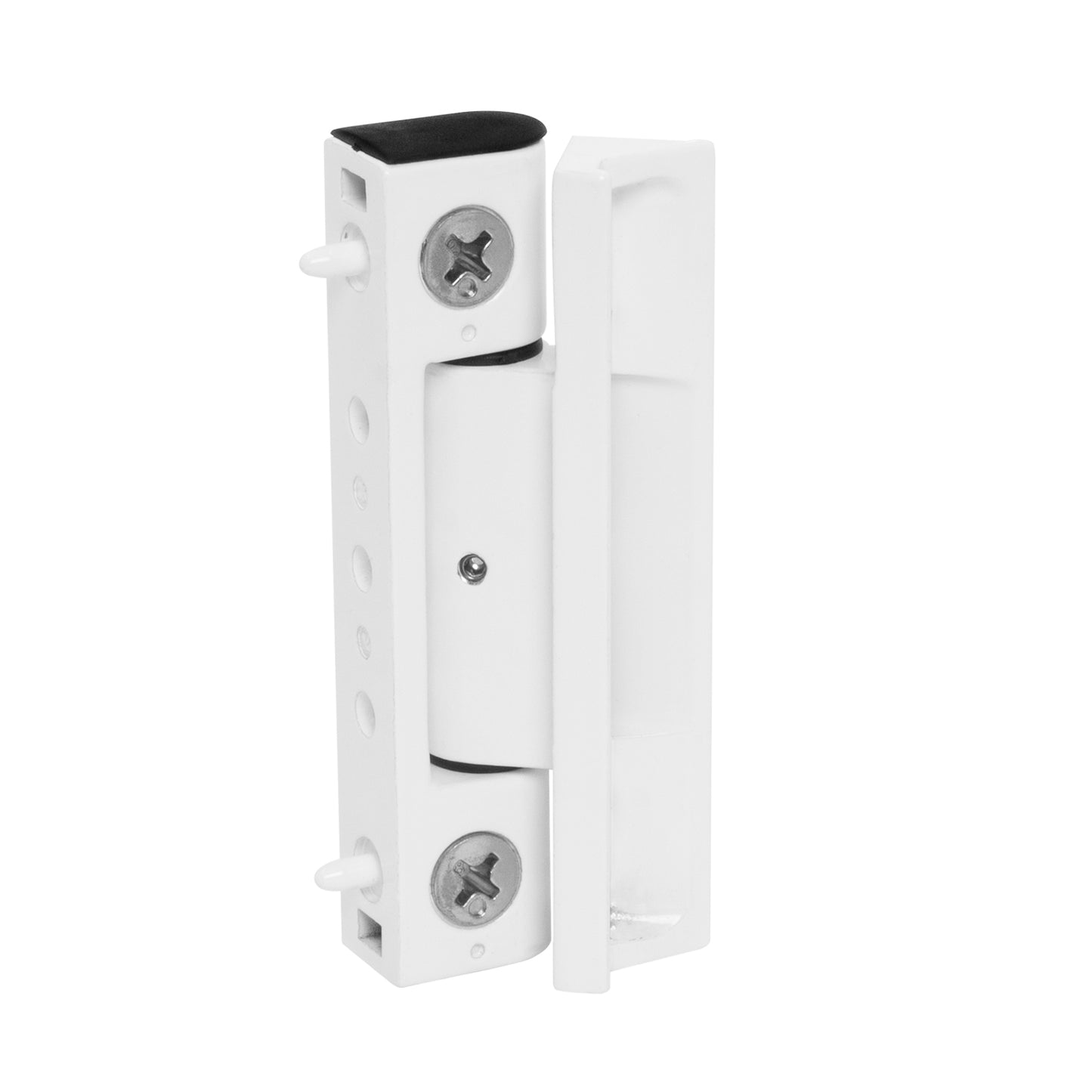

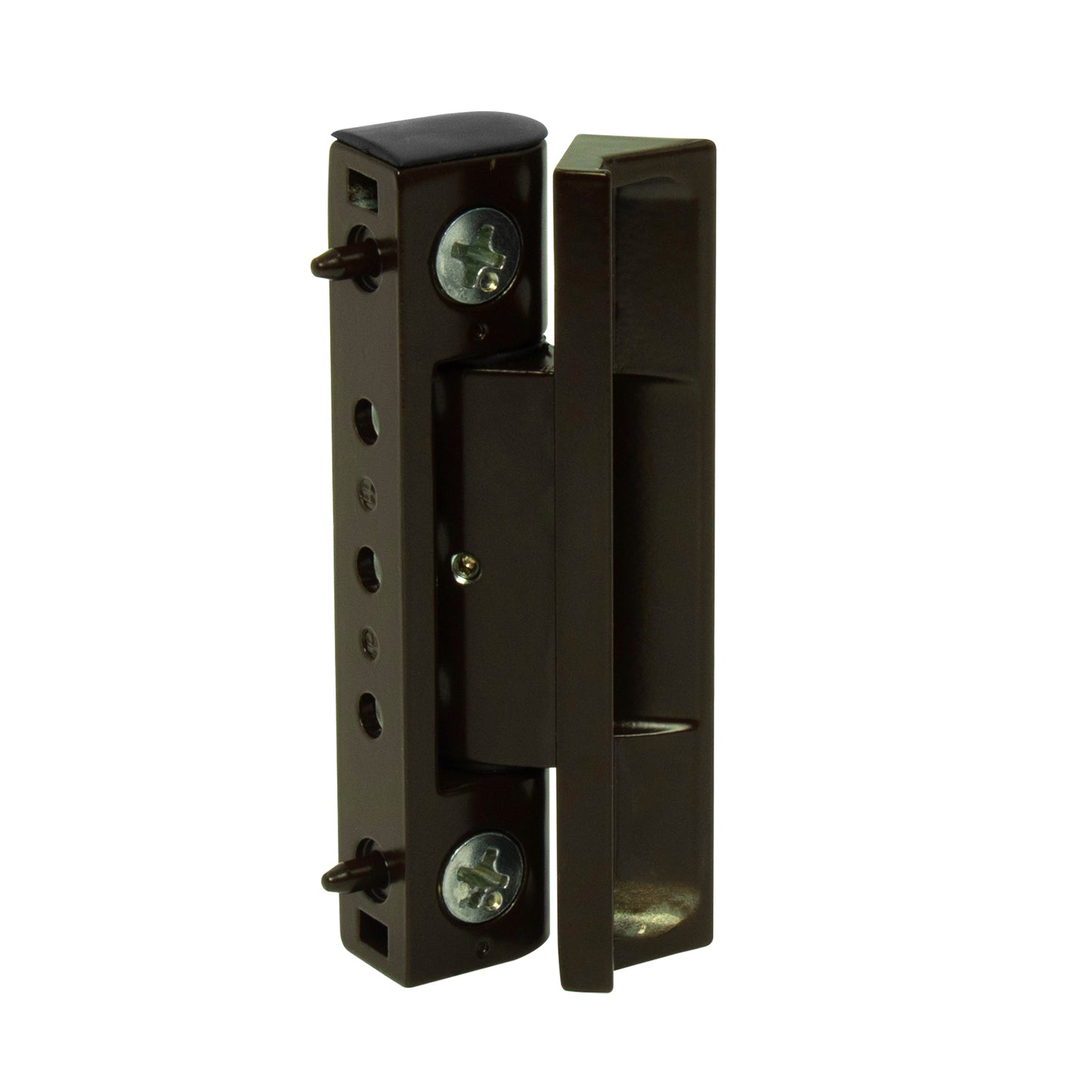

The Yale Neon Butt Hinge provides quick and easy horizontal adjustment of the door, without having to remove the door. Two adjuster screws operate eccentric cams that shift the hinge pin and allow the door sash to be moved up to 4mm horizontally, without affecting compression.

Features & Benefits

Strong and durable - high quality cast zinc construction
Improved security - prevents hinge pin removal
Easy to use - simple adjustment whilst door fitted
Extremely strong - supports up to 80Kg per hinge
Universally handed - fits both left and right-hung doors
Smooth operation - self-lubricating nylon bushes

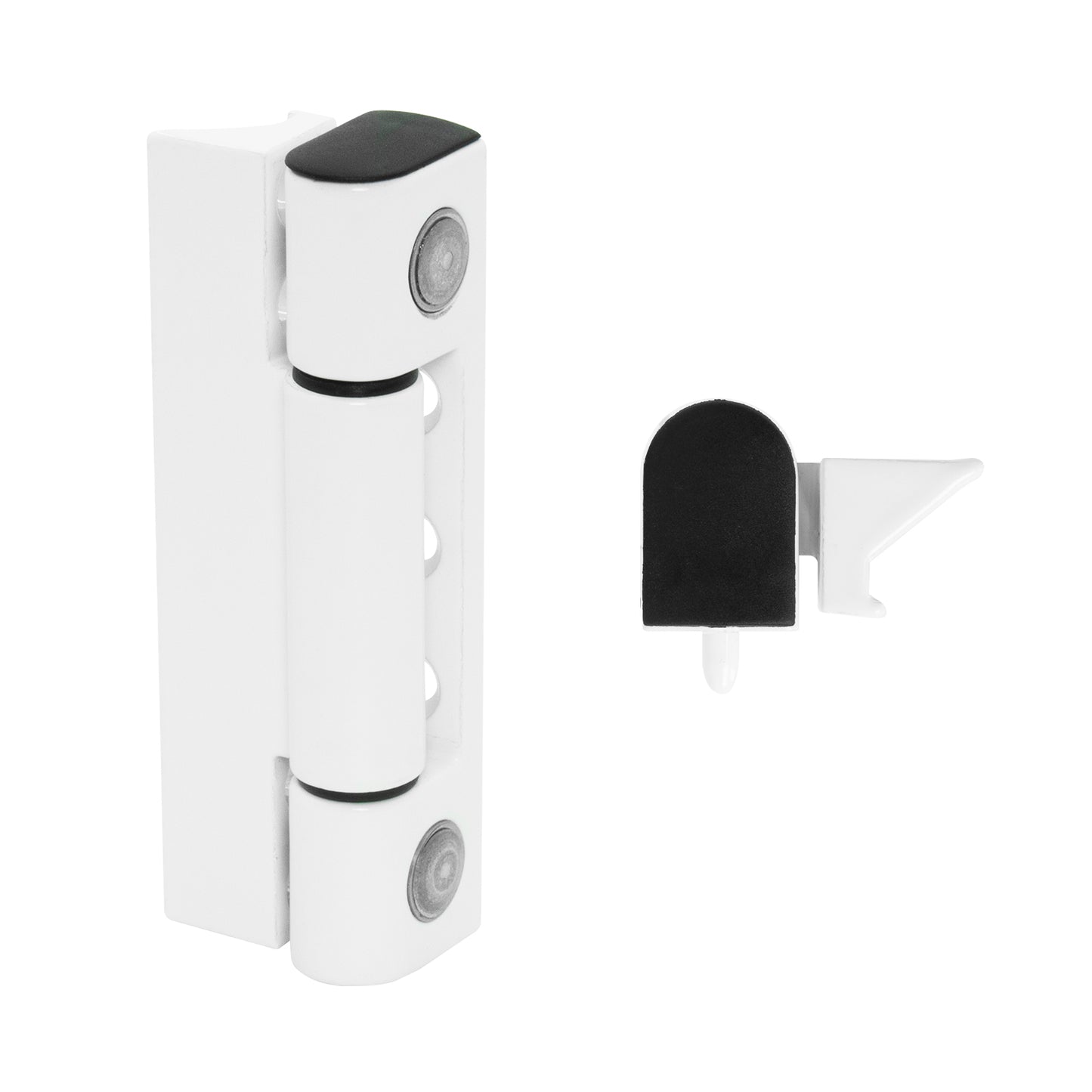

Suits range of profiles - options of flat, to 45° angles

Also known as a pencil hinges, butt hinges are the oldest style of hinge, typically found on older uPVC doors, but still common today. This 100mm external butt hinge features a security hinge pin with concealed grub screw, which prevents the pin from being removed, to provides you peace of mind.

DID YOU KNOW? Yale Neon was originally branded Paddock, until ASSA ABLOY’s acquisition of Paddock in 2010. The Neon range was integrated into their Yale brand, to reinforce their residential offering. A new name, but the same trusted quality.

Specification

Measurement	Value
Feature	Value
Material	Die cast zinc alloy (hinge body and plate), Steel (hinge pin)
Length	100mm
Width	16mm
Height	23mm

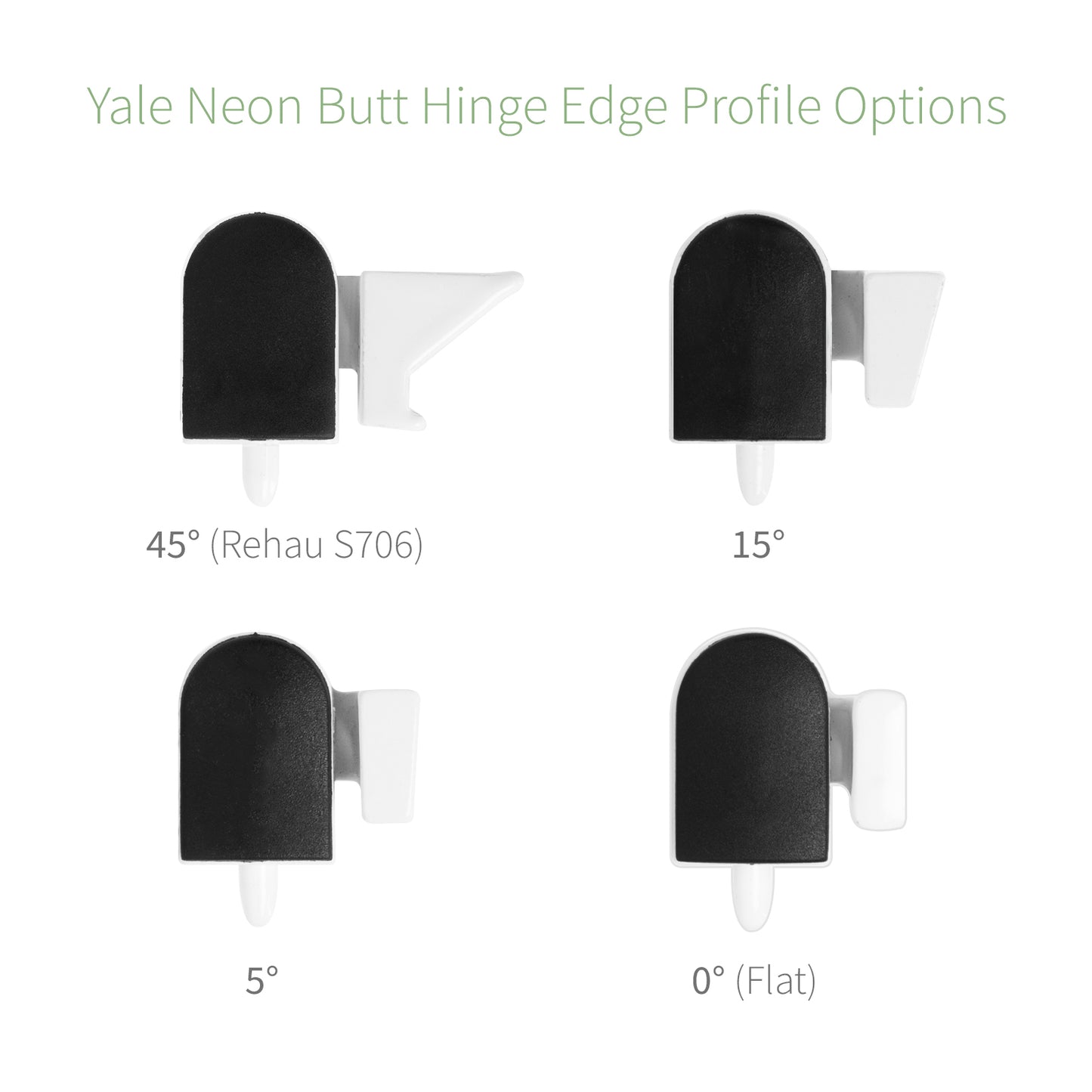

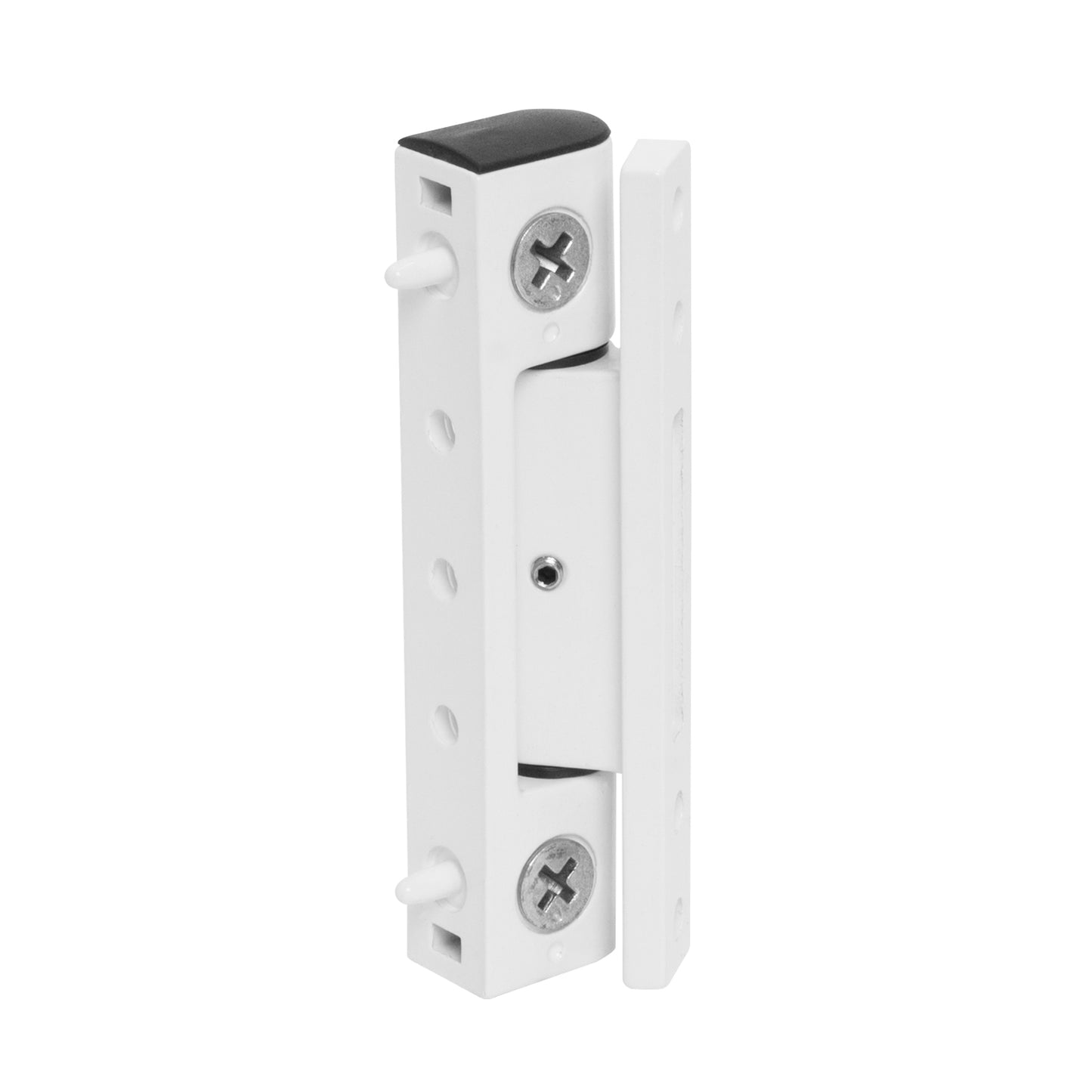

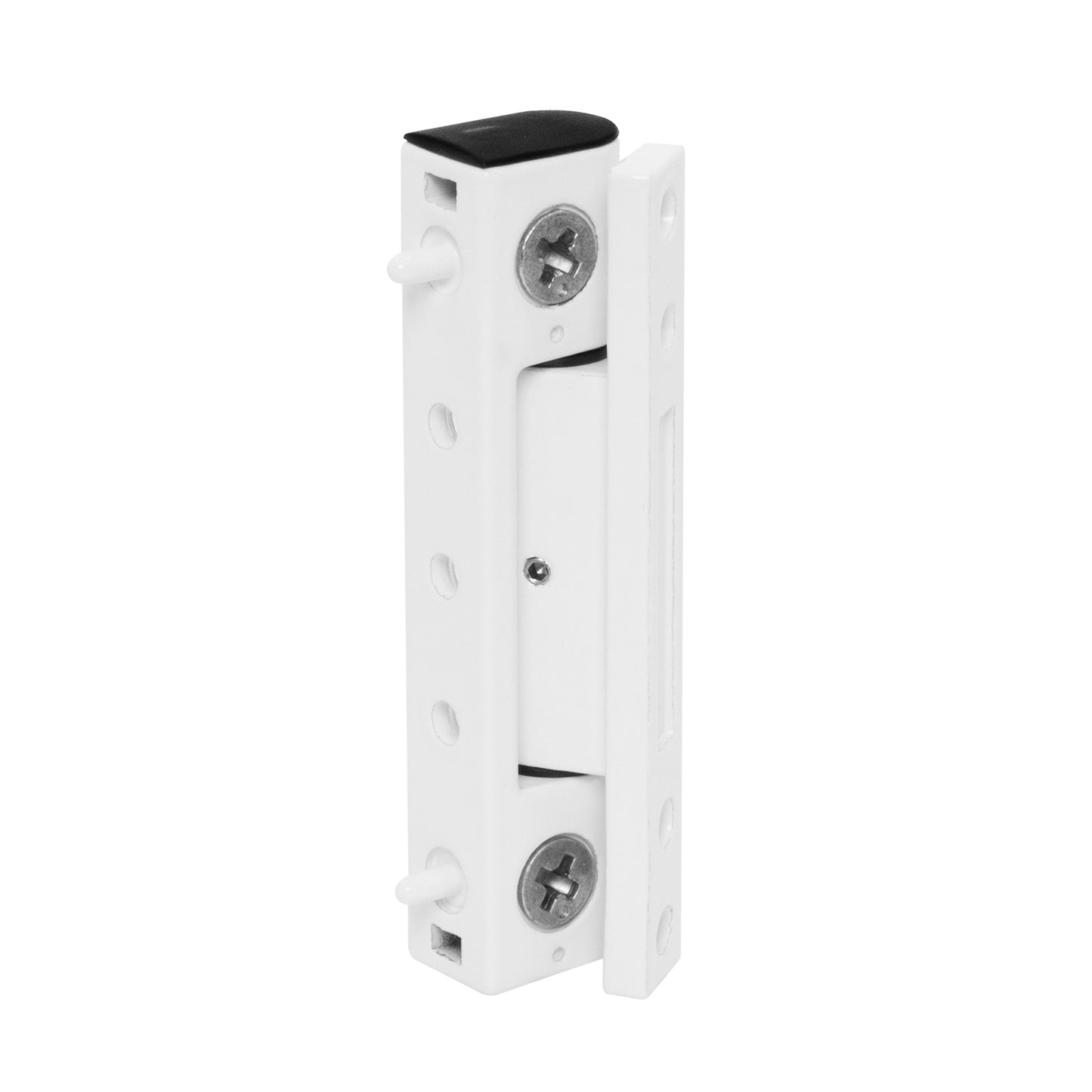

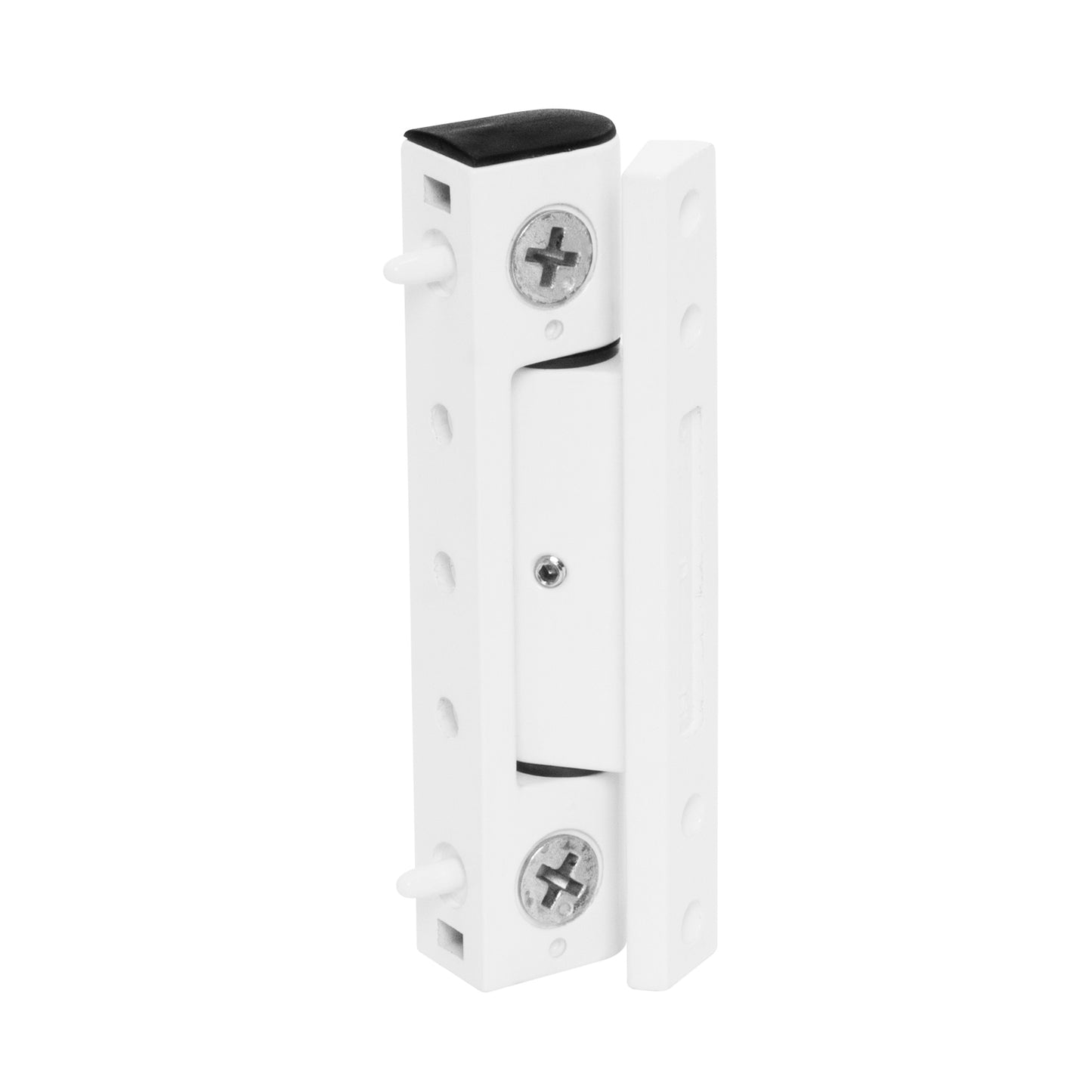

Edge profiles	0° Flat, 5°, 15°, and 45° (Rehau S706)

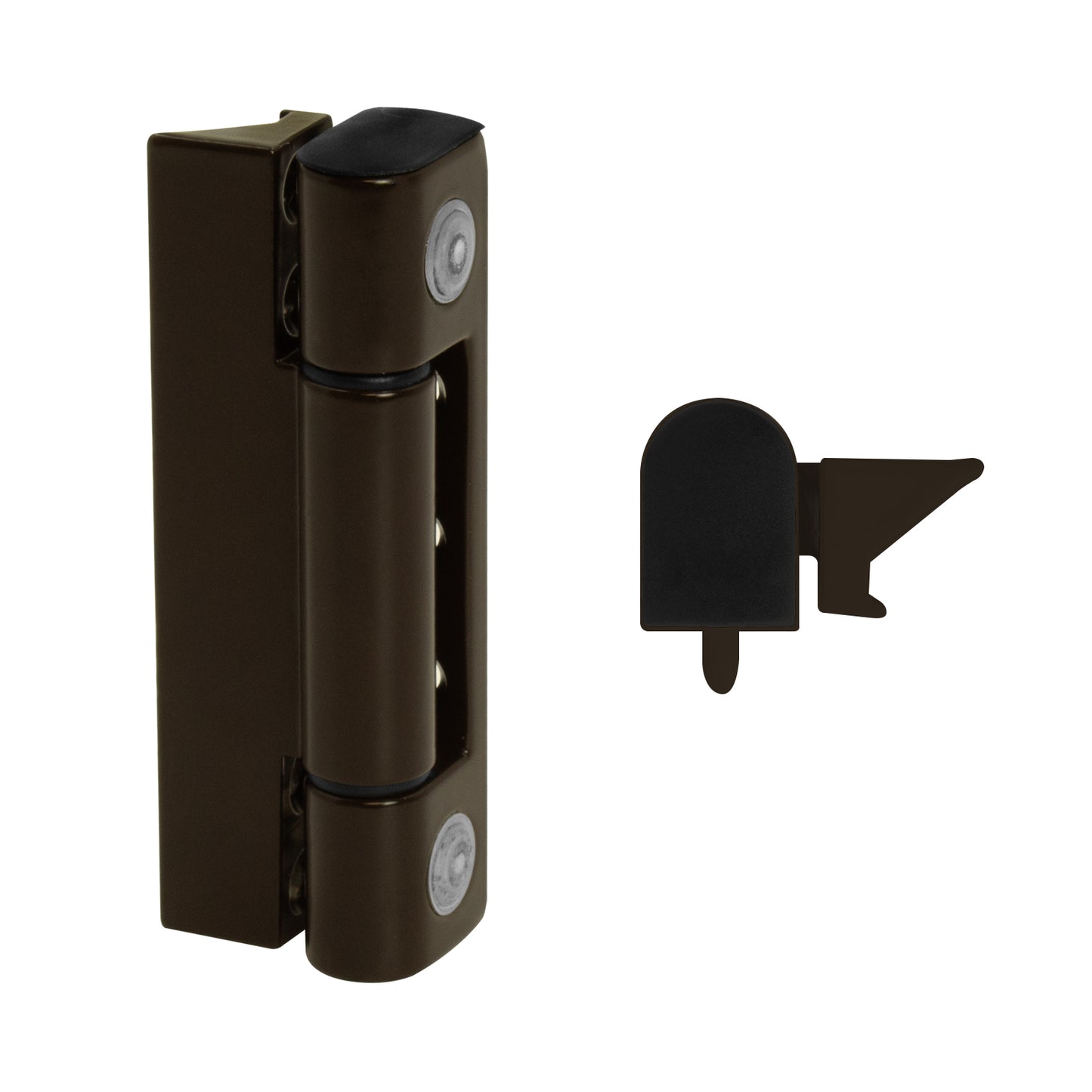

Finish and colour	Powder-coated in White, and Brown (45° only)
Horizontal adjustment	-2mm to +2mm
Weight capacity	80Kg per hinge
Quality standards	BS7352:1990, Class 8. Achieved over 175,000 cycles at 80Kg per hinge during endurance tests. BS1004 B components

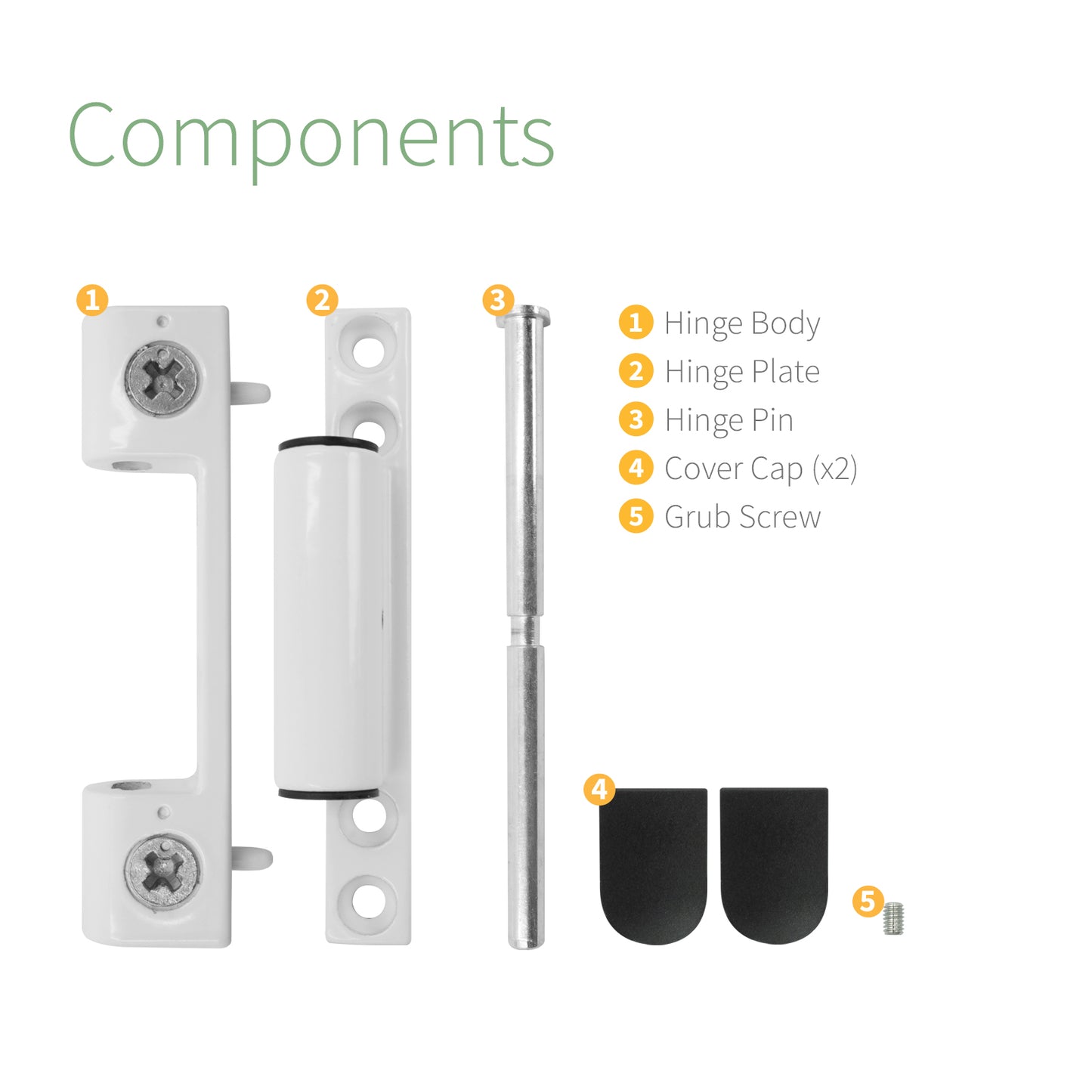

Contents

Fitting & Usage

Fitting the Yale Neon Butt Hinge

New butt hinges can only be fitted when the door has been removed from the frame.

Remove any hinge pin security screws that may prevent the pins form being removed. These are normally grub screws, which can usually be seen when the door is open at 90°.
Once the grub screws are removed, remove the push in covers to reveal the top of the hinge pins, and ease the pins out with a flat screwdriver, or similar.
The door can now be removed from the frame, to reveal hinge securing screws.
Loosen the securing screws to allow the original hinges to be removed, and the new ones fitted in their place.
Fit the new hinges, and the door to the frame, in the reverse order.

Please note that doors are heavy, so consider bear this in mind, and consider an extra pair of hands if necessary.

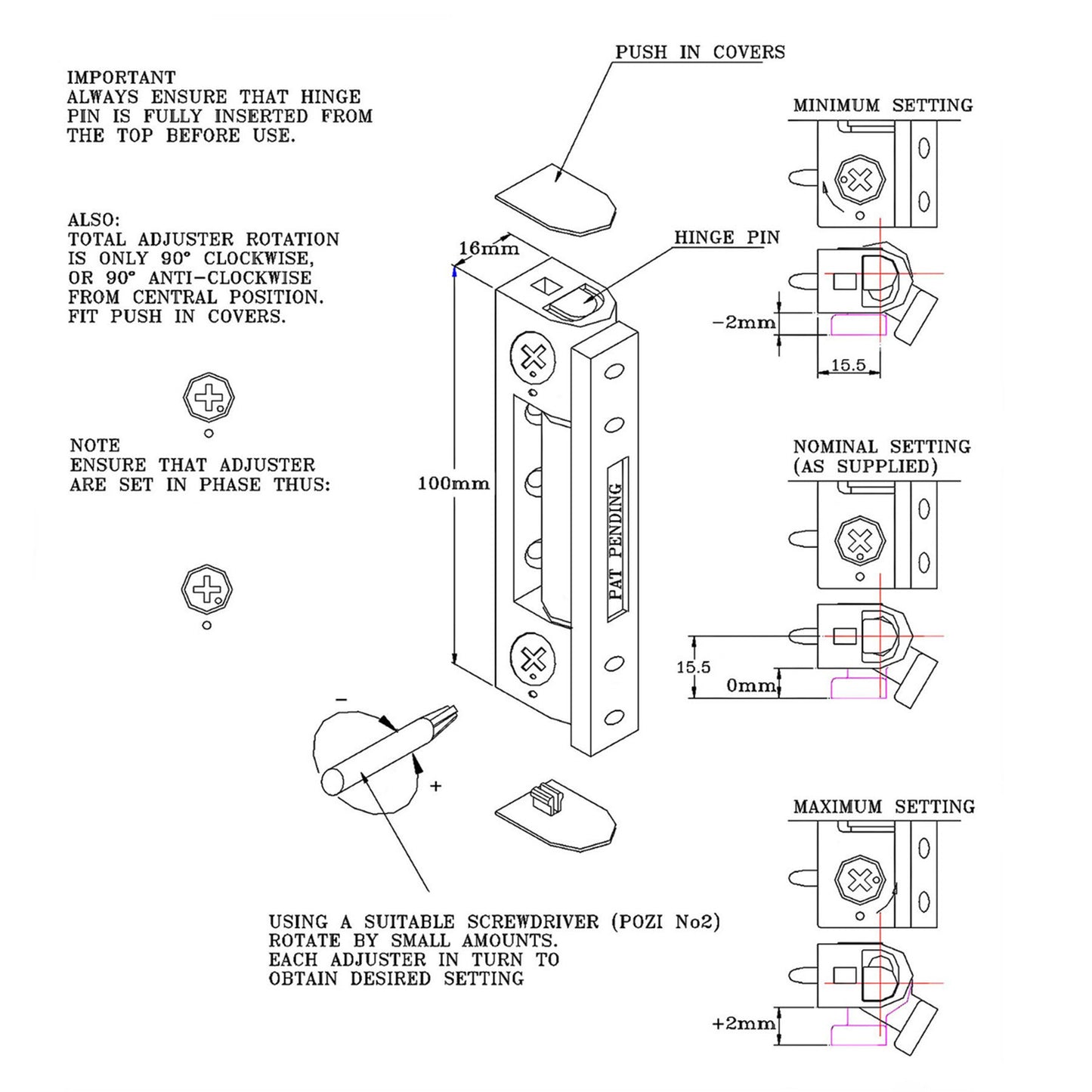

Lateral Adjustment of the Butt Hinge

The hinge allows horizontal adjustment of between -2mm to +2mm from it's central position. Adjustment of the door can usually be carried out whilst the door remains fitted.

Open door to 90° to expose the hinge pin security grub screw, and adjuster screws.
Loosen grub screw with 2mm Allen key.
Using Pozi No. 2 screwdriver, rotate adjuster screws up to 90° clockwise, and 90° anti-clockwise. Turn each adjuster screw incrementally, and ensure they are set to the same rotation.
Once the desired adjustment has been made, the security grub screw can again be re-tightened.
