| Measurement | Value | |
|---|---|---|
| 12" | 16" | |
| Hinge Length | 311mm | 413mm |
| Stack Height | 13mm or 17mm | |
| Min Vent Height | 300mm | 400mm |
| Max Vent Height | 600mm | 700mm |
| Max Vent Weight | 311mm | 413mm |
| Opening Angle | 80° | 90° |
| Material | Ferritic steel and Thermoplastic | |
| Guarantee | 10 years mechanical guarantee | |
| Certification | BS 9999 Fire safety in the design, management and use of buildings. BS8213-1 Design for safety in use and during cleaning of windows. BBA certification. Secured By Design approved. Compliant with Building Regulations approved document B1. | |
Yale Defender Egress Friction Hinge
Yale Defender Egress Friction Hinge
SKU: YAL-2127-1001
MPN:
EDSE12
Regular price
£11.32
Regular price
Sale price
£11.32
Unit price
per
Tax included.
Shipping calculated at checkout.
10+ in stock
Order before 1pm for same day despatch.
Order within
h
m
s
for Same Day Dispatch
Couldn't load pickup availability
Description
Yale Defender Egress Easy Clean from Yale
Safer, more secure, and easier to clean!

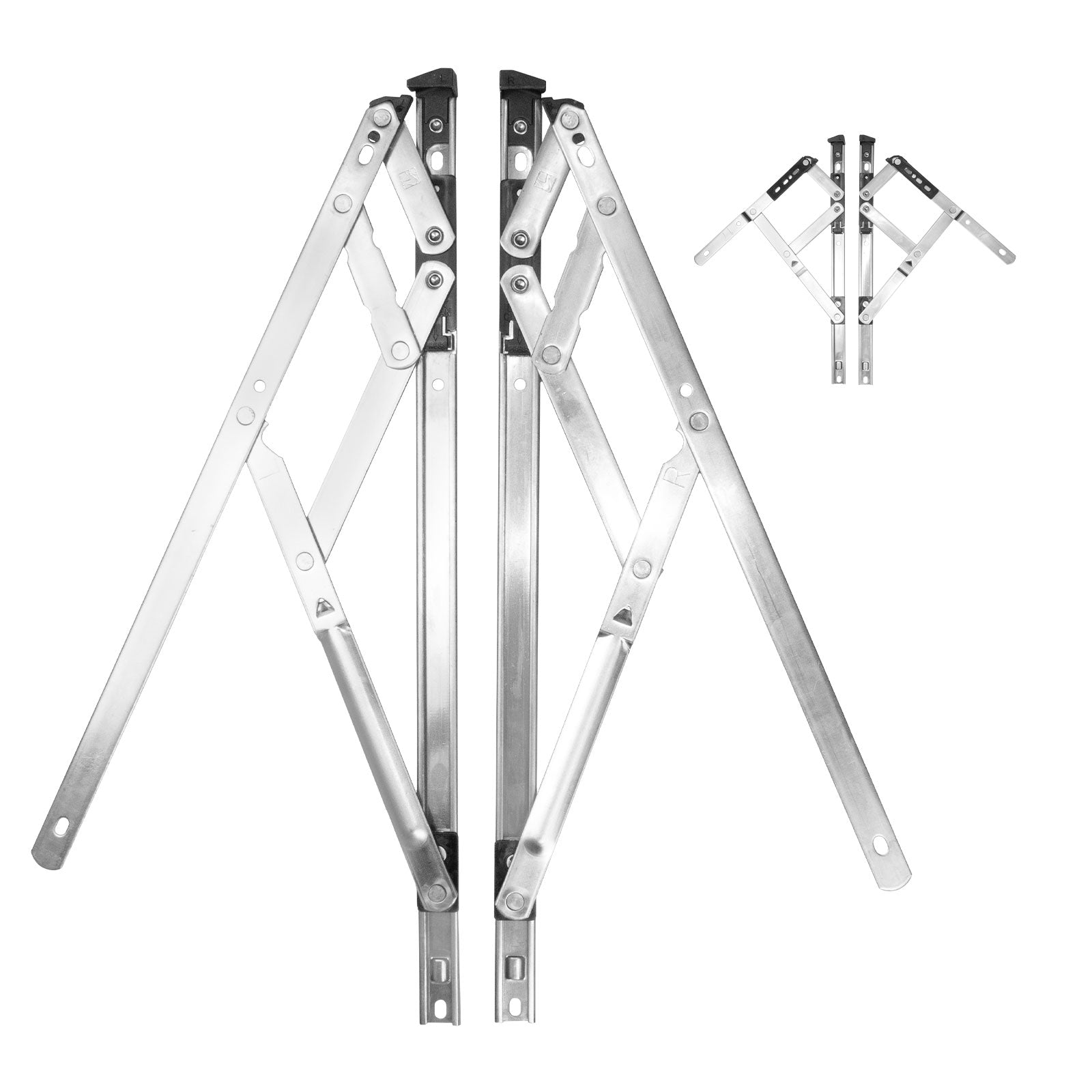

Pair of wide-opening stainless steel hinges with slide feature that also allows easy cleaning. Suitable for side-hung windows of uPVC, aluminium or wood.

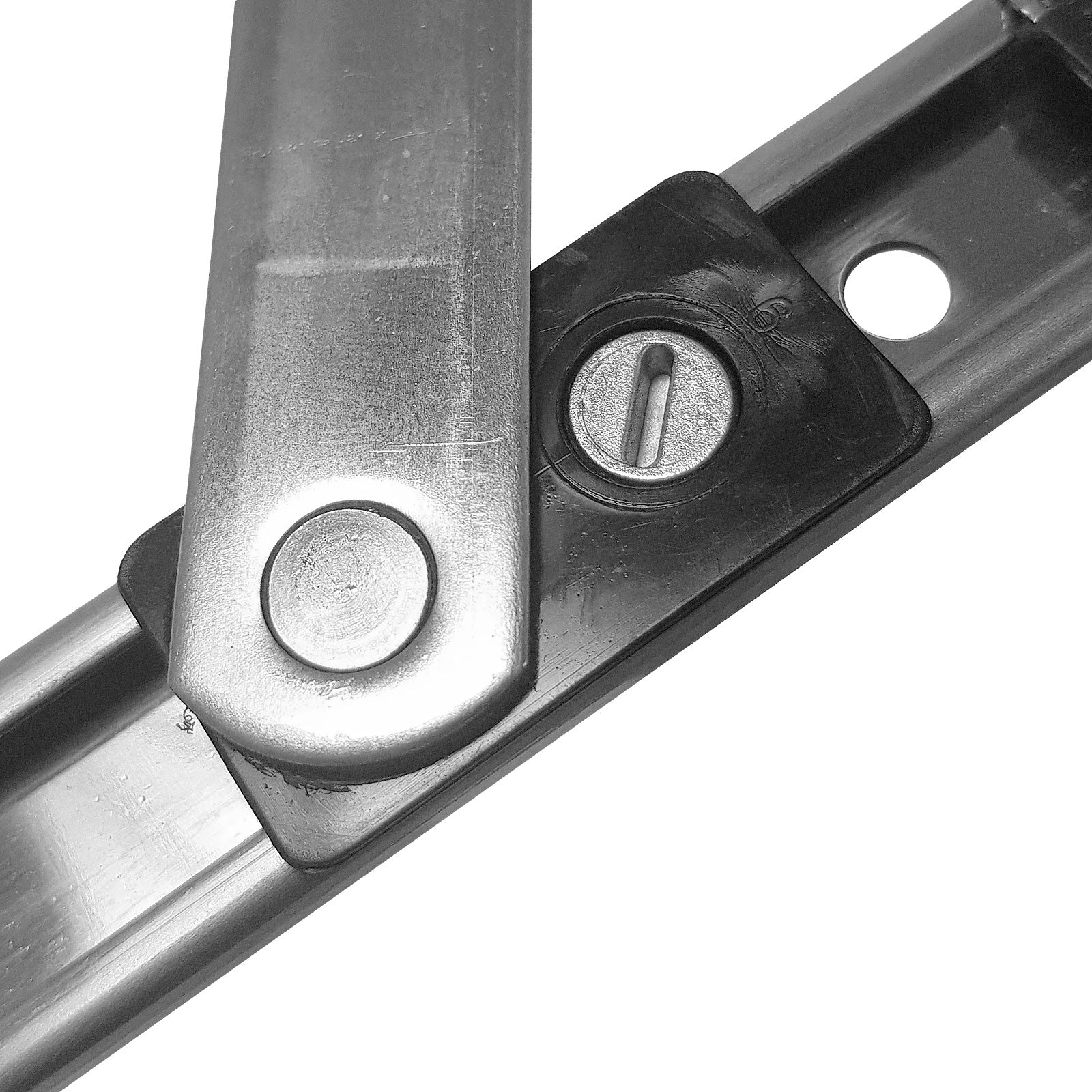

Friction hinges are designed to stay in any open position by means of friction, and these hinges feature a simple friction screw, which allows the friction to be adjusted, to make opening of the window easier, and accidental closing of the window in strong winds less likely.

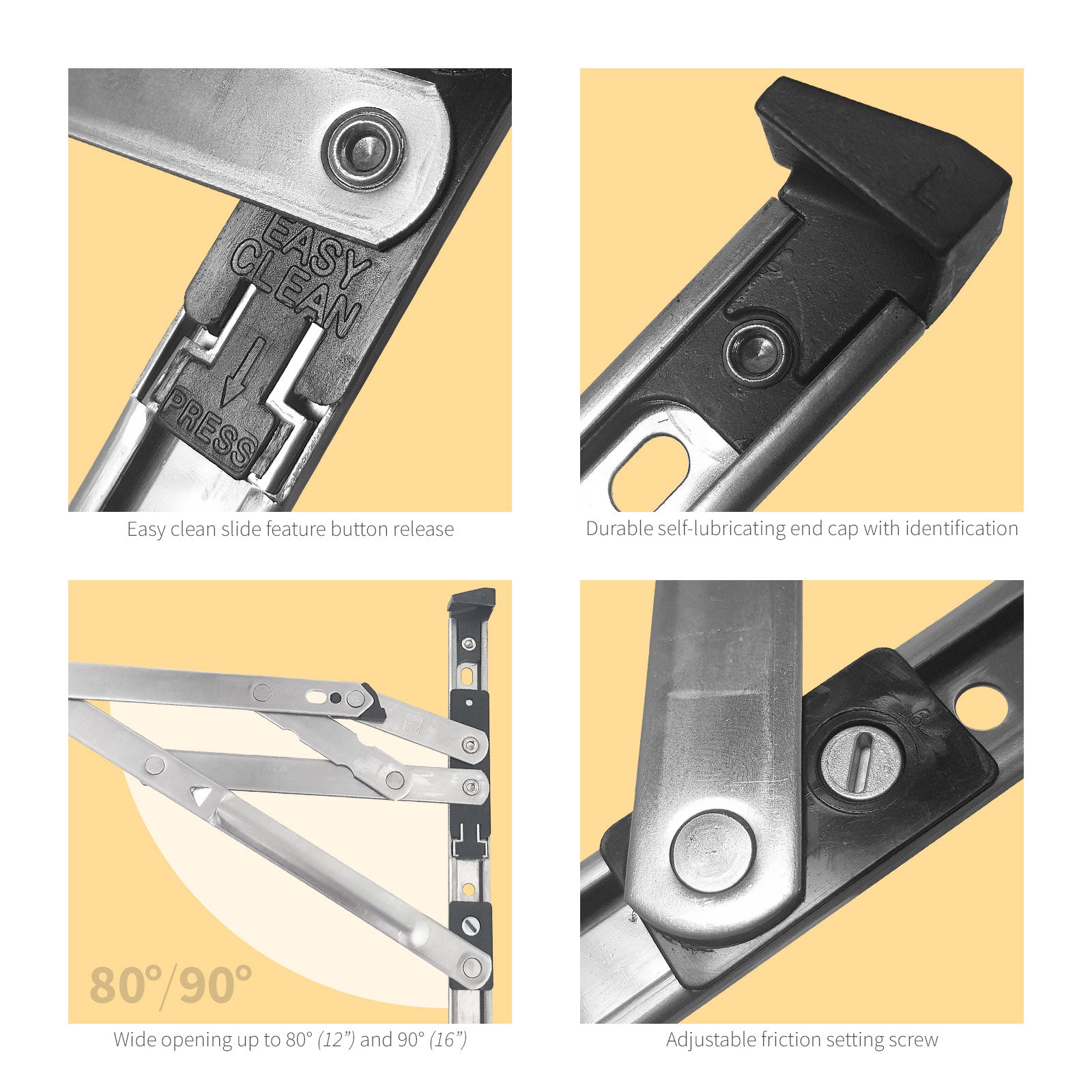

Features & Benefits
- Wide-opening for emergency exit

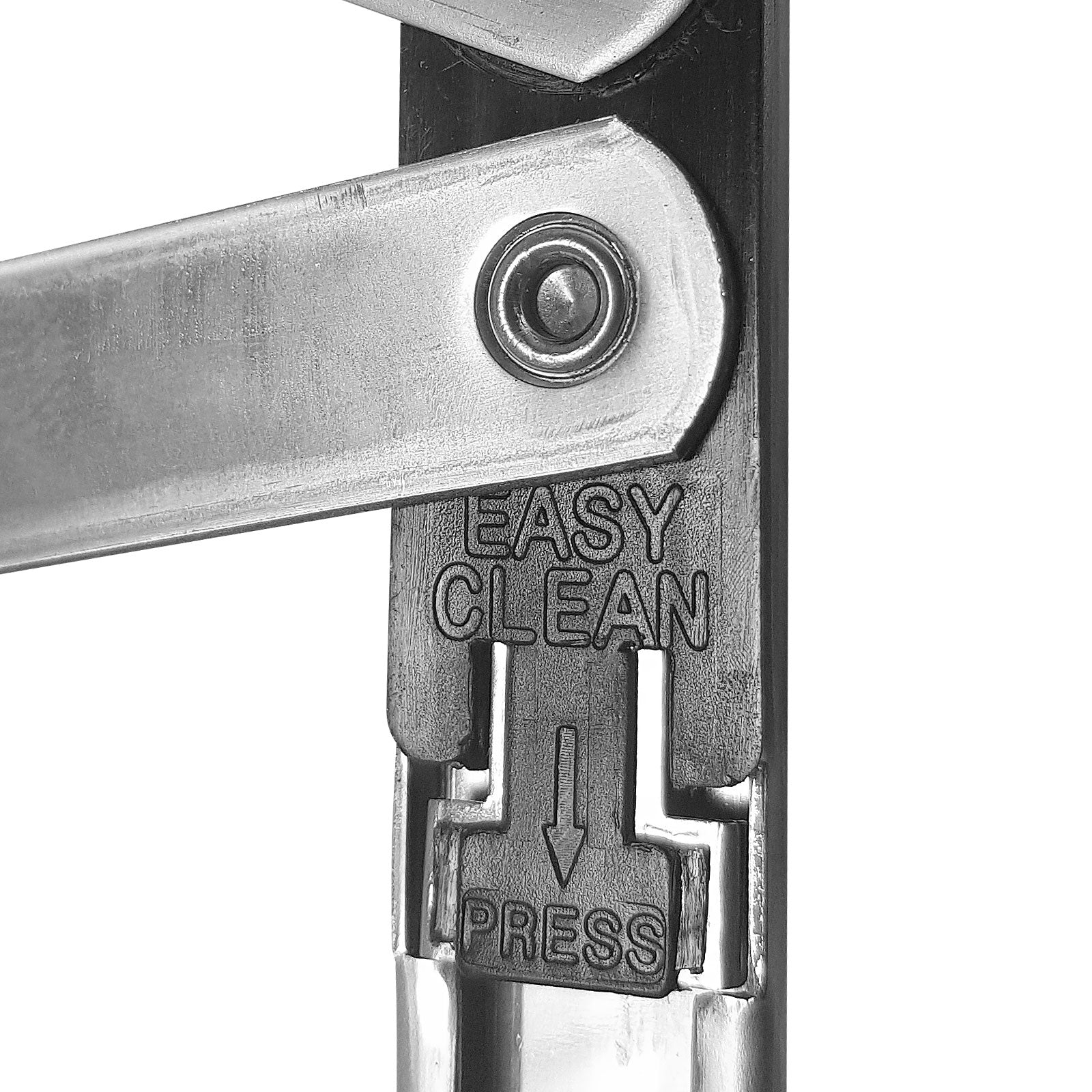

- Slide feature for easy cleaning from inside
- Adjustable friction setting
- Long life ferritic steel and thermoplastic
- Centre screw fixings reduces vent drops

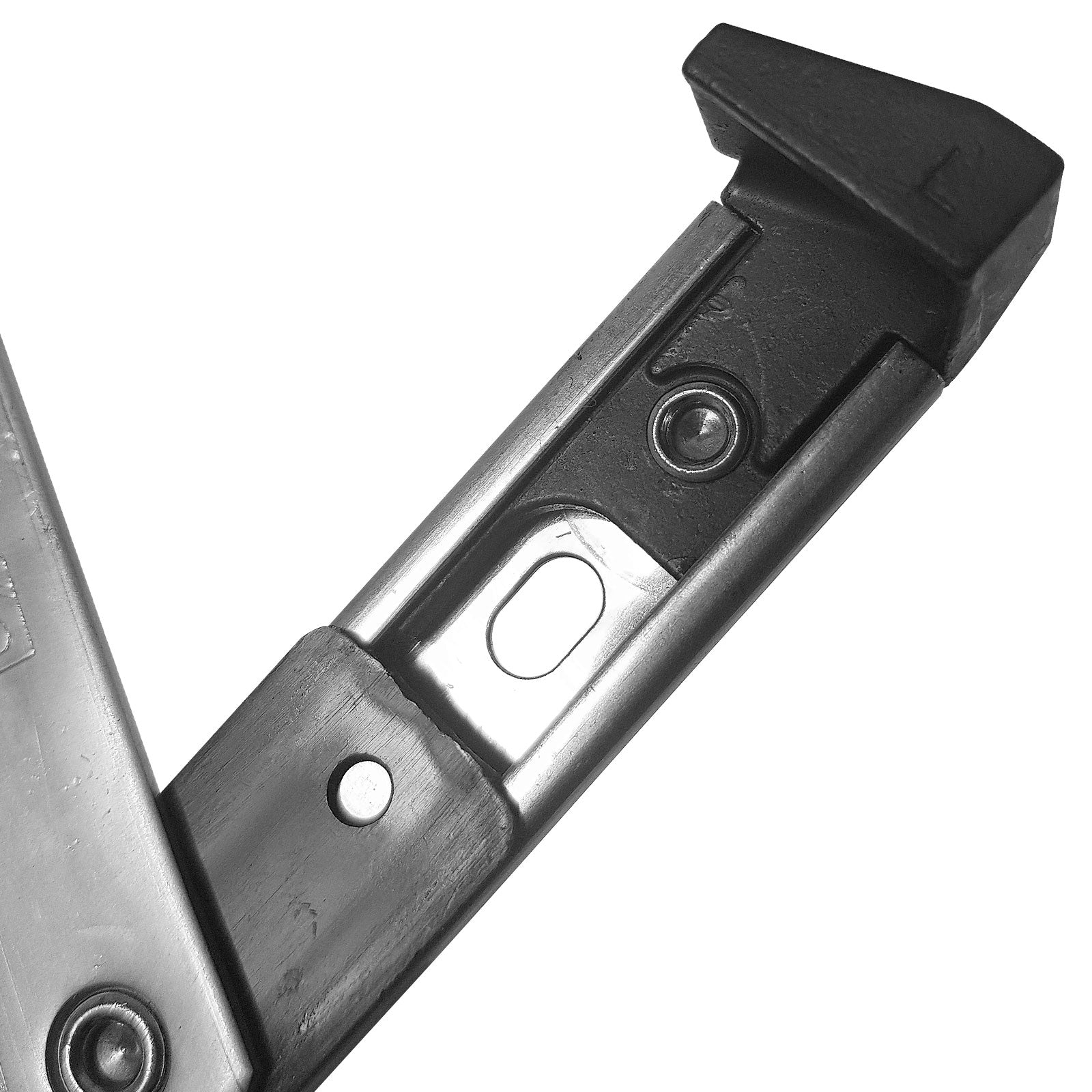

- Self-lubricating end cap for smooth operation
- High standard BS6375 Part 1 weather sealing
- Building regulations compliant
Tested to perform over 30,000 cycles and mechanically guaranteed for 10 years. The British Standard, BBA and Secured By Design approved Yale Defender Egress Easy Clean friction hinge is safe, secure and reliable.
The Defender Egress Easy Clean friction hinge is manufactured by Yale, one of the most respected and trusted home security brands.
DID YOU KNOW? Standard friction hinges allow opening to just 60°, which may not provide adequate space for escape in an emergency situation. However, this 12” hinge allows opening to 80° and the 16” hinge up to 90°.
Egress hinges like these are typically required for bedrooms on the first floor of a house. Building regulations approved document B1 requires that the casement should provide a minimum clear opening of 450mm x 734mm at a maximum sill height of 1.1m, with an unobstructed area that is at least 0.33m². Our 16" Yale Defender Egress Easy Clean friction hinge will provide that opening.
