greenteQ Centrefold Bifold Door Handle

greenteQ Centrefold Bifold Door Handle

SKU: VBH-2185-1004
MPN: 4QBF0068A

£10.54

Sale Sold out

Tax included. Shipping calculated at checkout.

Order within

h m s

for Same Day Dispatch

Quantity

View full details

Description

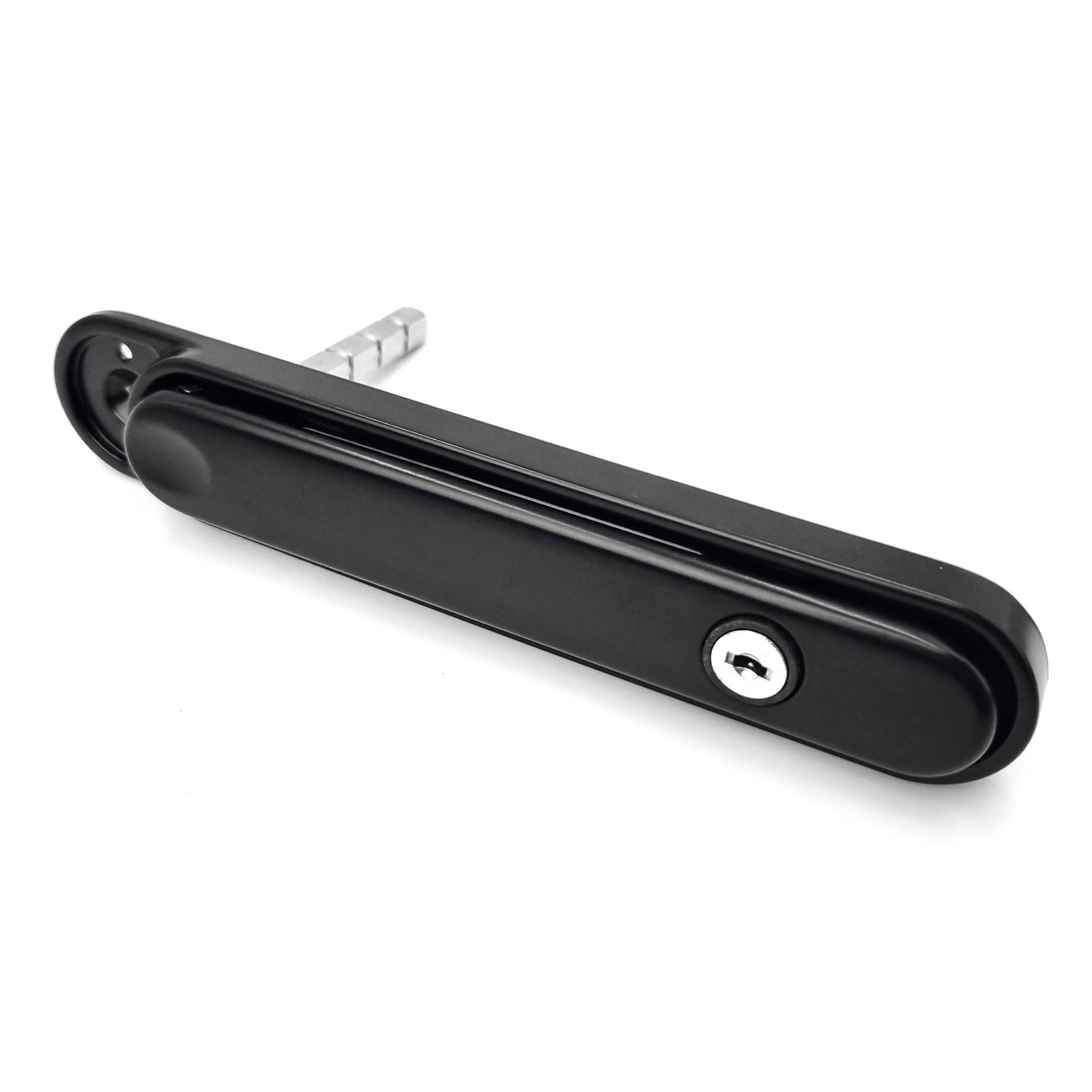

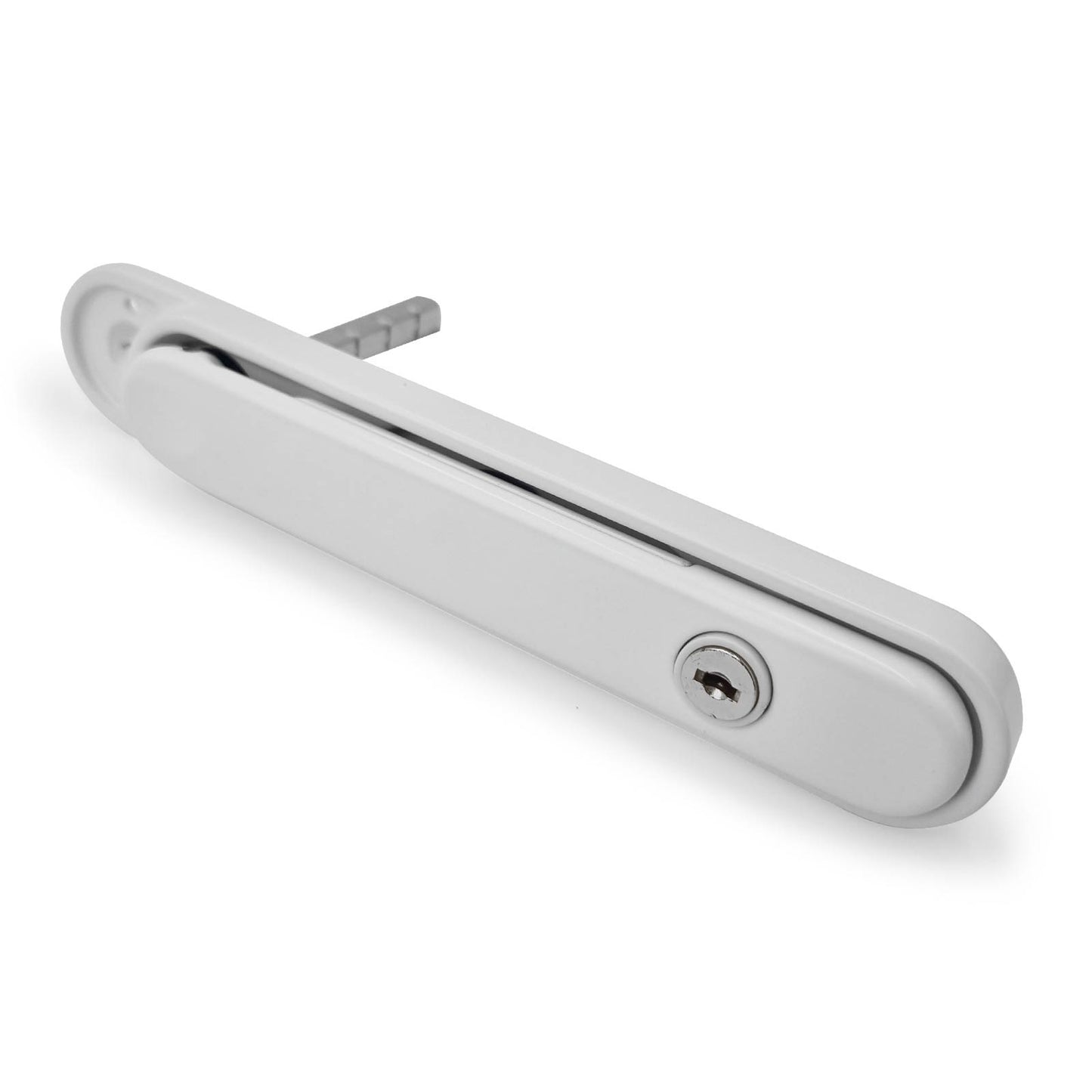

Clearline CentreFold Intermediate Bifold Door Handle

Name: greenteQ Centrefold Bifold Door Handle
Brand: greenteQ
SKU: VBH-2185-1004
Price: 10.54 GBP
Availability: InStock

(Choice of colour and pack size)

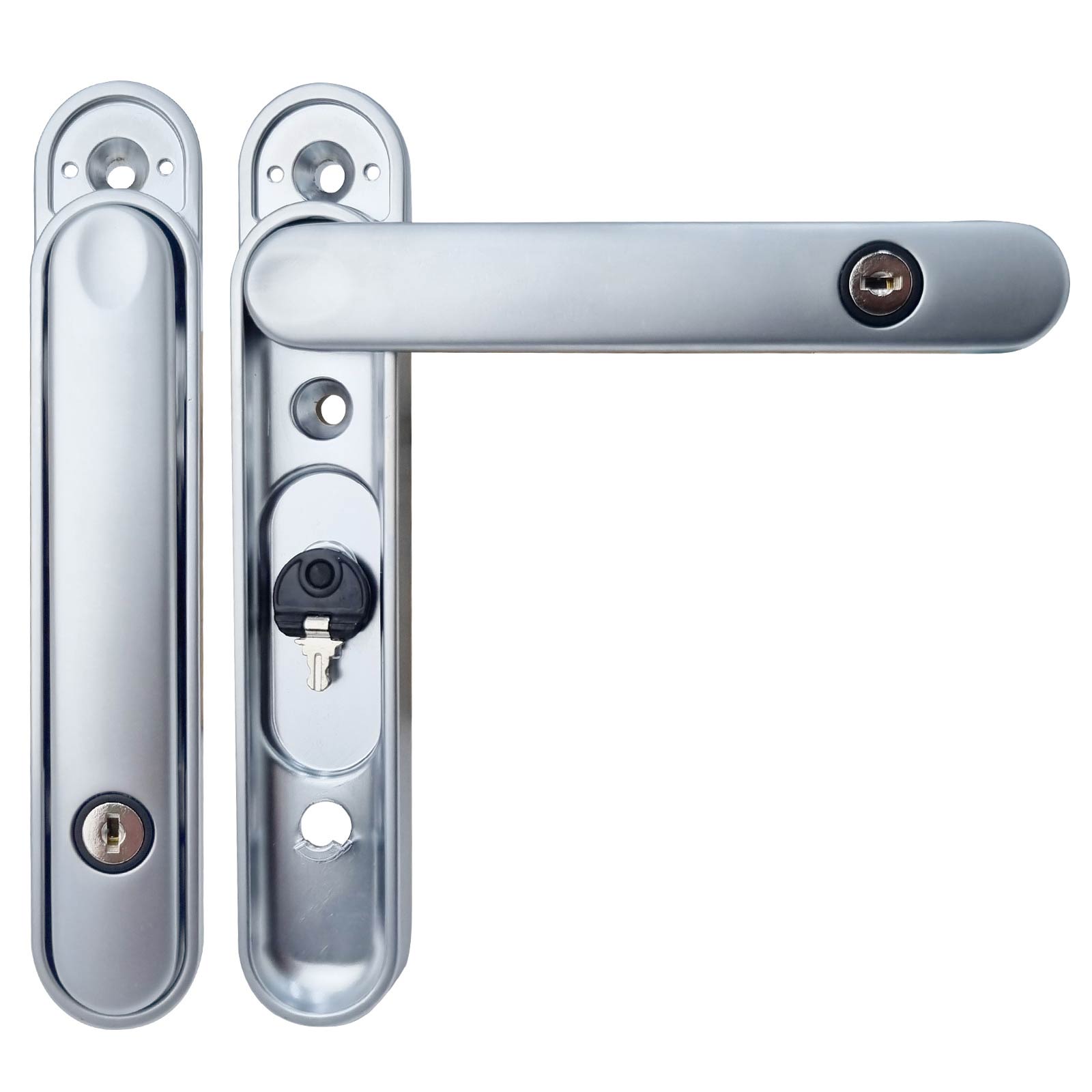

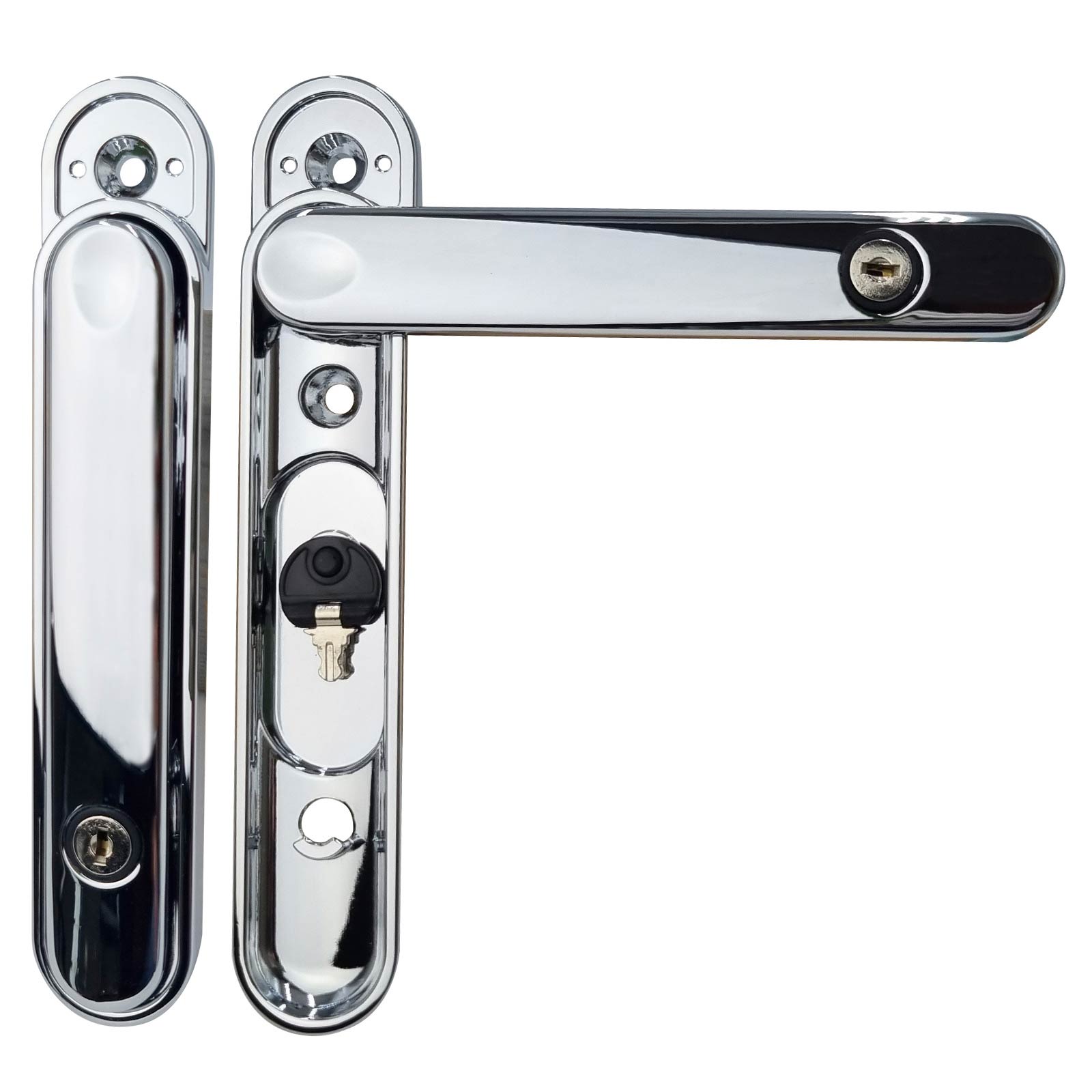

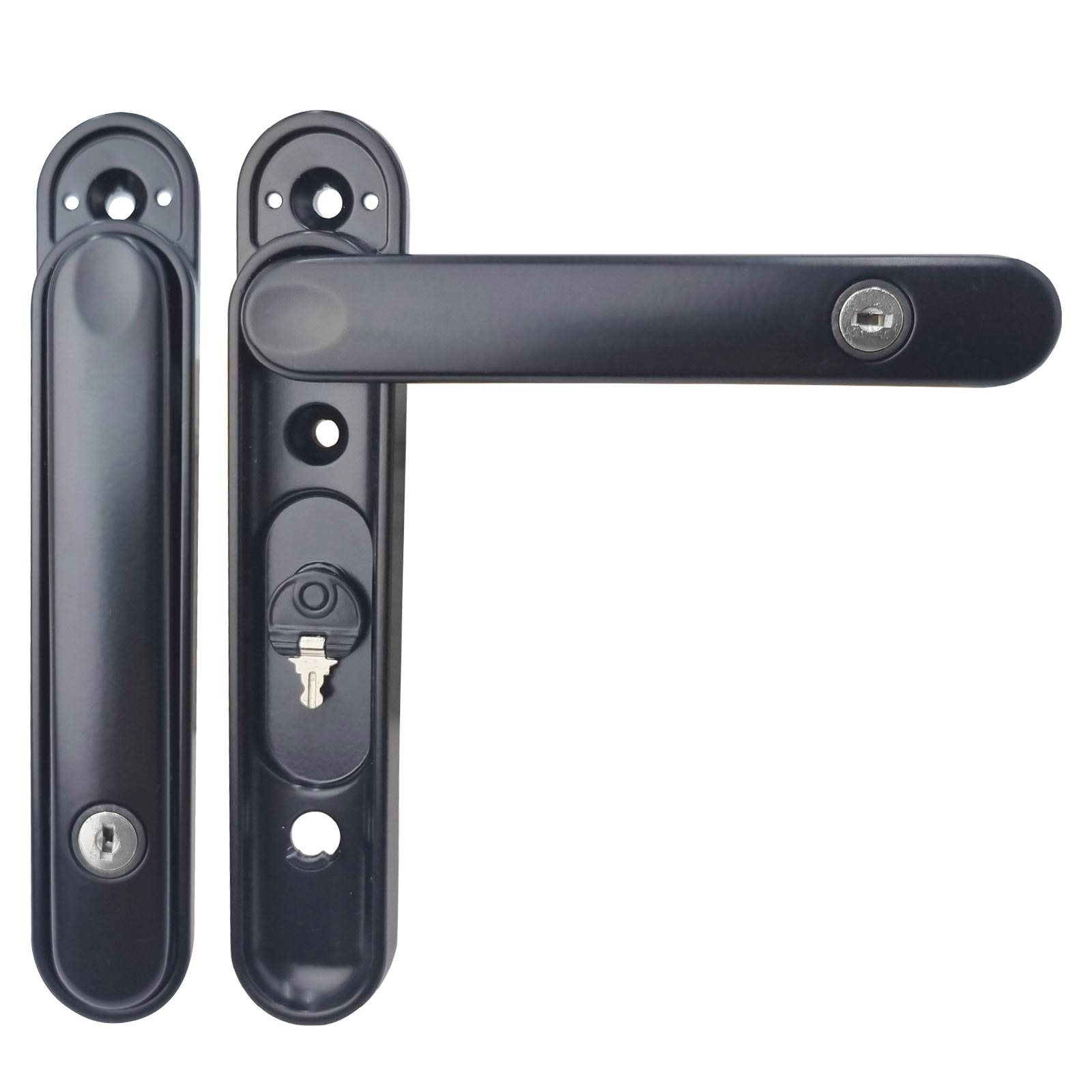

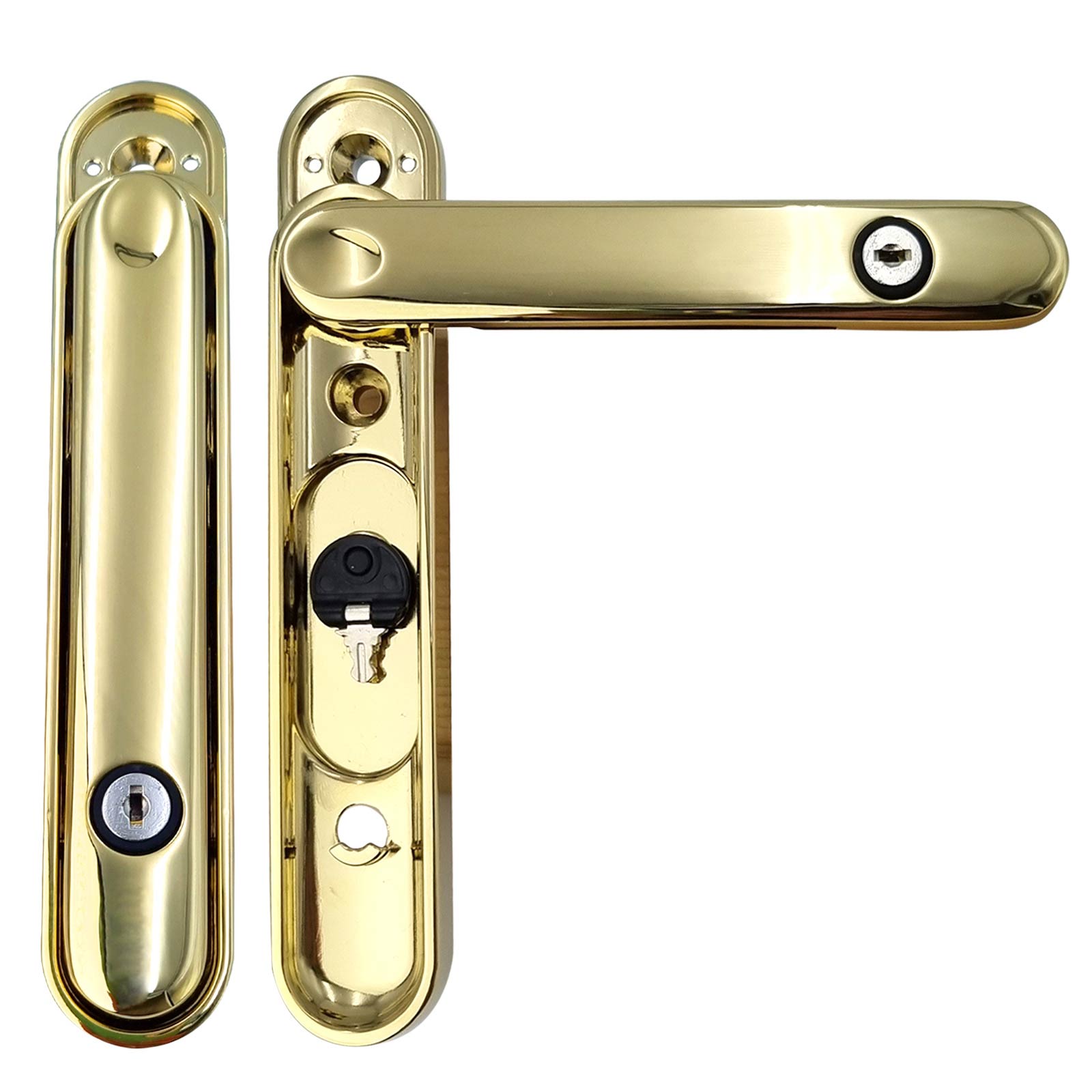

Fold down lever gives neat flush finish!

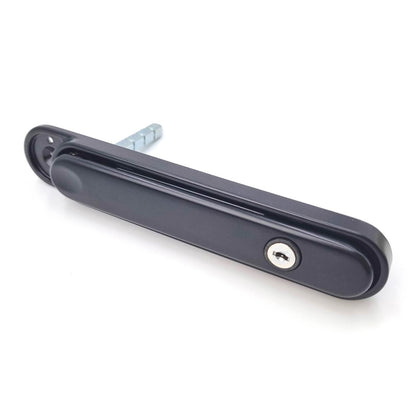

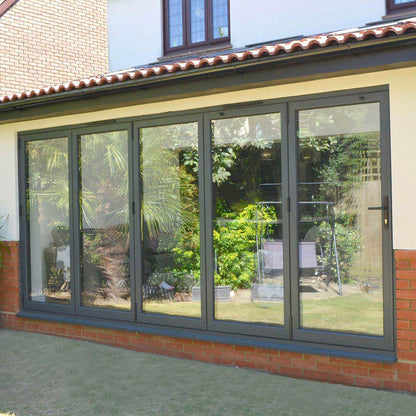

Strong and stylish low profile handle with durable finish for intermediate panels of aluminium Bi-fold doors. Features a neat fold down lever that conceals discreet key storage, and allows open doors to stack tightly, to maximise the open space.

Manufactured from strong die-cast zinc, with durable powder-coating, anodised, or PVD polished finishes, with a 10 year mechanical and surface guarantee.

Features & Benefits

Flush fit design - protrudes just 15mm from door
Key lockable - store key inside handle
Strong and dependable - die-cast zinc and steel
Choice of colour and finish - match your door or decor
Maximised opening - allows tight opening of doors
Easy installation - can be fitted in minutes
Fixings included - supplied with screws, cover cap and template
10 year guarantee - a product you can trust

DID YOU KNOW? The steel drive spindle and screws can accommodate a wide range of door thicknesses, and are manufactured with cut marks to guide you, should you need to reduce the length for narrower doors.

Specification

Measurement	Value
Compatibility	Designed for Clearspan Intermediate door lock on AluK and Smarts aluminium bi-fold doors. For compatibility with other systems, please check spindle and fixing screw centres.
Material	Die-cast zinc (handle and lever), Stainless Steel (spindle and screws)

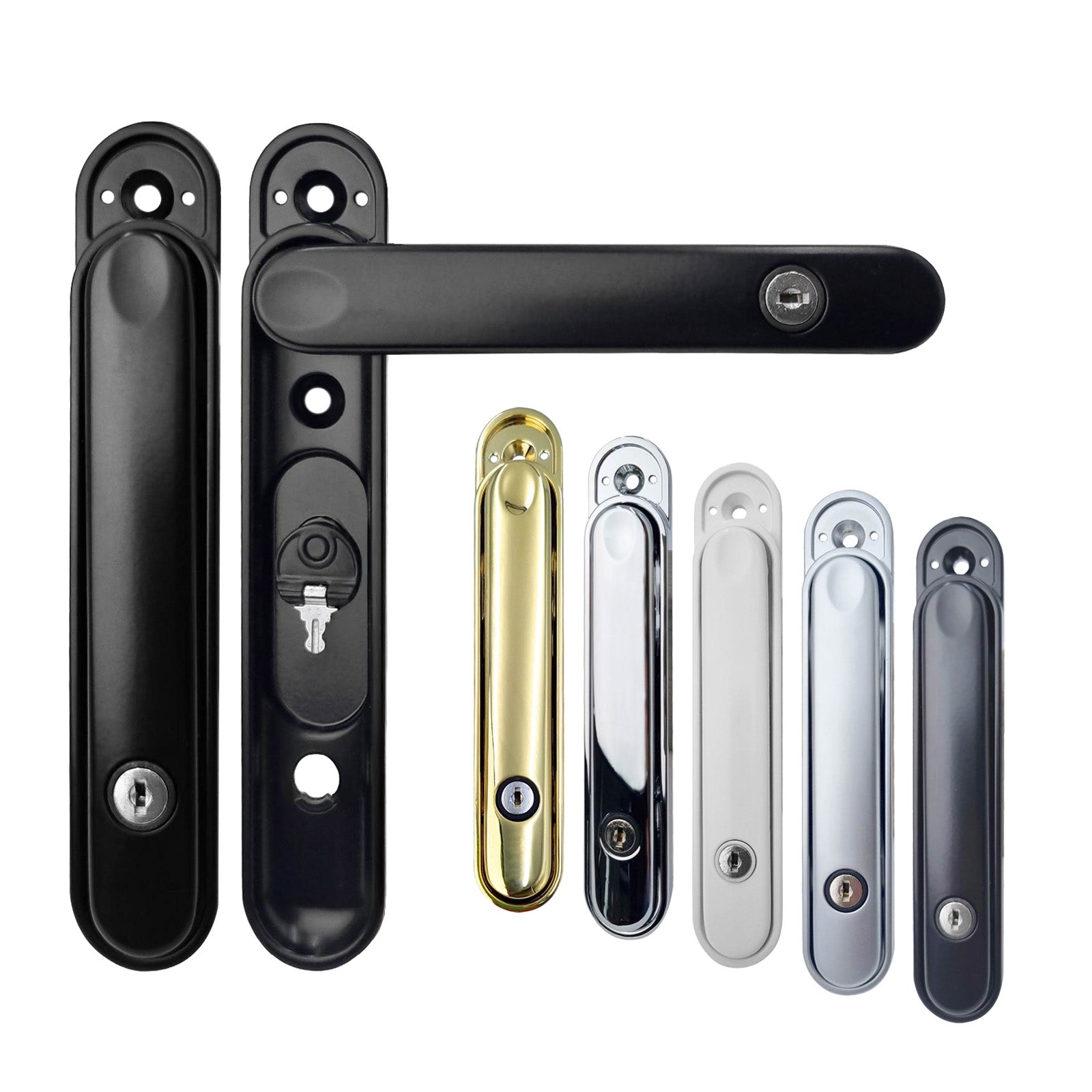

Colour	White, Black, Anthracite Grey, Chrome (Satin), Chrome (Polished), Gold (Polished)

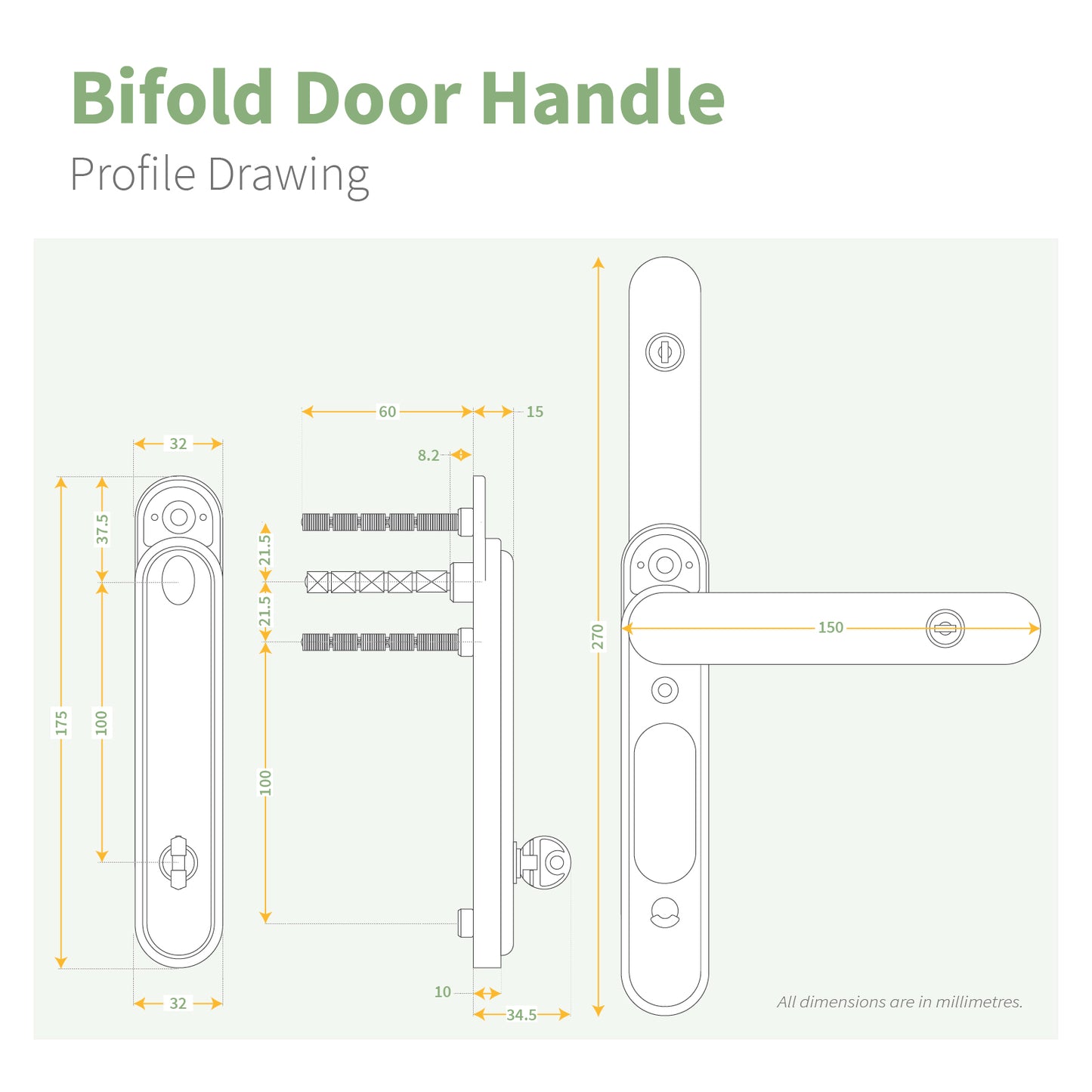

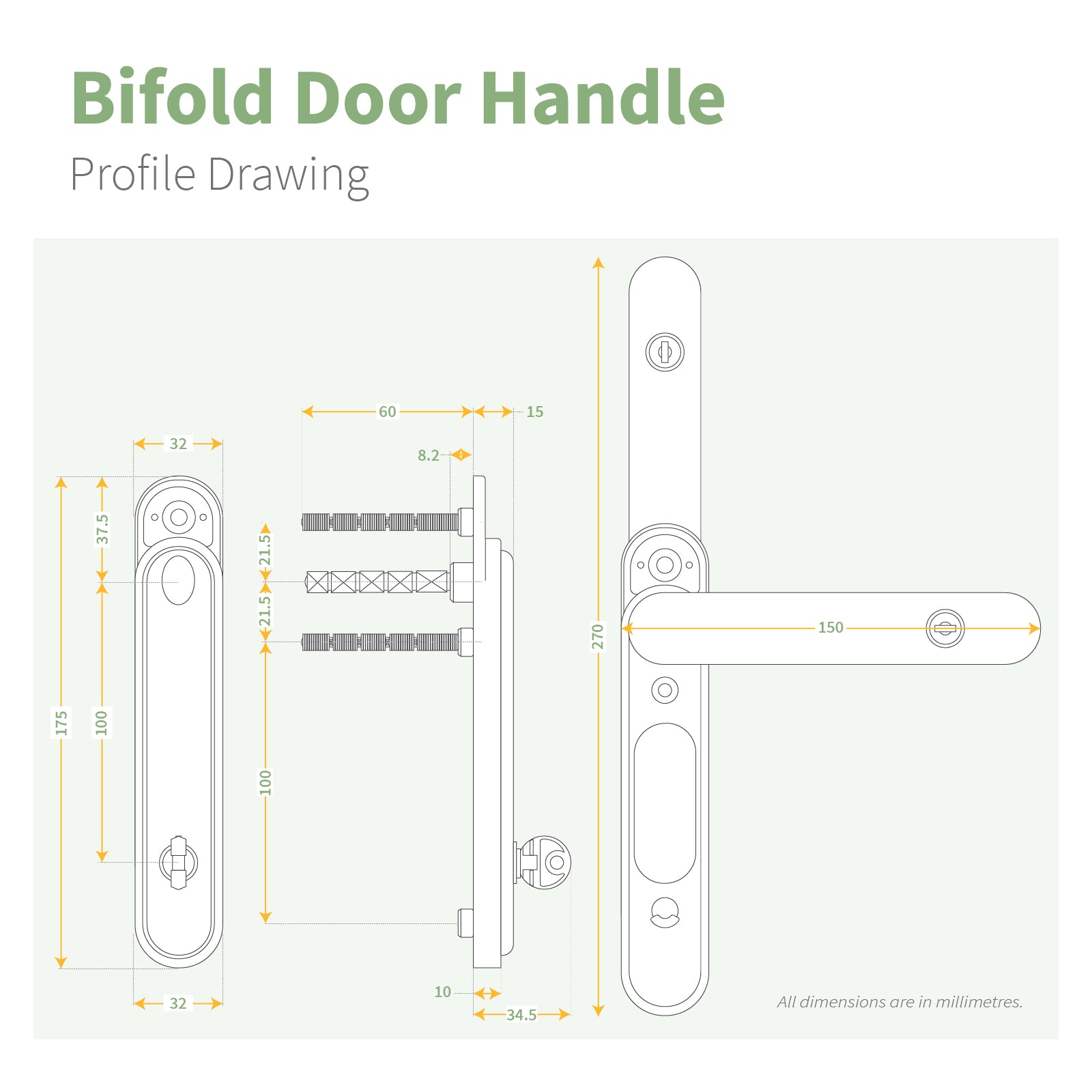

Handle Size (height x width x depth)	175mm x 32mm x 15mm
Fixing Space	43mm
Guarantee	10 Years (Mechanical and Surface)

Contents

Fitting & Usage

Fitting the Clearline CentreFold Handle

Fitting is quick and easy, when fitting as a replacement handle to existing bi-fold doors with compatible locking system. Firstly, remove the existing handle by opening the lever, and removing it’s two fixing screws. You may need to first remove any screw cover caps to reveal the screw head. The handle can then be pulled out, which will reveal the holes for spindle and fixings.

Open your new handle to reveal screw ports and insert the spindle into the spindle hole. If the spindle appears two long for the door thickness, it, and the fixings screws can be cut down. Once in place with the backplate against the door, secure with two fixing screws, and fit the screw cover cap over the top fixing screw.

Using the Intermediate Bi-fold Door Handle

The handle which folds down flat onto the backplate is easy to operate. Simply press the top of the lever to pop it out, turn the lever to activate the mechanism and draw in or out the locking shootbolts. The handle can be pushed back down when not in use.

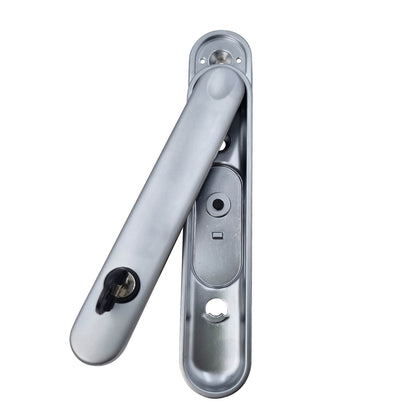

The backplate has a recess under the lever, which can be used to discreetly house the key when not in use.
