Decking Fixings

Decking Fixings

SKU: ESU-2119-1001
MPN: EC-PECLIP

£0.50

Sale Sold out

Tax included. Shipping calculated at checkout.

10+ in stock

Normally despatched in 1 day.

Quantity

View full details

Description

Composite Decking Hidden Fixings

Name: Decking Fixings
Brand: Ecoscape UK
SKU: ESU-2119-1001
Price: 0.5 GBP
Availability: InStock

(Choice of clip type available)

Secures boards without being seen!

Secures composite hollow decking to joists quickly and discreetly, with no unsightly and weathering prone screws on the face of the boards.

Fixings include the stainless steel Starter Clip, for securing the first deck board, and the plastic Hidden T-Clip, which is used to fix side-by-side boards. Both clip types should be fitted to every joist and come supplied with screw.

Features & Benefits

Improves deck appearance - fixings are unseen
Longer lasting fixing - won’t rust and become weak
Long-life material - durable plastic and stainless steel
More serviceable - boards unmarked and easily moved
Complete fixing - clips supplied with fixing screws

Part of our Composite Hollow Decking range, which is made using homogenous wood polymer, so more durable than timber, with high resistance to damage. Constructed from ethically sourced, traceable recycled wood from timber mills and recycled plastic polymer.

Specification

Measurement	Value
Material	Stainless steel clip and screw	Plastic clip and painted stainless steel screw
Usage	Secures first Hollow Board plank and Step/Edge Nosing	Secures Hollow Boards at joists
Requirement	Starter Clips: Each starter board and end board requires 12 x Starter Clips, one clip per joist, if using the maximum 350mm centres. T-Clips: First run starter boards do not need T-Clips, but all other boards require 12 x T-Clips, one per joist if using the maximum 350mm centres.

Fitting & Usage

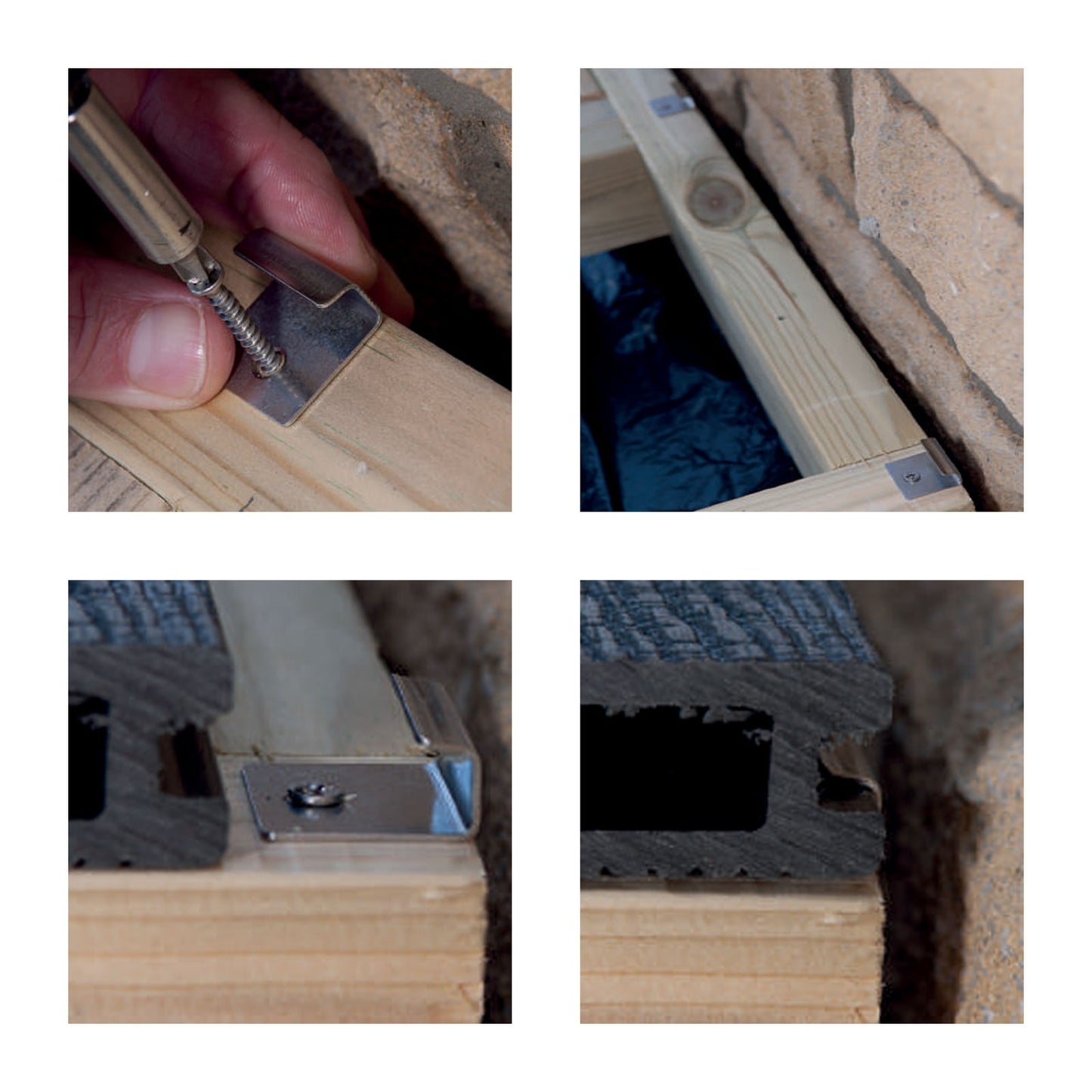

Fitting the Starter Clip

The stainless steel Starter Clip is used where the deck meets a house wall, to ensure that the wall edge of the board is secure, without fixing through the face. Just screw a clip 10mm away from the wall, in line with every joist. Then slide the first board to the clip, causing the return of the Starter Clip to locate into the groove that runs along the edge of the board. The Starter Clip can also be used to secure the last hollow decking board, or solid Step/Edge Nosing, to the perimeter of a deck.

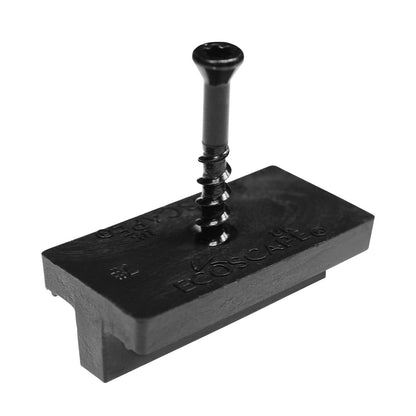

Fitting the Hidden T-Clips

These tough plastic T-shaped clips are designed to fit between decking boards, with the T locating into the groove along the edge of the boards. Once the first board is laid into Starter Clips, position and loosely screw a T-Clip to each joist along the opposite edge, then fit the next board before tightening.

The following describes key installation points. Be sure to refer to the comprehensive installation guide when ordering, and when fitting.

Subframe and Joists

Can be fitted to timber, aluminium or composite subframe
Slope subframe at 10mm per metre towards drainage, to discourage free-standing water
Use maximum joist centres of 350mm, or 25mm if installing boards diagonally
Double the joists where board ends meet
Allow 150mm air-gap below the deck

Laying Decking Boards

Provide expansion gaps to allow proper drainage and ventilation
Gap between wall and first decking board should be 10mm
Side-to-side and end-to-end gaps should be 3-7mm
Side-to-object and end-to-object gaps should be at least 5mm
Starter Clips should be used to secure sides of board at edge of subframe on every joist Hidden T-Clips are loosely screwed every joist along the board and tightened when next board is inserted
Deck edges can be finished using Hollow Deck Boards with Edge Trim, or the Step/Edge Nosing

Maintenance

Do not clean with chemical products, a garden hose is usually sufficient
If pressure washing, use 80 bar max, 40°C max and head at least 30cm from surface

Delivery

SHIPPING

We endeavour to despatch most orders placed within 1 working day, where possible we will despatch orders on the same working day if payment is received before 1.00pm. Accurate despatch times can be found on individual product pages.

Most orders (those being stock items below 1.2m in length) will be despatched same day when ordered before 1pm, and received the following delivery day. We deliver items of that size from Monday to Saturday. Stock items over 1.2m are sent using a two-day carrier, who do not deliver on a weekend.

Due to the size and nature of some bespoke, and non-stock products, we offer restricted delivery options. Delivery options can be selected at the checkout page before payment Is made.

DELIVERY AND RETURNS

Any dates quoted for delivery of the goods are approximate only and Truly PVC shall not be liable for any direct, indirect or consequential loss suffered by the customer arising from any delay in the delivery of the goods.

All deliveries must be received, and where appropriate, signed for, by a person over the age of 18 years old.

Delivery shall take place and risk shall pass to you upon the earliest of the following:

- goods are handed over to the customer or its agent at the Company’s premises, or
- the goods leave the premises of Truly PVC, or
- on the 7th day following notification to the customer that the goods are ready for despatch.

Customers should notify us within 7 days of the date of the invoice for any alleged defect damage, failure to comply with description, delivery failure or discrepancy or any missing items, components or products. If you fail to comply with these provisions, the goods shall be conclusively presumed to be in accordance with the Contract and free from any defect or damage, and you will be deemed to have accepted the goods.

Customers will also be responsible for obtaining all necessary licences and permissions for the import of the goods into the country of destination.

Long Lengths (over 1.2m)

For any product over 1.2m in length we cannot guarantee a ‘Next Day’ delivery service. Products over 1.2m have to be manually handled in some Depots and this can often add 1 – 2 days to the delivery time.

DELIVERY PROHIBITIONS

If your order is for an aerosol item, is over 1 metre in length, and you live in a remote location such as the Scottish Highlands, offshore islands or Northern Ireland, we may not be able to fulfil your order or have to add a levy surcharge to cover the extra delivery costs to these areas.

Should this be the case, we will contact you with the option of either paying the surcharge or cancelling the order. Remote postcodes include AB30-AB38, AB40-AB56, BT, FK17-FK21, G83, GY, HS, IM, IV, JE, KA27-KA28, KW, PA20-PA99, PH, TR21-TR25, ZE.

COLLECTION (from our Warehouse)

To collect your order from our Warehouse, simply choose 'Collect in Person' as the Shipping Method. We shall call you if there is a problem preparing the order, so be sure to provide a contact telephone number when ordering. Stock items are usually available for collection 1 business day from order being placed. To enquire about early collection or non-stock items like polycarbonate, please call 0161 339 4982.

Our Warehouse, which is located at the following address, is open for collection between 8:30am and 4:30pm Monday-Friday, 8:30am to 12:30pm on Saturdays, and 8:30am to 4:30pm on Sundays.

Unit 2, 34 Wood Street
Openshaw
Manchester
M11 2FB

*Bespoke items may take 1-2 working days to prepare for collection, with non-stock items, such glazing bars and roof sheets taking longer. Please enquire before making your journey to collect.

Reviews

How many boards and clips do you need?

Based on a sub-frame with maximum joist centres of 350mm, the following can be used as a guide.

2 x Hollow Boards per sq mtrs.
12 x T-Clips per board to secure to joists.
12 x Starter Clips per starter and end board to secure outside edge to frame.

Working out quantities

Multiply length and width of area to be decked to get the square meterage, then divide by 2 to get the number of boards needed.

Example Deck Area (5.5m length x 3m width)
Area is 16.5 m2 (5.5 x 3) and Boards Per Run is 1.5 (5.5 ÷ 3.66 (Board Length)).
Boards = 33 - Area x Boards Per m2 (16.5 x 2)
T-Clips = 377 - Boards - Boards Per Run) x T-Clips Per Board (33 - 1.5 x 12)
Starter Clips = 37 - (Boards Per Run x Starter Clips Per Board) x 2 ((1.5 x 12) x 2)
