16mm Aluminium F-Section

16mm Aluminium F-Section

SKU: LIV-1117-1001
MPN: ND10FW1630

£25.44

Sale Sold out

Tax included. Shipping calculated at checkout.

10+ in stock

Normally despatched in 5 days.

Quantity

Pickup available at Truly PVC (Manchester)

Usually ready in 24 hours

View full details

Description

16mm Aluminium F-Section

Name: 16mm Aluminium F-Section
Brand: Molan
SKU: LIV-1117-1001
Price: 25.44 GBP
Availability: InStock

(Choice of colour and length)

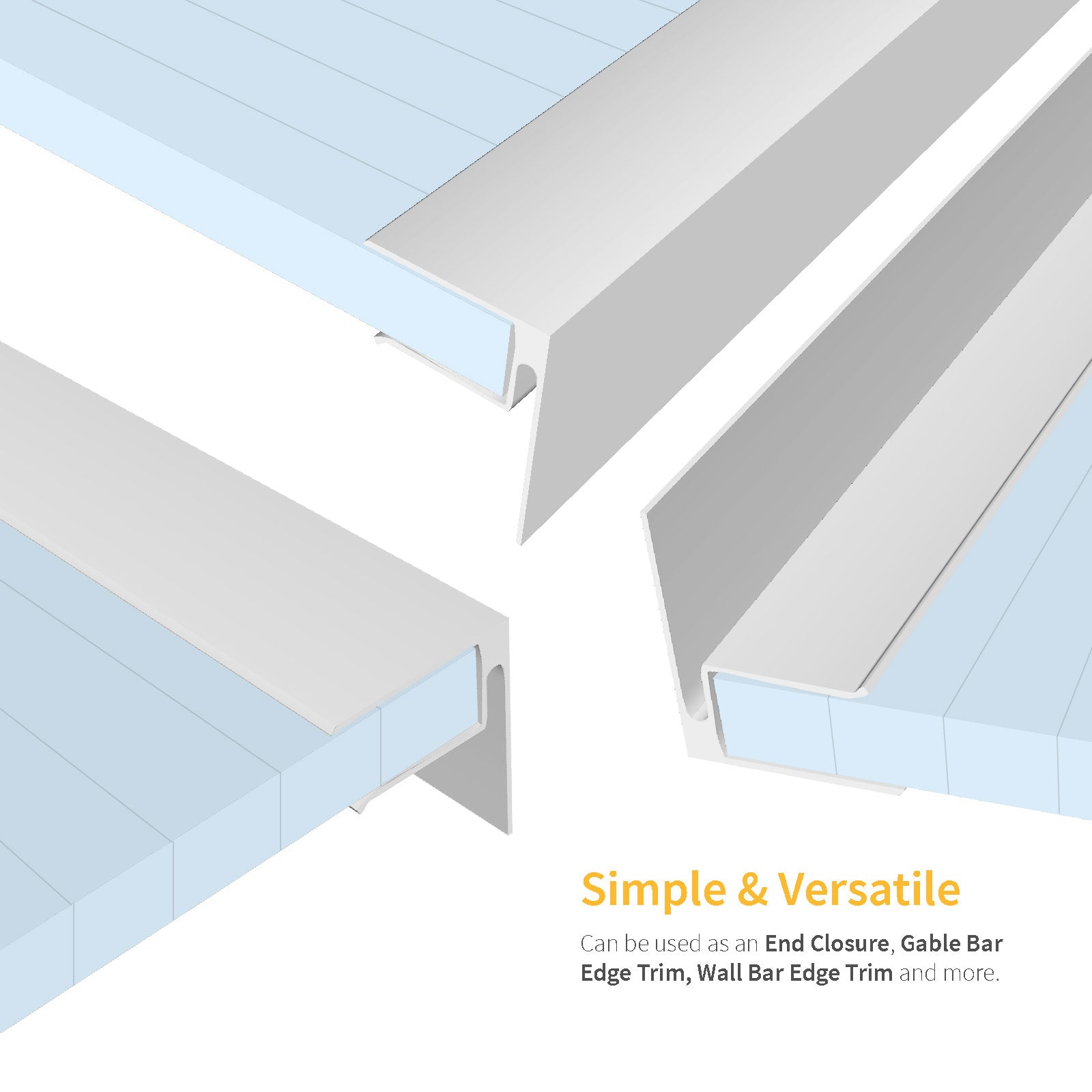

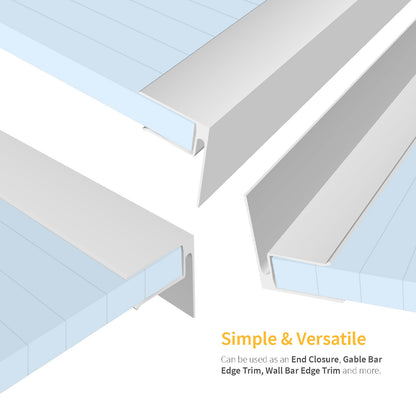

Great as Starter Bar for Snap-Tight and Screw-Down roofs

Strong, aluminium f-section extrusion with durable powder-coating. Available to suite 16mm polycarbonate and can be used with any snap-down or screw-down system for sealing and securing polycarbonate at gable end and wall abutment.

Features a substantial drip face that discourages water ingress and offers greater coverage when used on a gable end, while providing a high upstand when turned upside down for use as a wall bar.

Features & Benefits

Extruded aluminium - strong and lightweight
Maintenance-free - no annual painting required
Durable powder-coating - no discolouring
Long-life material - no warping or cracking
Quick and simple - no component parts

Specification

Measurement	Value
Material	Aluminium Extrusion
Compatible Sheet Thickness	16mm
Colour	White, Brown, or Anthracite Grey

Dimensions

This 16mm F Section is suitable for 16mm polycarbonate sheets - the following table provides size information for this and other F Sections.

	Drip Height (A)	Top Depth (B)	Length Available
10mm	42mm	32mm	3m (9ft 10in), 4m (13ft 1in), 5m (16ft 5in), 6m (19ft 8in)
16mm	50mm	40mm	3m (9ft 10in), 4m (13ft 1in), 5m (16ft 5in), 6m (19ft 8in)
25mm	59mm	40mm	3m (9ft 10in), 4m (13ft 1in), 6m (19ft 8in)
35mm	70mm	40mm	3m (9ft 10in), 4m (13ft 1in), 6m (19ft 8in)

Fitting & Usage

Using as Gable Starter Bar

When using as a Starter Bar on gable end, the bar is used with drip face pointing downwards and outwards, with underside of bottom face resting on gable timber rafter.

Cut Starter Bar slightly longer than polycarbonate sheets and drill fixing holes through the drip as required. Fit to the polycarbonate sheet with sealant applied to underside of bottom face and press firmly down onto gable rafter. Screwed through pre-drilled fixing holes to secure and fit polycarbonate end closure, once it has been cut back to fit around Starter Bar.

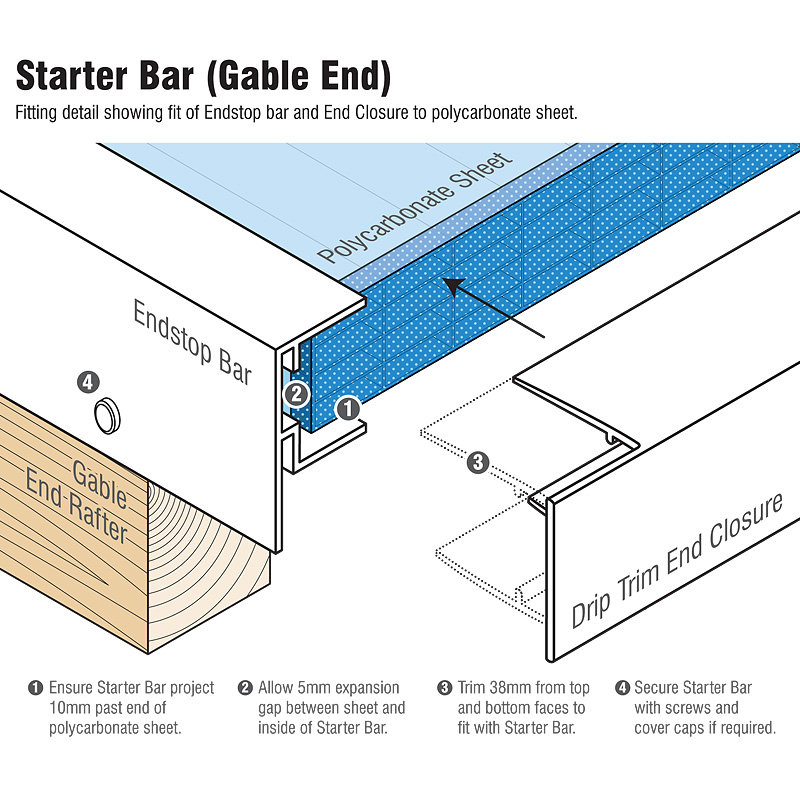

Detail fitting endstop bar as gable end starter bar

Using as Wall Starter Bar

When using as a Starter Bar for abutting a wall, the bar should be turned so that the 'F' is on it's head with the long length acting as an upstand against the wall. What would have been the top will then rest on the timber rafter.

Cut Starter Bar slightly longer than polycarbonate sheets and drill fixing holes through the drip which will act as an upstand. Drill fixing holes in wall, in-line with holes in upstand. If using nylon sleeves, insert in fixing holes, before applying sealant to back of upstand and underside of upturned bar. Push bar firmly into place and secure with fixings to wall. Finish by fitting end closure, once it has been cut back to fit around Starter Bar.

The above is offered only as a guide and not as complete fitting instructions for all scenarios.
