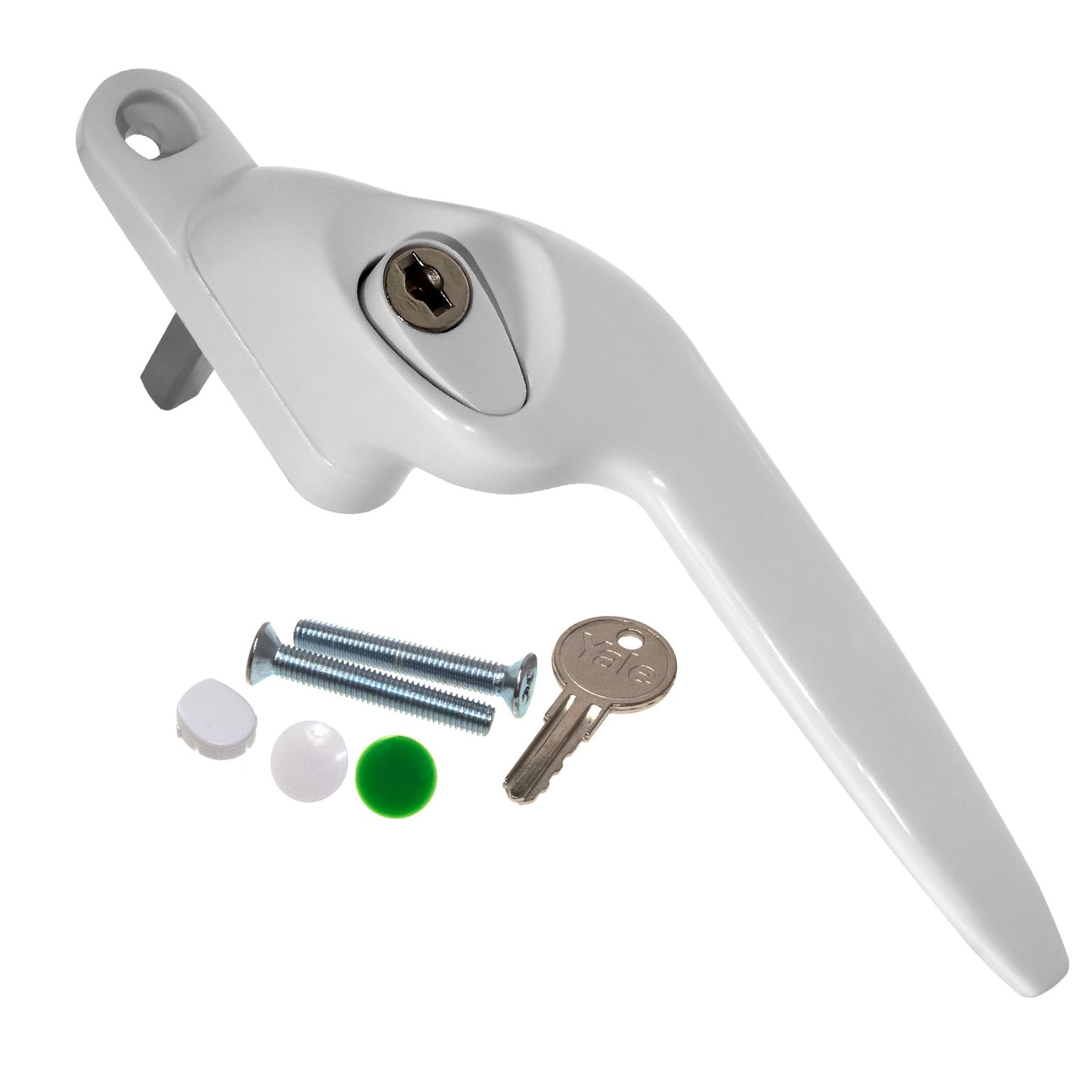

Yale Quartus Cranked Window Handle

Yale Quartus Cranked Window Handle

SKU: YAL-2126-1009
MPN: YBC20WHL

£2.82

Sale Sold out

Tax included. Shipping calculated at checkout.

10+ in stock

Order within

h m s

for Same Day Despatch

Quantity

View full details

Description

Yale Quartus Cranked Window Handle

Name: Yale Quartus Cranked Window Handle
Brand: Yale
SKU: YAL-2126-1009
Price: 2.82 GBP
Availability: OutOfStock

(Choice of finish and spindle length)

Replacement offset window handles from Yale

Stylish and strong, lockable cranked window handle for aluminium and uPVC espagnolette windows. Manufactured by industry leader Yale, and supplied with a 10-year mechanical and surface guarantee.

Offset handles are available for use with left or right hand and are designed to provide more hand clearance when opening. They are made from tough die-cast zinc, with a durable powder-coated or plated finish to offer high corrosion resistance, impact strength and protection against abrasion.

Features & Benefits

Offset handle design - increases hand clearance
Attractive and ergonomic - sleek design and comfortable use
High quality finishes - smooth and durable coating
Locking or non-locking - optional keyhole cover
Universal Key - will fit any Yale window lock
Improved window security - key deadlocks the sash
Child safety - lever requires button press
Fixings supplied - includes key, screws and covers
Standard fitting - 43mm screw centres and common spindles
10-Year guarantee - product you can trust
Quality assured - British Standard accredited

Espag handles feature a 7mm metal spindle that is fixed to the lever and runs through the handle backplate to fit into a lock mechanism within the sash. Turning the lever rotates the spindle and triggers the mechanism, which in turn locks or unlocks the window.

Size diagram of Yale Quartus Cranked Offset upVC Window Handle

DID YOU KNOW? The Yale Quartus Espag handles are also available as inline straight versions, which can be used on left, right or top opening windows.

Specification

Measurement	Value
Material	Die Cast Zinc (Base, Grip and Key), Nylon and ABS (Mouldings), Passivated mild steel bar (Spindle)
Finish	Copper nickel chrome plate layer (Chrome and Champagne Gold, Gold has additional coloured lacquer)). Powder-coated (White, Satin Black and Silver).
Backplate size (l x w x d)	65mm x 17.4mm x 13mm
Fixing screw positions	43mm (centre-to-centre)
Spindle length	10mm, 15mm, 20mm, 30mm or 40mm
Overall length	160.2mm (handle and backplate)
Overall projection from sash: 49mm
Overall width	17.4mm
Endurance Performance	Tested to BS 6375 Part 2 (Classification EN 12400) Class - 20,000 cycles
Corrosion resistance	Tested to BS EN 1670:2007 Grade 4 (240hrs. NSST)
Building hardware requirements	BS EN 13126:2011 Part 1: Building hardware
Guarantee	10-year surface and mechanical

Fitting & Usage

Fitting Yale Quartus Window Handles

Remove the existing handle to reveal three holes in the window sash. The outer holes are for the screw fixings (43mm screw centres) and the inner hole is for the spindle.

Swing open the new handle to reveal both screw ports on the Base
Guide the handle spindle into the spindle hole and align the screw ports
Secure handle to sash using screws provided

That is it! If you wish to keep the handle permanently locked, just key lock and then fit the black blanking plug into the barrel keyway. If you wish to highlight the handle as egress and stop it from being locked, fit the green blanking plug.

Ensure you purchase the correct sided handle.

Animation showing the difference between left-handed and right-handed handles

Left or right-handed handles are not interchangeable. Refer to the above image to identify whether you require a left or right-handed option.
