Yale Lockmaster 45mm Gearbox Spacing Plate

Yale Lockmaster 45mm Gearbox Spacing Plate

SKU: YAL-2292-1005
MPN: PAD99945P

£2.22

Sale Sold out

Tax included. Shipping calculated at checkout.

Low stock: 5 left

Order within

h m s

for Same Day Despatch

Quantity

View full details

Description

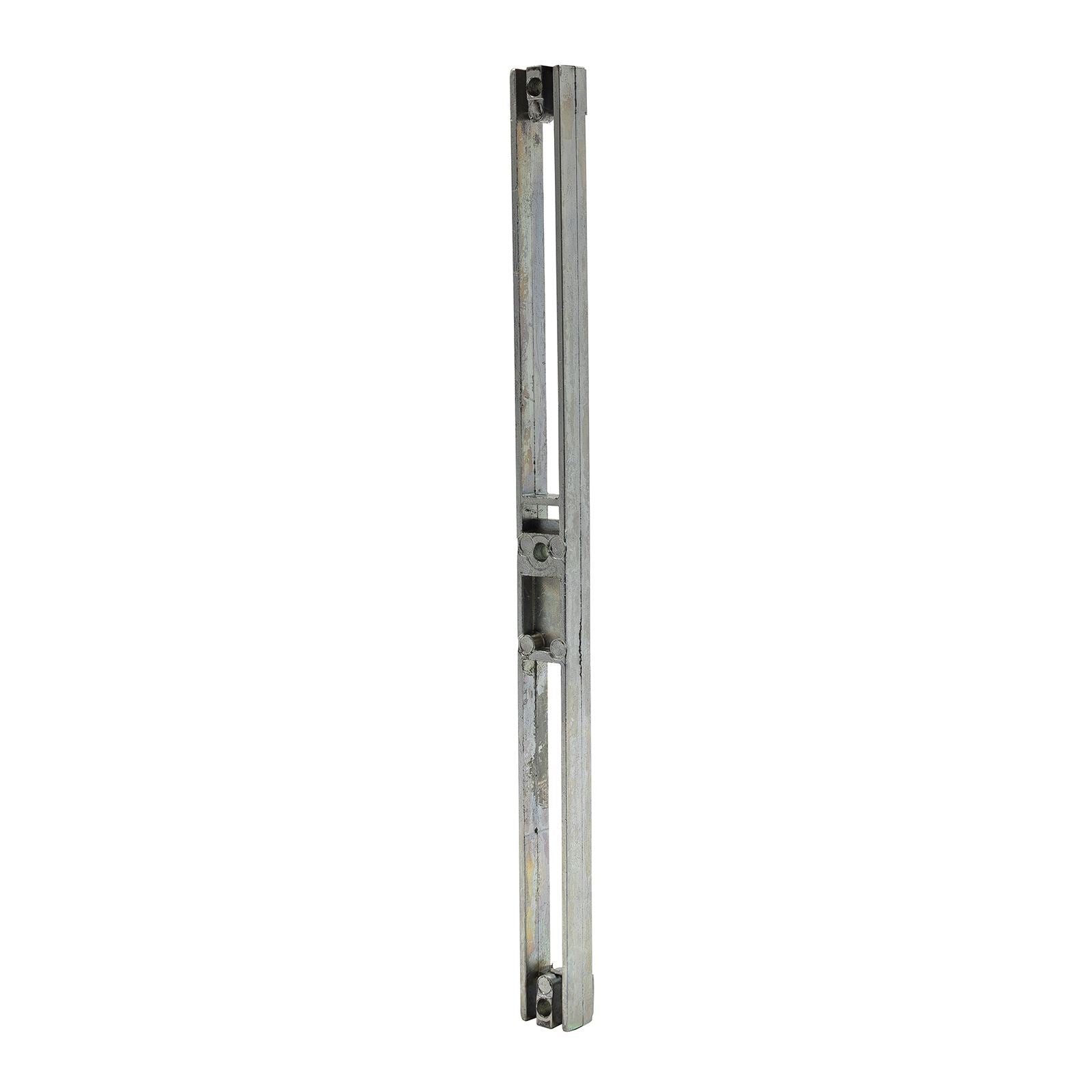

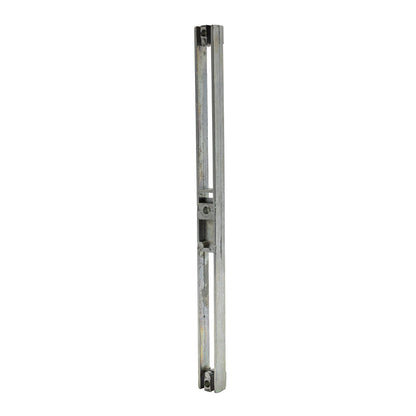

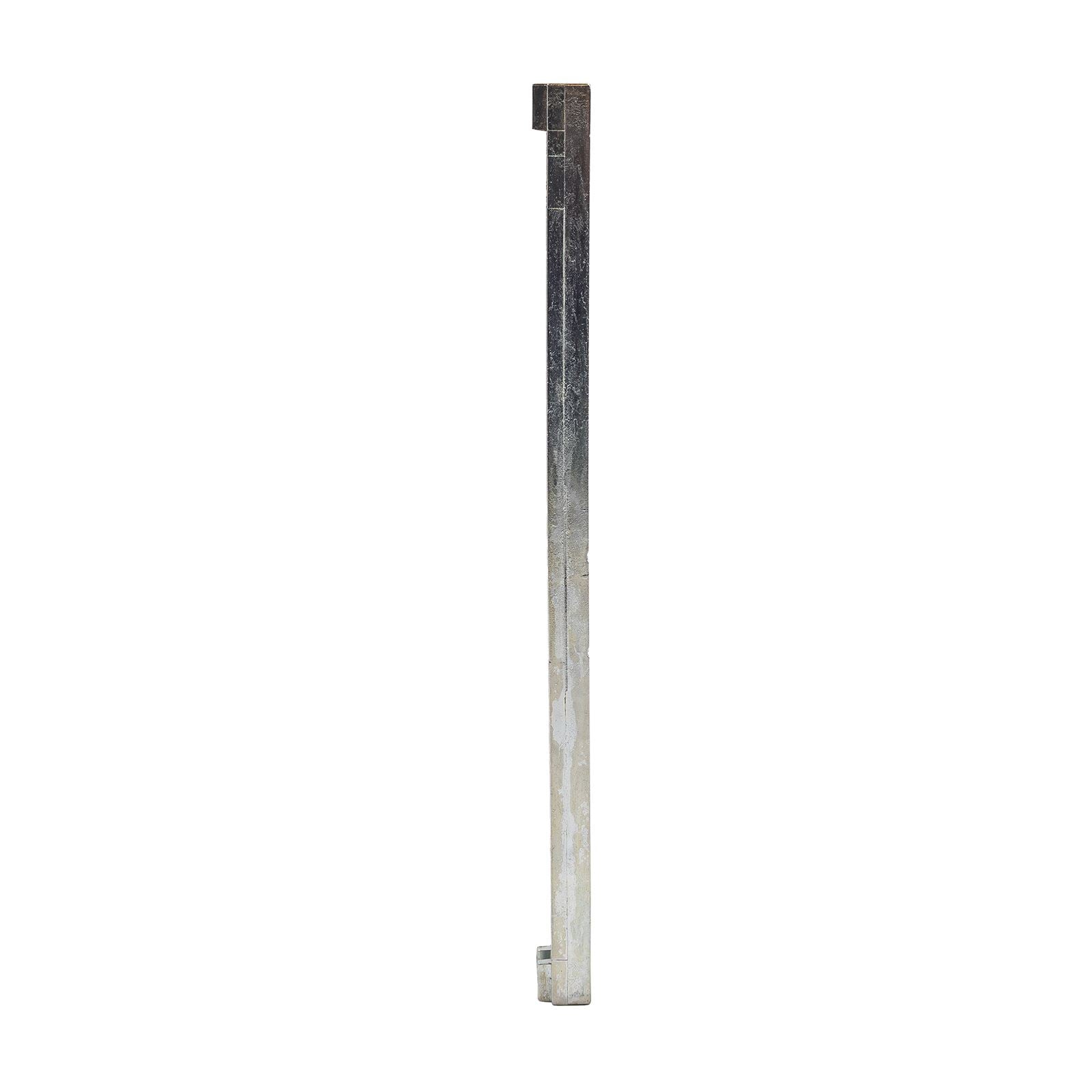

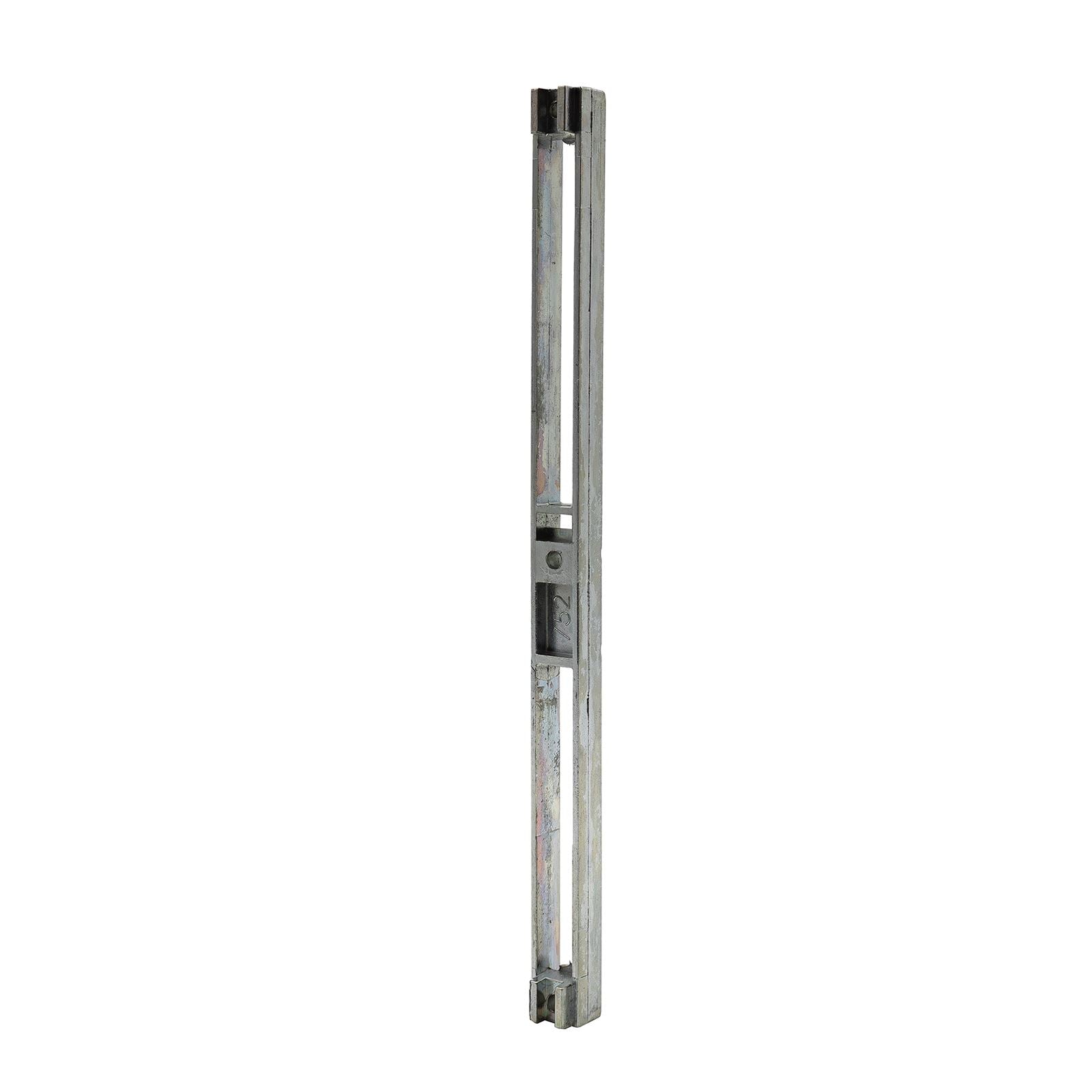

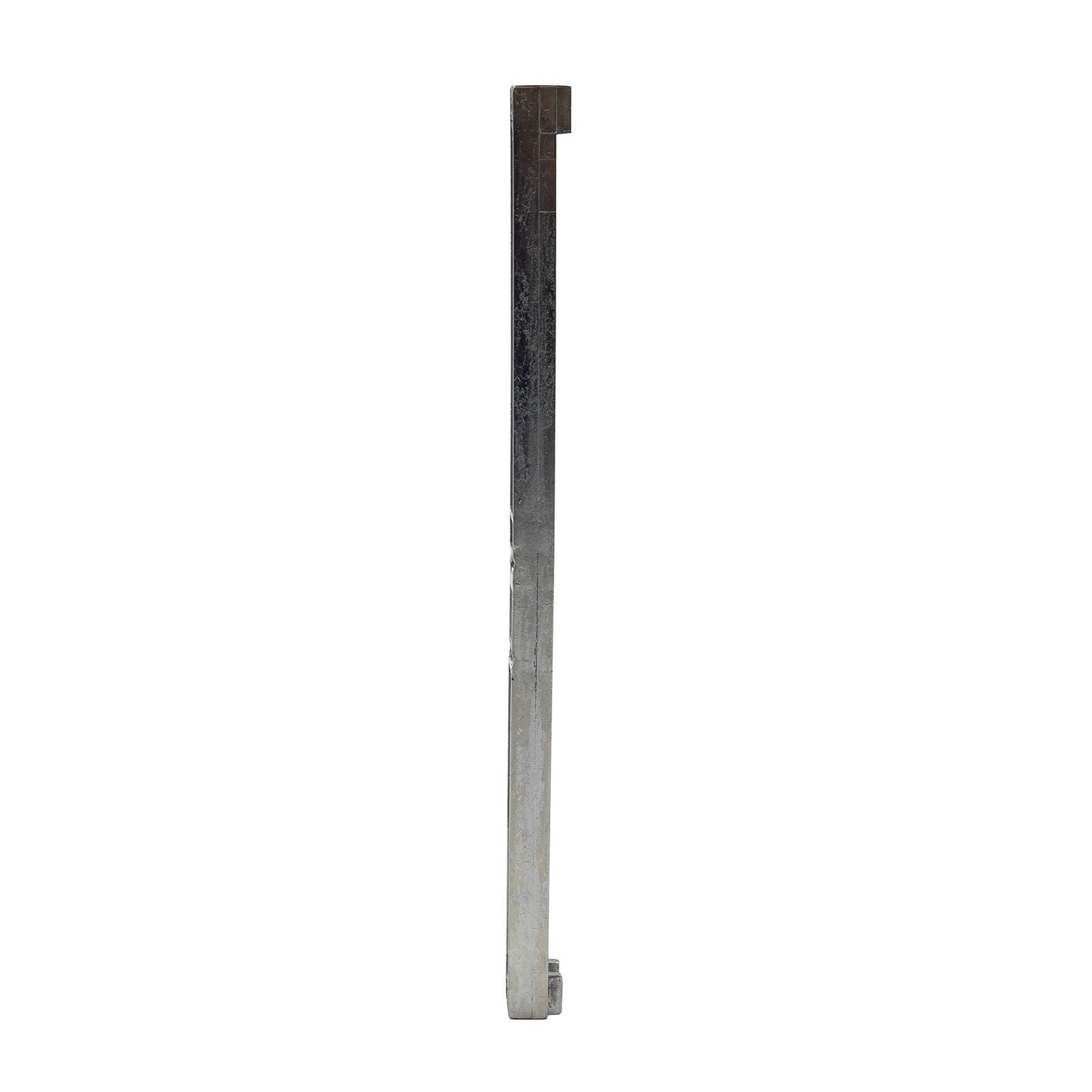

Spacing Plate for Yale Lockmaster (Paddock) 45mm Gearboxes

Name: Yale Lockmaster 45mm Gearbox Spacing Plate
Brand: Yale
SKU: YAL-2292-1005
Price: 2.22 GBP
Availability: InStock

(Stainless steel)

Low-cost replacement spacer!

Easy-fit, stainless steel replacement spacing plate, for use with the 45mm backset Paddock gearbox. Paddock gearboxes can be found on many popular multipoint locking systems, such as Yale Lockmaster, and Mila Master.

Slides easily onto the 45mm gearbox to give the required 45mm measurement from lock centre to front face.

Features & Benefits

Quick and easy fitting - simply slides into place
Stainless steel construction - strong and highly durable
Corrosion resistant - long-lasting performance
Genuine replacement part - fits old paddock gearboxes
10-year mechanical guarantee - peace of mind

Faulty gearboxes are the most likely cause of a broken multipoint lock, and replacing them is both cost-effective, and efficient, as it saves the complication and expanse of replacing the whole mechanism.

Did you know? Paddock gearboxes were chosen by numerous multipoint lock manufacturers, including Yale. Since the Paddock company was dissolved, Yale has been manufacturing and marketing their gearboxes under the Yale Lockmaster brand.

How to choose the right gearbox

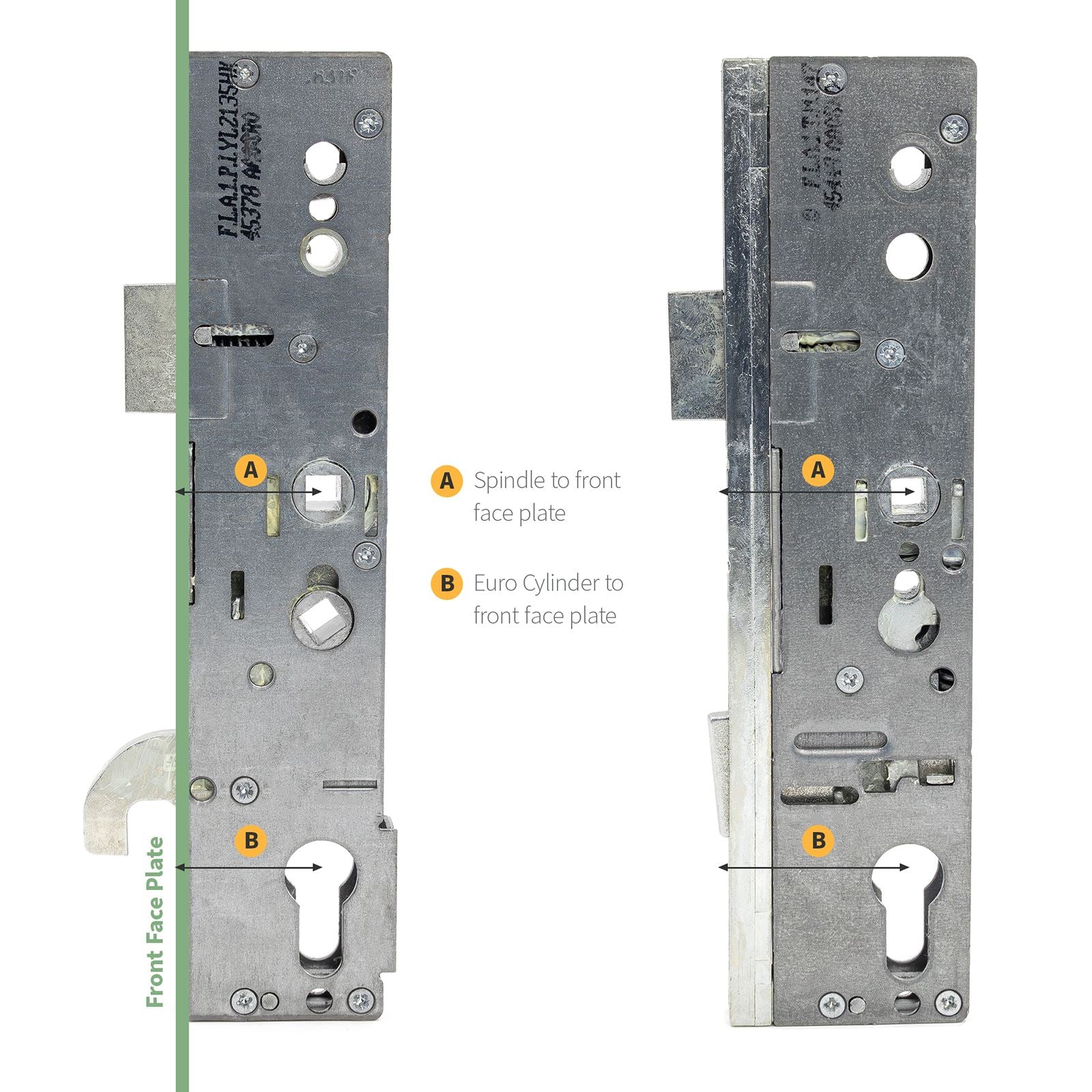

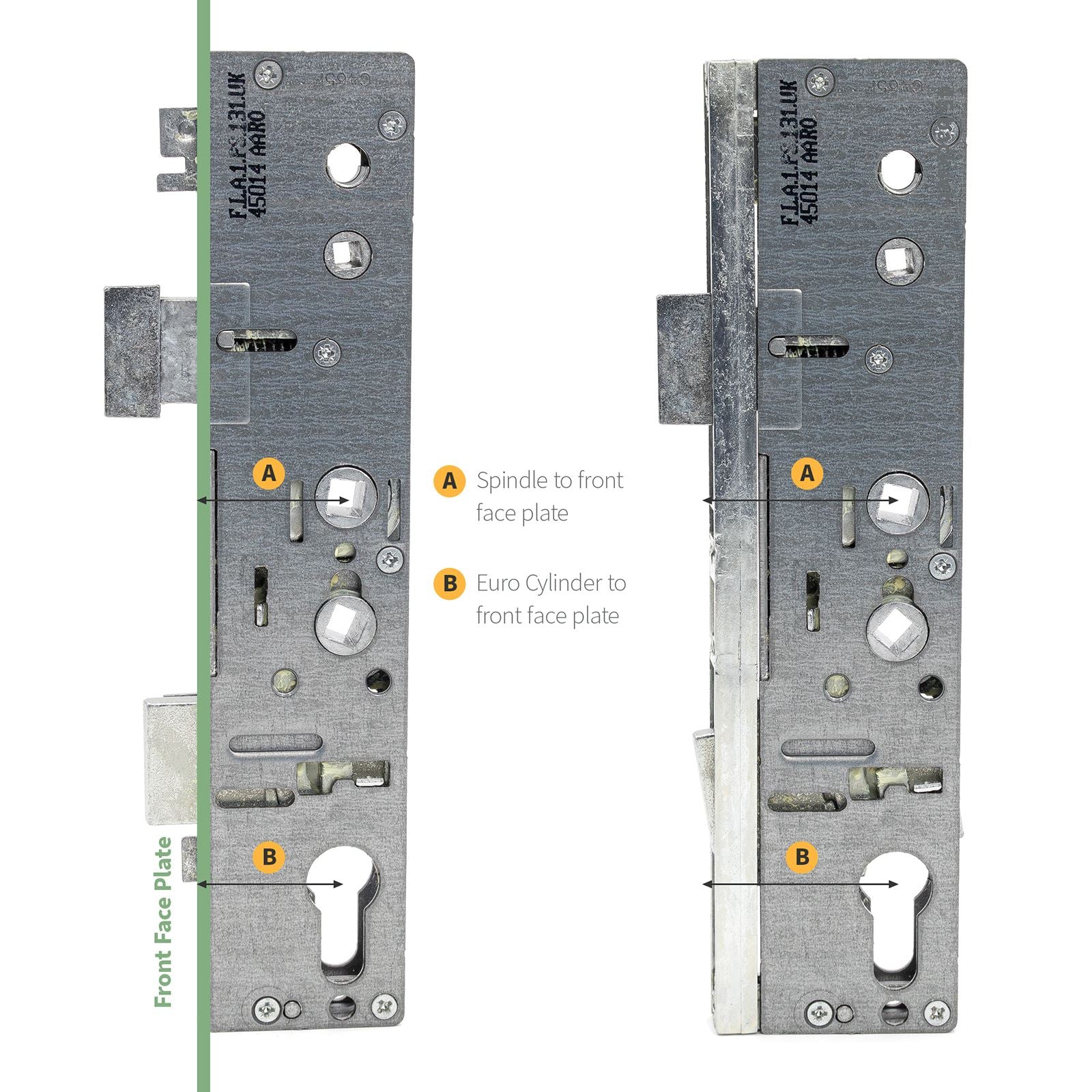

You should choose a centre case that works with your handle spindle type, and with a matching backset size. Backset size is the measurement from the centre of the spindle/euro cylinder hole to the front of the edge of the door faceplate that the centre case sits behind. Spindle type refers to the spindle[s] of the handles that will engage with the centre case. Spindle options include, single, and dual for offset handles.

Not suitable as a replacement for the Lockmaster 21 centre case gearbox.

Specification

Technical Information

Specification	Detail
Compatibility Size	45mm Yale Lockmaster (Paddock) gearbox
Length	227mm
Width	10mm
Thickness	15mm
Material	Stainless steel
Guarantee	10-year mechanical guarantee

Contents

Fitting & Usage

Fitting a Yale Lockmaster (Paddock) 45mm centre case gearbox to a multipoint locking mechanism on a PVCu or aluminium door is a straight forward process, and requires only basic tools.

Step 1: Remove the door handles

Remove fixing screws from the internal handle.
Pull handles apart, ensuring the spindle is removed carefully.

Step 3: Remove the old centre case

Remove the screws securing the multipoint lock mechanism on the edge of the door.
Carefully slide the entire lock strip out of the door edge.
Remove screws securing the centre case to the lock strip.
Detach the old centre case, ensuring not to damage the rest of the mechanism.
Remove existing Spacing Plate from gearbox, if being reused.

Step 4: Inspect and measure

Compare dimensions of the new centre case against the old one to ensure compatibility.
Measure the backset and PZ (distance between centre of spindle hole and centre of the euro cylinder barrel) to confirm suitability. Fit Spacing Plate if necessary.

Step 5: Fit the new centre case

Align the centre case with the lock strip, ensuring the hooks, rollers, or deadbolts line up correctly.
Secure the centre case to the lock strip using the original screws.

Step 6: Reinstall the multipoint lock

Slide the lock strip (with the new centre case installed) back into the door edge.
Align with screw holes and secure to door using original screws.
