Underground Bottle Gulley (Rear Inlet)

Underground Bottle Gulley (Rear Inlet)

SKU: KAY-2128-1002
MPN: UG102

£16.58

Sale Sold out

Tax included. Shipping calculated at checkout.

10+ in stock

Order within

h m s

for Same Day Despatch

Quantity

View full details

Description

Bottle Gulley (Rear Inlet) for 110mm Plastic Terracotta Underground Drainage

Name: Underground Bottle Gulley (Rear Inlet)
Brand: Kayflow
SKU: KAY-2128-1002
Price: 16.58 GBP
Availability: InStock

(Suits 110mm drainage)

Manufactured to BS EN 1401-1!

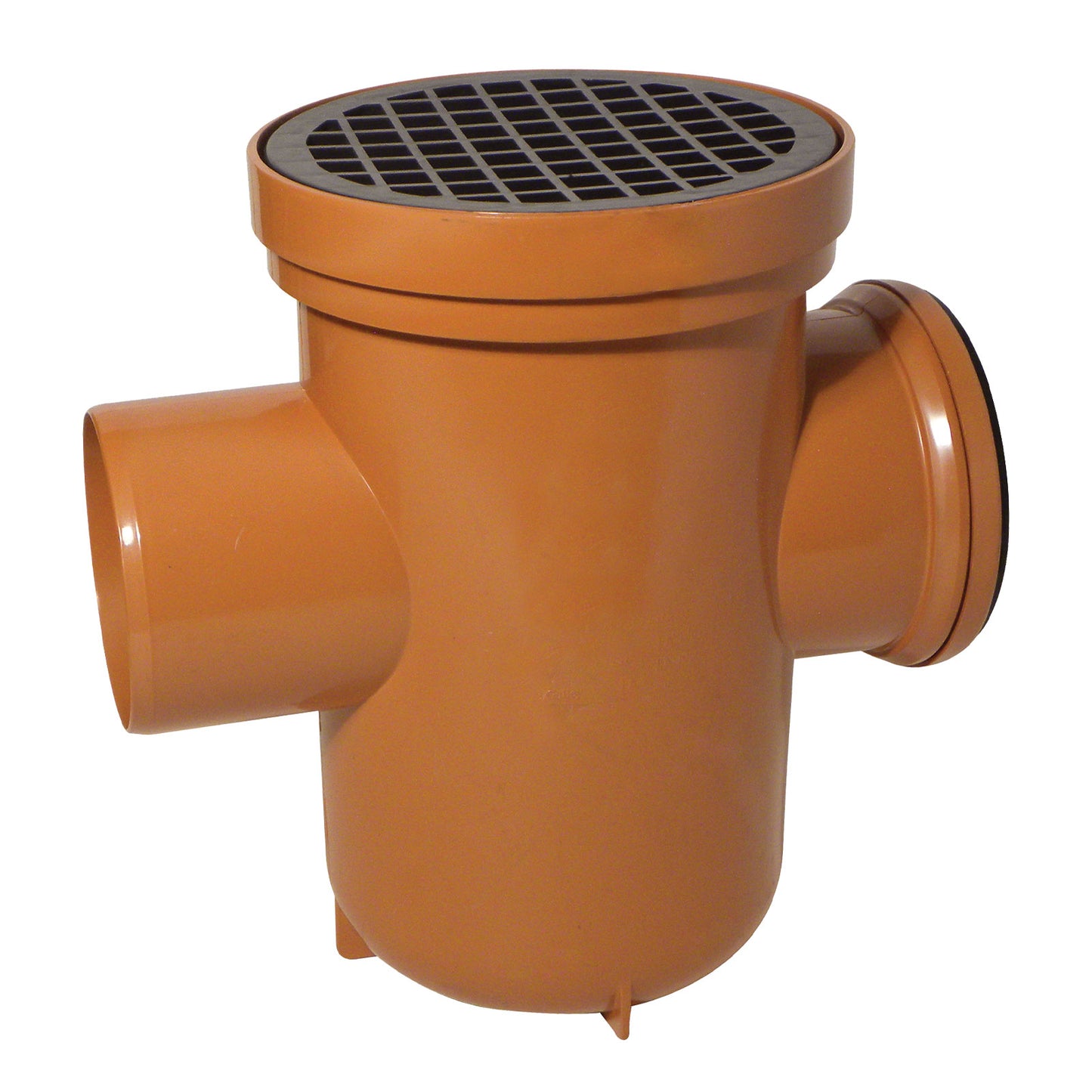

Circular bottle gulley with trap to keep unpleasant drain smells below the ground and a raised rear socketed inlet that allows additional inlets. Features a durable plastic grid, which can be cut to allow entry of waste pipes, and a removable central chamber to permit rodding. Supplied with Socket Plug for when inlet is not required. Commonly used as part of a run of inlets alongside homes to feed waste pipes, or surface rainwater. Connects to 110mm underground drainage systems use of a Coupler or a Single Socket Bend.

Part of our range of durable and impact resistant fittings for 110mm plastic PVC-u underground drainage pipes, the most common residential system. These lightweight, easy-fit parts are compatible with all systems manufactured to BS EN 1401 or BS EN 13476-2.

The range of pipe and bend fittings are available with pre-chamfered plain or socketed ends, which feature a ring seal for easy and secure connection to different parts of the system. These fittings can be used in conjunction with new or existing inspection chambers, or soakaway crates, to complete the underground drainage system.

Benefits of our Underground Drainage

Durable and impact resistant
Lightweight and easy-fit system
Captive push-fit ring seal system
Smooth inner walls for better flow
Hardwearing and virtually maintenance free
Suits common 4" residential drainage
Tested to BS EN 1401-1 : 1998

DID YOU KNOW? Underground drainage is manufactured in a terracotta colour to differentiate them from above ground soil and waste pipes, which are typically black, grey or white.

Specification

Measurement	Value
System compatibility	All 110mm PVC-u systems manufactured to BS EN 1401 or BS EN 13476-2
Material	PVC-u (pipes, bends and junctions), Polypropylene (grids, covers and frames), EPDM rubber seal (socket and riser seals)
Colour	Terracotta
Certification	BS EN 1401-1 : 1998 PVC-U Underground Drainage Systems and EN-1329 (B). KM655203
Guarantee	10 year guarantee

Fitting & Usage

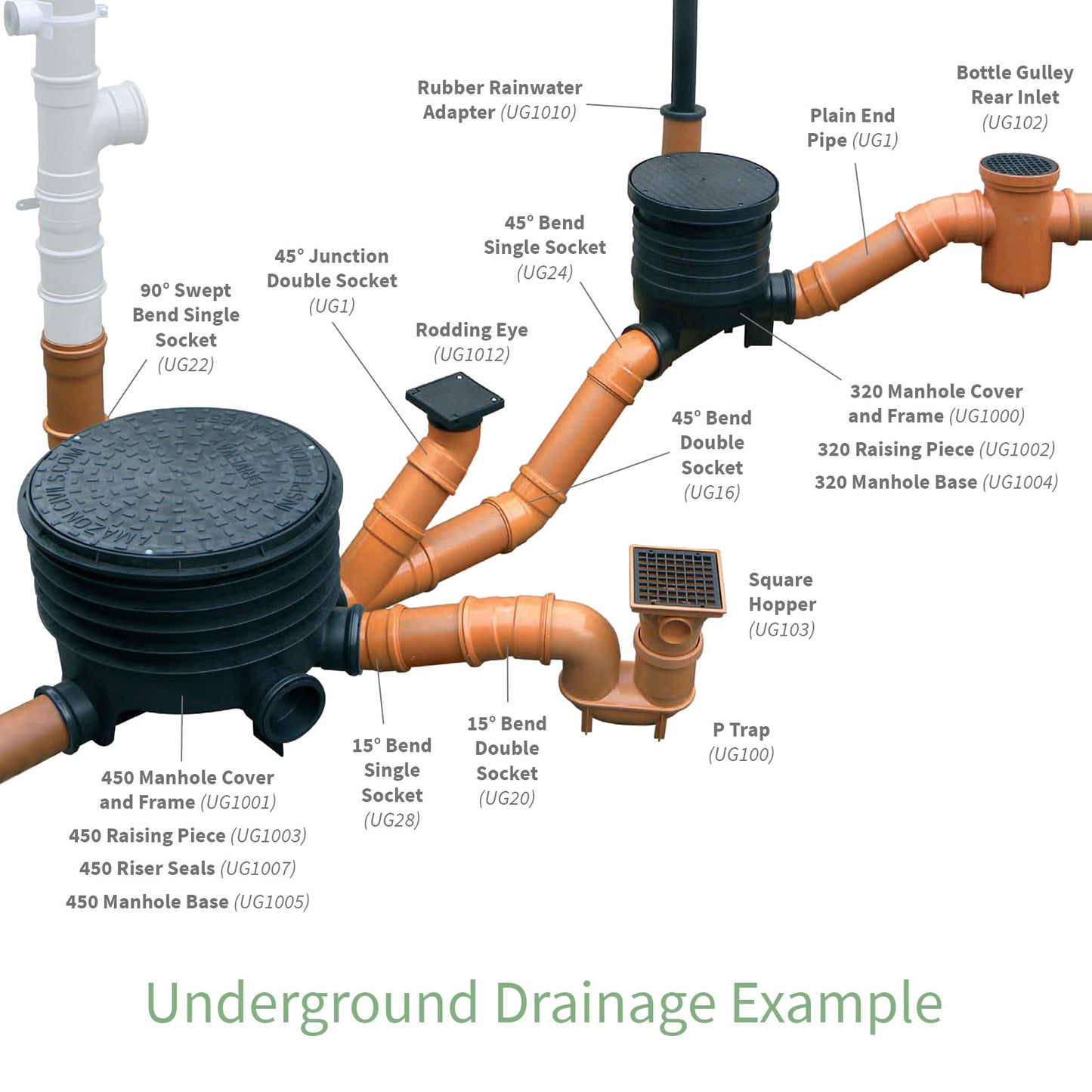

Fitting the 110mm Underground Drainage System

Underground drainage installations, which are usually laid in a trench bottom lined with pea gravel, should be planned in advance. The basic drainage design principle, that all points in the system should be accessible for inspection, testing and cleaning. The system should also be laid to the correct fall, with consideration given to the location of key components, like inspection chambers, gullies, adaptors and rodding eyes.
