Underground Bottle Gulley Grid

Underground Bottle Gulley Grid

SKU: KAY-2128-1023
MPN: UG106

£1.20

Sale Sold out

Tax included. Shipping calculated at checkout.

10+ in stock

Order within

h m s

for Same Day Despatch

Quantity

View full details

Description

Bottle Gulley Grid for Plastic Underground Drainage

Name: Underground Bottle Gulley Grid
Brand: Kayflow
SKU: KAY-2128-1023
Price: 1.2 GBP
Availability: InStock

(179mm outer diameter)

Manufactured to BS EN 1401-1!

Durable, 179mm diameter circular grid for round bottle gulley of 110mm underground drainage systems. Allows water to pass, but prevents entry of leaves and airborne debris. Made from durable polypropylene to provide high impact resistance, and can be cut to allow entry of waste pipes.

Part of our range of durable and impact resistant fittings for 110mm plastic PVC-u underground drainage, the most common residential system. These lightweight, easy-fit parts are compatible with all systems manufactured to BS EN 1401 or BS EN 13476-2.

Benefits of our Underground Drainage

Durable and impact resistant
Lightweight and easy-fit system
Captive push-fit ring seal system
Smooth inner walls for better flow
Hardwearing and virtually maintenance free
Suits common 4" residential drainage
Tested to BS EN 1401-1 : 1998

The range of pipe and bend fittings are available with pre-chamfered plain or socketed ends, which feature a ring seal for easy and secure connection to different parts of the system. These fittings can be used in conjunction with new or existing inspection chambers, or soakaway crates, to complete the underground drainage system.

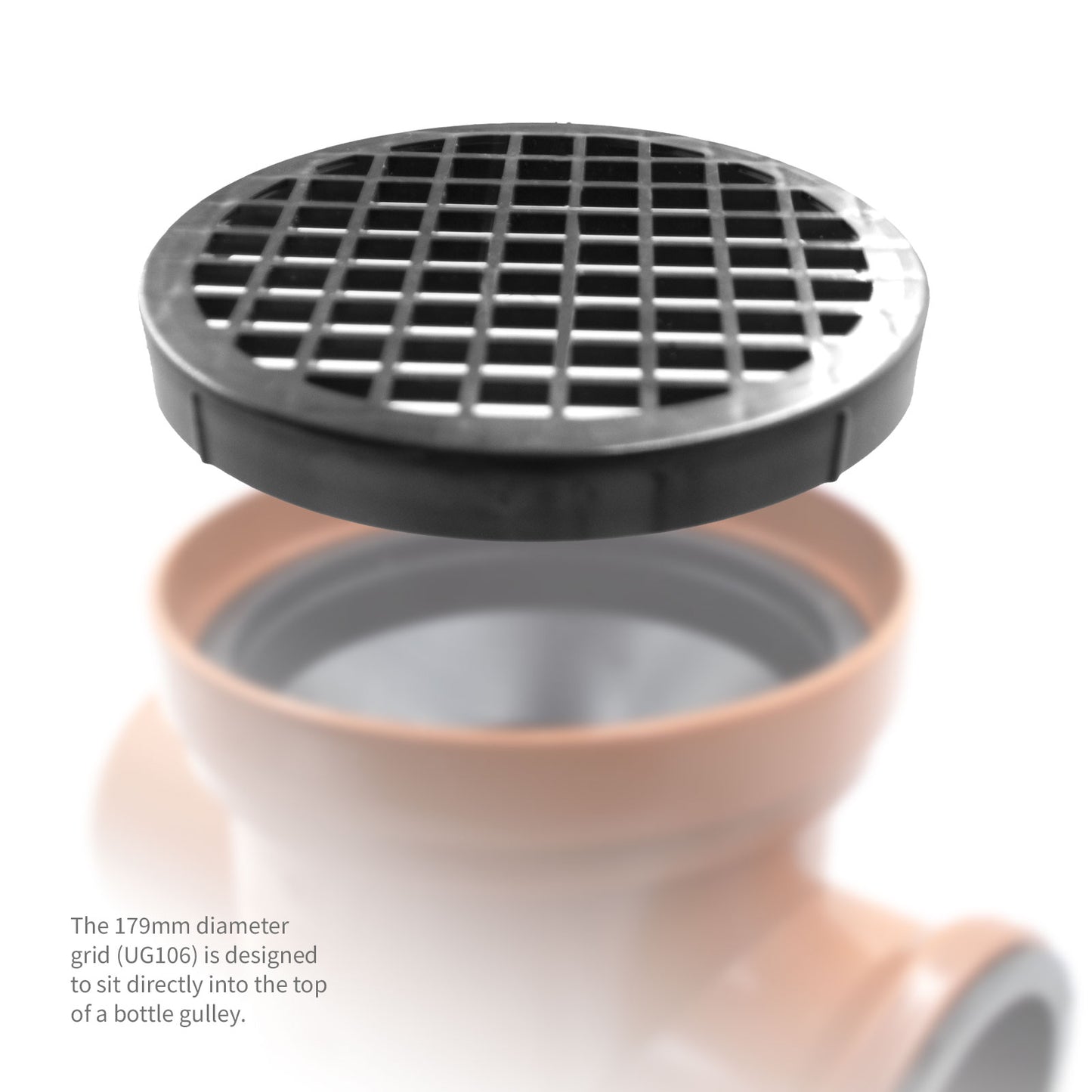

IMPORTANT: This grid sits on top of the round bottle gulley, and does not fit directly on a 110mm pipe.

Specification

Measurement	Value
System compatibility	Sits in top of bottle gulley of all 110mm PVC-u systems manufactured to BS EN 1401 or BS EN 13476-2. Does not fit directly to 110mm pipes.
System Material	PVC-u (pipes, bends and junctions), Polypropylene (grids, covers and frames), EPDM rubber seal (socket and riser seals)
Size	179mm (outer diameter), 175mm (inner diameter)
Colour	Terracotta
Certification	BS EN 1401-1 : 1998 PVC-U Underground Drainage Systems and EN-1329 (B). KM655203
Guarantee	10 year guarantee

Fitting & Usage

Fitting the 110mm Underground Drainage System

Underground drainage installations, which are usually laid in a trench bottom lined with pea gravel, should be planned in advance. The basic drainage design principle, that all points in the system should be accessible for inspection, testing and cleaning. The system should also be laid to the correct fall, with consideration given to the location of key components, like inspection chambers, gullies, adaptors and rodding eyes.

IMPORTANT: This grid sits on top of the round bottle gulley, and does not fit directly on a 110mm pipe.
