Ultralite 500 Glazing Bar Top Cap

Ultralite 500 Glazing Bar Top Cap

SKU: ULT-1865-1001
MPN: UPT200

£21.08

Sale Sold out

Tax included. Shipping calculated at checkout.

10+ in stock

Order within

h m s

for Same Day Despatch

Quantity

View full details

Description

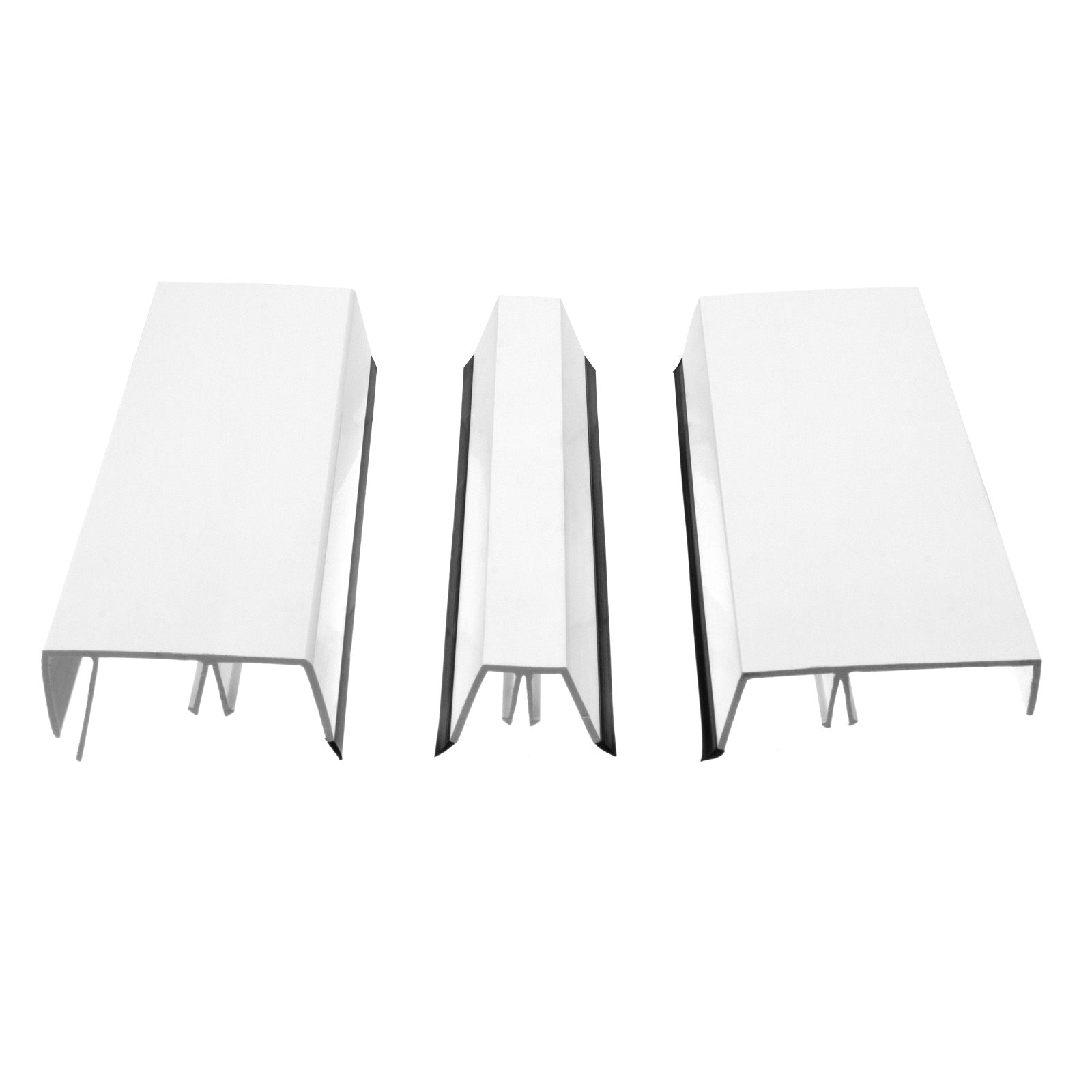

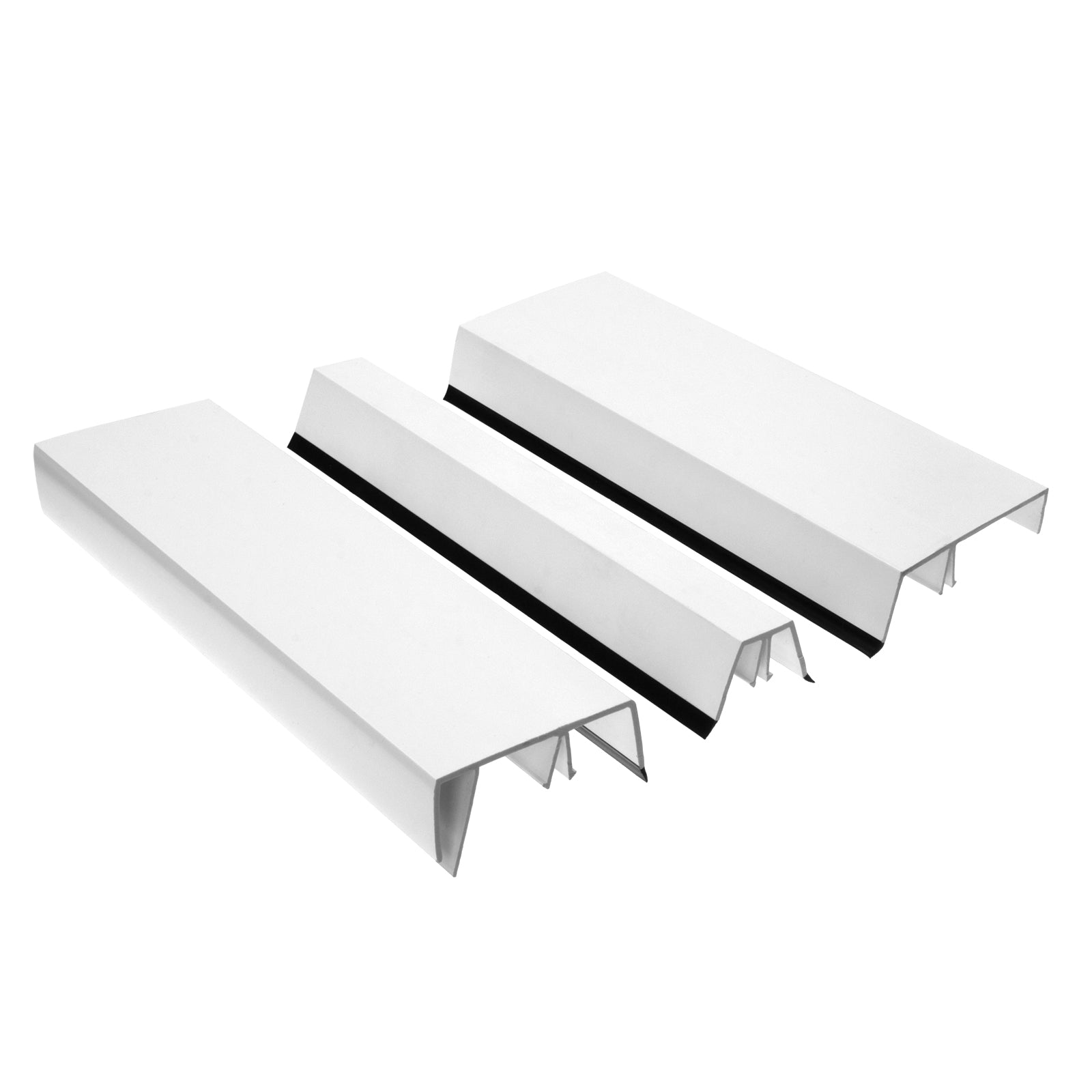

Ultralite 500 Glazing Bar Top Caps

Name: Ultralite 500 Glazing Bar Top Cap
Brand: Ultraframe
SKU: ULT-1865-1001
Price: 21.08 GBP
Availability: InStock

(Choice of capping type, and length)

Simple solution to a common cause of leaks!

Durable and lightweight uPVC replacement top caps with coextruded gaskets for Ultralite 500 lean-to conservatory roof bars. Simple tap-down fitting with choice of profile for both intermediate and starter bars.

Conservatory rafter top caps are exposed to extremes of temperature and conditions, which over time can take their toll. Cappings can lose compression, become brittle crack, and the rubber that seals the top of the glazing material can break down. Such conditions can lead to cold drafts and water ingress. Replacing failed top cappings is a relatively low-cost solution, which will help you enjoy your room once again.

Features & Benefits

Ultraframe quality - products that can be trusted
Durable extrusion - long-lasting UV-stable material
Improved weather seal - flexible coextruded gasket
Made to last - 25 year roof life expectancy
Easy installation - simple tap-down fitting

The glazing bar top cappings are produced to an exceptional standard with the high quality finish that we expect from Ultraframe, the industry's leading manufacturer with over 1.5 million roofs installed.

The glazing bar top cappings are produced to an exceptional standard with the high-quality finish that we expect from Ultraframe, the industry's leading manufacturer with over two million roofs installed.

Specification

Measurement	Value
Material	PVC-u extrusion with coextruded Thermoplastic Elastomer (TPE) gasket
Colour	White
Profile	Chamfered Angle
Length	Each capping type is available in lengths of 2m, 2.5m, 3m, 3.5m, 4m. Intermediate Top Cap is also available in 5m, and Starter (Firring) Top Cap in 5m and 6m.
System Compatibility	Ultraframe Ultralite 500 lean-to conservatory roofs

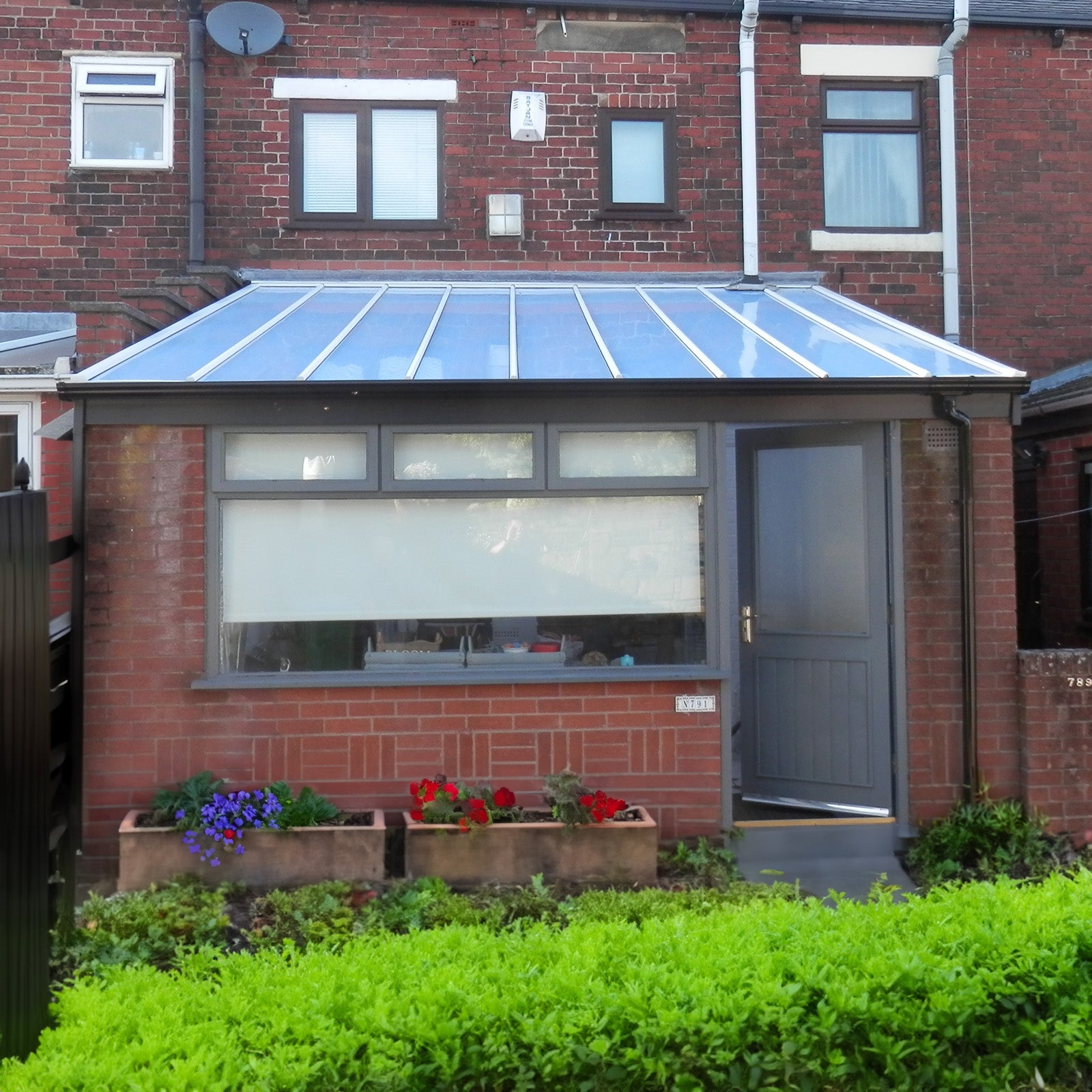

Before purchasing, we recommend that you check compatibility. These cappings are manufactured by Ultraframe for their Ultralite 500 lean-to conservatories. To identify your conservatory roof system, refer to any installation paperwork. Ultralite 500 can be used at a very low pitch, so is commonly used in situations where height is restricted, such as alongside a bungalow. Although it looks quite unique, with it's 60mm thick and 500mm wide panels, similar systems exist and can cause confusion. If you would like help to confirm whether your roof is Ultralite 500, email a couple of pictures.

Choosing the correct capping

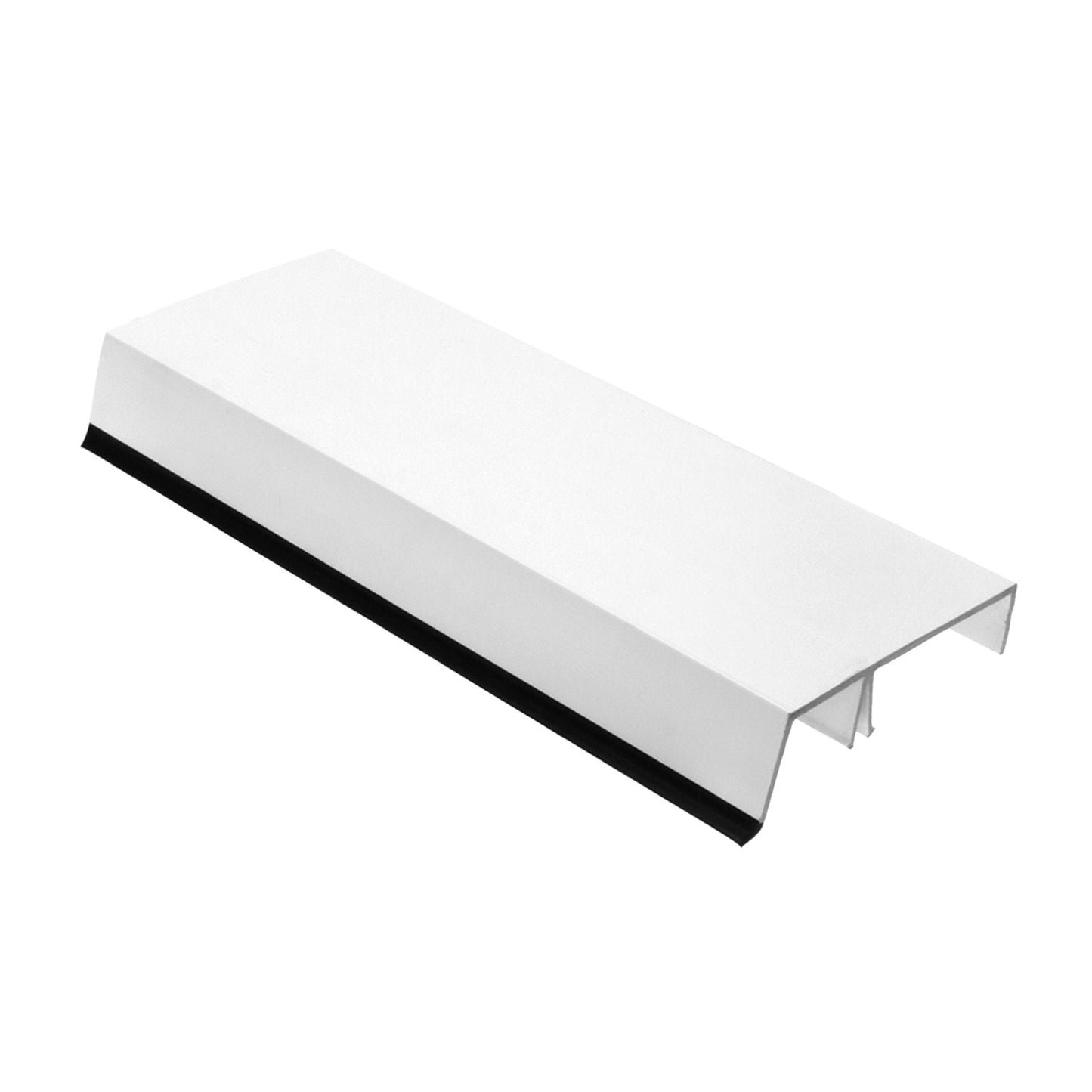

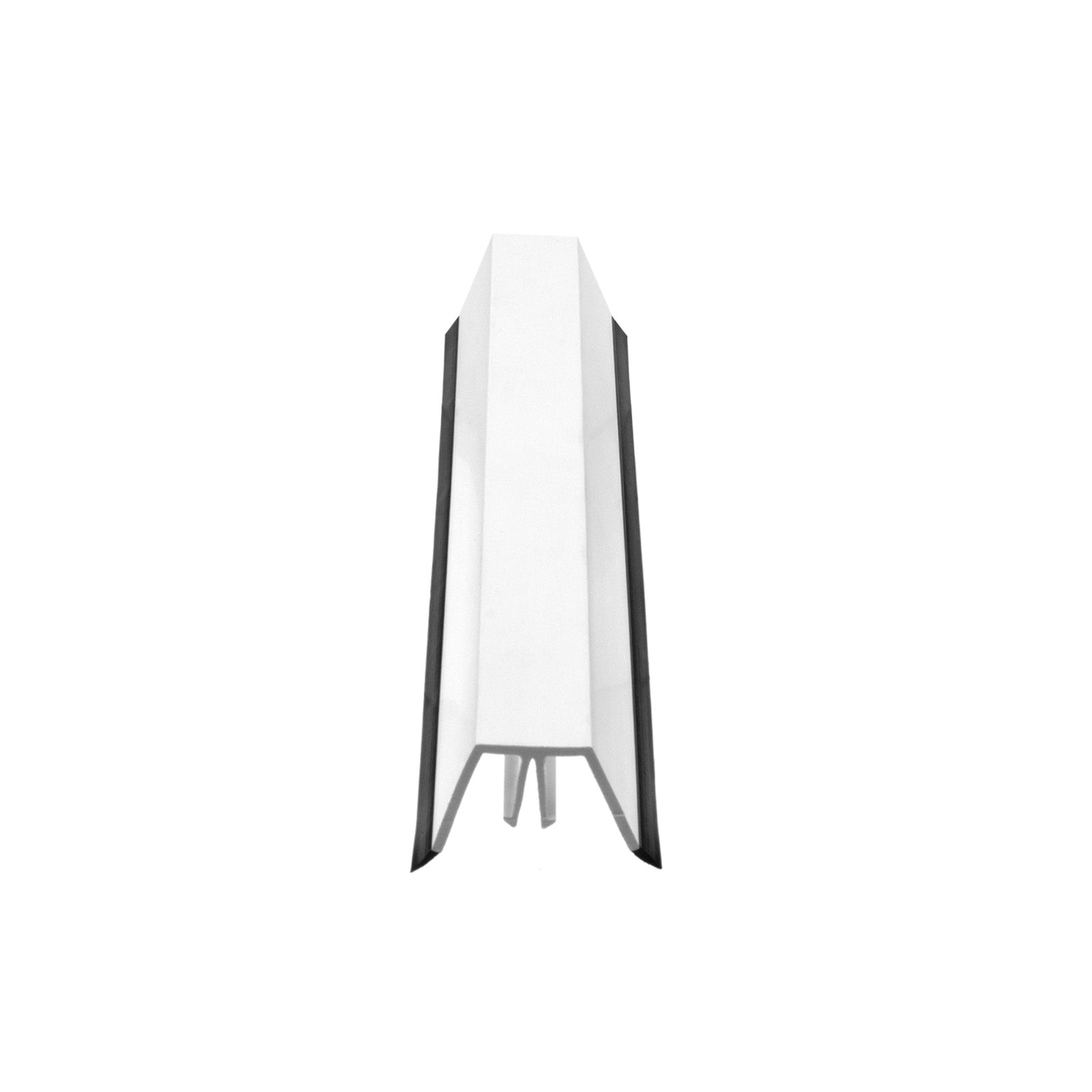

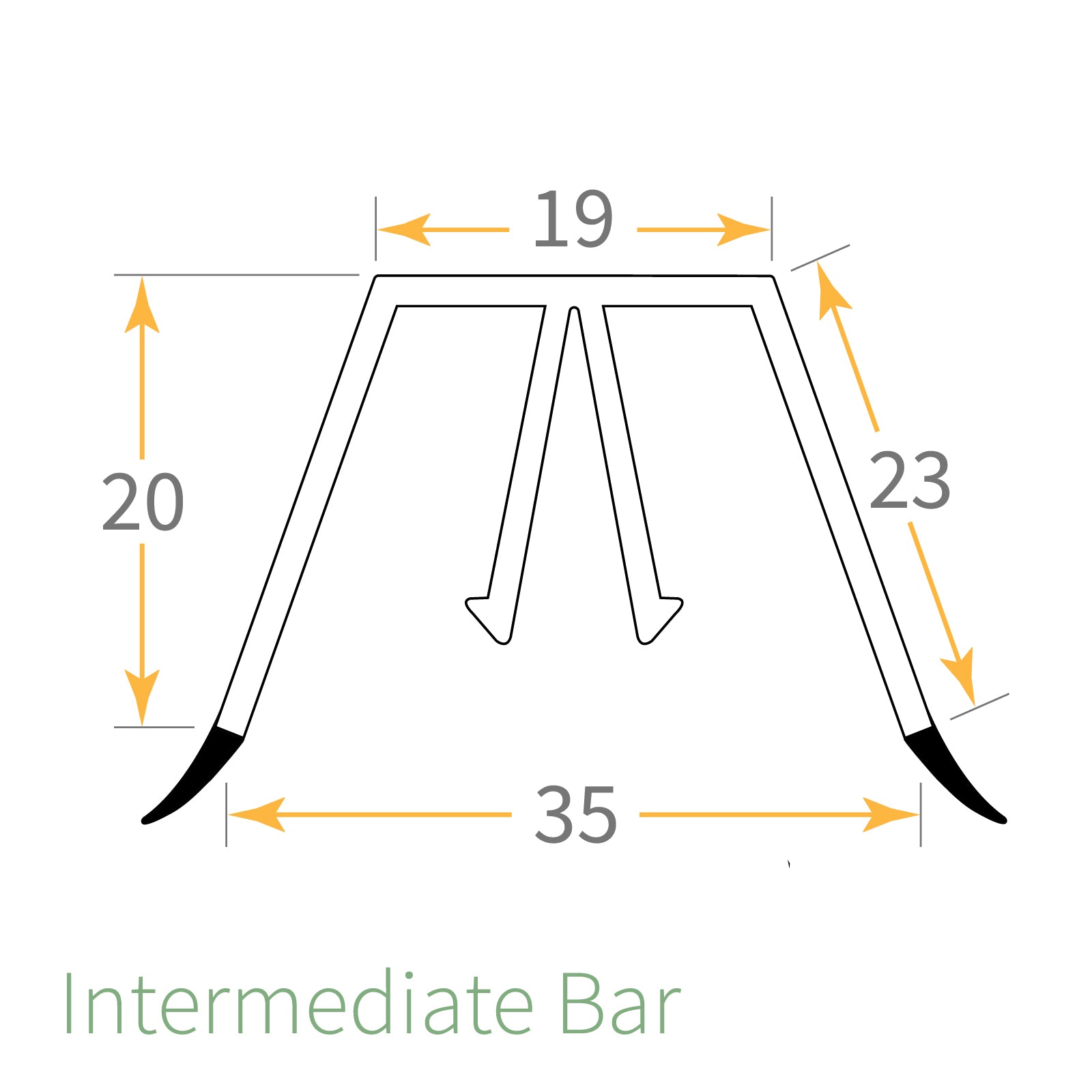

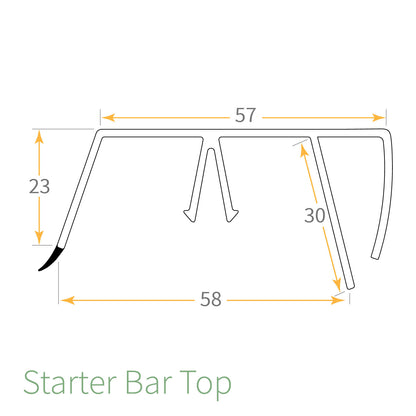

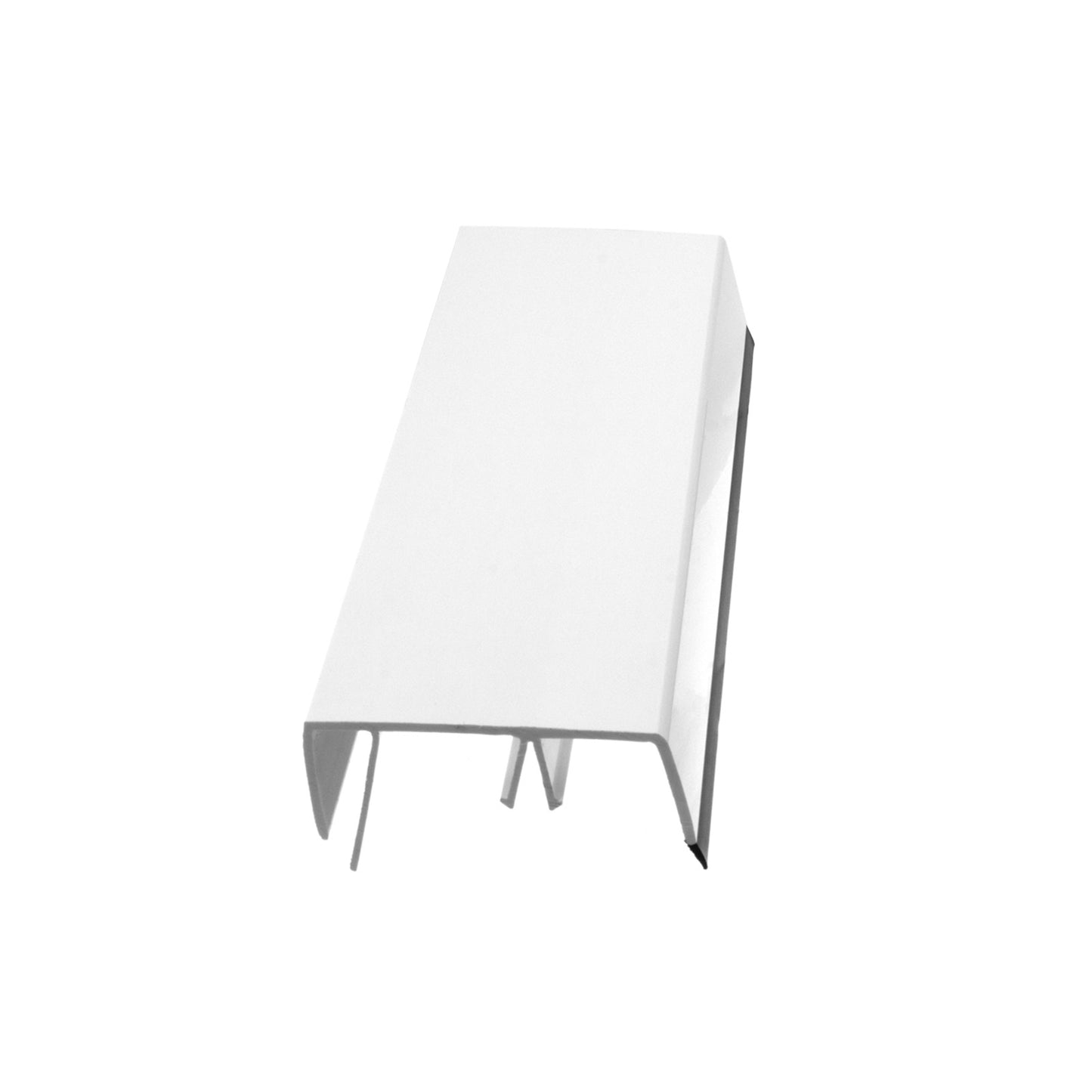

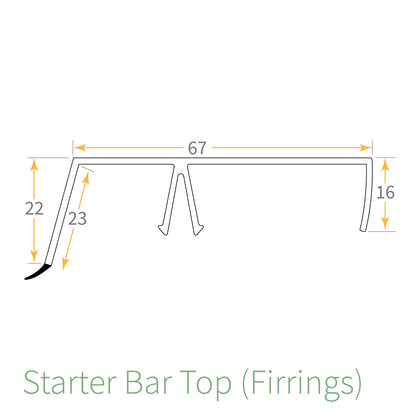

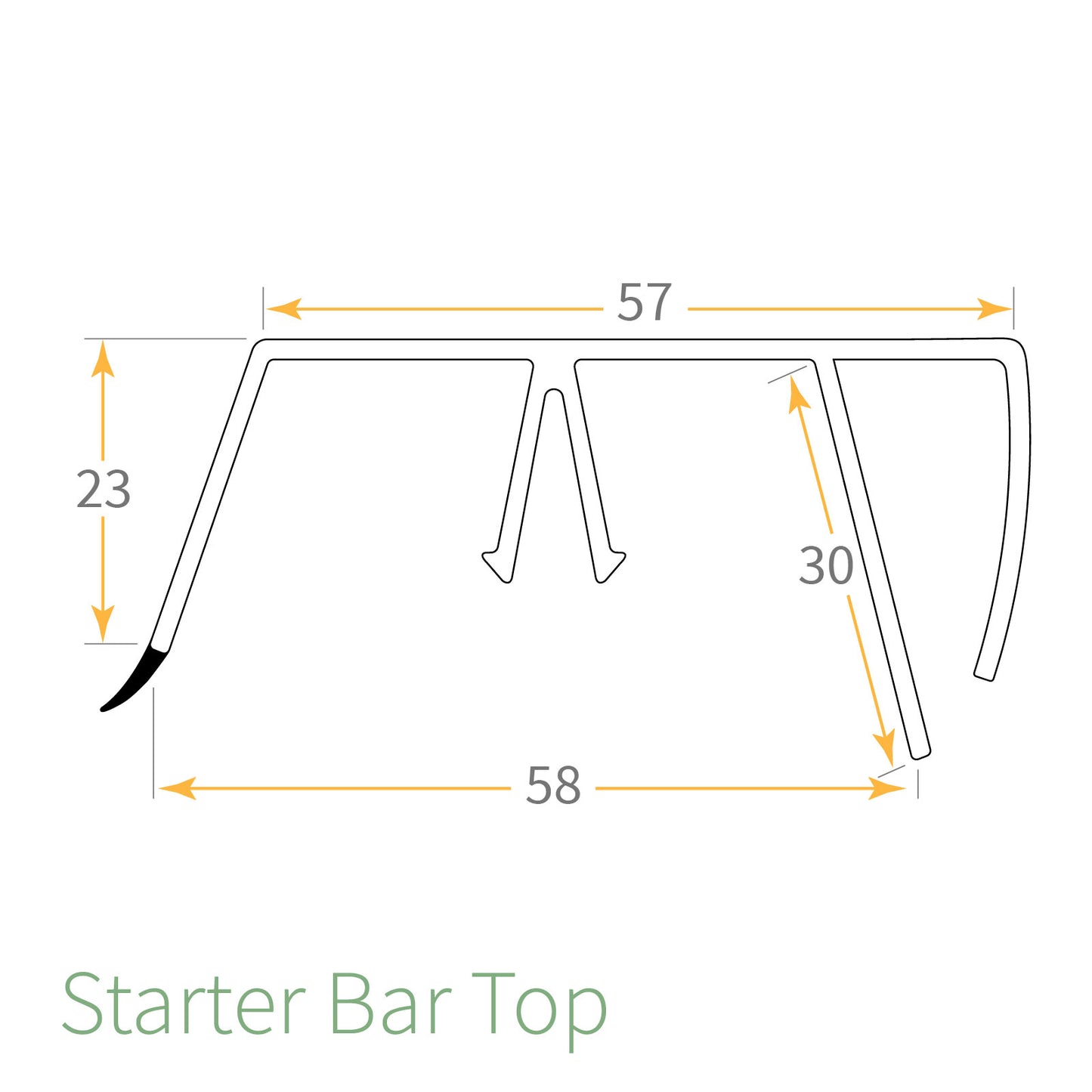

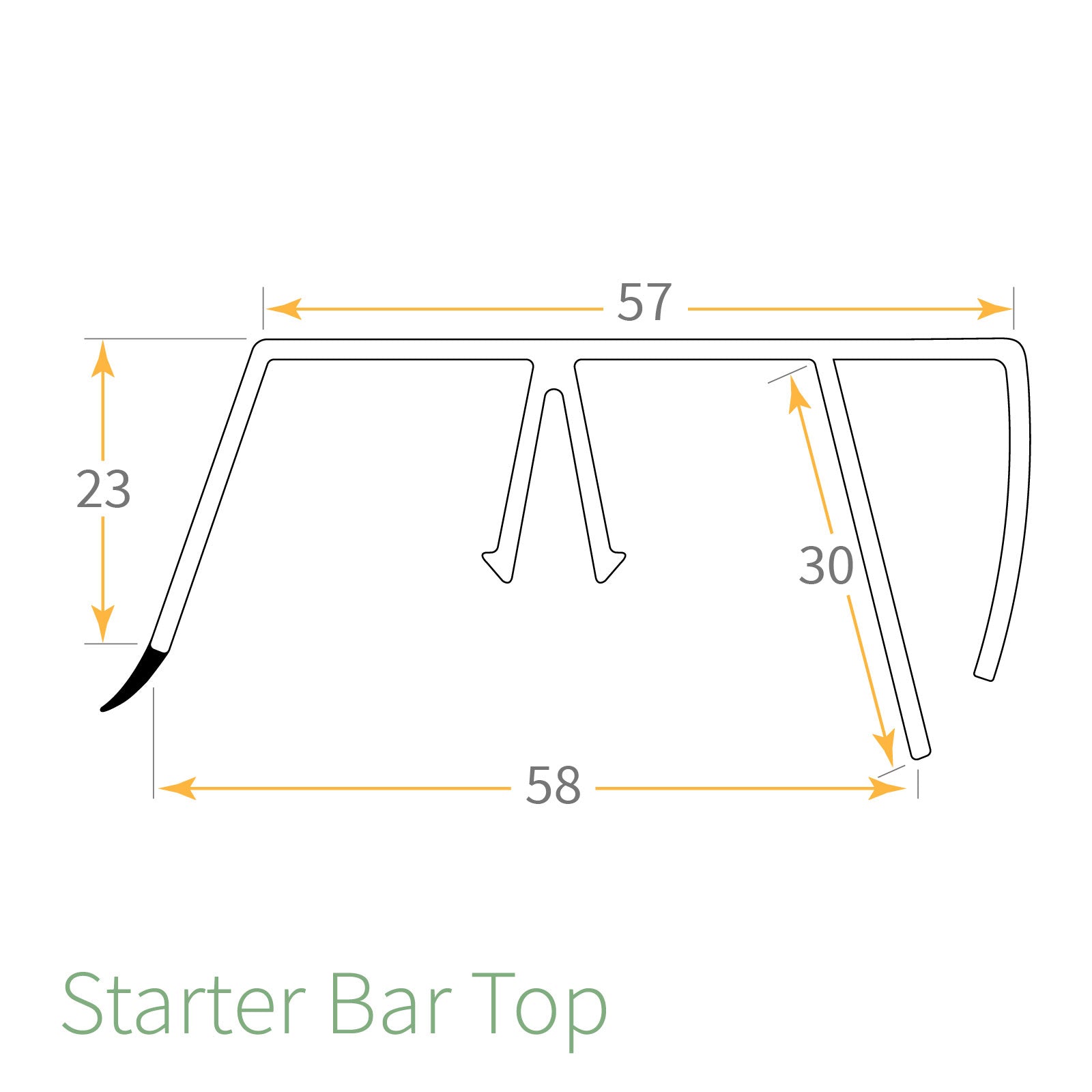

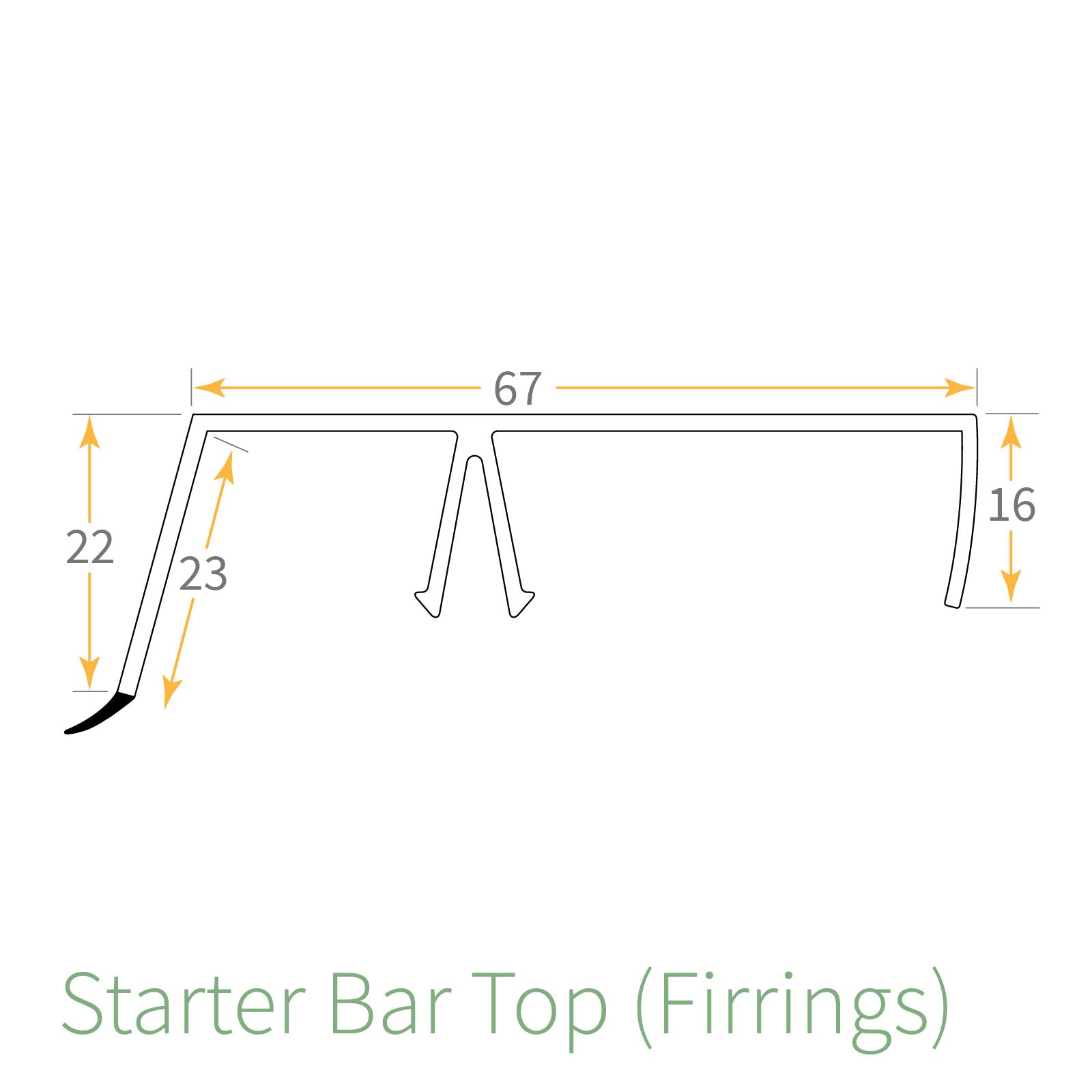

Cappings between two inline panels are known as Intermediate Top Caps, whilst cappings at either end of a roof are called Starter Top Caps. There are two types of Starter Top Caps, one for use on the dedicated Ultralite 500 Firring (a 2.5° triangular PVC-u wedge above the lower frame or wall), and a non-firring version that is used without the dedicated firring, typically over a timber wedge.

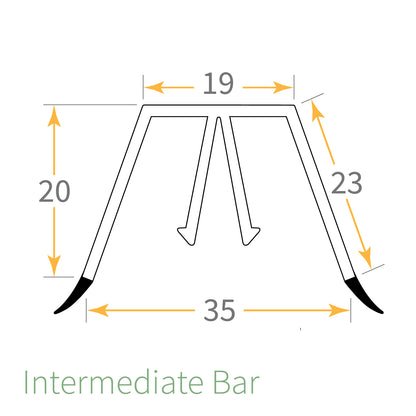

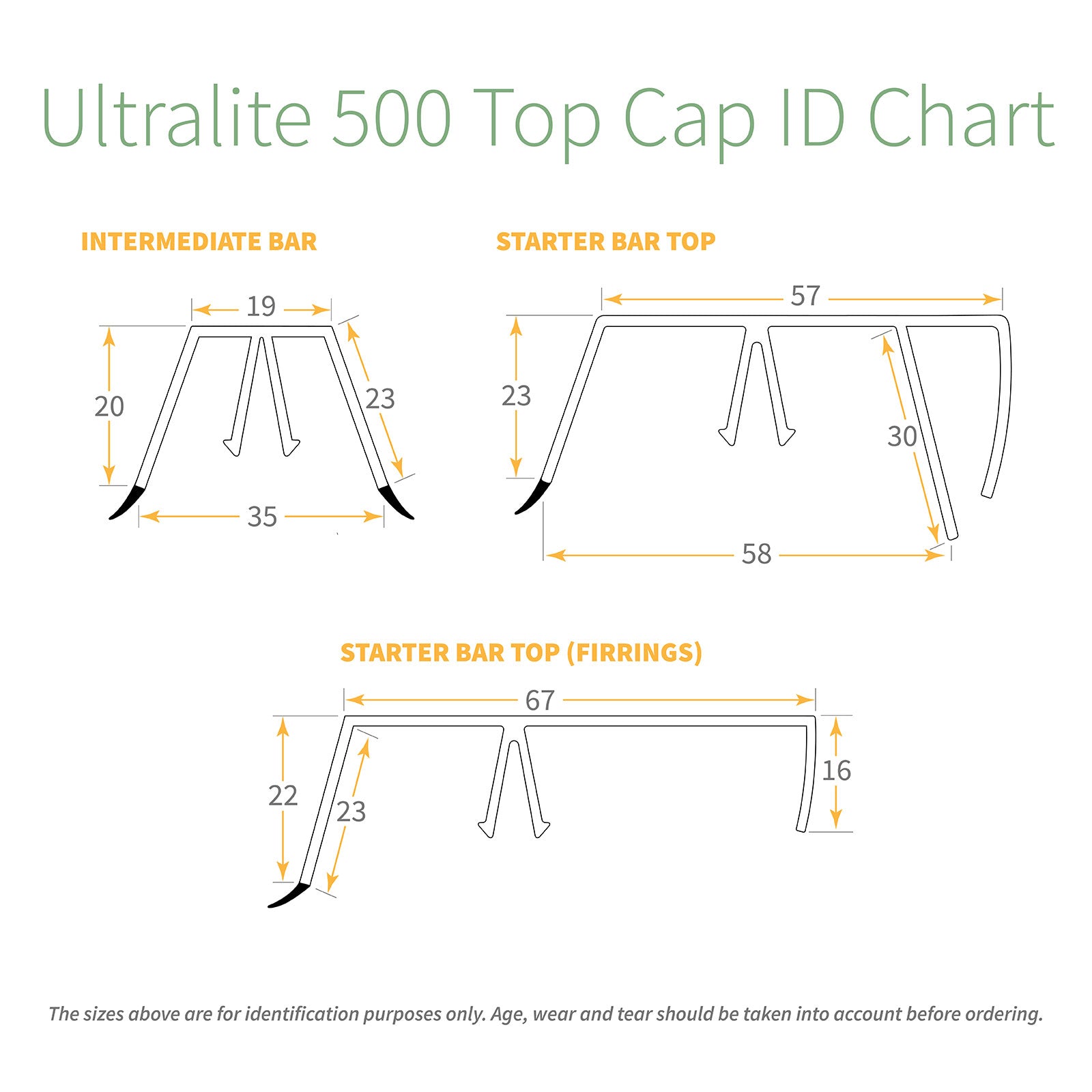

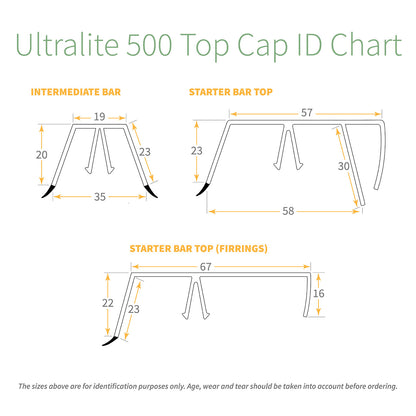

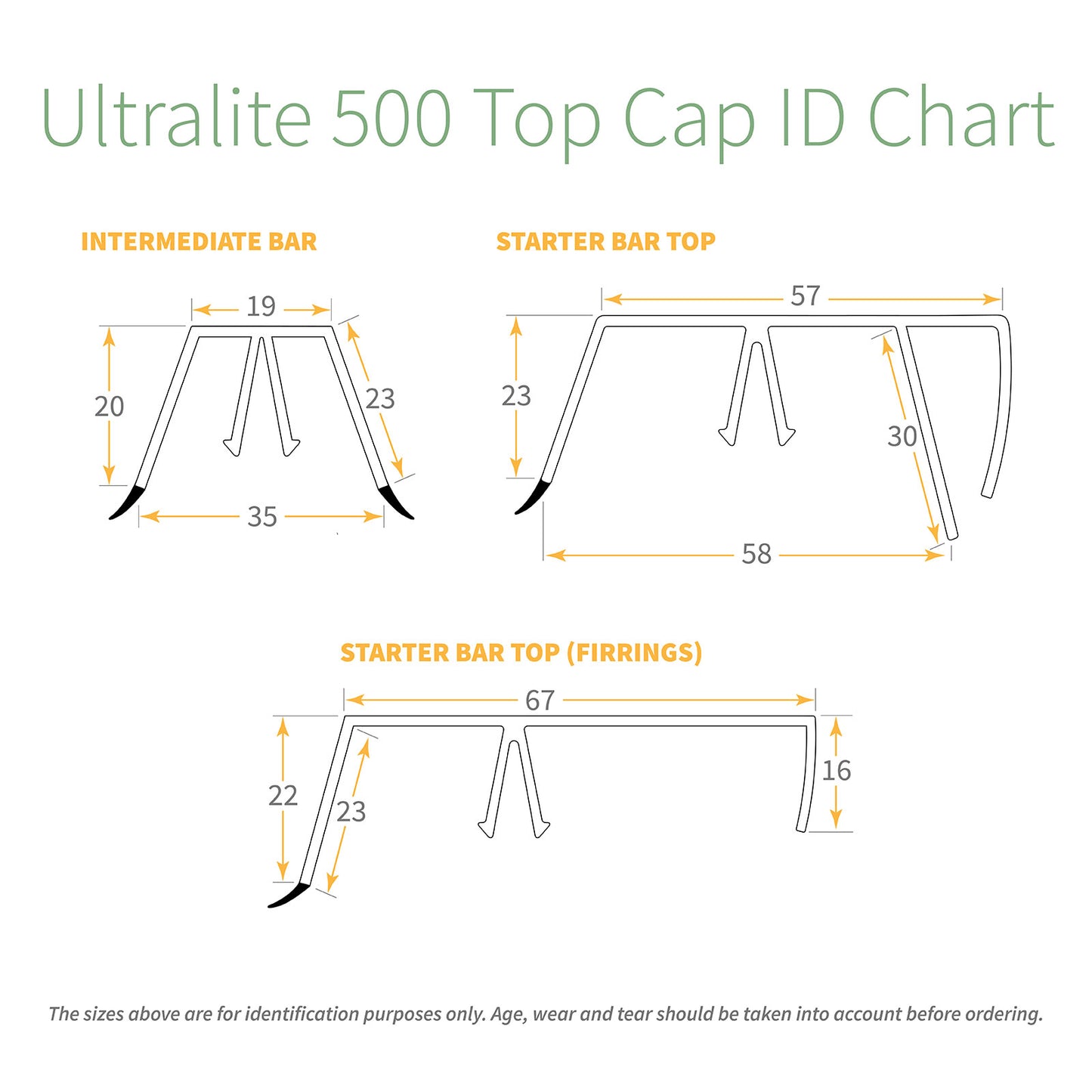

The correct replacement capping can sometimes be identified by referring to manufacturer part codes printed on the underside of the existing capping. If you do not see any codes, or are reluctant to remove the cappings, then you can compare the profile of your existing capping to the profile drawings shown above.

Contents

Fitting & Usage

Fitting the Ultraframe Ultralite 500 Glazing Bar Top Caps

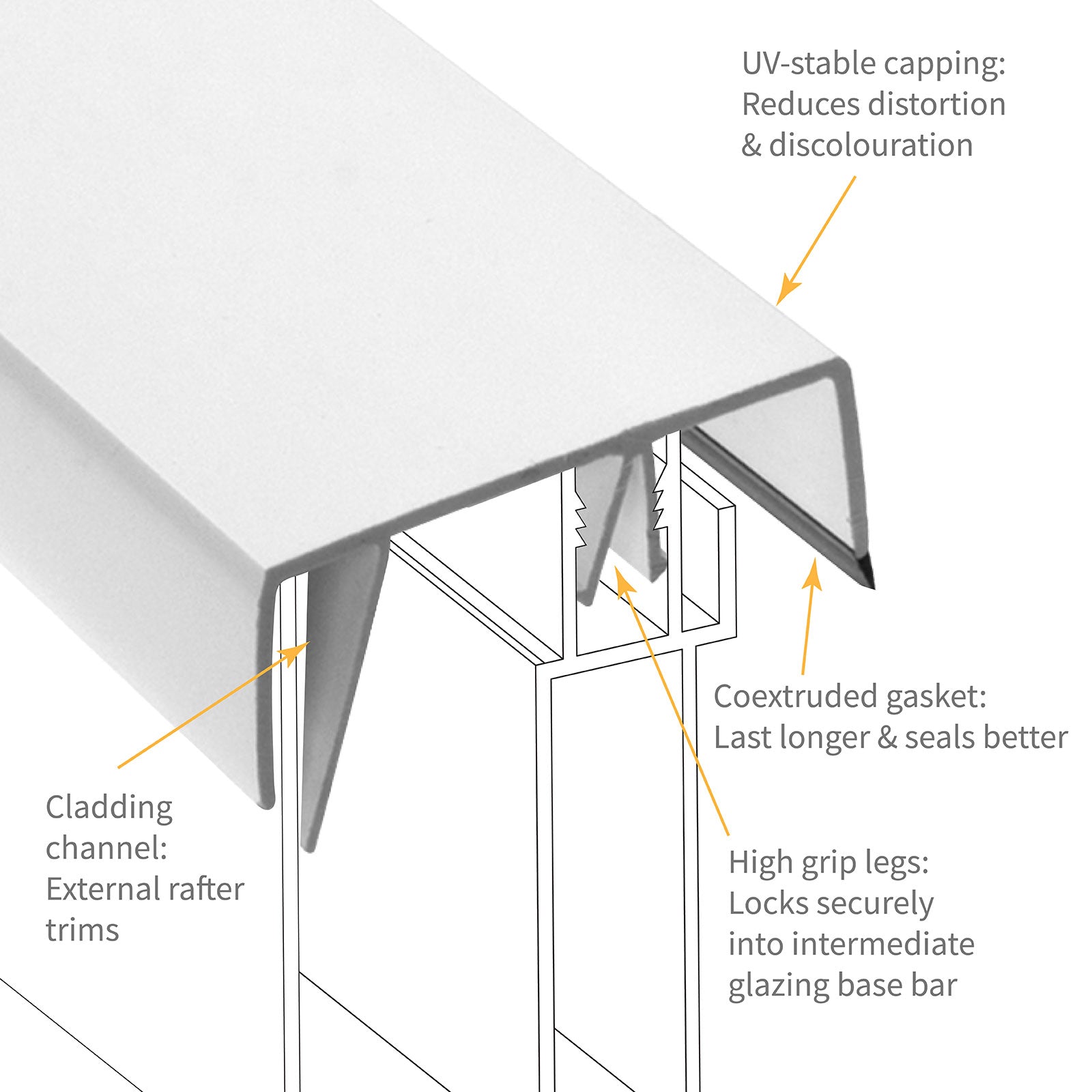

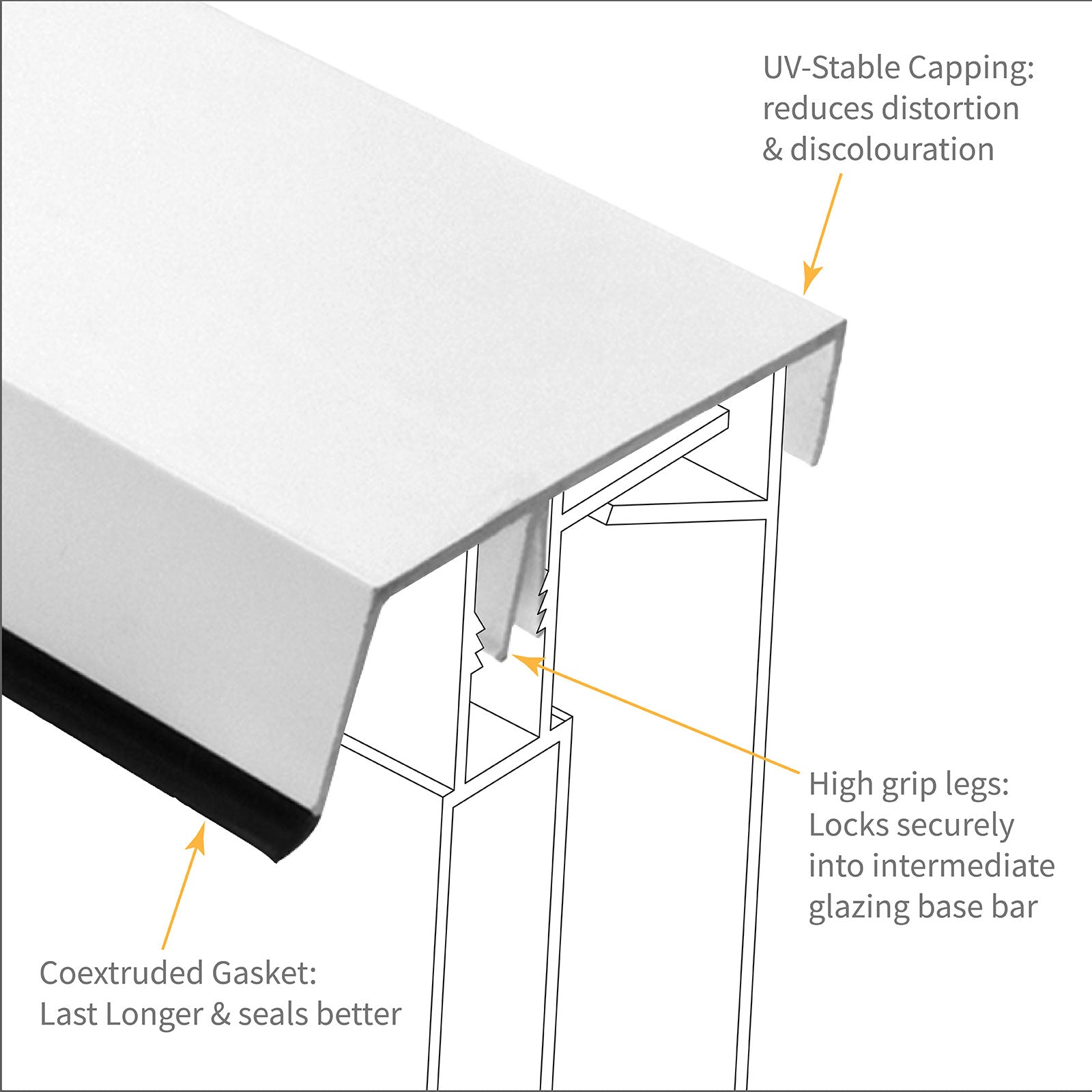

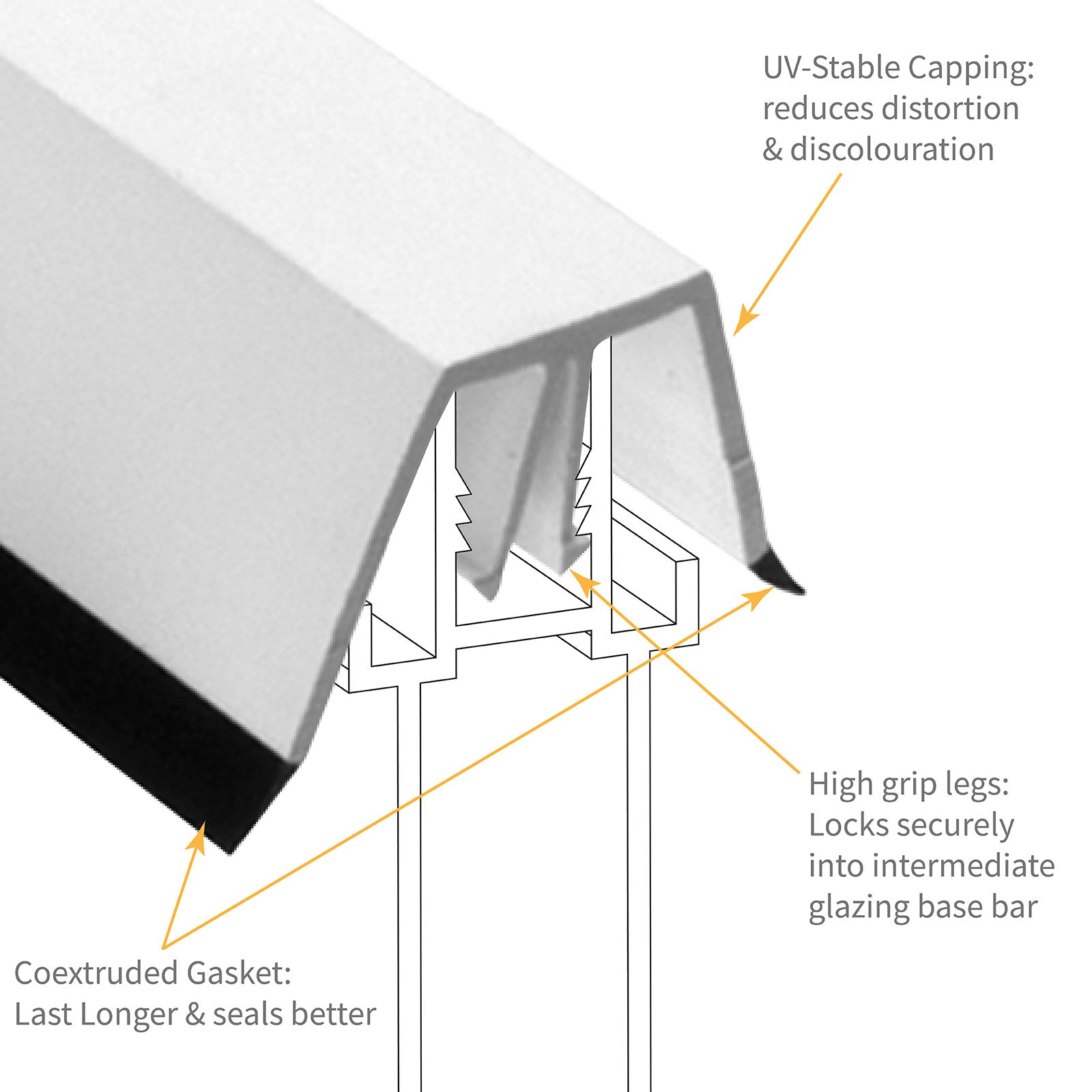

Once cut to length, using an electric chop saw or fine-toothed handsaw, the capping can be easily fitted to the aluminium glazing bar upstand, without any special tools. Simply align the end of the capping with the end of the bar, and knock hooked legs of the capping into the barbed aluminium upstand. This will ensure watertight compression of the top capping flapper seal against the glazing material.

How to Remove Existing Cappings

Removal of existing cappings can be difficult, but there are tools and methods that will help. The top capping legs that lock into the aluminium glazing bar, will need to be unhooked. The Ultraframe Glazing Bar Capping Removal Tool can really help with this, as it features two vertical blades that insert into the end of the bar to release the legs, and then allow an upwards motion to pull the capping out. Long nose pliers, or two flat screwdrivers, can be used in absence of the removal tool. A gasket that may have become stuck to the glazing material can be freed by running a putty knife, or similar, up the length of the capping.
