SNAPA Snap-Fix Main Bar (White)

SNAPA Snap-Fix Main Bar (White)

SKU: CLE-2040-1001
MPN: AG19W

£18.97

Sale Sold out

Tax included. Shipping calculated at checkout.

Out of stock

Normally despatched in 1 day.

Quantity

View full details

Description

White SNAPA Snap-Fix Main Glazing Bar for Lean-to Roofs

Name: SNAPA Snap-Fix Main Bar (White)
Brand: SNAPA
SKU: CLE-2040-1001
Price: 18.97 GBP
Availability: OutOfStock

(Choice of lengths available)

Incredibly easy to cut and fit!

Low cost snap-fix glazing bar for smaller DIY lean-to roof projects. Tough and long-lasting PVC-u extruded base bar and top cap for polycarbonate sheets. Supplied with decorative End Cap and screw.

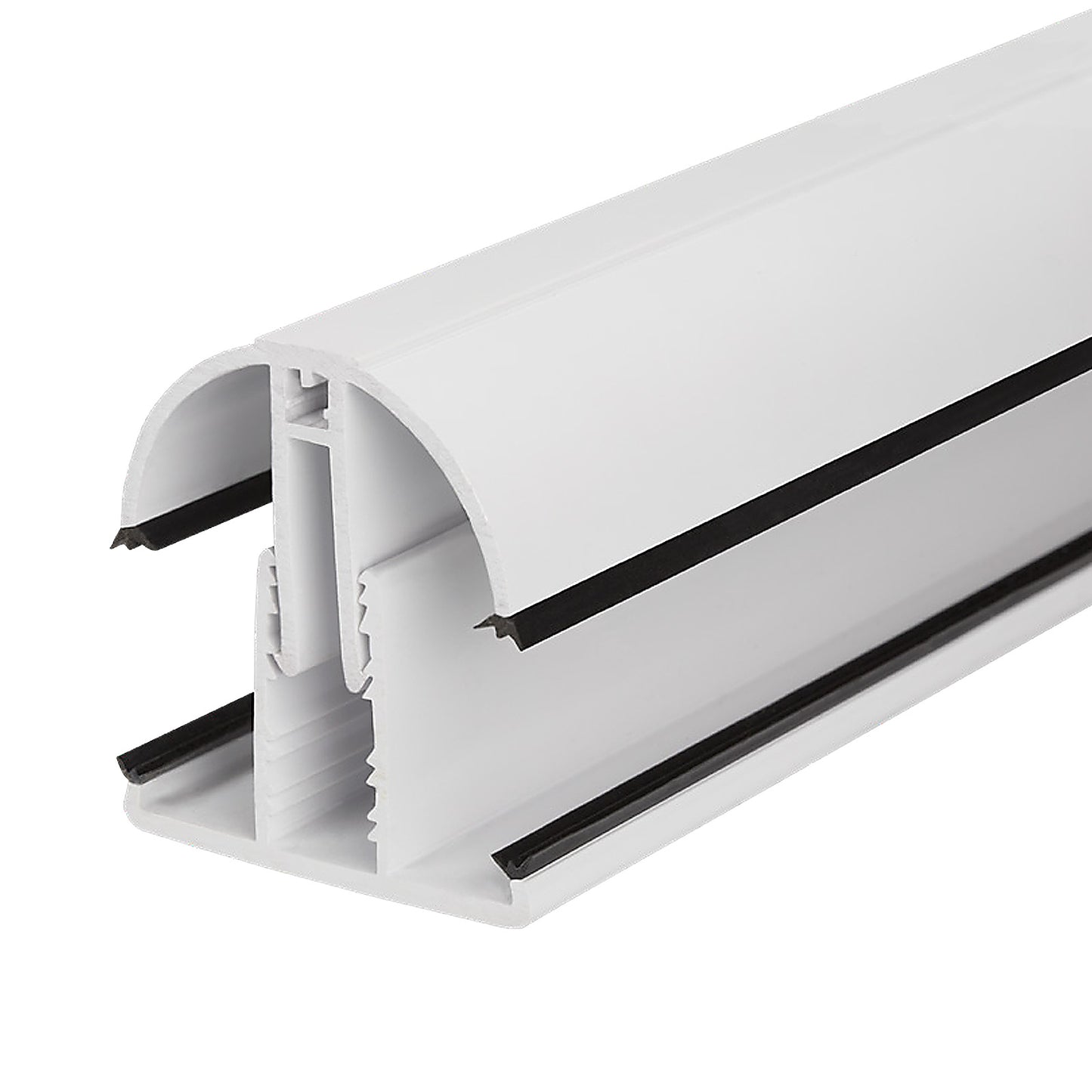

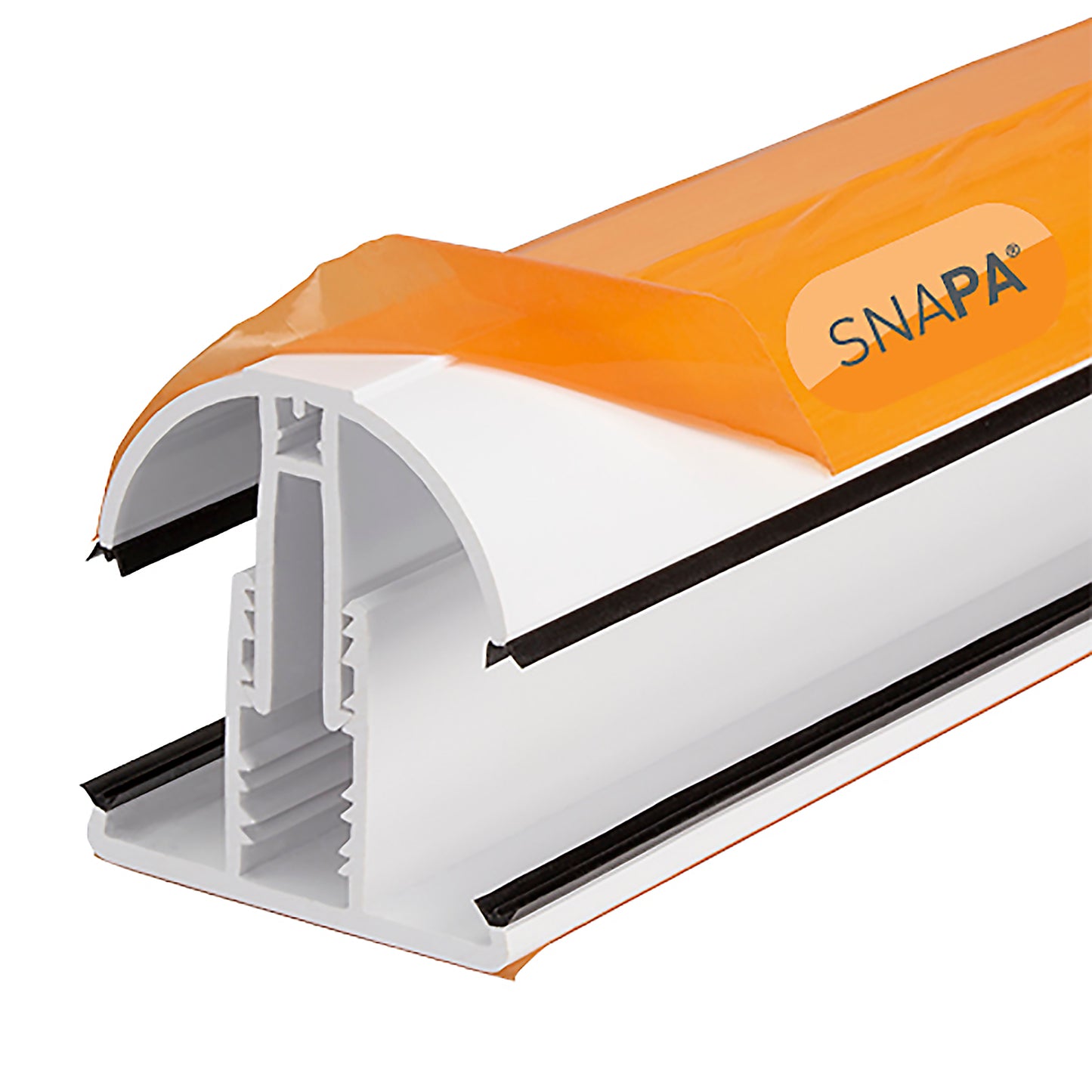

Extruded durable PVC-u Base Bar featuring a toothed upstand with locking points for securing the PVC-u top capping. The capping has coextruded seals that form a weather-tight pressure seal on the top of glazing material once the PVC-u capping has been pressed firmly into position over polycarbonate sheets of 10mm, 16mm, 25mm, 32mm and 35mm thickness.

NEW Stronger SNAPA Bar! The new PVC-u SNAPA bars are extruded with significantly thicker walls, which provides greater strength and rigidity over the low-grade aluminium of the old SNAPA bars.

Features & Benefits

Durable PVC-u extrusion
Cuts easily with standard hand saw
Simple snap-fix cap fitting
Perfect for simple lean-to roofs
Coextruded seal compresses onto glazing
For 10/16/25/32 and 35mm sheets
Matching Gable Bar option
Low-cost glazing solution

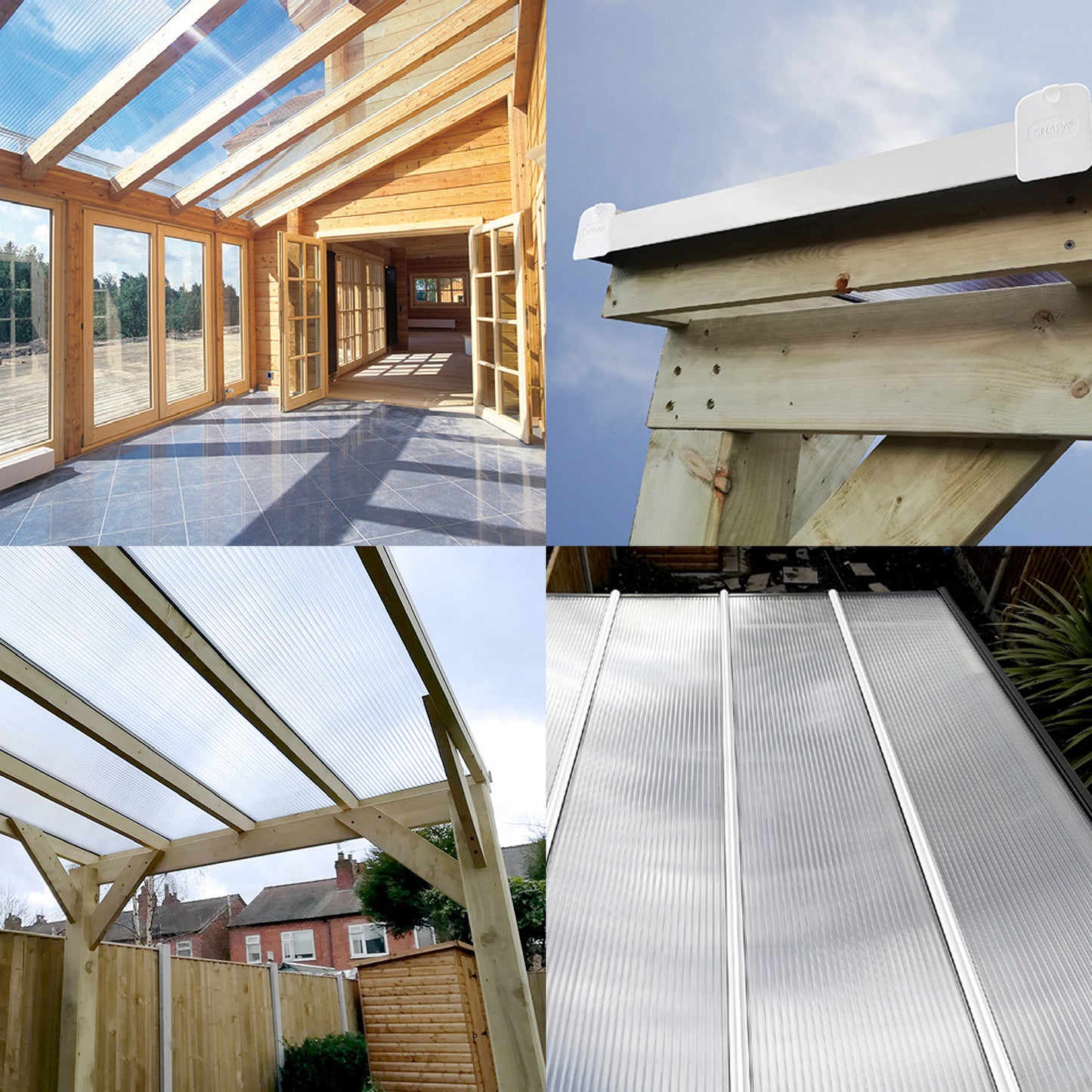

Retro-fitted to existing timber roofs, SNAPA can encase and seal problem leak areas and breath a new lease of life. SNAPA is equally effective on new installations too, offering a capping solution for low-cost lean-to roofs. Common uses for SNAPA Snap-Fix Glazing Bars include: Carports, Greenhouses, Canopies, Covered Walkways and Pergolas.

Unlike many snap-fix rafter capping solutions for lean-to roofs, SNAPA has a matching Gable Bar with an extended drip face for left and right starter rafters of a lean-to roof, so no need to improvise or compromise.

Specification

Materials	Base Bar - PVC-u plastic extrusion with coextruded gasket Top Cap - PVC-u plastic extrusion with coextruded gasket End Cap - Plastic* Fixings - Steel screw and plastic cover cap

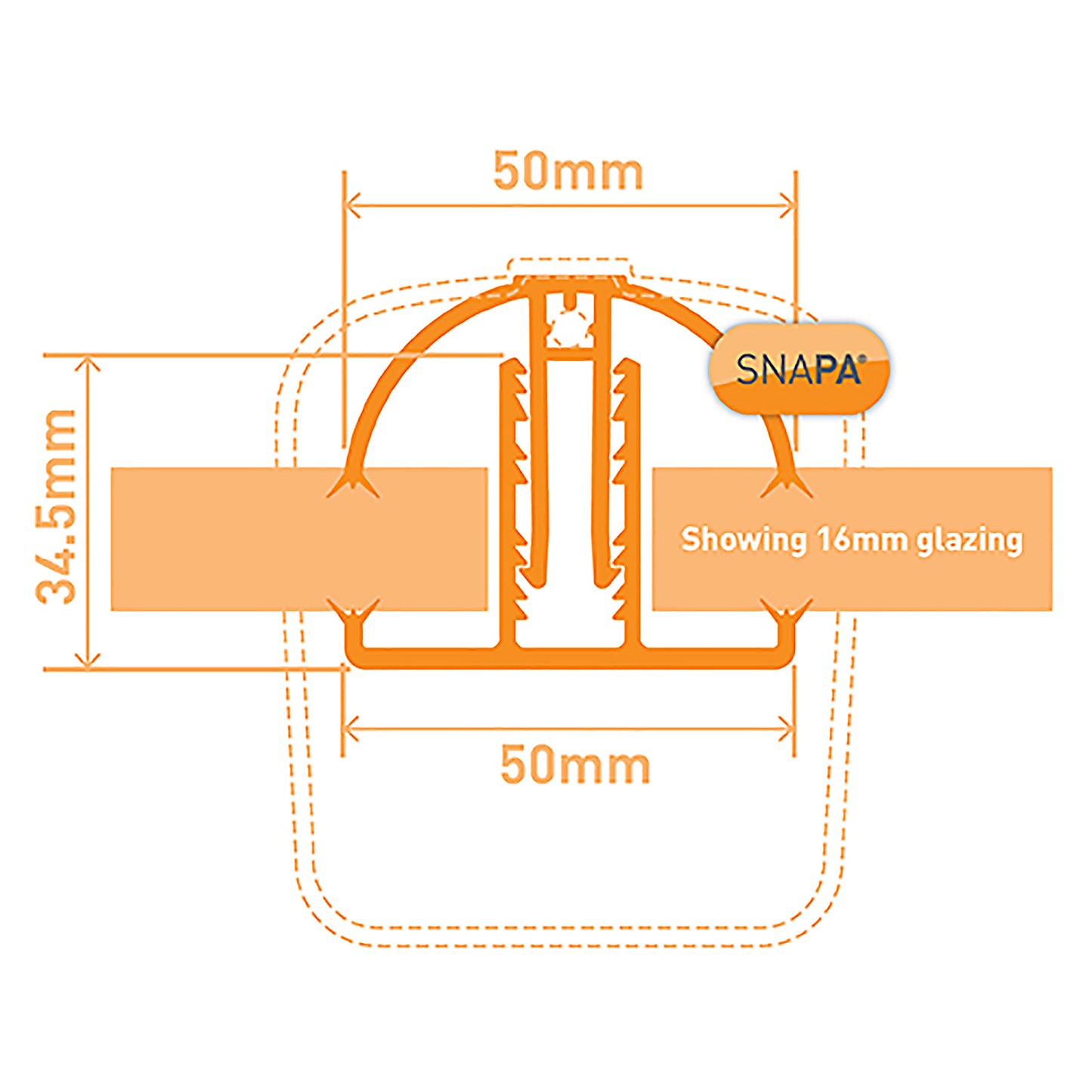

Top Cap Size (w x h x l)	50mm x 34.5mm x Various (2m/2.5m/3m/4m/5m/6m)
Base Bar Size (w x h x l)	50mm x 34.5mm x Various (2m/2.5m/3m/4m/5m/6m)
Top Cap Colour	White
Available Lengths	2m, 2.5m/3m/4m/5m/6m
Weight (per m)	827g

Contents

Fitting & Usage

Fitting the SNAPA Snap-Fix Main Bar (White)

The following is a brief summary of typical installation. Technical Information and further Fitting Advice is available.

Prepare Base Bars and Top Cappings by cutting to length, ensuring that they will overhang the correct amount over the gutter.

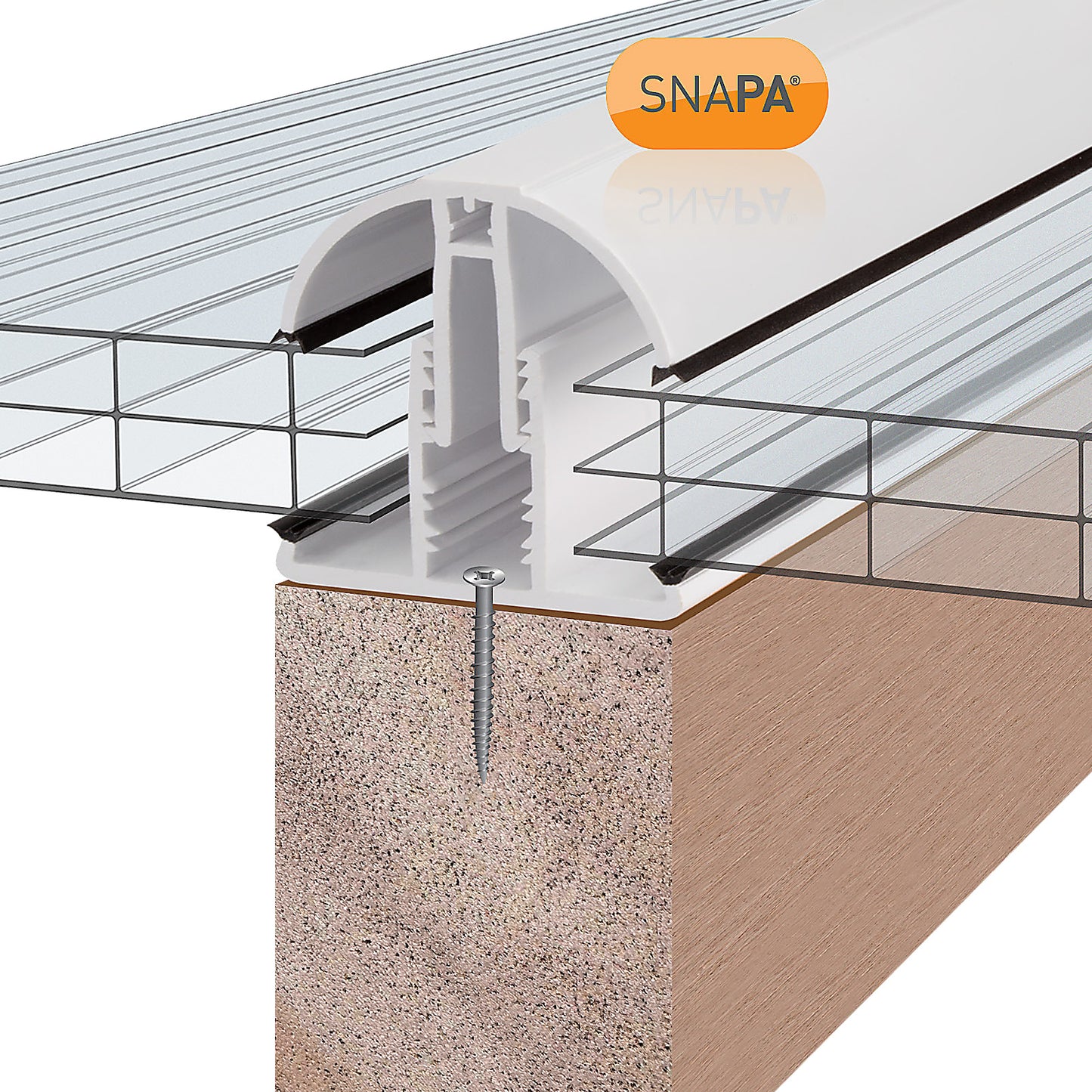

Fix base bar to timber rafter by screwing through central channel every 200-300mm and no more than 75mm from either end.
Prepare polycarbonate sheets by cutting to size, before fitting breather tape and End Closure/Drip Trim. Position over bars and check that any protective film is peeled back from sides. Eaves Seal Foam can be used along eaves to support the underside of the sheets.
Push Top Cappings down into position over the Base Bar upstand and tap down using a soft/rubber headed hammer.

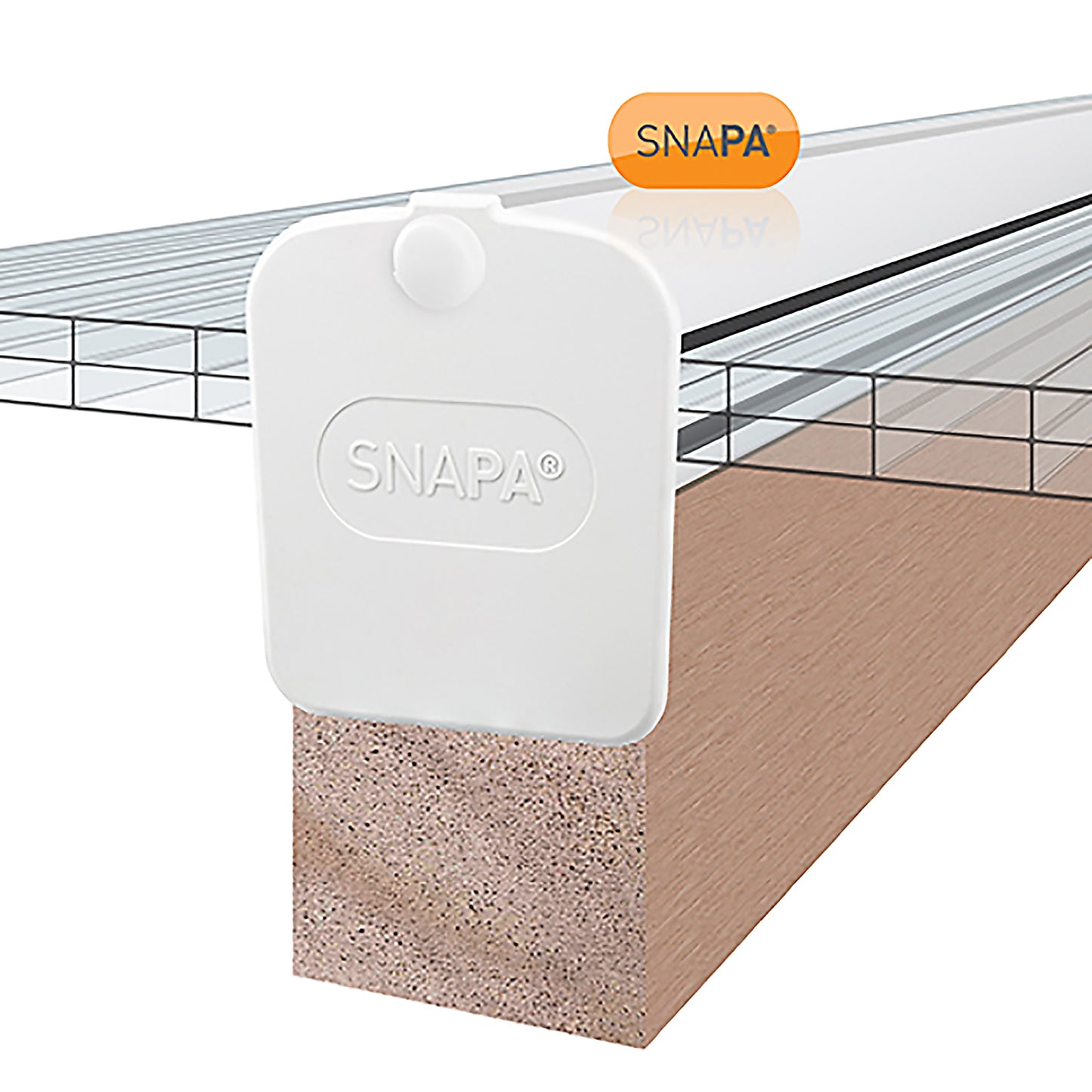

Fit End Caps with supplied screws and caps.
