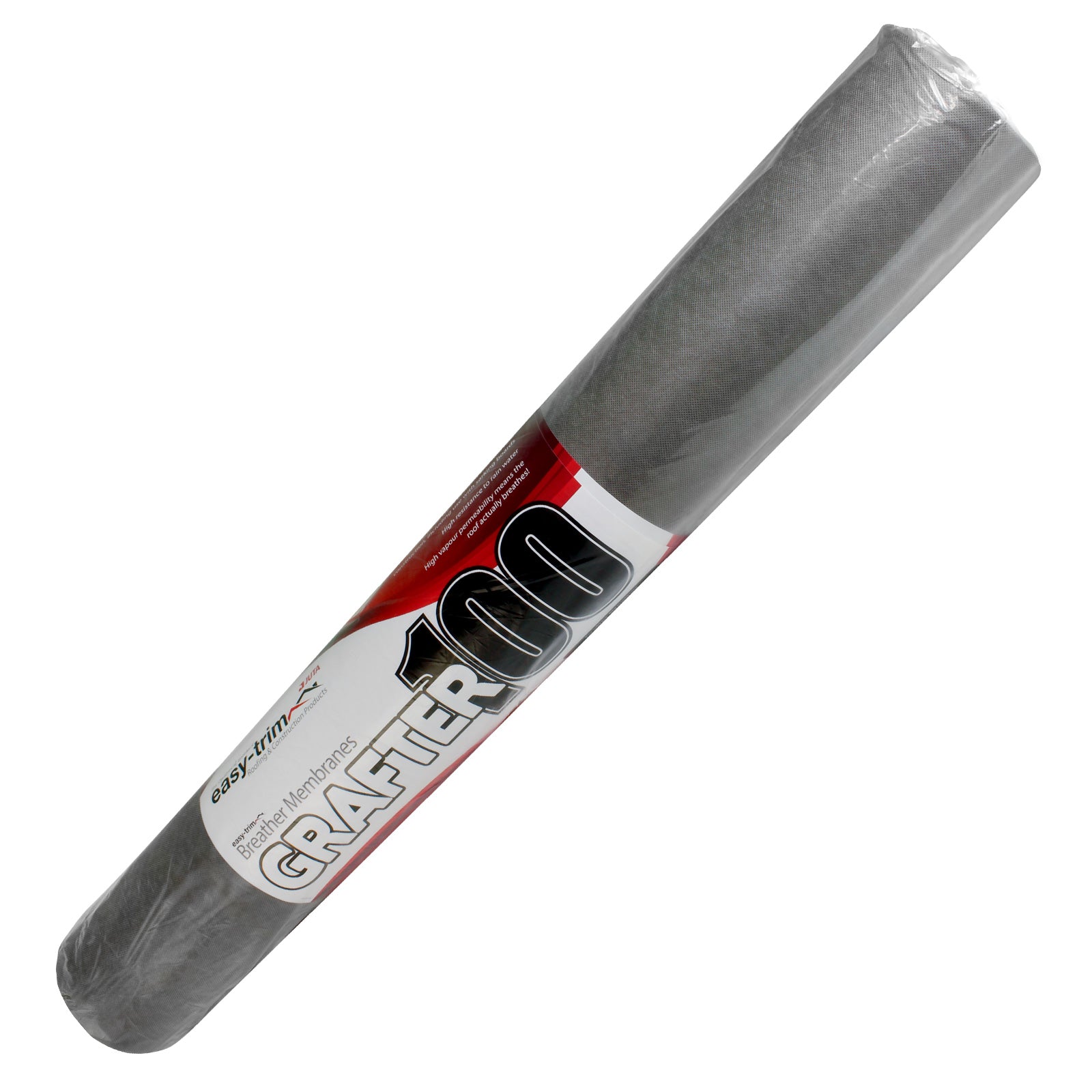

Easy-Trim Grafter 100 Breather Membrane

Easy-Trim Grafter 100 Breather Membrane

SKU: EAS-2087-1005
MPN: EASYTRIMGRAFT1

£36.50

Sale Sold out

Tax included. Shipping calculated at checkout.

Low stock: 7 left

Order within

h m s

for Same Day Despatch

Quantity

View full details

Description

Grafter 100 Breather Membrane Roofing Felt from Easy-Trim

Name: Easy-Trim Grafter 100 Breather Membrane
Brand: Easy-Trim
SKU: EAS-2087-1005
Price: 50.84 GBP
Availability: OutOfStock

(100gsm, choice of roll width and length)

Reliable lightweight vapour permeable membrane!

Lightweight hybrid breathable roof underlay provides excellent performance, whilst being flexible and only 100gsm. BBA certified and suitable for both fully supported and unsupported installations in tiled or slate pitch roofs.

The Grafter 100 is a 3-layer micro porous breather membrane, which features a microporous film that is thermally bonded between two spun-bonded polypropylene layers. Allows the roof to breathe, so eliminates condensation, whilst providing secondary protection against rainwater ingress. Easy-Trim breather membranes improve energy efficiency and minimise the wind uplift that can loosen slates and tiles.

Features & Benefits

Protects roof slate and tile - reduces wind uplift
Reduces condensation in roof - highly vapour permeable
Driven rain and snow protection - second line of defence
Highly versatile - use on warm, cold and hybrid roofs
Flexible yet strong - good tensile tear strength
UV stable for 3 months - protection during construction
Quality you can trust - independently tested
Superior water resistance - protective polypropylene top layer

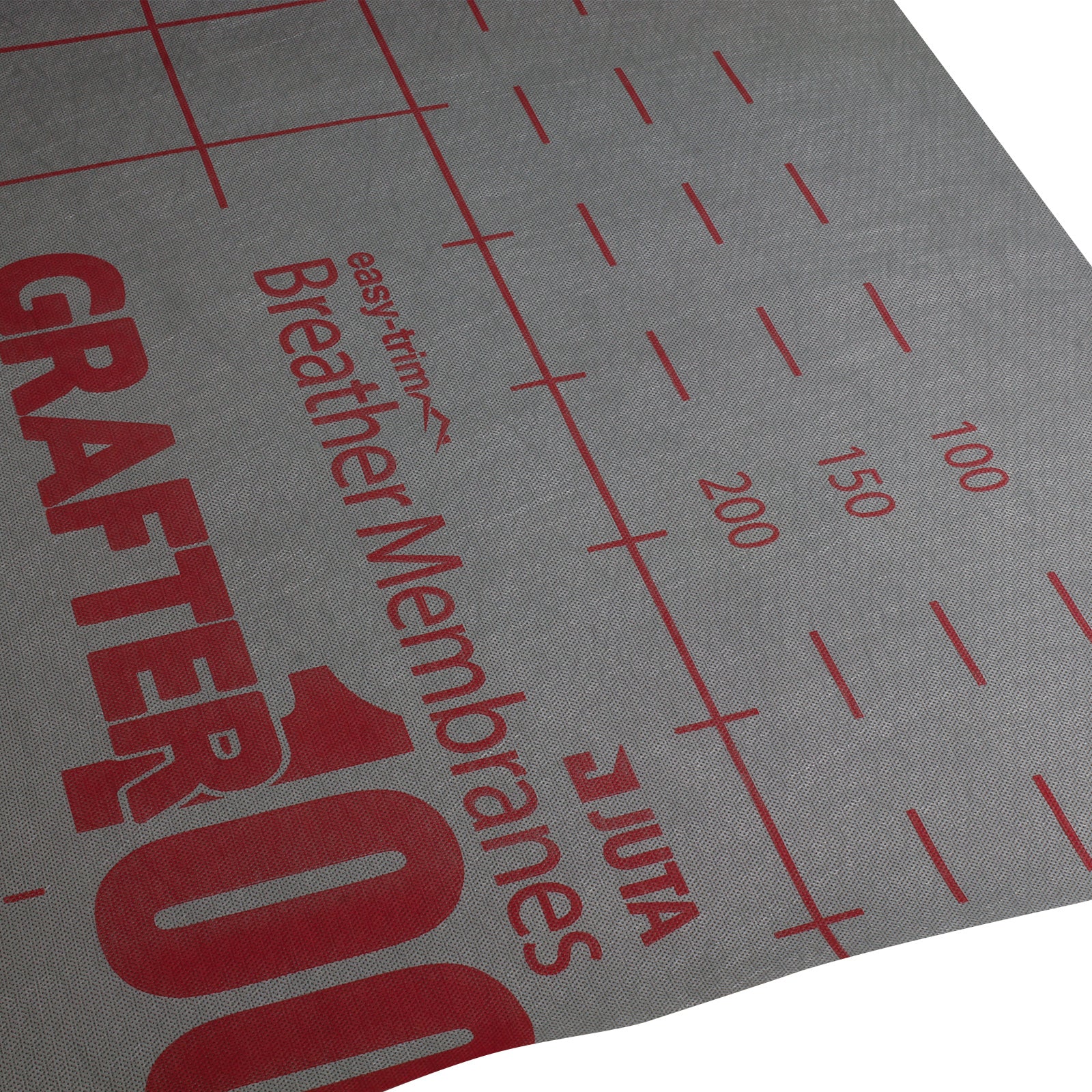

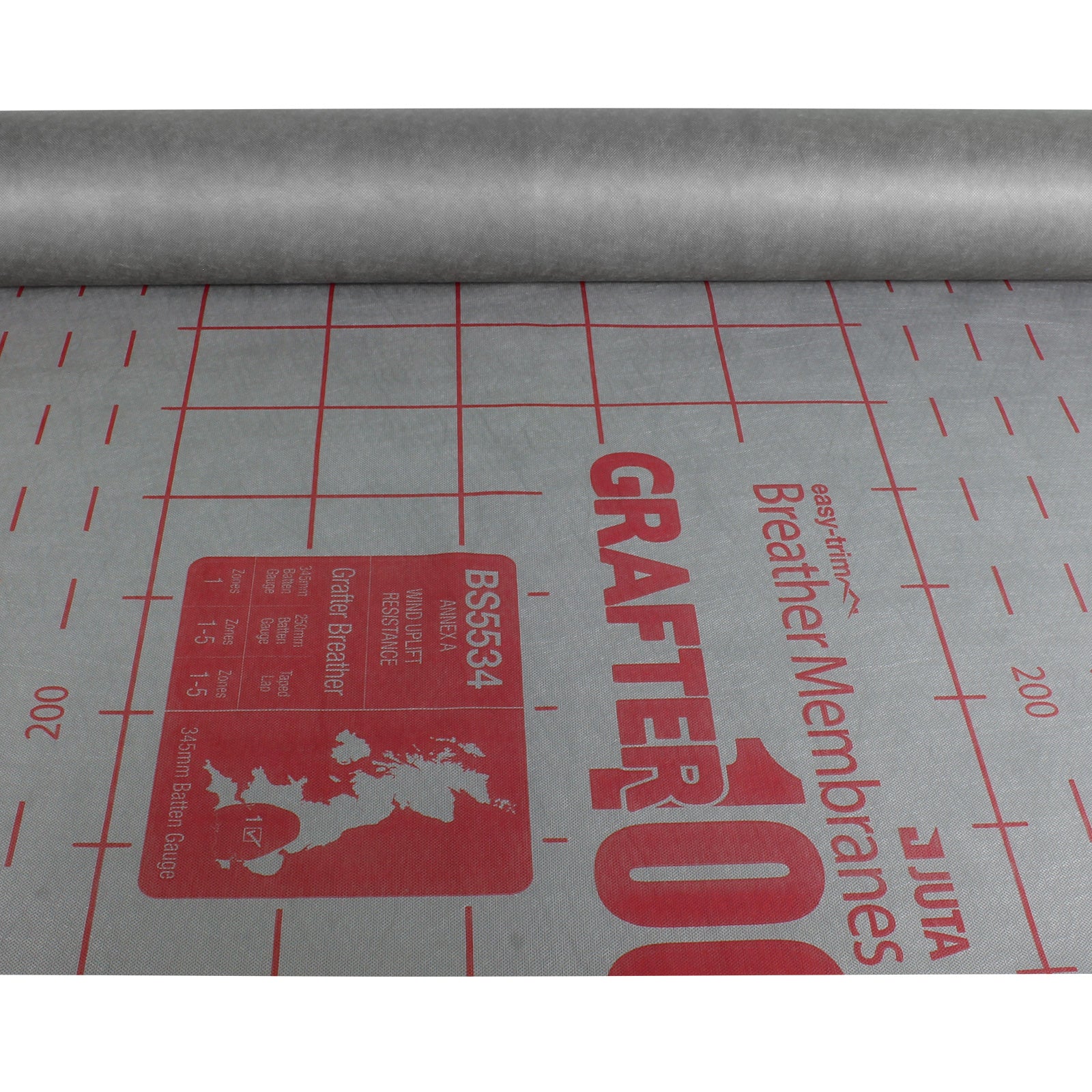

Printed with brand and cutting grid - easier to identify and fit

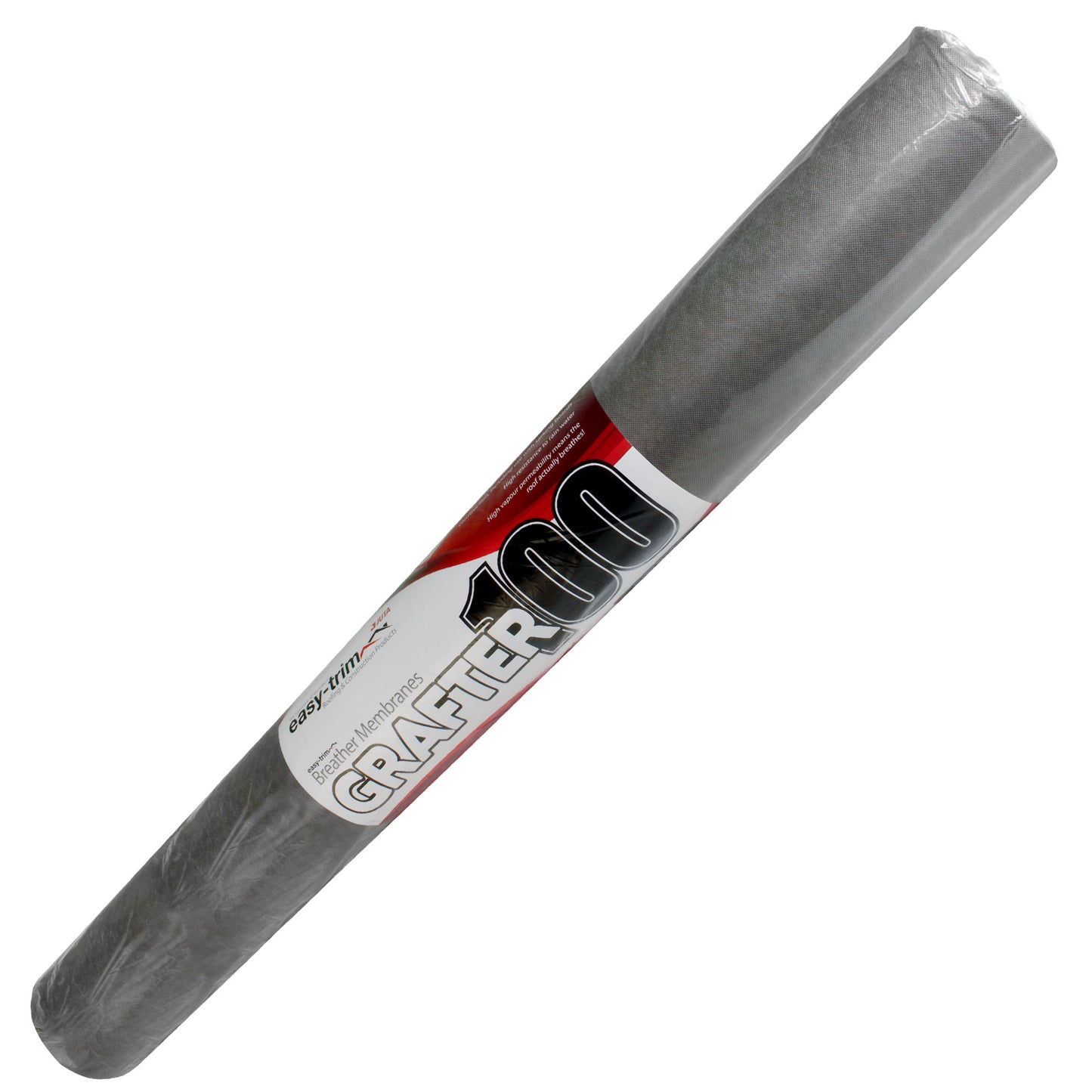

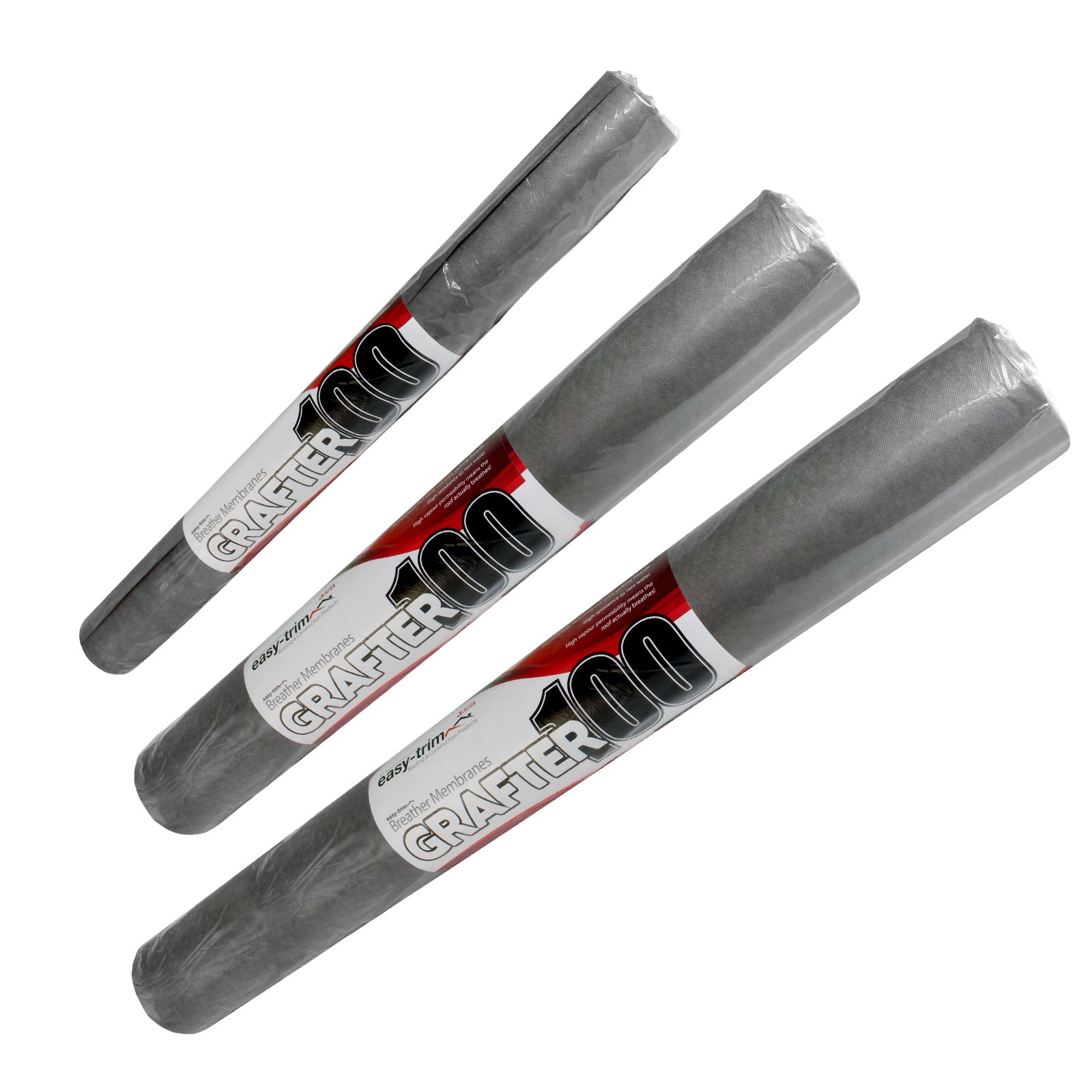

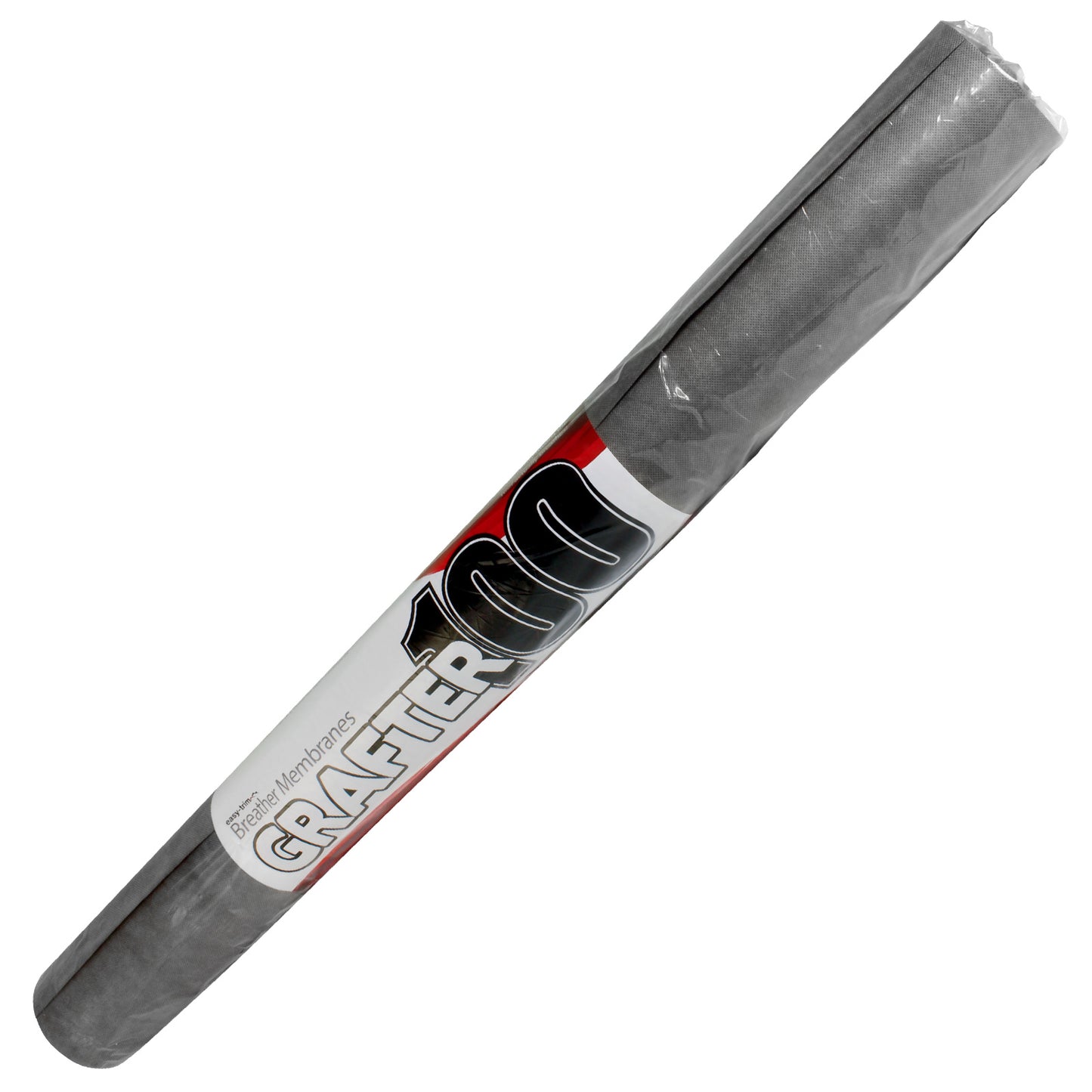

Choice of roll size - 1m or 1.5m widths and 20m or 50m length

National Wind Zone Suitability

New builds must comply with British Standard for Tiling and Roofing (BS5534) Annex A, with breather membranes tested against wind uplift, and their suitability for use across the 5 national wind zones.

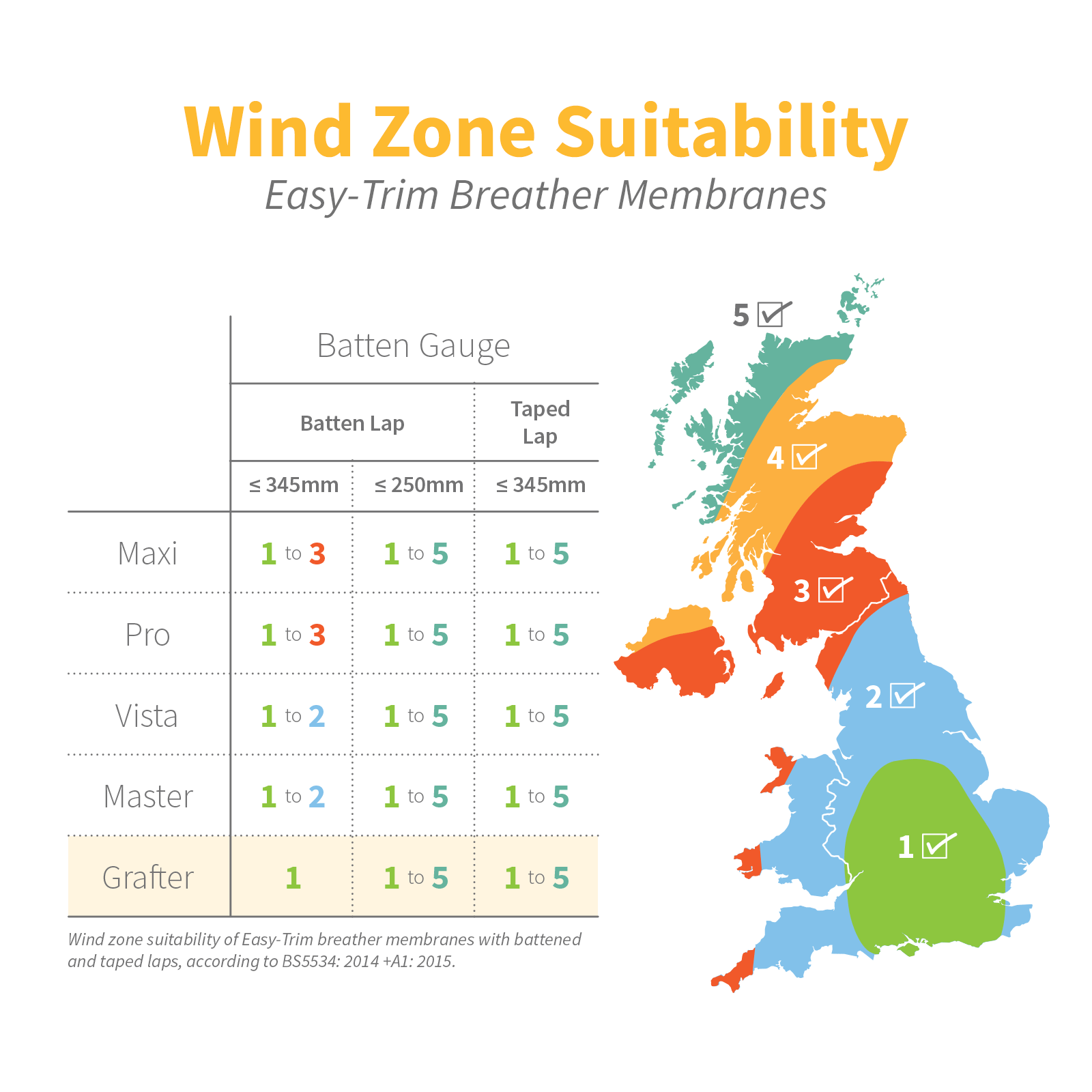

Grafter 100 Wind Zone Suitability Map

Batten Gauge		Wind Zone Suitability
Gauge	Lap	1	2	3	4	5
<=345mm	Batten	Y
<=250mm	Batten	Y	Y	T	Y	Y
<=345mm	Taped	Y	Y	Y	Y	Y

Specification

Measurement	Performance
Material	3-Layer Polypropylene Sheet (Spun Bonded Polypropylene Layer, Microporous Polypropylene Film, Spun Bonded Polypropylene Layer)
Mass	100gsm
Width	1m (3ft 3in) or 1.5m (4ft 11in)
Length	20m (65ft 7in) or 50m (164ft 1in)
Maximum tensile force MD / CMD (N/50mm)	260 / 170
Elongation MD / CMD (%)	50 / 80
Resistance to Tearing MD / CMD (N)	120 / 140
Resistance to penetration of air (m3/m2.h.100Pa)	< 0,02
Fire Class	E
Water Resistance Class	W1
Compatibility	Suitable for both fully supported and unsupported warm, cold and hybrid, tiled or slate pitch roofs. Can be used with sarking boards.
Certification	BS5534.2014 Annex A, Type LR Underlay to BS5250, BBA 10/4753, NSAI, CE

Fitting & Usage

Preparing a roof with Easy-Trim Grafter 100 Breather Membrane

Fitting of Easy-Trim breather membrane should begin at the lowest level of the roof, at the eaves, with the printed side facing out. Starting from the left, roll the membrane horizontally across the rafters to the right, and be sure to allow 100mm lap over the felt-support trays. The use of double-sided overlap tape to secure the lower edge to the felt-support tray is highly recommended.

Roof Pitch	Horizontal Laps		Vertical Laps
Roof Pitch	Not Fully Supported	Fully Supported	Vertical Laps
12.5 to 14°	225	150	100
15 to 34°	150	100	100
35 to 75°	100	75	100

Horizontal laps in breather membrane should be taped with the double-sided overlap tape, or battened over. Whenever possible, horizontal laps should coincide with the closest tiling or slating batten. Vertical laps should be positioned over a rafter and have a minimum of 100mm lap.

Easy-Trim breather membranes are suitable for installations on all major pitch roofing and timber frame applications, and must be installed in accordance with our fixing instructions, complying with the recommendations of BS5534: 2014 + A1: 2015; BS5250: 2011 and BS8000-0: 2014 and any other applicable standard. The products are designed to be installed by competent and experienced installers of slates and tiles.
