Yale Anti-Bump Keyed-Alike Euro Cylinders

Yale Anti-Bump Keyed-Alike Euro Cylinders

SKU: YAL-1289-1001
MPN: IF5YKMC3535BPR

£27.98

Sale Sold out

Tax included. Shipping calculated at checkout.

Low stock: 4 left

Order within

h m s

for Same Day Despatch

Measuring Guide

Quantity

View full details

Description

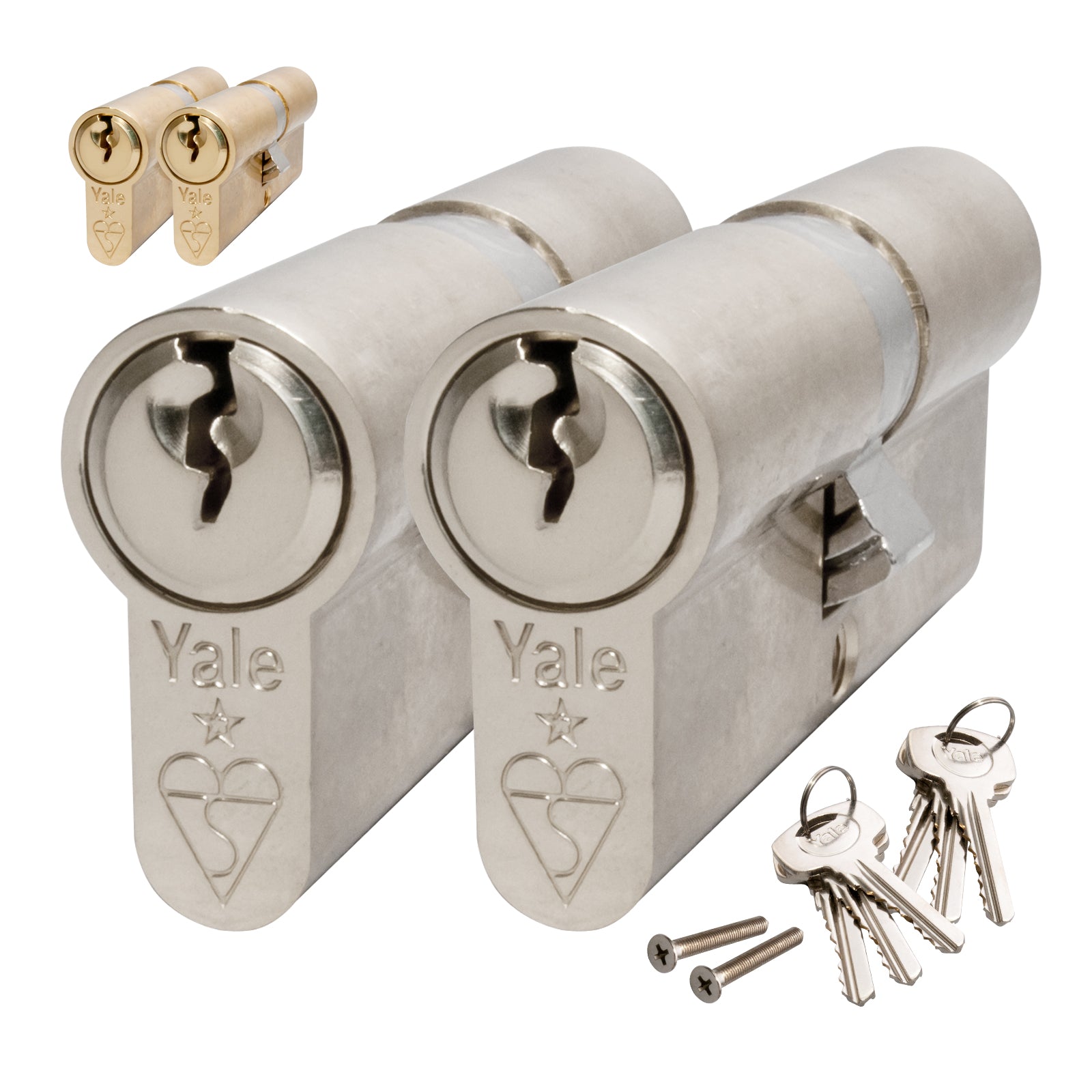

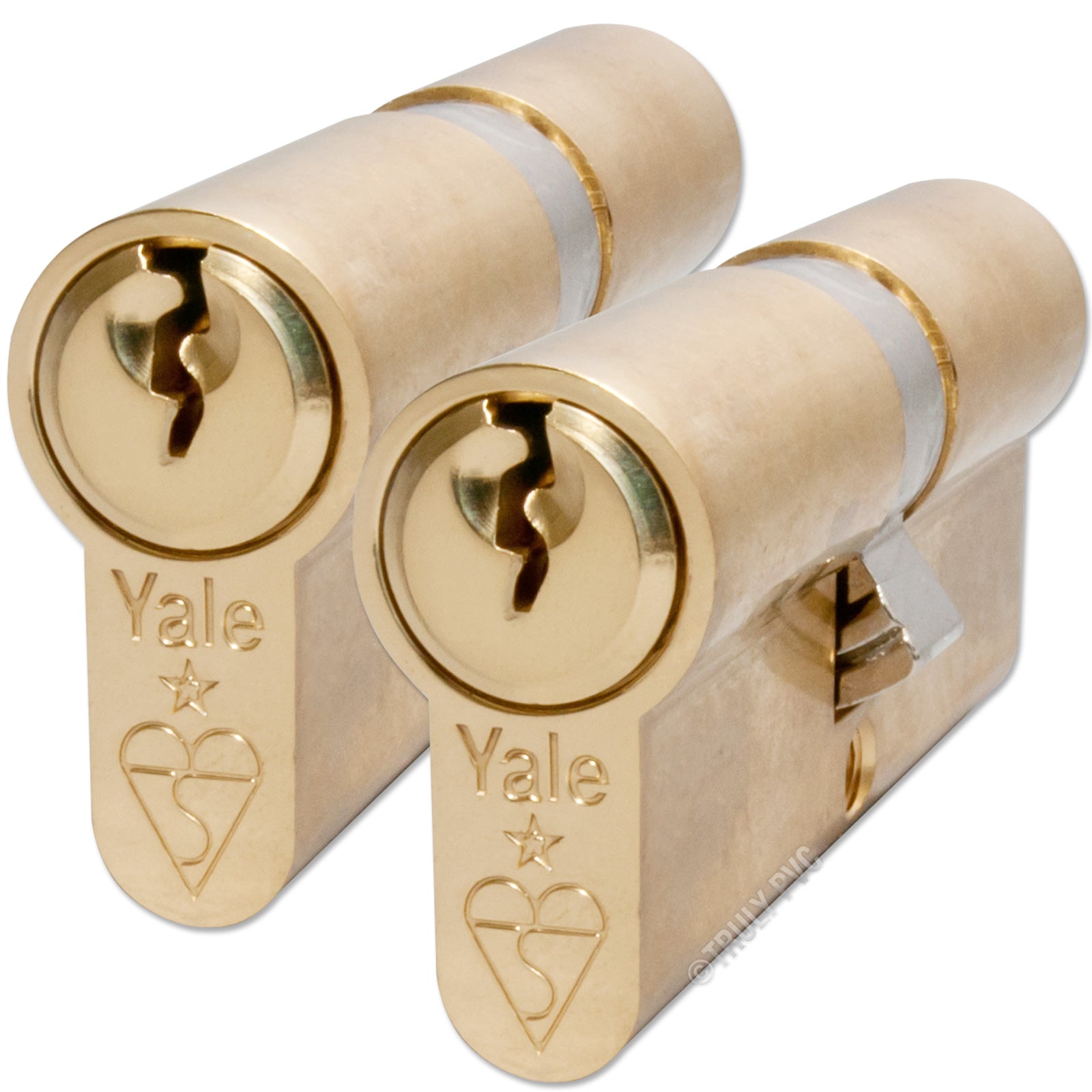

Pair of Kitemarked Security Euro Cylinder from Yale

Name: Yale Anti-Bump Keyed-Alike Euro Cylinders
Brand: Yale
SKU: YAL-1289-1001
Price: 27.98 GBP
Availability: InStock

(Brass or Nickel, Many Sizes, 6 Keys (extra available))

Same-key convenience from a name you can trust!

Two high security euro cylinder locks from Yale, one of the World's most respected names. Both cylinders use same key, so ideal for double doors, front/back and porch/front combinations. Offers Anti-Bump, Anti-Pick, Anti-Plug Pull, Anti-Extraction and Anti-Drill protection.

Manufactured to British Standard (EN1303: 2005), this is a cylinder that you can trust. Whatsmore, it comes with a 10 year guarantee!

Features & Benefits

BSI Kitemark (KM532920) - approval you can trust
BSEN 1303:2005 - highest European security
PAS 024:2007 - British Standard for entrance doors when used with Yale security furniture
Anti-Pick - spool pin protection
Anti-Bump - resistance againt lock-bumping
Anti-Drill - drill attack resistance
Anti-Extraction - resists plug and cylinder pull
30,000 Key Differs - 6 pins with multiple positions
Long Life - over 100,000 cycles
Secured by Design - recommended by Association of Chief Police Officers

Why have a High Security Euro Cylinder

Most uPVC and composite doors are fitted with a cylinder lock, which has a section cut out to provide space for a revolving cam. Turning the key revolves the cam, which engages the doors lock mechanism to lock and unlock. There are inherent weaknesses within the design but a high security cylinder can protect against them. Three good reasons why you should buy a high security euro profile cylinder:

Protect your property - high security cylinders are a physical and visual deterrent
Insurance compliance - failure to use an Insurance Approved cylinder could invalidate an insurance policy
Peace of mind - trusting a high security lock means you can rest easy at night

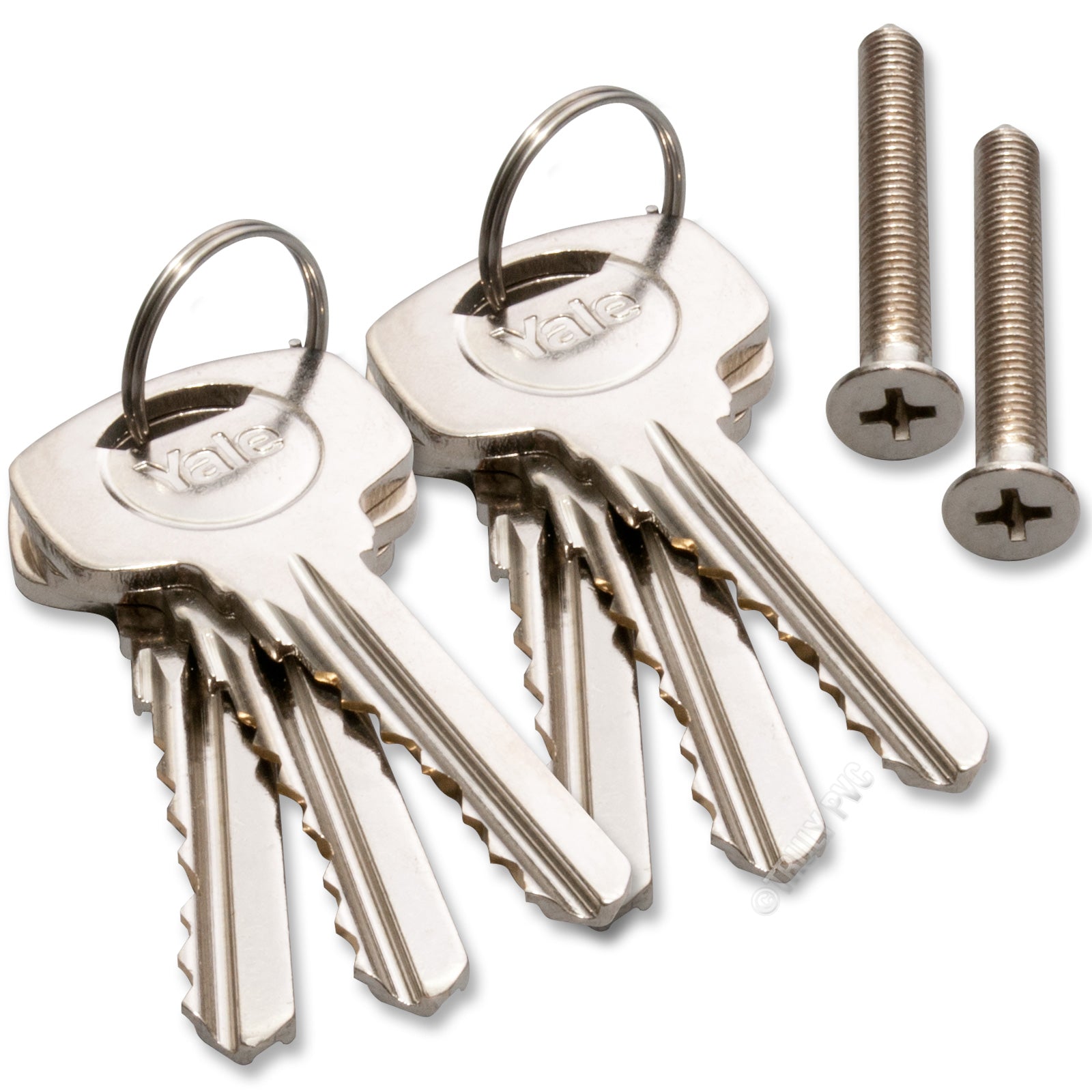

EXTRA KEYS - As standard, 3 keys are provided with single cylinders and 6 keys wih keyed-alike pairs. Additional keys can be requested above. Note that extra keys may be cut using Silca blanks.

Know the Threats

Thieves are always looking for new ways to compromise standard euro cylinder locks. Thankfully, manufacturers are constantly developing features within their locks that will combat threats such as Lock-Snapping and Lock-Bumping.

Visit our Upgrade My Lock website to find out more about euro cylinder threats, upgrading your euro cylinder and other measures to protect your home against theft.

Specification

Measurement	Value
Sizes	From 35/35 (70mm overall) to 50/55 (105mm)
Finish	Antique Brass or Nickel
Keys	6 supplied (extra available)
Security Features	Anti-Bump, Anti-Drill, Anti-Pick, Anti-Plug Pull
Quality Standards	British Standard (EN1303: 2005), PAS 23/24, Insurance Approved, Secured by Design

Fitting & Usage

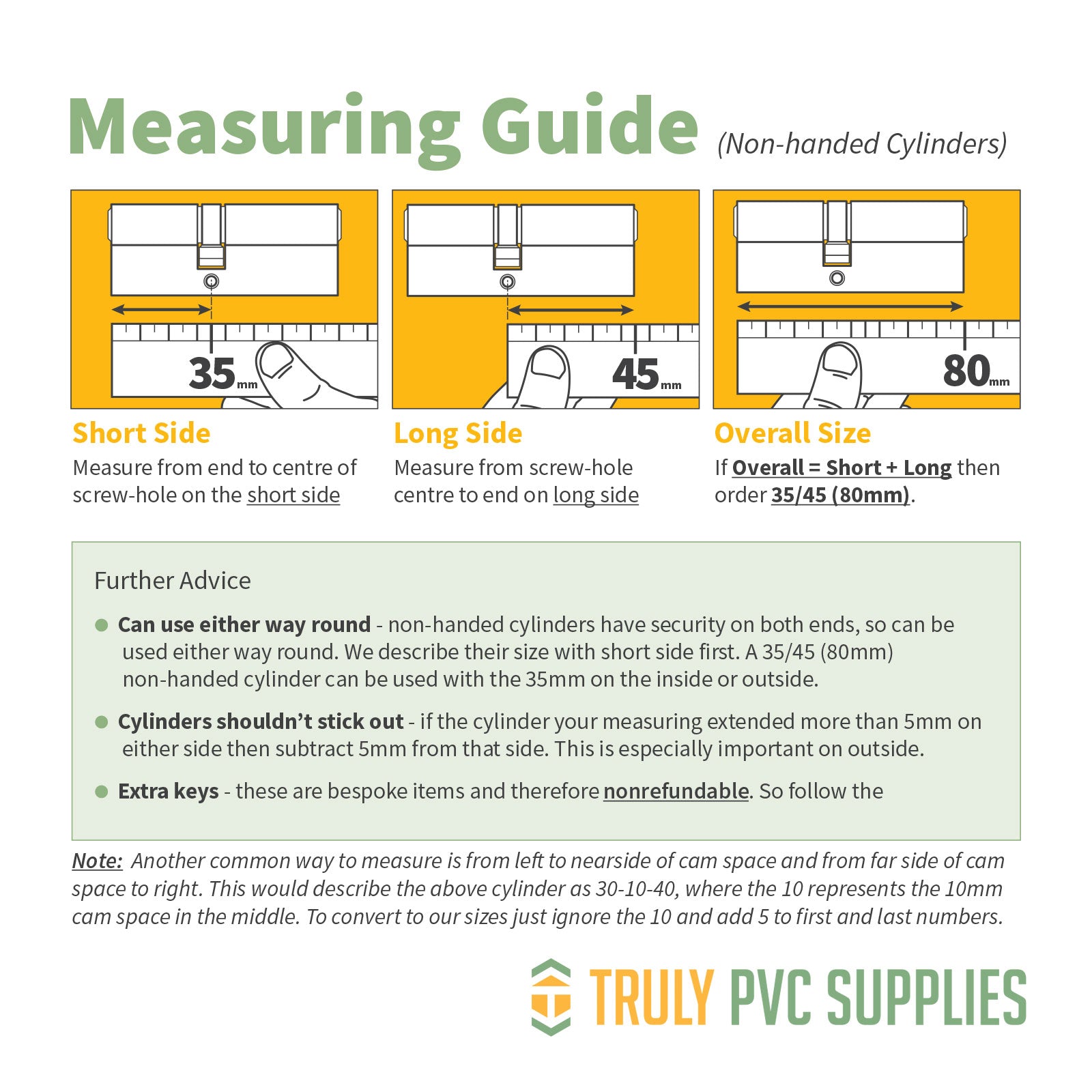

Measuring Guide

What size do you need?

It's vital that you order the correct size cylinder for your door. To determine which size cylinder you require you must first remove the cylinder.

Removing existing cylinder

Put your key in the lock and open the door.
Remove the screw which is beneath the latch.
Turn the key while apply slight pressure to the opposite end of the cylinder. As you do so the cam will line up with the rest of the lock and you will be able to slide the cylinder out towards yourself. The key usually needs to be turned approximately 25 degrees clockwise or anti-clockwise.

You can now measure the original cylinder.

Measuring the existing cylinder

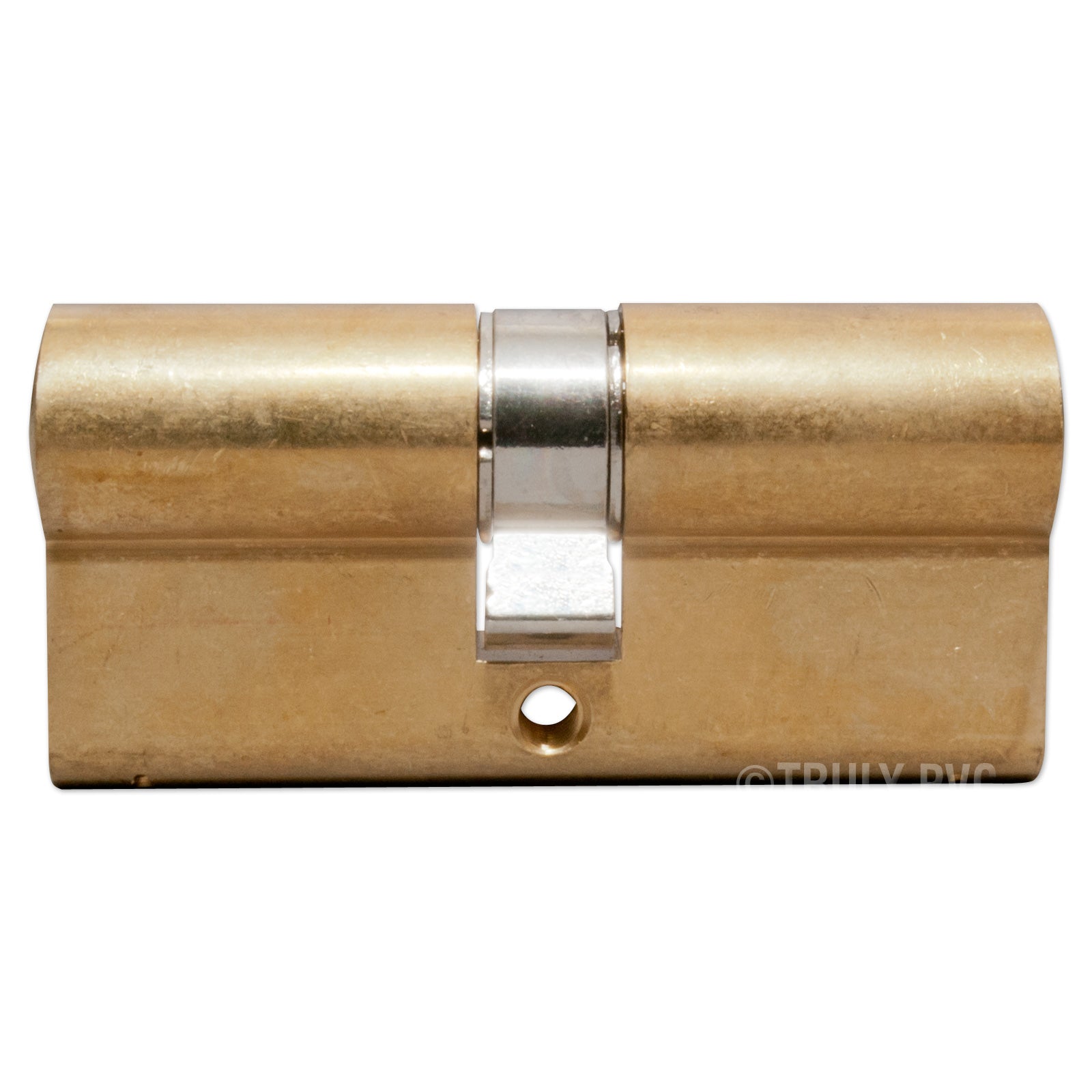

On the side of the cylinder, under the cam, you will see a Fixing Hole. The size you require is determined by the distance from each edge of the cylinder to the centre of the fixing hole.

Measure from the end of the cylinder to the centre of the Fixing Hole, to give the first measurement (a)
Measure from the centre of the Fixing Hole to the other end of the cylinder, to give the second measurement (b)

Euro cylinder measurement

If measurement a = 35mm and measurement b = 45mm then the size required is referred to as 35/45 (80mm overall). Some double cylinders (key operated at both ends), like the Yale Anti-Bump and UAP+ Zero Lift Anti-Snap cylinders feature security on both ends. So, ordering a 35/45 cylinder is the same as ordering a 45/35 cylinder.
