Yale Superior Euro Cylinder (Brass)

Yale Superior Euro Cylinder (Brass)

SKU: YAL-1741-1001
MPN: 3030BKDHS-YL1

£23.22

Sale Sold out

Tax included. Shipping calculated at checkout.

Low stock: 7 left

Quantity

Pickup available at Truly PVC (Manchester)

Usually ready in 24 hours

View full details

Description

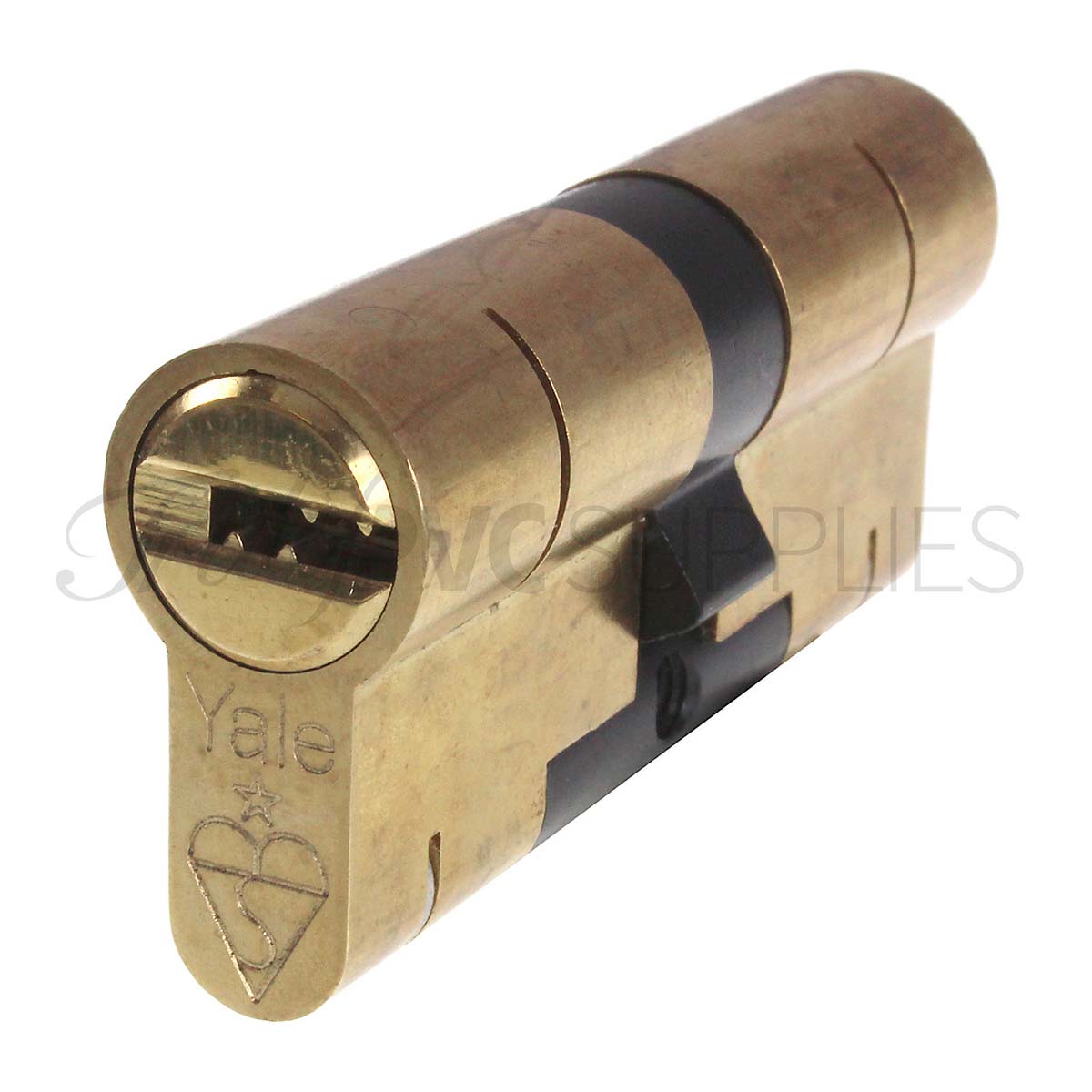

Polished Brass Superior High Security Euro Cylinder from Yale

Name: Yale Superior Euro Cylinder (Brass) 50/50 (100mm) / 3 Extra (6 total)
Brand: Yale
SKU: YAL-1741-1127
Price: 23.22 GBP
Availability: InStock

((Choice of size and keys))

Lock snapping used in 1-in-4 burglaries - protect against it!

Polished brass, high security euro cylinder with Snap Defence, Anti-Bump, Anti-Pick, Anti-Drill and Anti-Extraction features. Protects against all known methods of attack. Guaranteed TS007 1 Star security from a name you can trust.

Measure

Manufactured to British Standard (EN 1303: 2005), this is a cylinder that you can trust. Whatsmore, it is manufactured by Yale, the worlds most trusted brand and comes with a 10 year mechanical guarantee. Ideal high security upgrade for home or workplace.

Features & Benefits

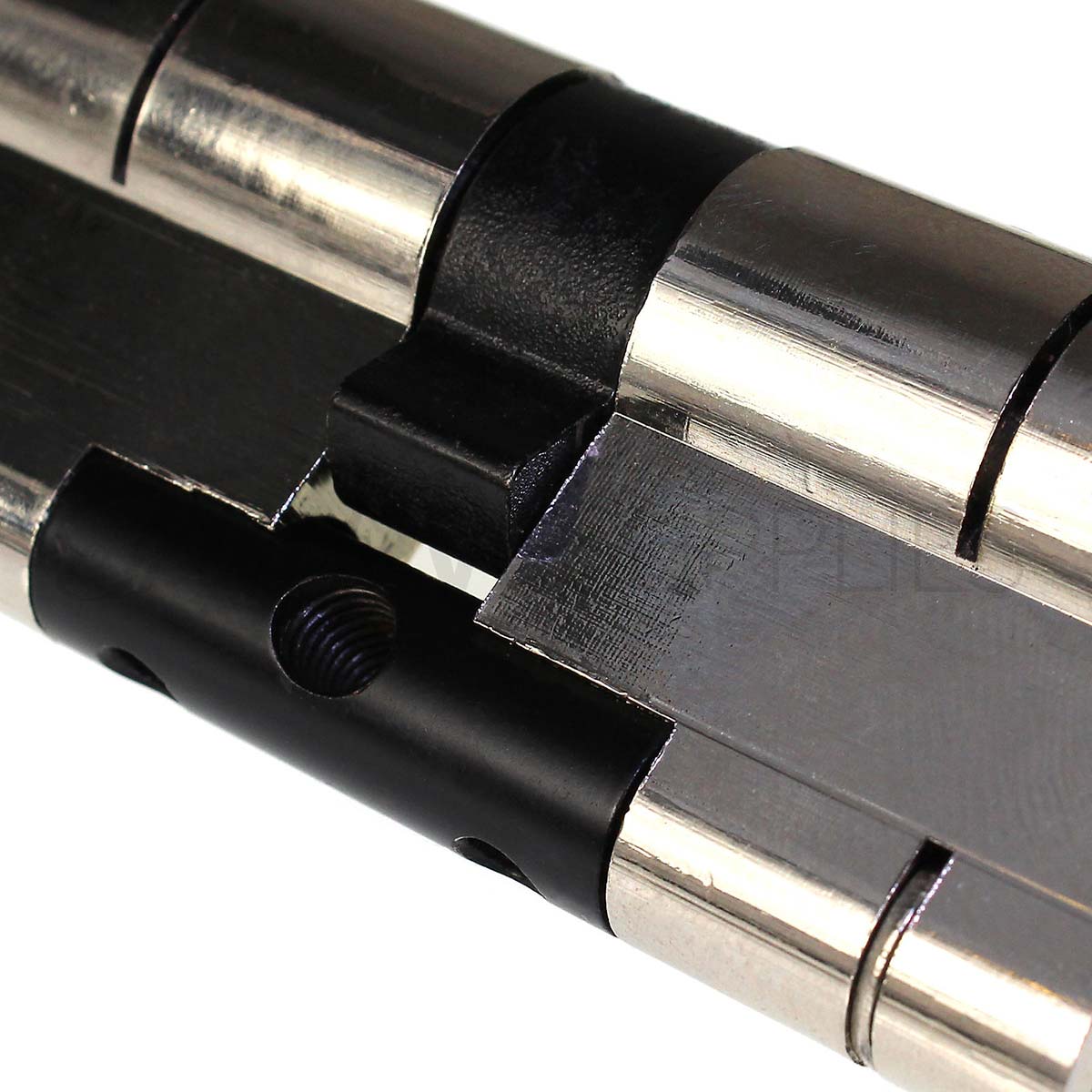

Snap Protection - sacrificial cuts and hardened steel bar
Anti-Pick Defence - includes four anti-pick pins at each end
Anti-Bump Resistance - uses 'V-Pins' to resist lock-bumping
Anti-Drill Shielding - possesses anti-drill pins and balls
Anti-Extraction Security - resistance to plug and cylinder pull
High Security Key - combines dimples and groove with 100,000 differs
Superior Strength - solid construction with hardened steel bar
British Standard Kitemark - assurance of quality and peace of mind
10 Year Guarantee - long mechanical guarantee

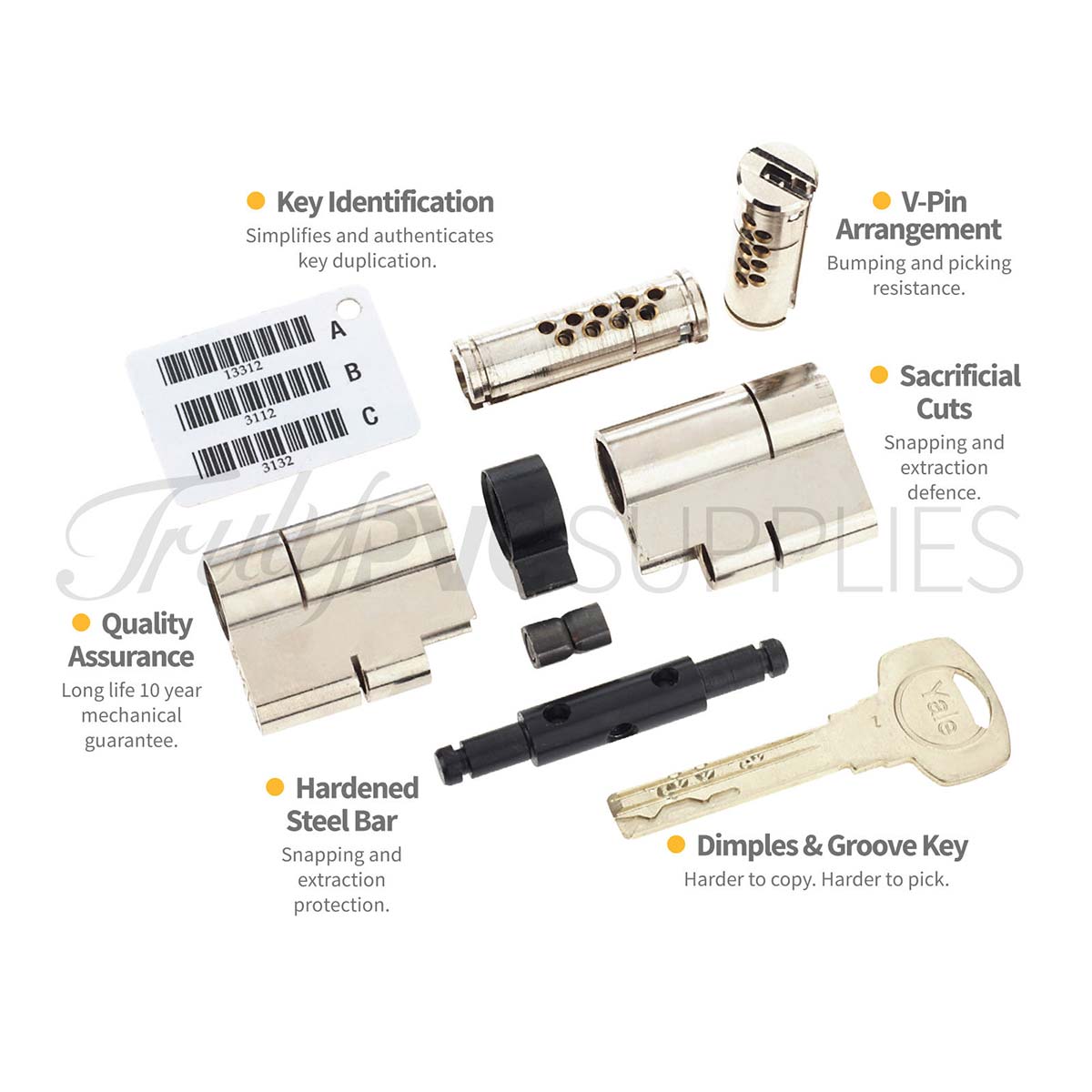

Exploded diagram of Yale Superior Euro Cylinder

Why have a High Security Euro Cylinder

Most uPVC and composite doors are fitted with a cylinder lock with revolving cam. Turning the key revolves the cam, which engages the doors locking mechanism. The design has inherent weaknesses but a high security cylinder, like Yale Superior, can protect against them. Three reasons to buy a high security euro profile cylinder:

Protect your property - high security cylinders are a physical and visual deterrent
Insurance compliance - failure to use an Insurance Approved cylinder could invalidate an insurance policy
Peace of mind - trusting a high security lock means you can rest easy at night

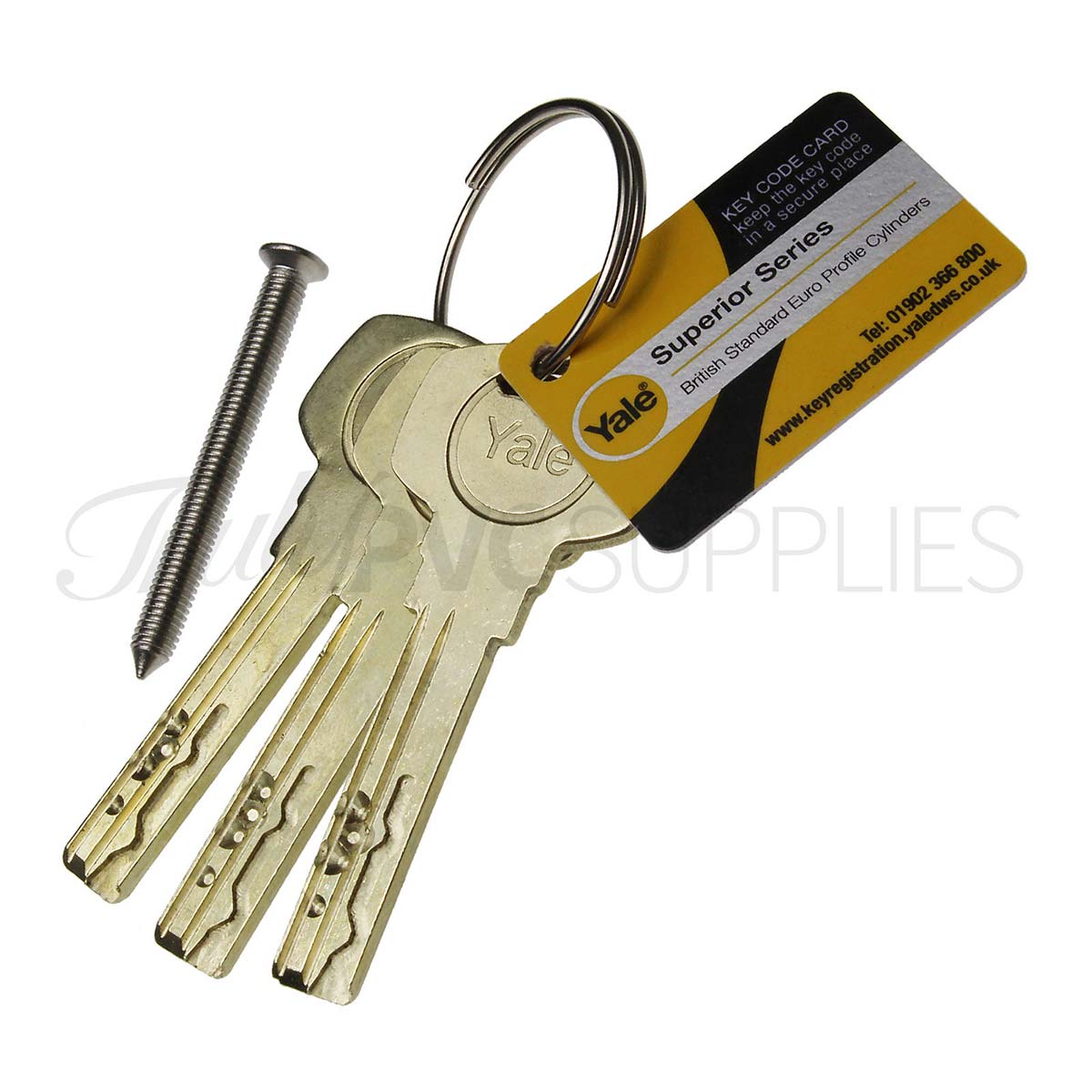

EXTRA KEYS - 3 keys are provided with single cylinders and 6 keys with keyed-alike pairs as standard. Additional keys, which are cut using genuine Yale blanks, can be ordered with the cylinder.

Specification

Measurement	Value
Sizes	From 30/30 (60mm overall) to 50/50 (100mm)
Finish	Polished Brass
Keys	3 supplied with key code (extra keys available)
Security Features	Snap Protection, Anti-Bump, Anti-Drill, Anti-Pick, Anti-Plug Pull
Standards and Accreditations	TS007: 2012 KM559658 - 1 Star kitemarked high security euro cylinder Secured by Design - Official Police Security Initiative BS EN 1303:2005 4.9.1 - Resistance to drilling BS EN 1303:2005 4.9.5 - Plug/cylinder torque resistance

Contents

Fitting & Usage

What size do you need?

It's vital that you order the correct size cylinder for your door. To determine which size cylinder you require you must first remove the cylinder.

Removing existing cylinder

Put your key in the lock and open the door.
Remove the screw which is beneath the latch.
Turn the key while apply slight pressure to the opposite end of the cylinder. As you do so the cam will line up with the rest of the lock and you will be able to slide the cylinder out towards yourself. The key usually needs to be turned approximately 25 degree clockwise or anti-clockwise.

You can now measure the original cylinder.

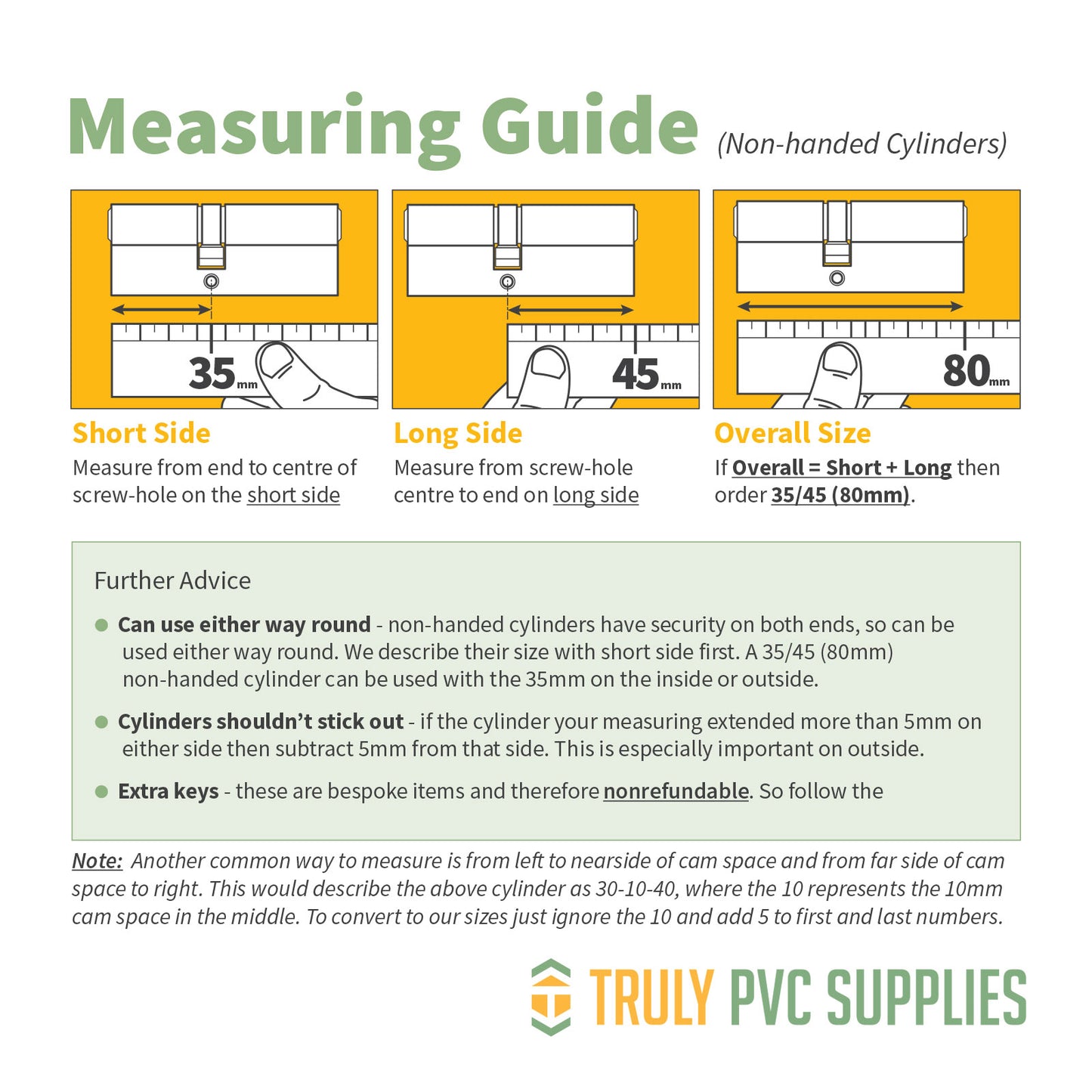

Measuring the existing cylinder

On the side of the cylinder, under the cam, you will see a Fixing Hole. The size you require is determined by the distance from each edge of the cylinder to the centre of the fixing hole.

Measure from the end of the cylinder to the centre of the Fixing Hole, to give the first measurement (a)
Measure from the centre of the Fixing Hole to the other end of the cylinder, to give the second measurement (b)

Euro cylinder measurement

If measurement a = 35mm and measurement b = 45mm then the size required is referred to as 35/45 (80mm overall). Some double cylinders (key operated at both ends), like the Yale Anti-Bump cylinders feature security on both ends. So, ordering a 35/45 cylinder is the same as ordering a 45/35 cylinder.
