Mila ProSecure Flag Door Hinge

Mila ProSecure Flag Door Hinge

SKU: MLA-2194-1057
MPN: 26040

£6.71

Sale Sold out

Tax included. Shipping calculated at checkout.

10+ in stock

Order within

h m s

for Same Day Despatch

Quantity

View full details

Description

ProSecure uPVC Door Flag Hinge from Mila

Name: Mila ProSecure Flag Door Hinge
Brand: Mila
SKU: MLA-2194-1057
Price: 6.71 GBP
Availability: InStock

(Choice of colour, and rebate size)

From box to fitted in just 58 seconds!

Designed for fast and simple fitting, the ProSecure uPVC door flag hinge is also inherently strong, and reliably secure. Choice of durable finishes and rebate size between 16 and 22mm.

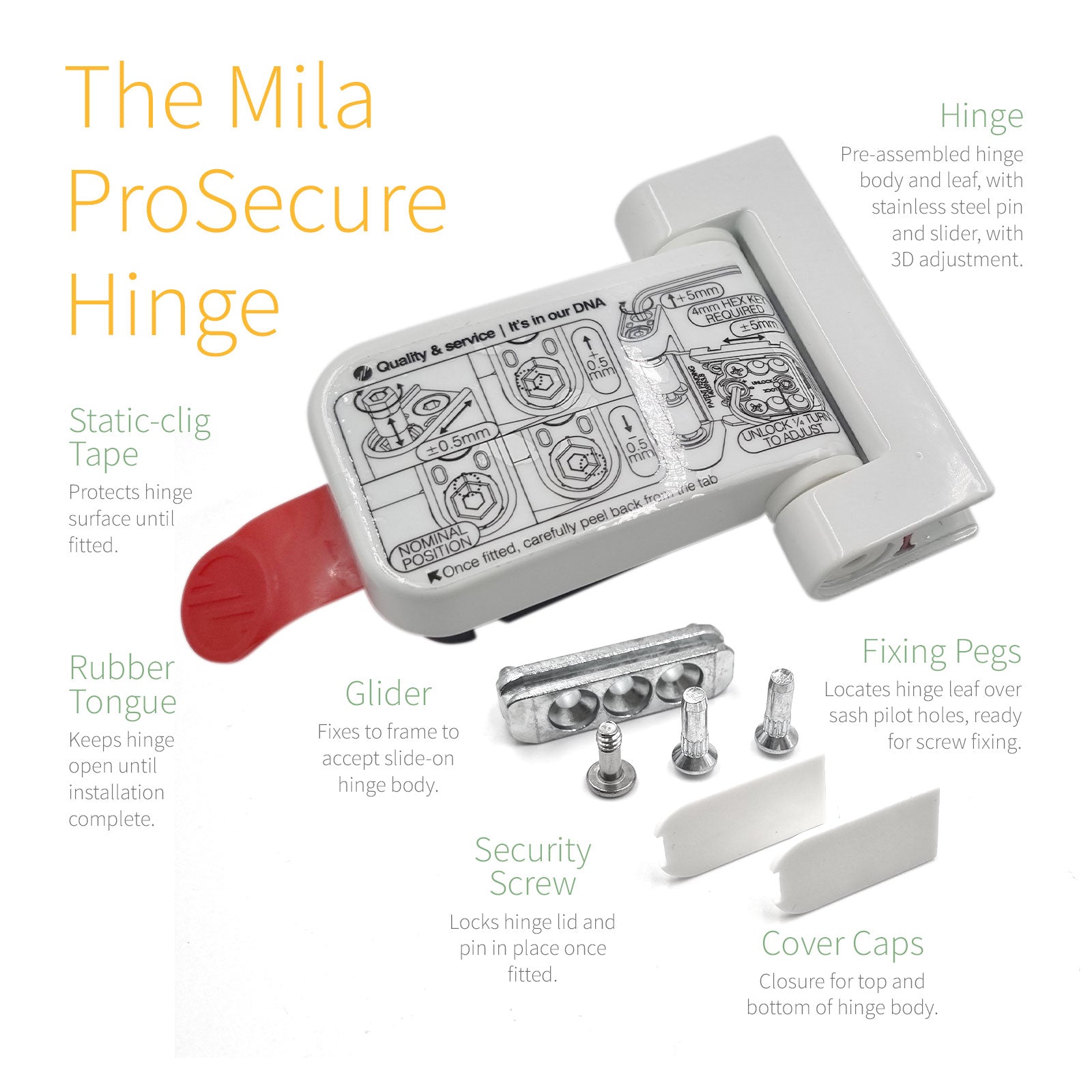

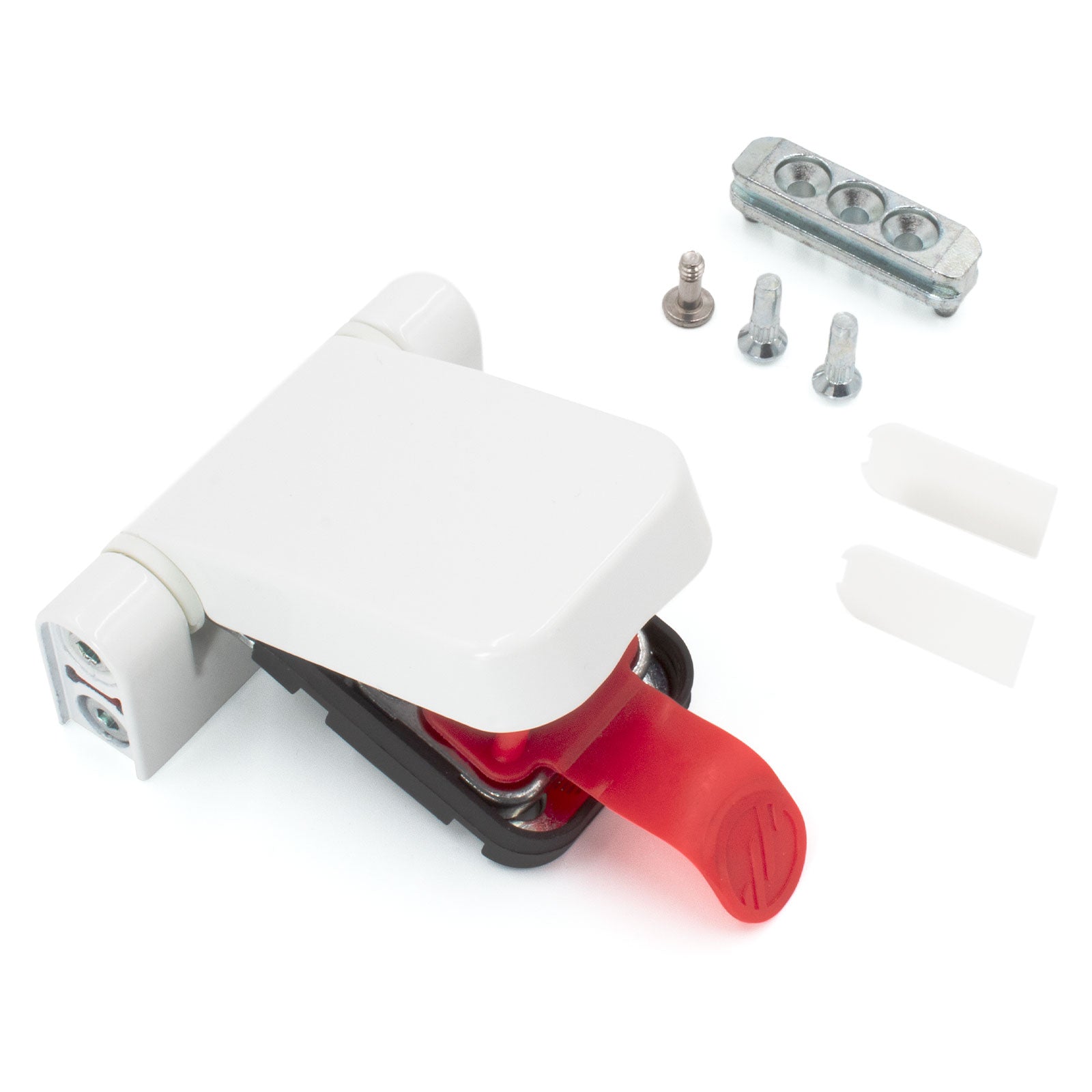

The ProSecure security door hinge from Mila is the only hinge supplied ready to fit in one piece, which can slide straight onto the door frame. Fitting only needs two pre-drilled holes, so it is virtually jig less.

Features & Benefits

Fit in under 1 minute - faster than any other security hinge
Pre-assembled ready to fit - supplied as one piece
Virtually jig-less fitting - needs only two pre-drilled holes
Fully 3D adjustable - lateral, vertical and compression
Choice of installation method - slide-on or front-fit
Captive hinge lid - pivots open and closed for easy installation
25 year mechanical guarantee - a product you can trust

Designed and engineered to combine the strength of a flag hinge with the support attributes of a butt hinge, and fitted with static-cling tape to protects the hinge until you’re ready to use it.

DID YOU KNOW? When fitting the ProSecure flag hinge, the slide-on technique is the quickest and easiest method, however if the door is being fitted into low reveals, then front-fit by removing the steel hinge pin.

Specification

Measurement	Value
Material	Die cast zinc, steel, and plastic

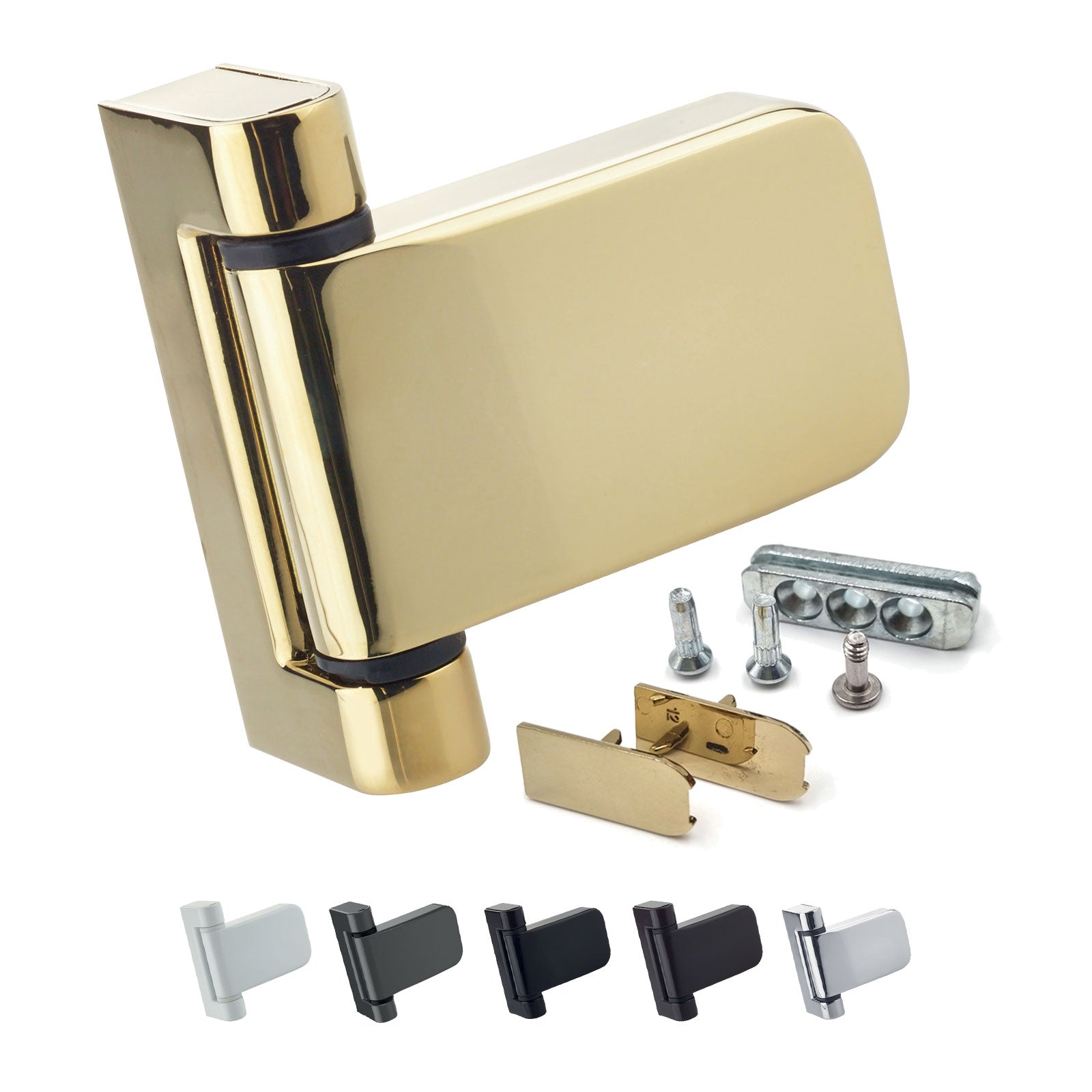

Colour	White, Black, Brown, Anthracite Grey, Polished Chrome, Polished Gold

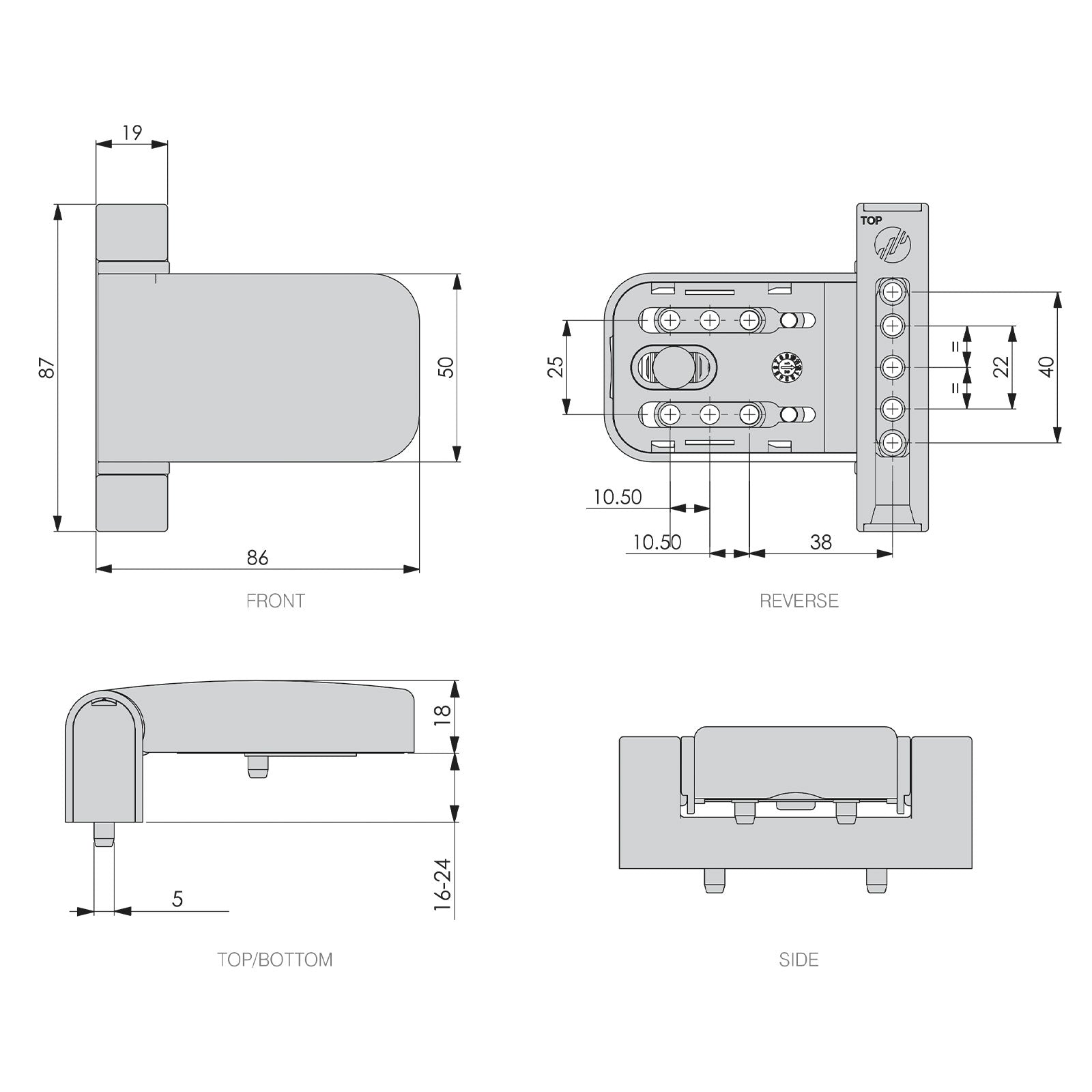

Hinge Body Size (h x w x d)	87mm x 19mm x 34-38mm
Hinge Leaf Size (h x w x d)	50mm x 86mm x 18mm
Rebate Size	18mm, 19mm, 20mm, 21mm, 22mm
Adjustment	Lateral (±5mm), Vertical (+5mm), Compression (±1mm)
Performance	100Kg per hinge, and tested to 200,000 cycles under load
Guarantee	25 Year Mechanical, 10 Year Painted Surface (White, Black, Anthracite Grey, and Brown), and 5 Year Plated Surface (Polished Gold, Polished Chrome)
Quality and Standards	BSEN 1670:2007 Grade 5 for extreme corrosion resistance BSEN 1935:2002 Grade 12 for extreme durability achieving PAS 24:2016 for enhanced security Police preferred specification - Secured by Design approved

Contents

Fitting & Usage

Fitting the Mila ProSecure Door Hinge

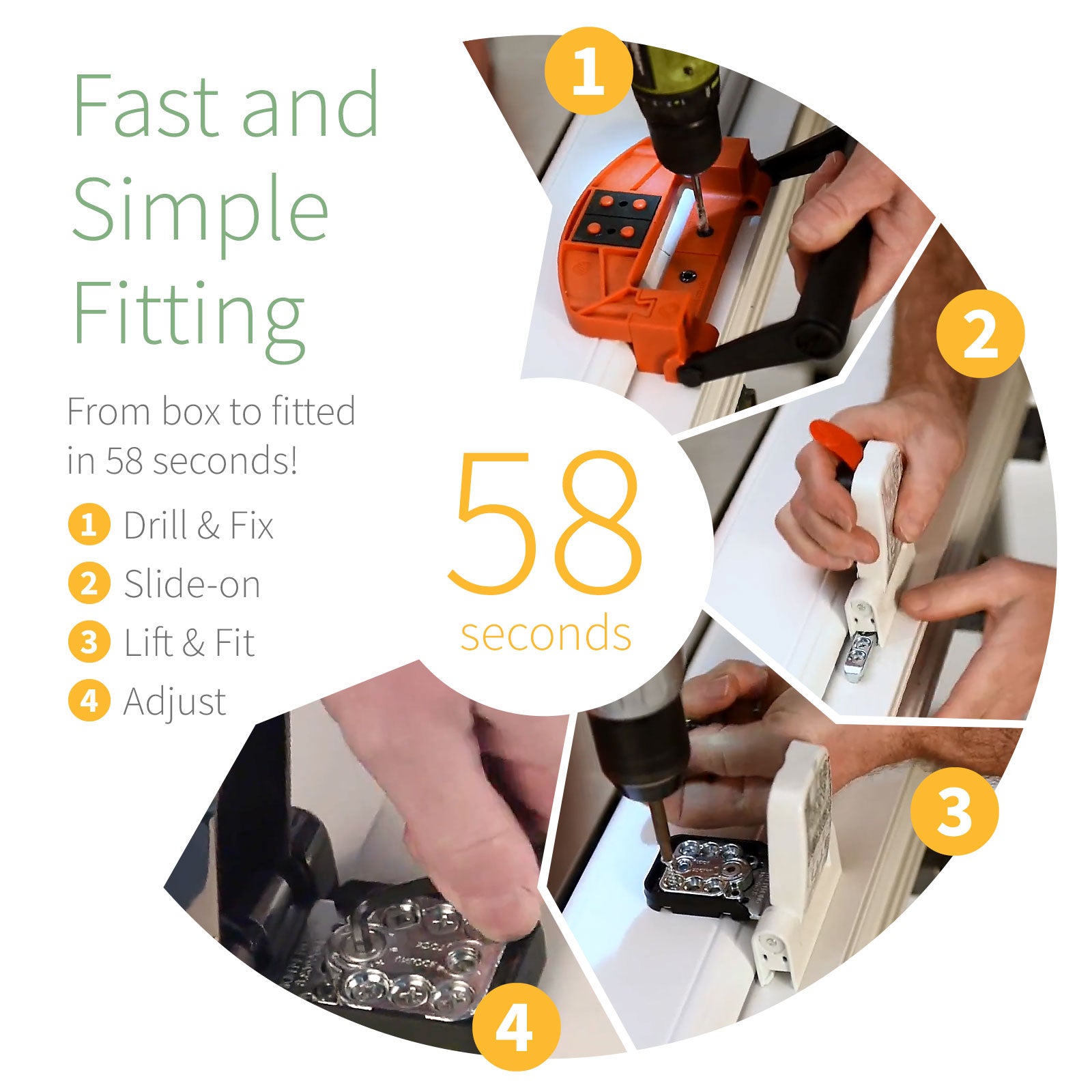

With the product pre-assembled, and requiring only two pre-drilled fixing holes, fitting security hinges has never been easier, or quicker. Detailed fitting instructions can be downloaded, but the following summarises the procedure.

Determine desired hinge position, and pre-drill two 5mm pilot holes into the frame.*
Fit the Glider (frame datum) to the frame, ensuring that the Glider’s pegs enter the pilot holes, before securing with 3 x self-drilling screws.
Slide the Hinge Body over the Glider, and lift the Captive Hinge Lid (sash cover) from the Hinge Leaf, and remove the rubber tongue.**
Secure the Hinge Leaf to the sash using 4 x long self-drilling screws, and the 2 x Fixing Pegs supplied. Alternatively, 2 x short self-drilling screws can be used instead of the Fixing Pegs.***
Open the sash to expose the location for supplied Security Screw, and fit to secure the Captive Hinge Lid and Hinge Pin.
Push fit the hinge body Cover Caps into place once door is operating as desired.

* A jig can be used for quick and accurate positioning, and drilling.
** Optional profile dedicated packer can be fitted.
*** On an outward opening door, we recommend using a security screw.

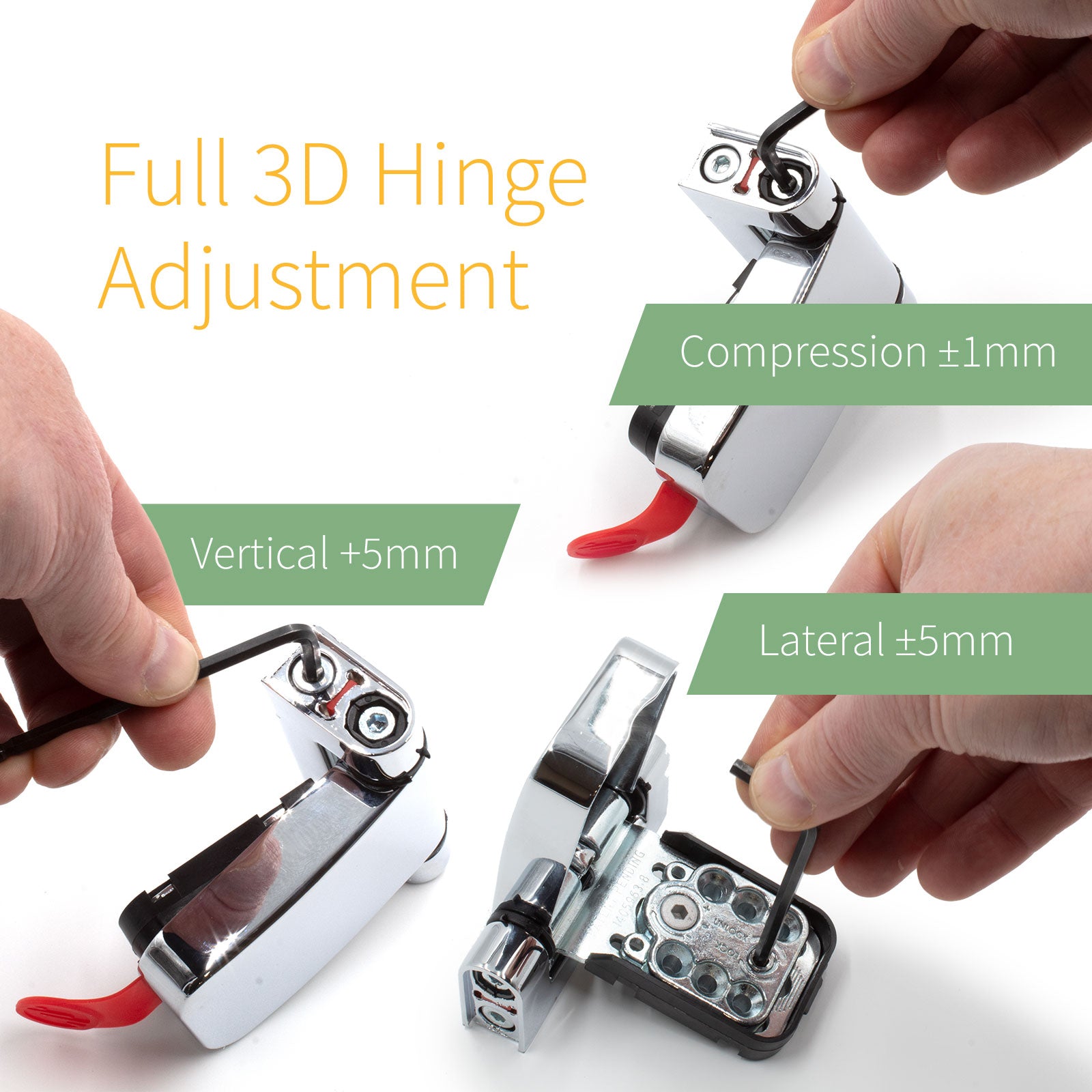

Adjusting the Mila ProSecure Door Hinge

The ProSecure flag hinge can be adjusted in three dimensions, (i) vertically by using a screw on the top of the Hinge Body, (ii) door to frame compression by turning the screw above the Hinge Pin, and (iii) laterally by turning the unlock screw, and adjustment screw, on the Hinge Leaf.

Cover caps will need to be removed to expose the adjustment screws, which can all be turned using a 4mm hex key.
