4.8mm StarPVCU WSR Baypole Screws (200 Pack)

4.8mm StarPVCU WSR Baypole Screws (200 Pack)

SKU: RAP-2204-1001
MPN: WSR 4.8 x 100 Z

£15.23

Sale Sold out

Tax included. Shipping calculated at checkout.

Low stock: 9 left

Order within

h m s

for Same Day Dispatch

Quantity

View full details

Description

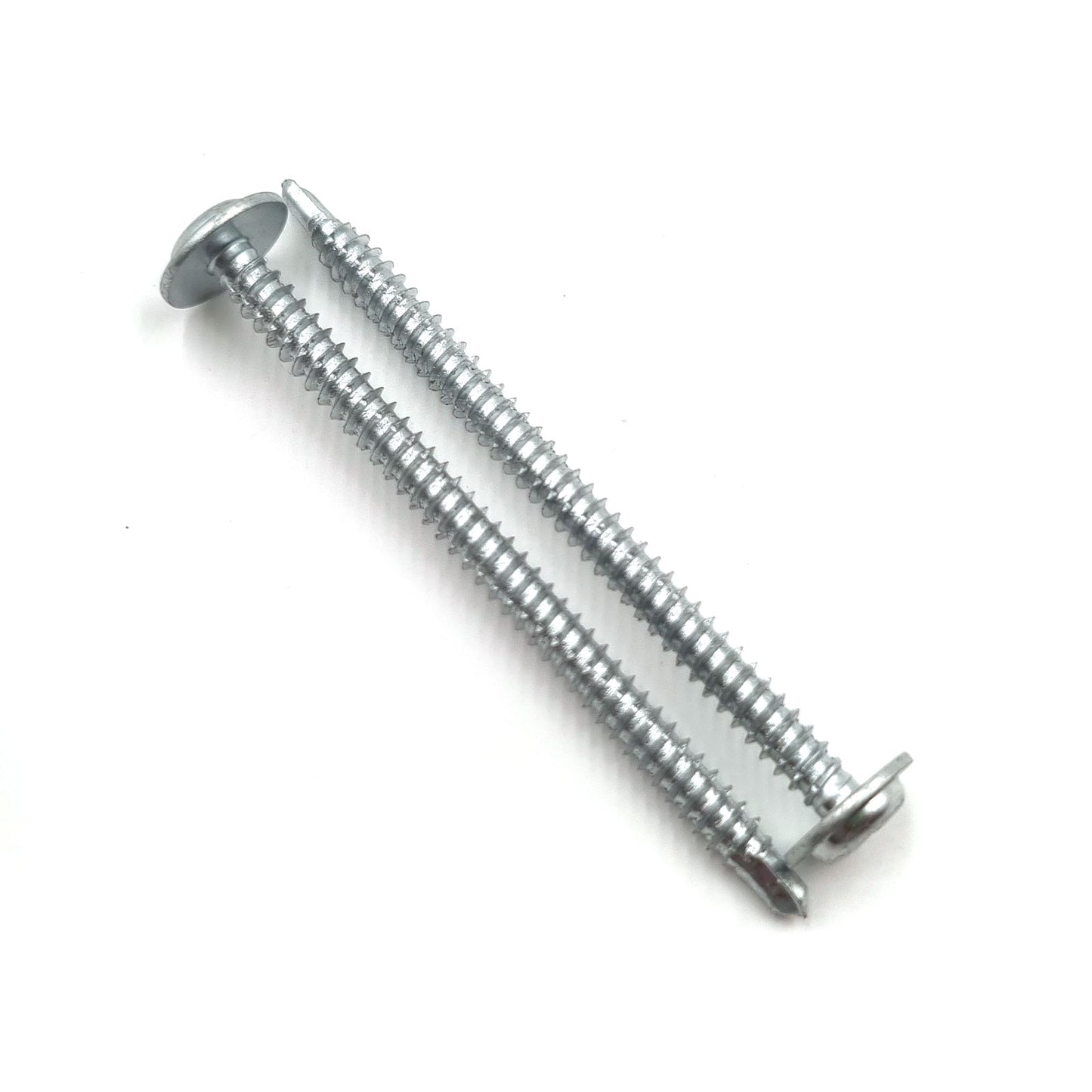

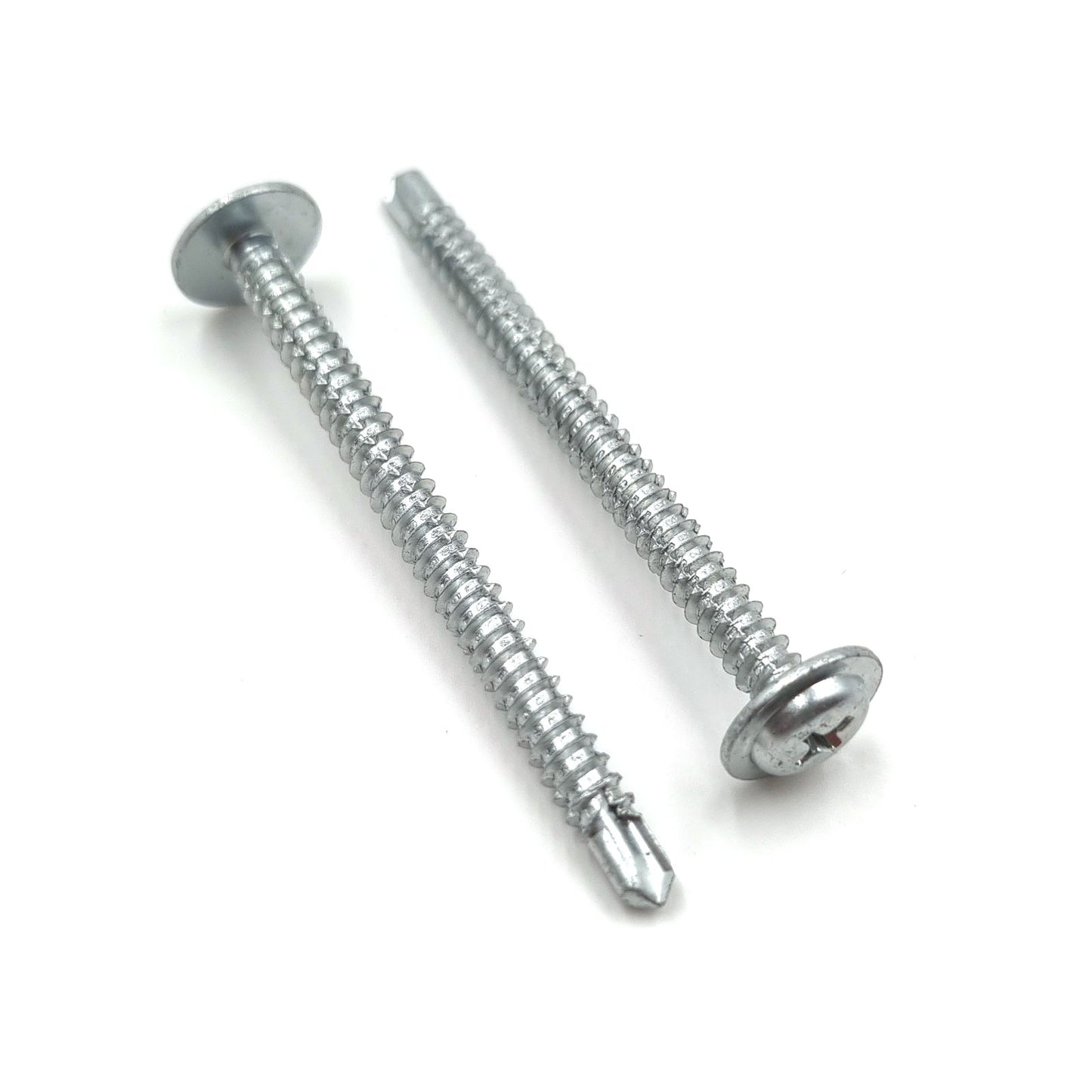

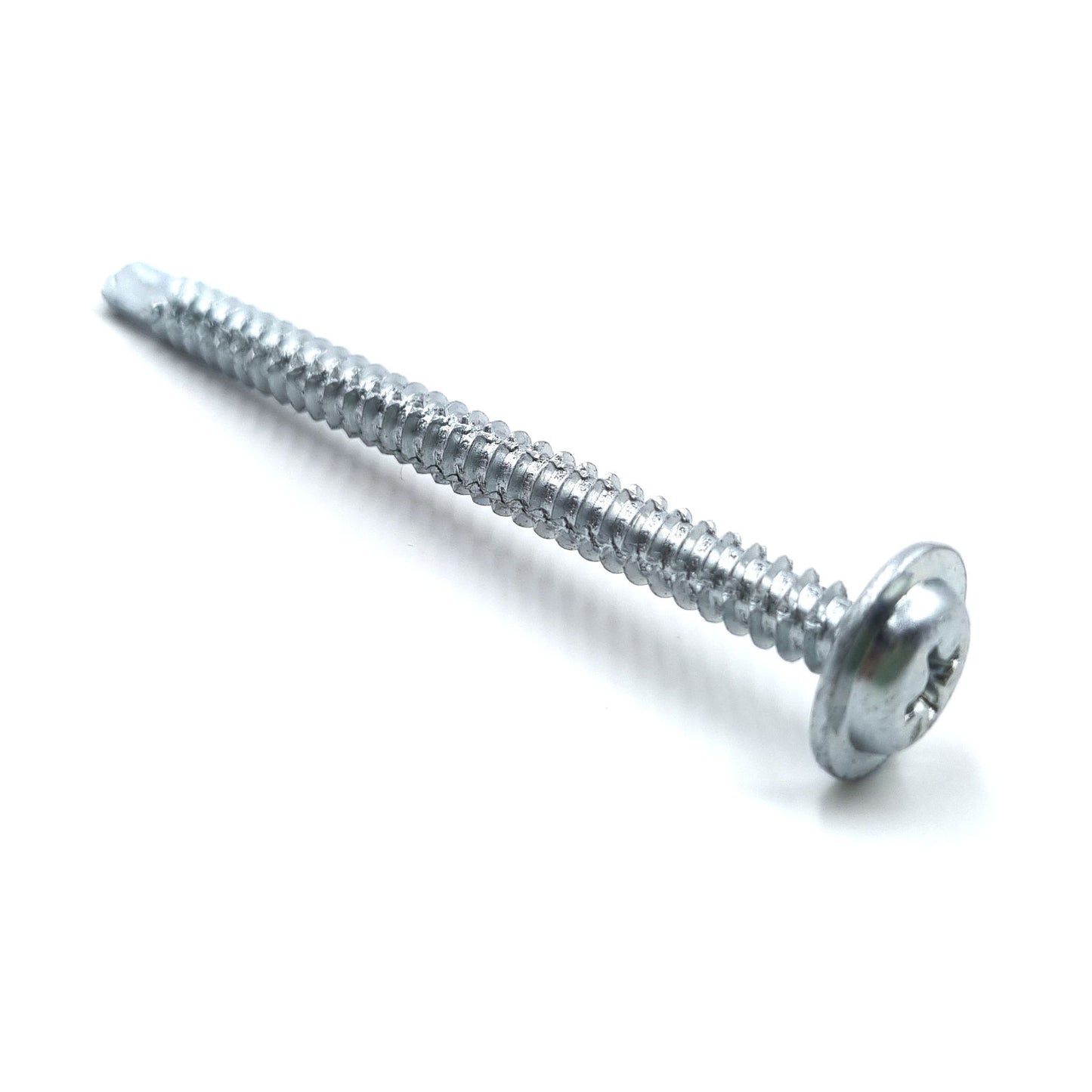

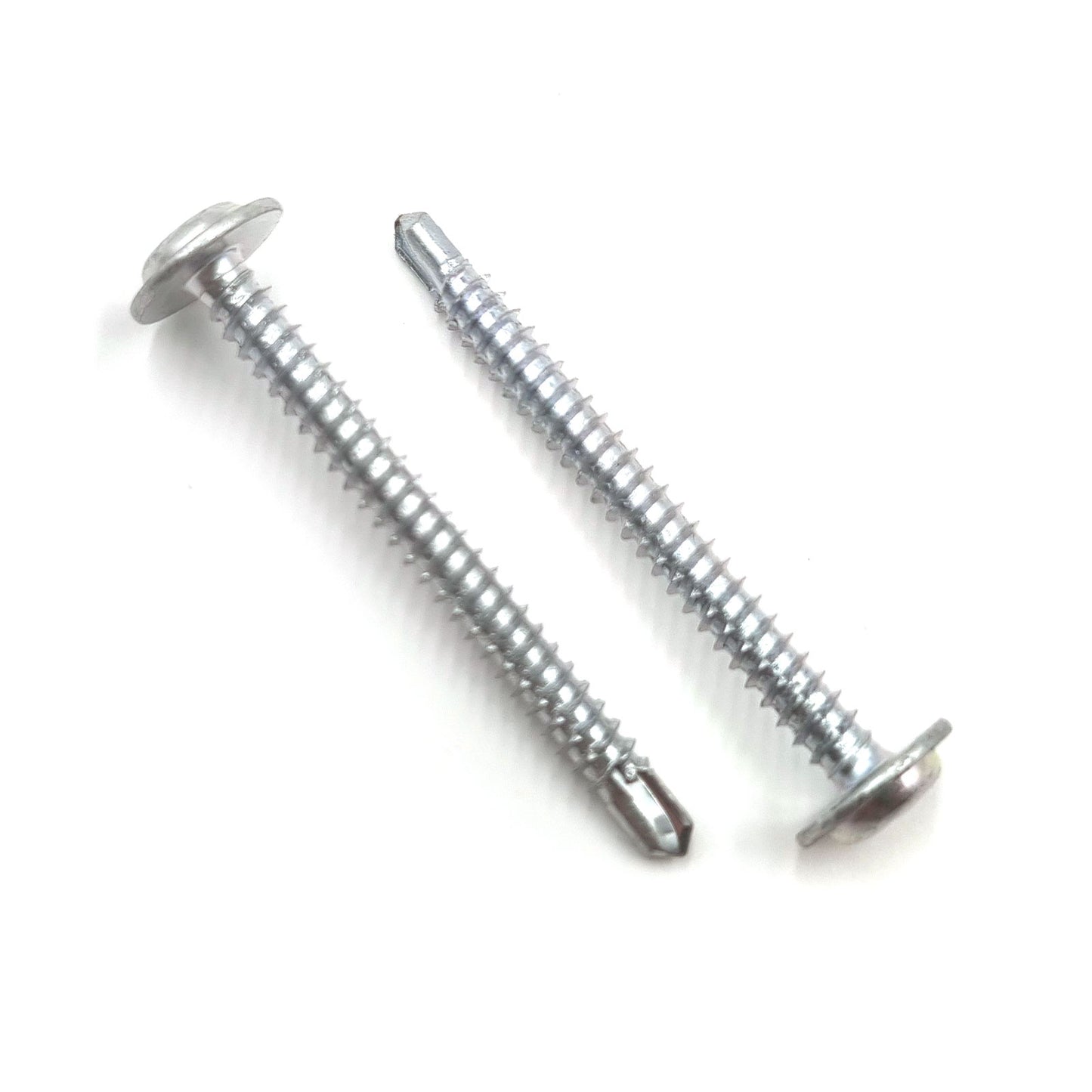

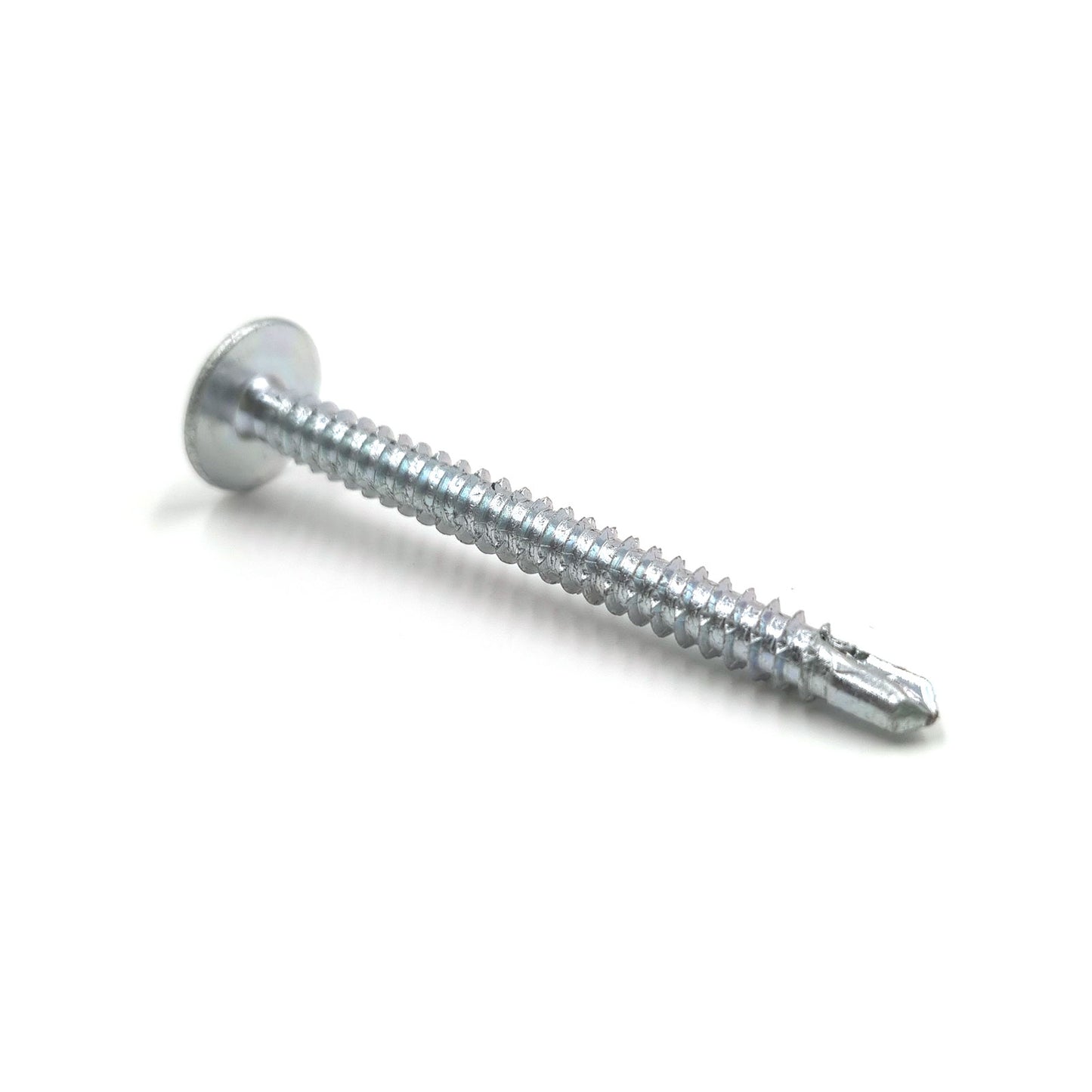

StarPVCU WSR Baypole Window Screws (4.8mm)

Name: 4.8mm StarPVCU WSR Baypole Screws (200 Pack)
Brand: Rapierstar
SKU: RAP-2204-1001
Price: 15.23 GBP
Availability: InStock

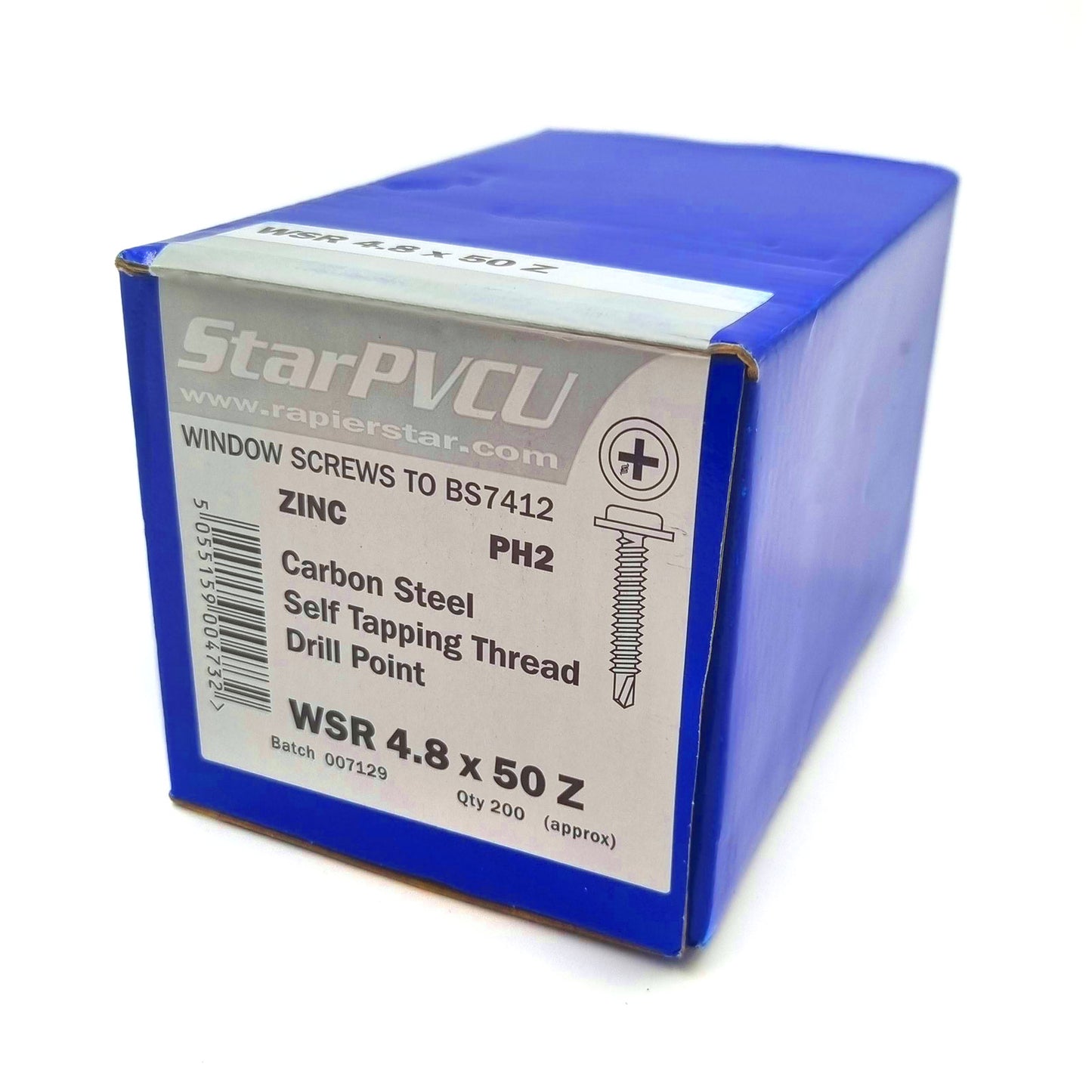

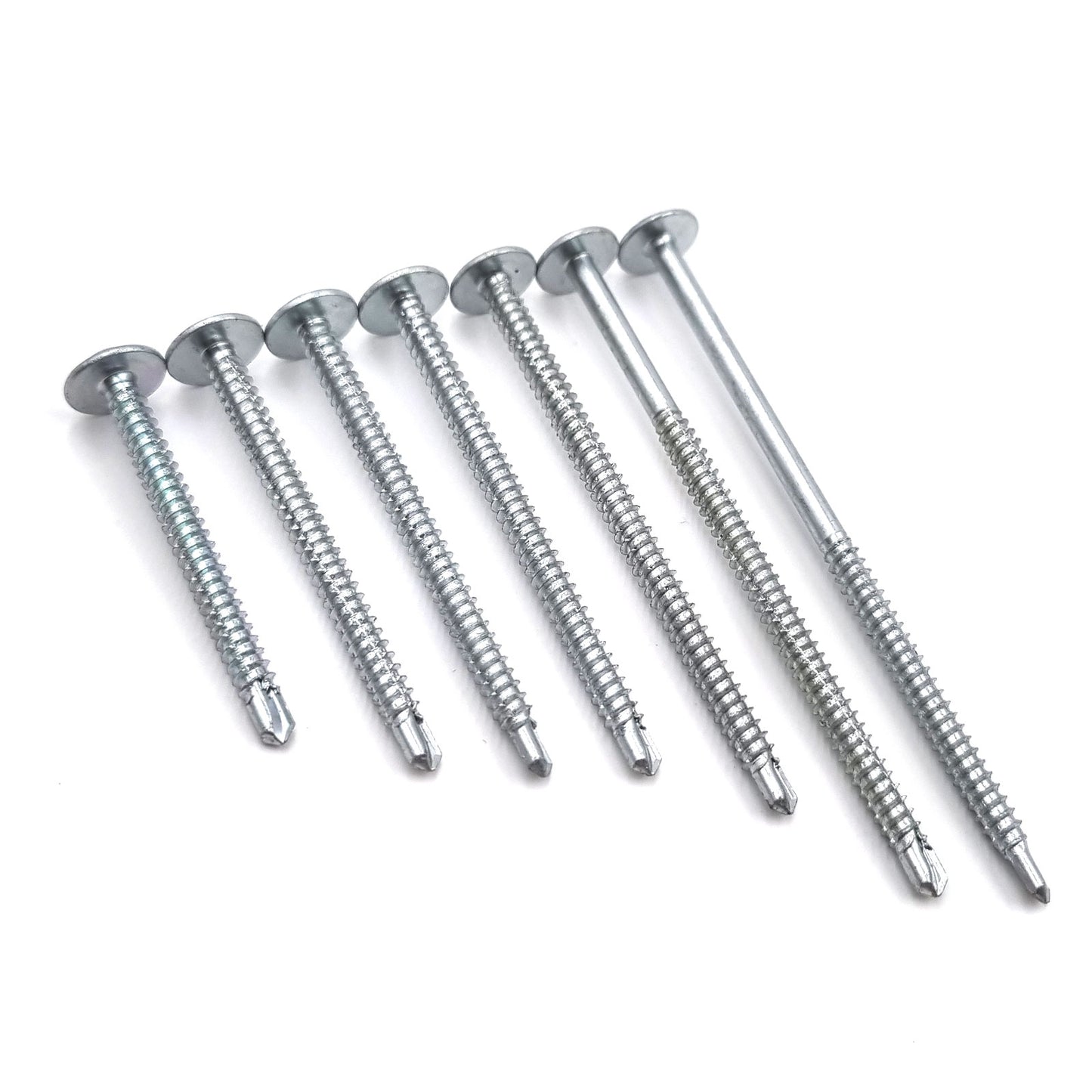

(Choice of length. Box of 200)

Quicker and longer-lasting frame fixings!

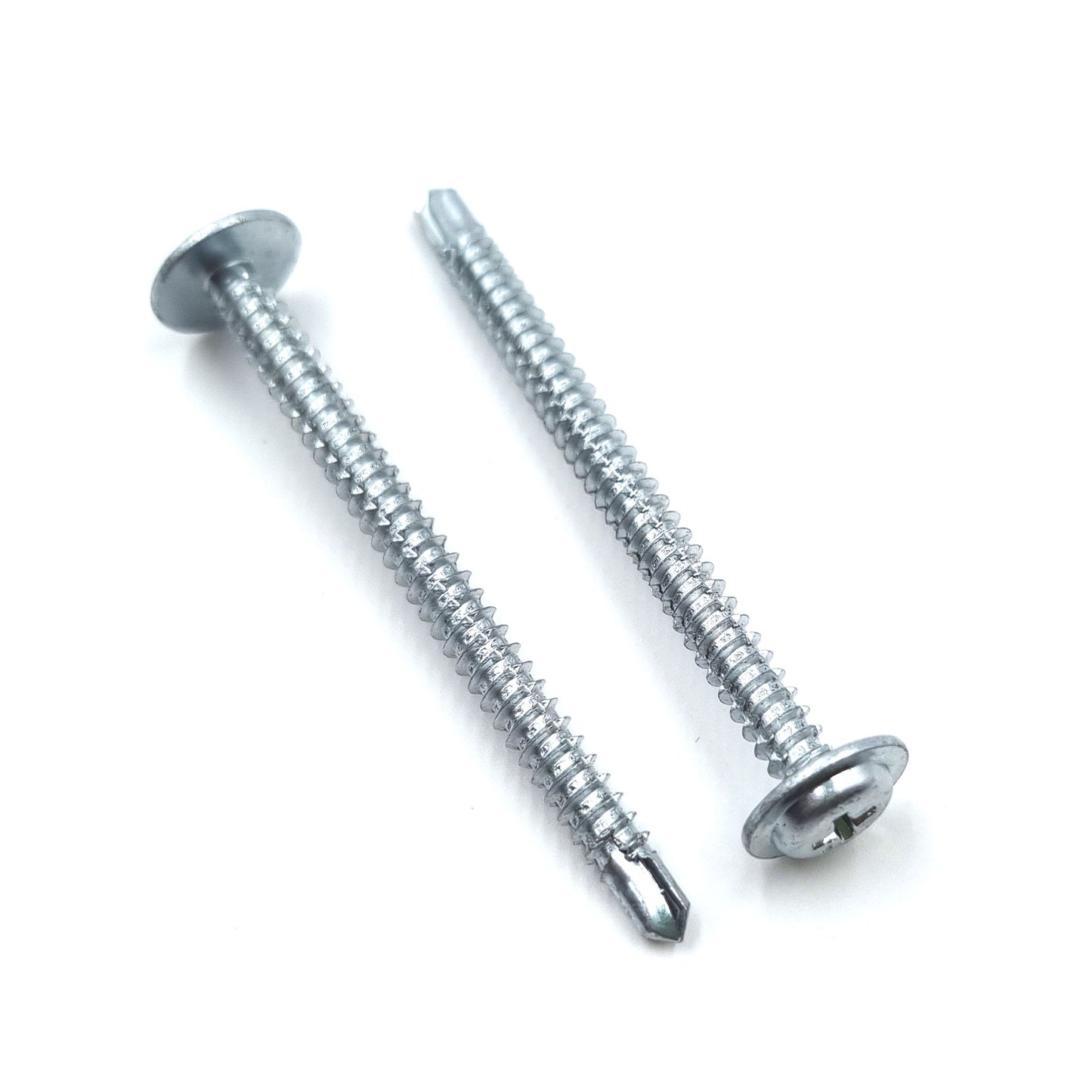

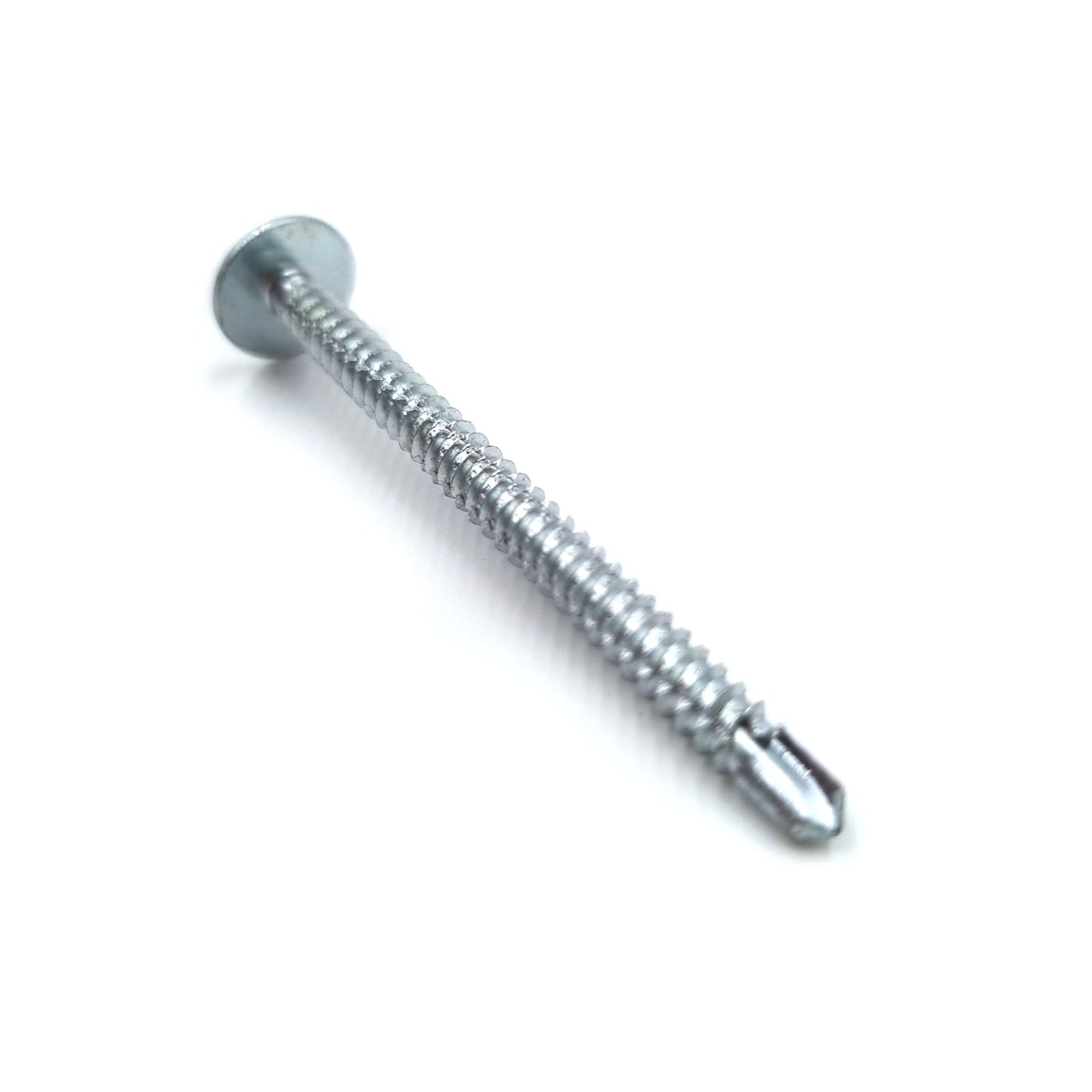

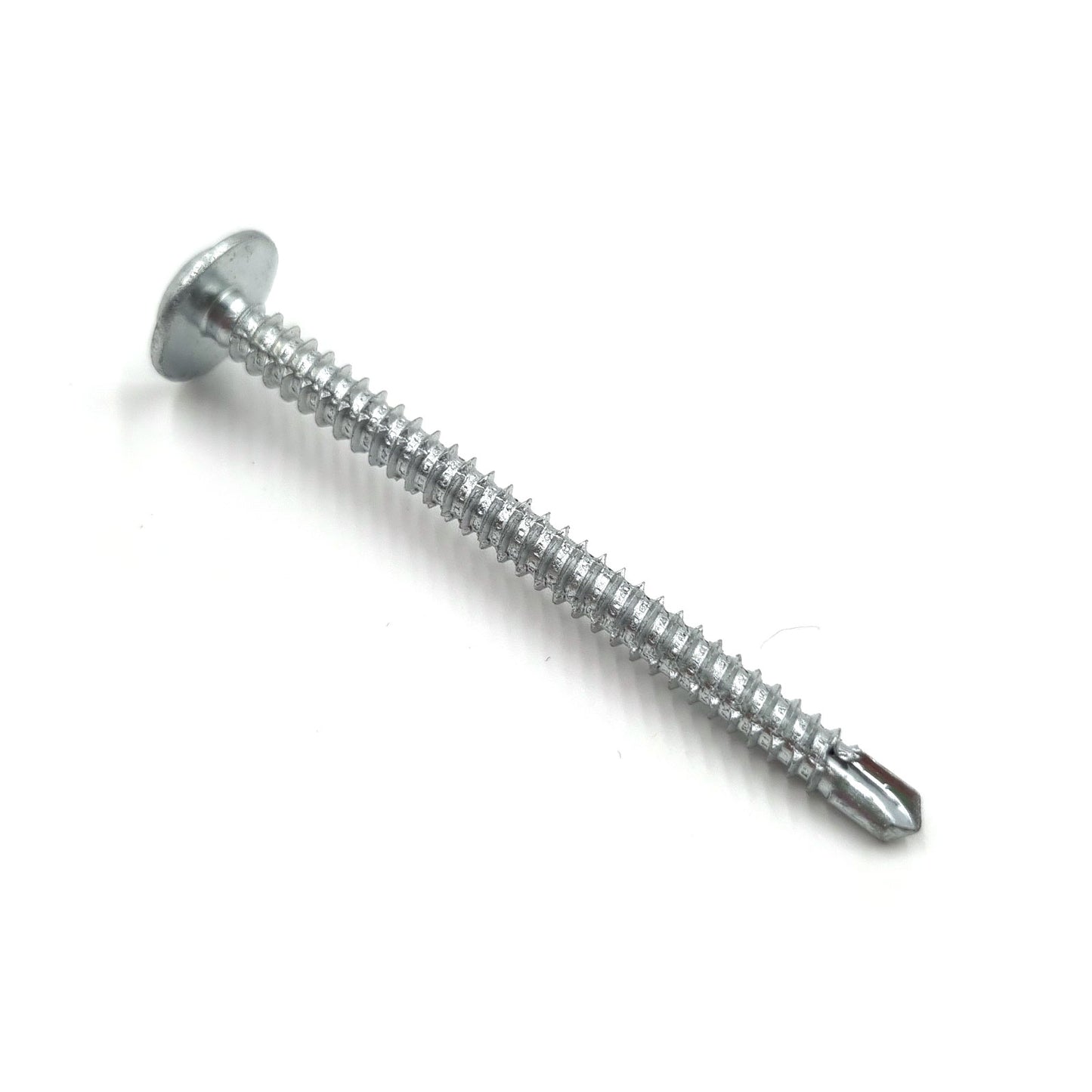

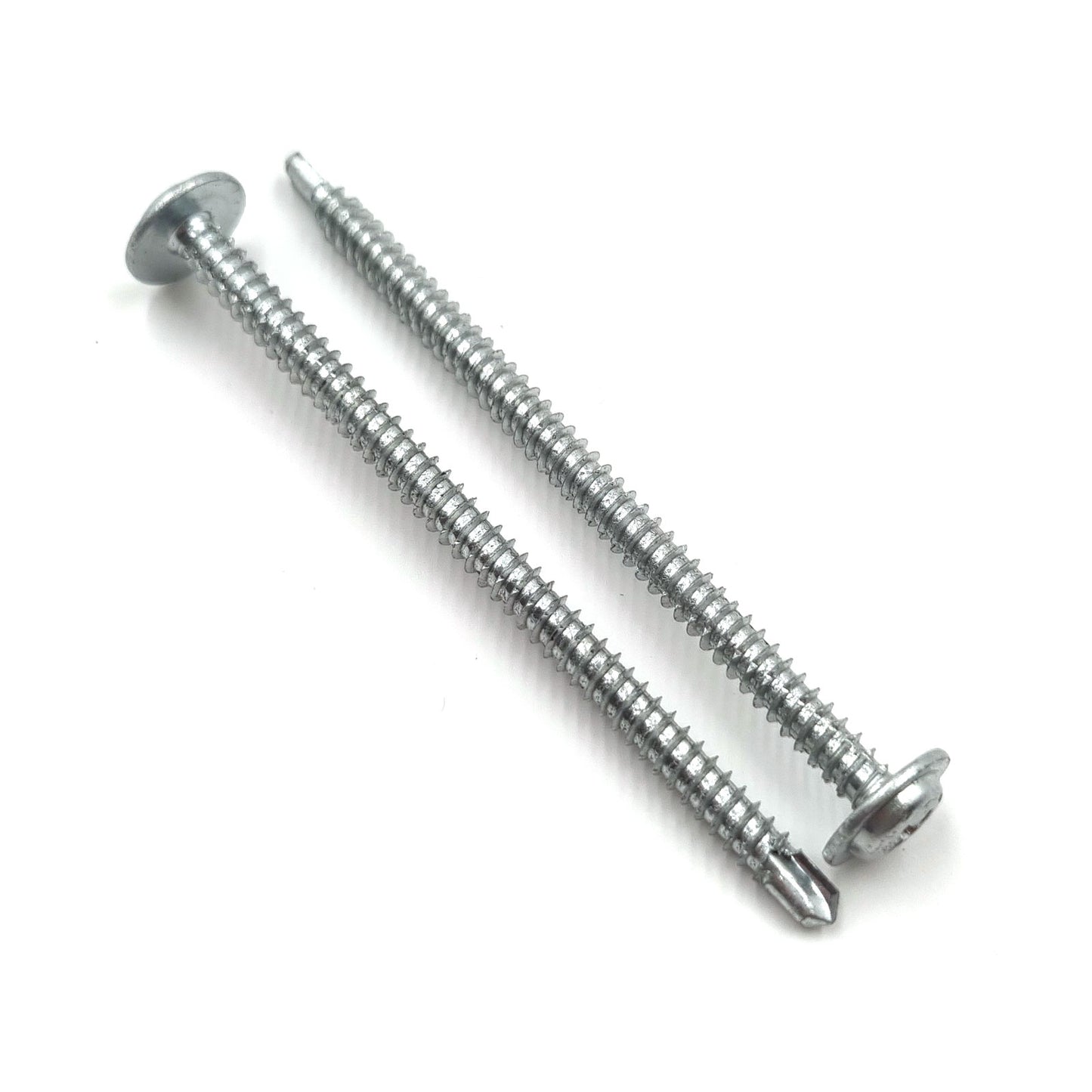

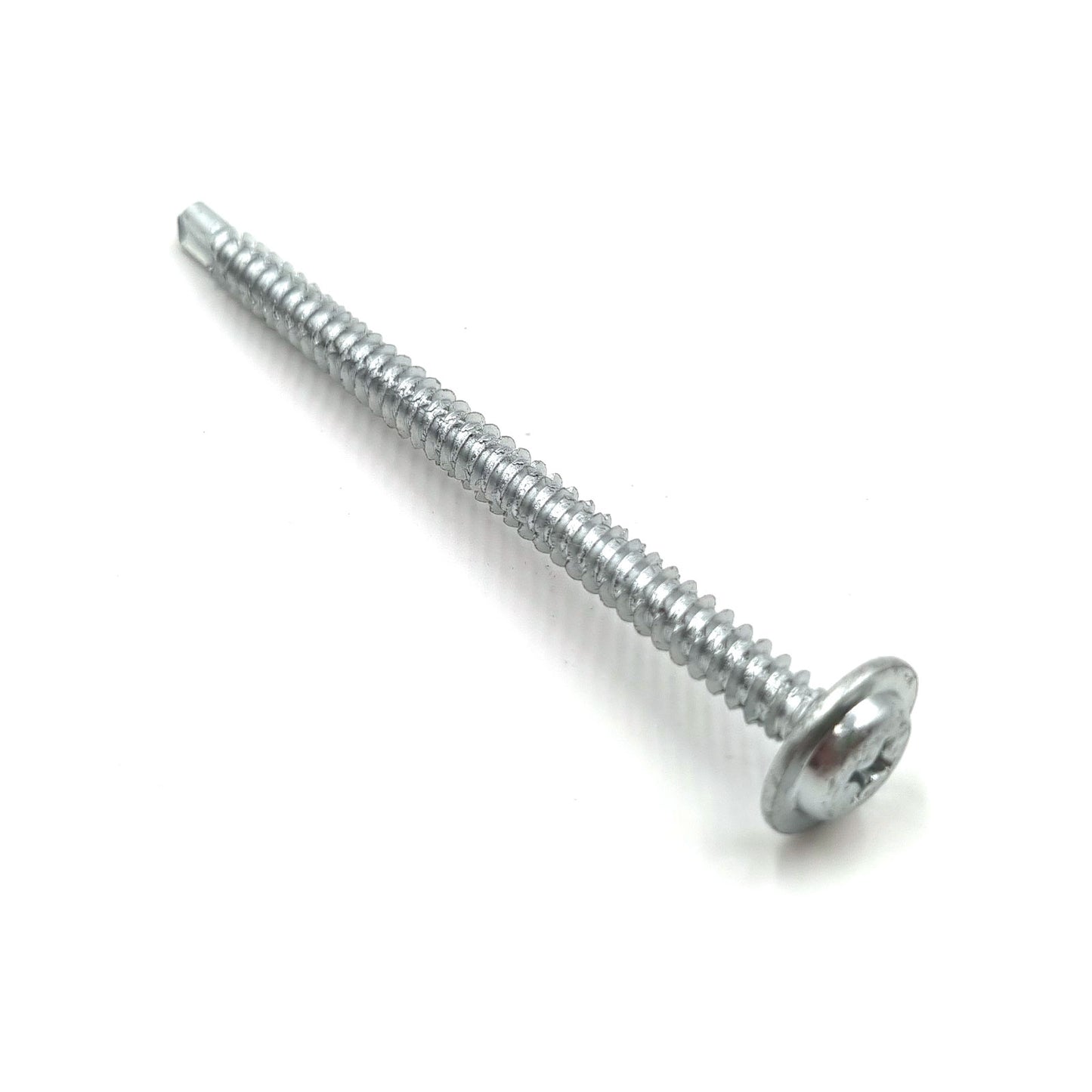

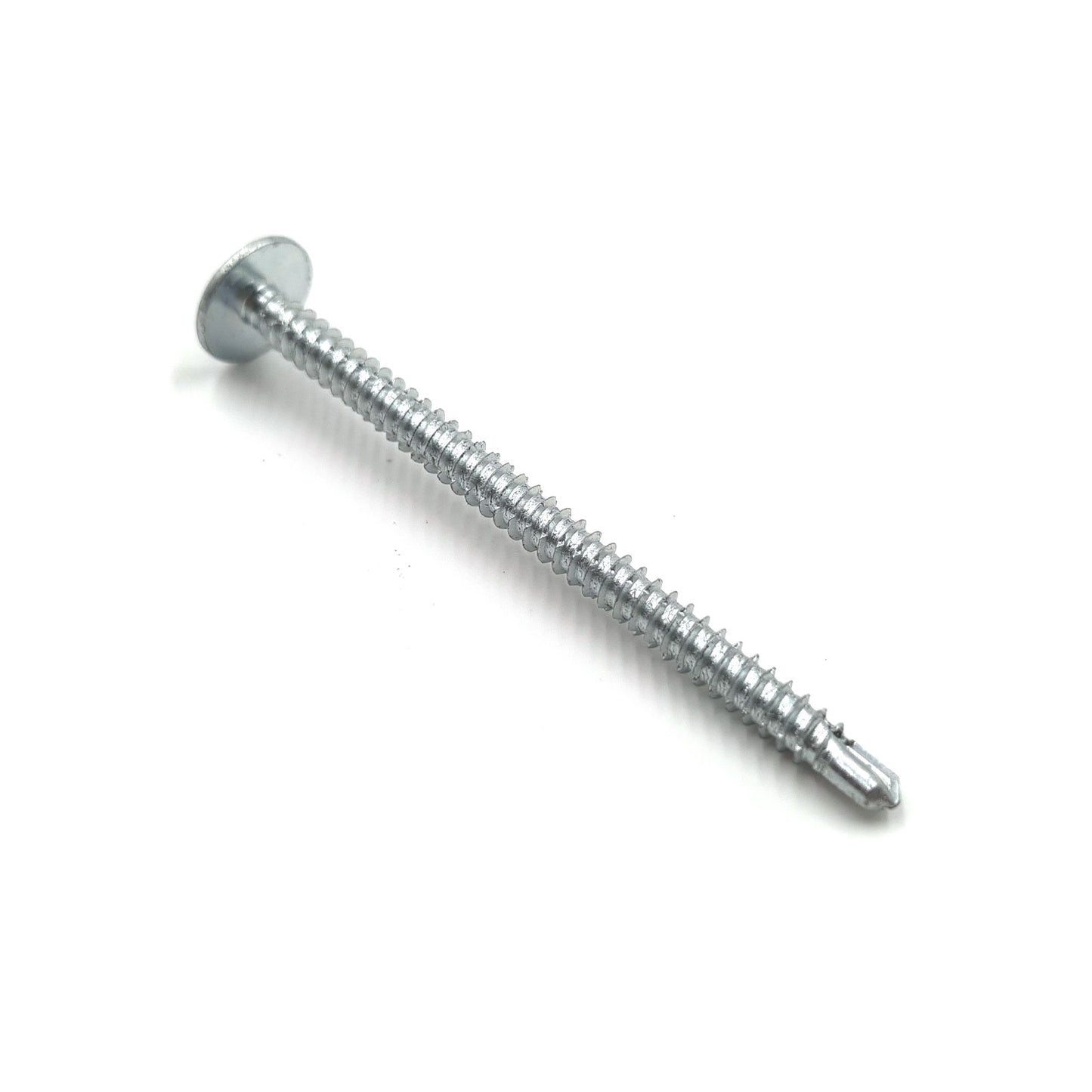

Box of 200, high quality 4.8mm self-drilling screws with twin-threaded shank and wafer head. Manufactured by Rapierstar using Zinc passivated carbon steel, for strong, long-lasting PVCU window frame-to-frame, and frame-to-baypole connections.

The flat underside of the wide wafer head, prevents the creasing that can weaken the frame, and cause pooling of water, which results in corrosion. Whilst the advanced drill point eliminates the need to pre-drill, and is effective on single-wall and multi-chamber profiles, with or without steel reinforcement.

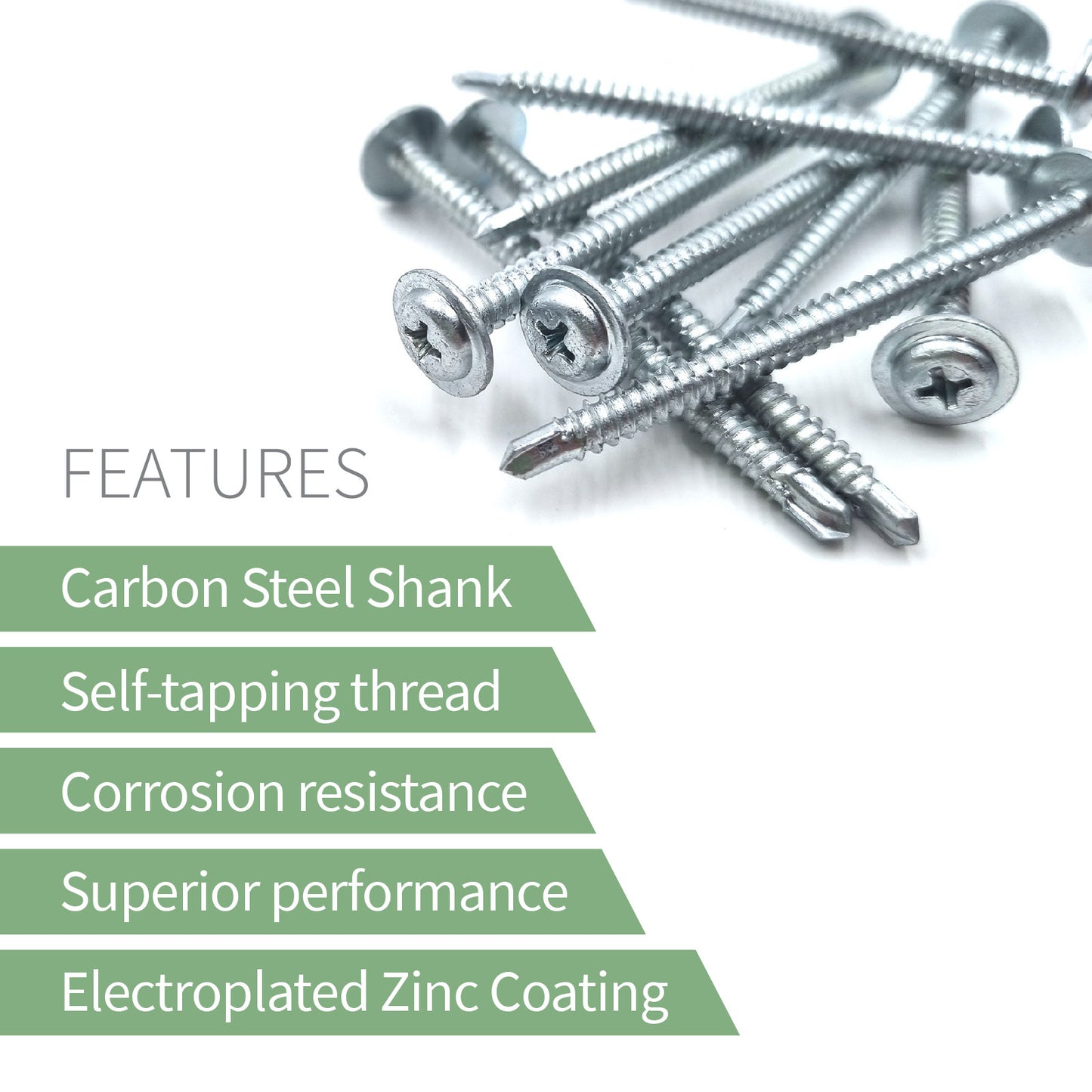

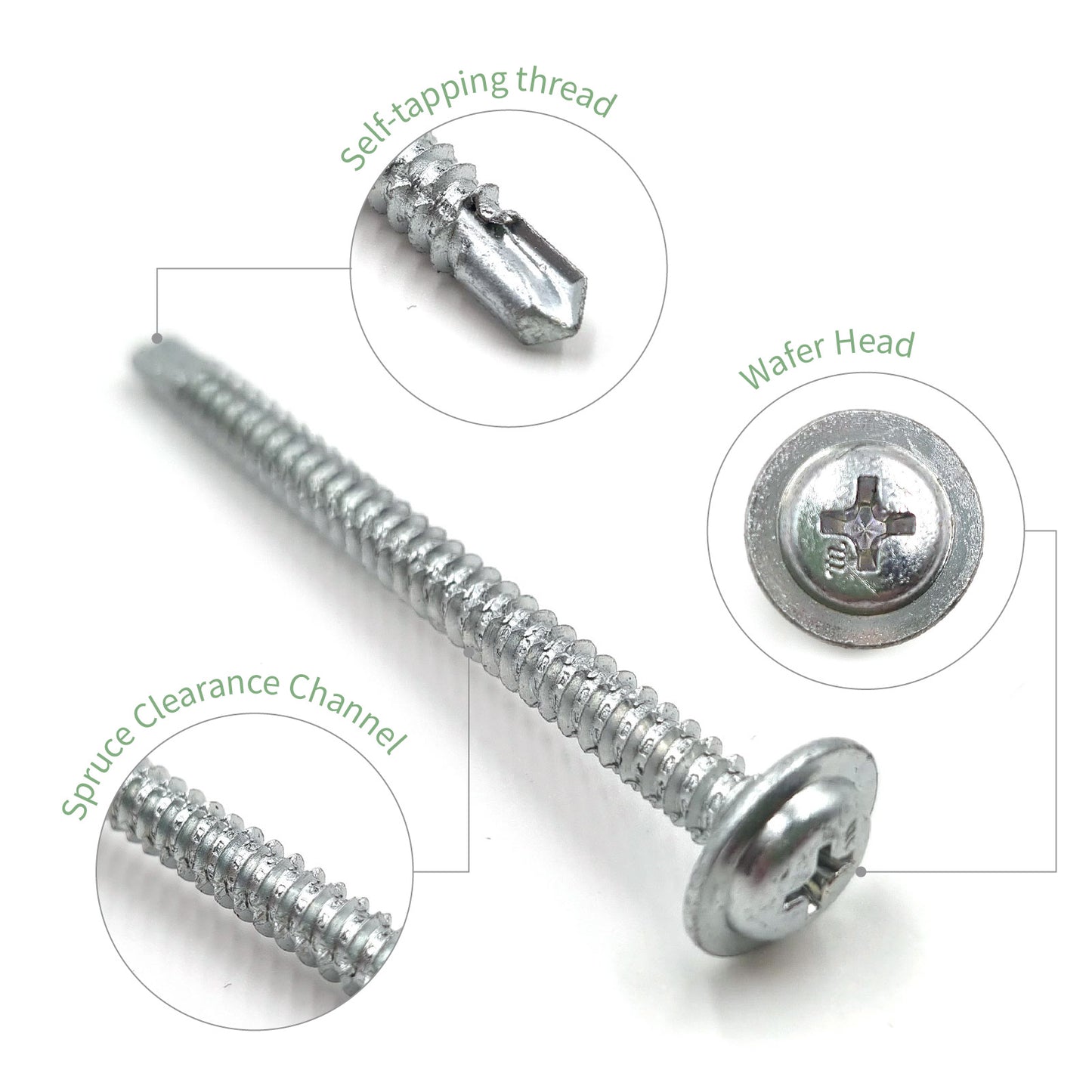

Features & Benefits

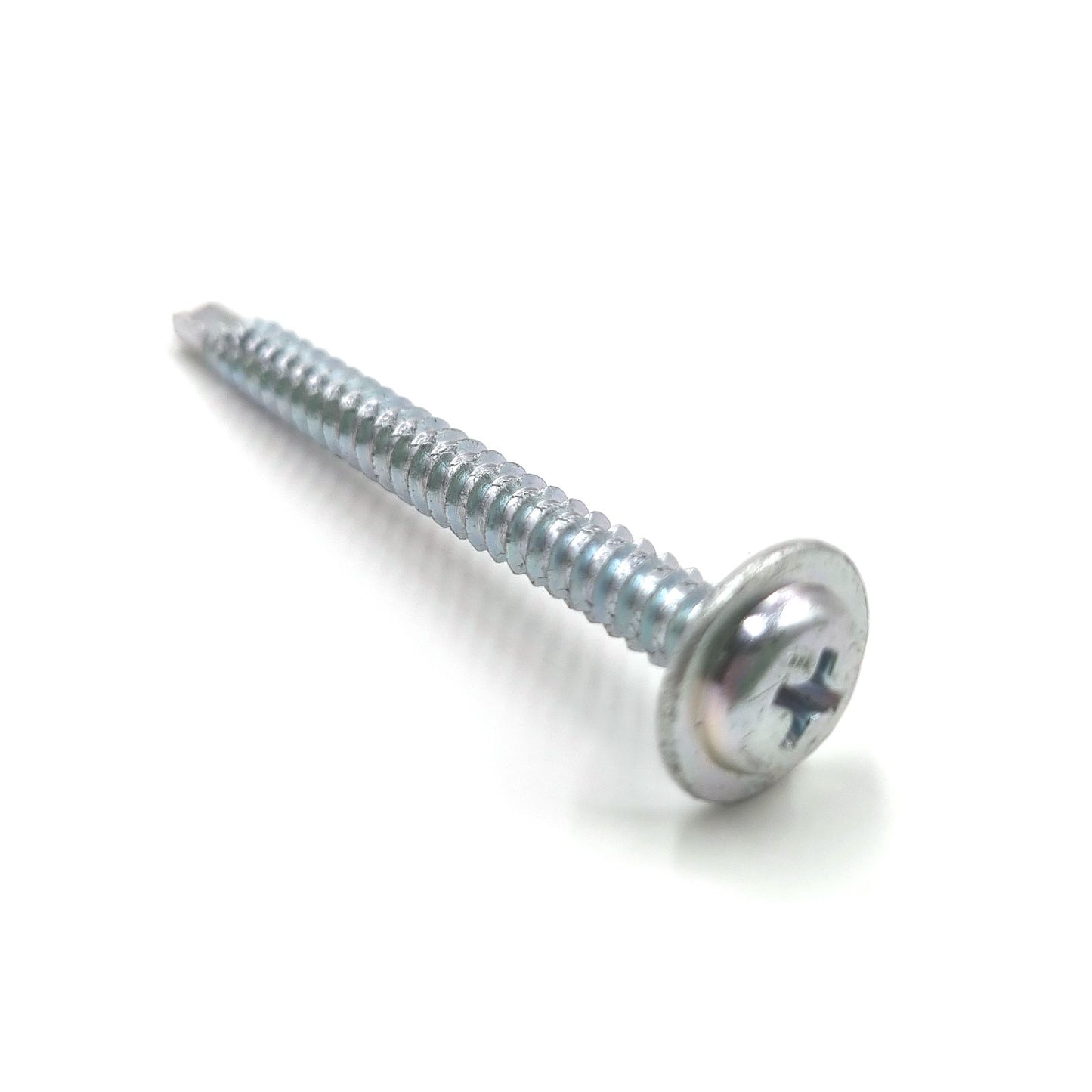

Load spreading wafer head - prevents creasing of frame
Twin self-tapping thread - faster to insert and remove
Advanced drill point - improves performance reduces breakages
Excellent corrosion resistance - surpasses industry standards
Spruce clearance channel - prevents build-up of swarf
High pull-out values - offers a stronger hold
Industry favourite - superior performance and value

Part of the market leading StarPVCU product range, the most comprehensive window screw range available, which covers every application for fabrication of reinforced and unreinforced PVCU windows and doors. Complies with provision for CE marking and exceeds British and European standards of extended corrosion resistance.

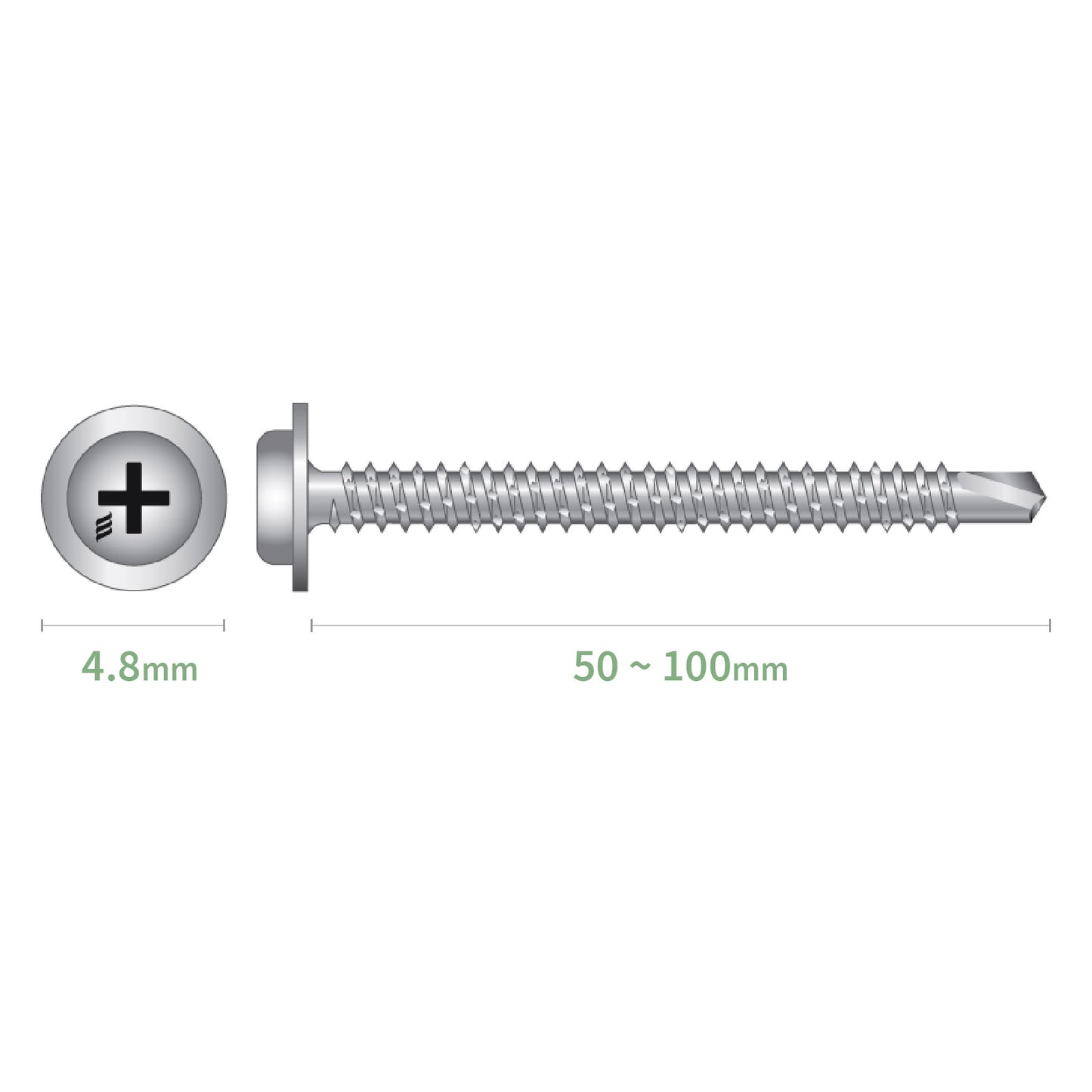

Specification

Measurement	Value
Head Style	Wafer Head
Head Diameter	12.55mm ±0.15mm
Shank Diameter	4.8mm
Shank Length	50mm, 60mm, 65mm, 70mm, 80mm, 95mm, 100mm
Drive Bit	PH2
Point	Drill Point
Shank Material	Carbon Steel
Coating	Electroplated Zinc plus Passivation
Salt Spray Testing	Minimum 250 Hours in accordance with BS EN 9227:2012
Corrosion Protection	Grade 4 acc. To BS EN 1670:2007
Material Grade	AISI C1022

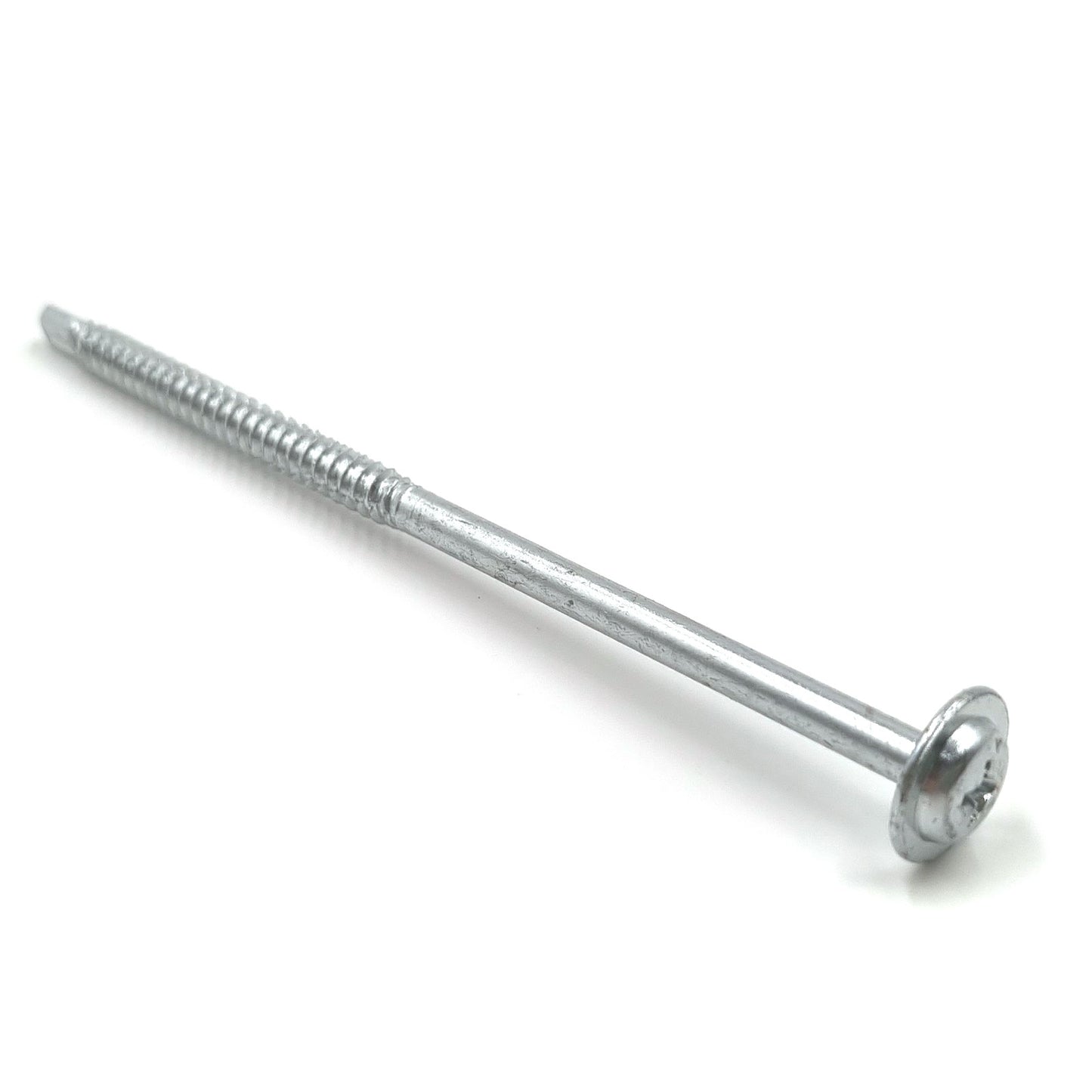

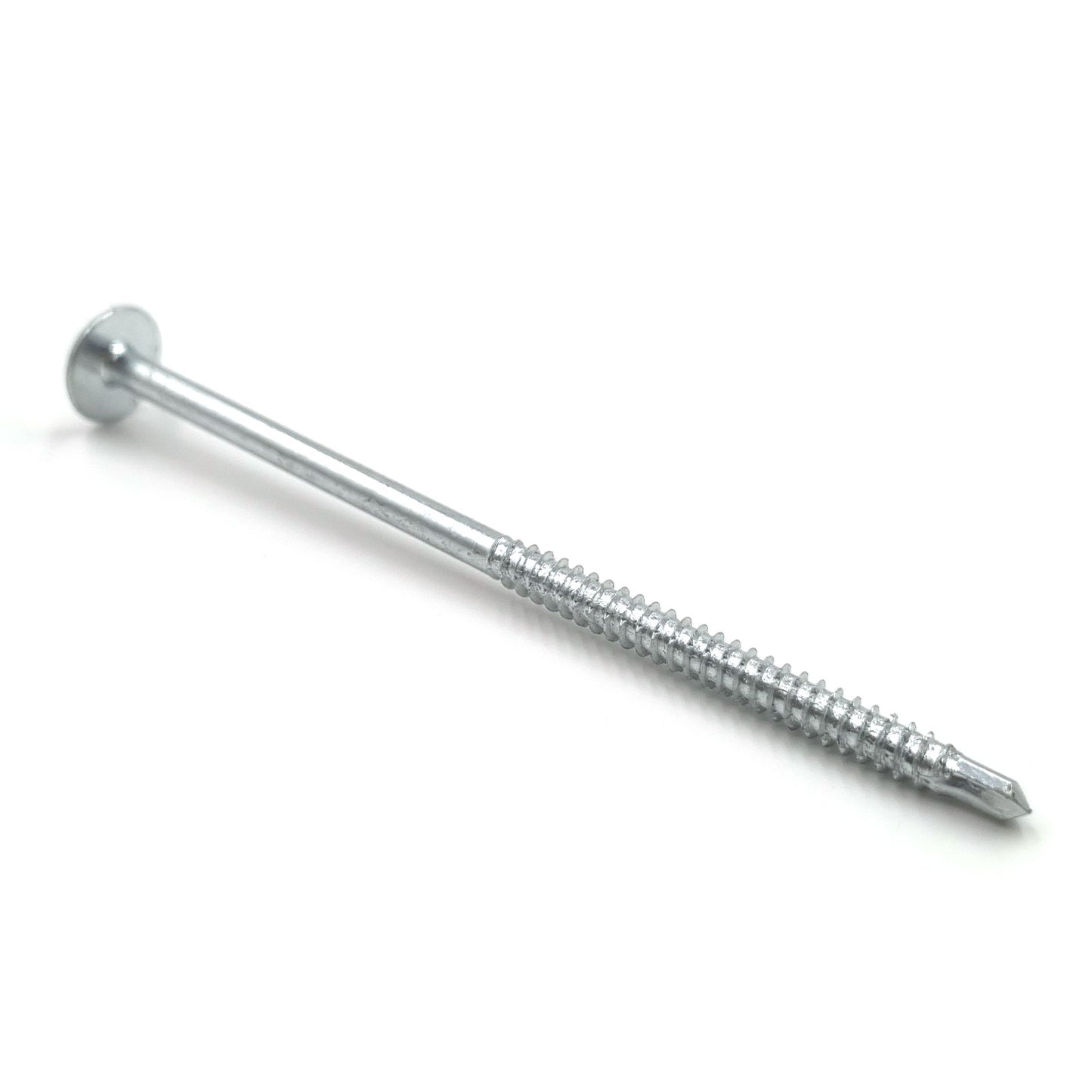

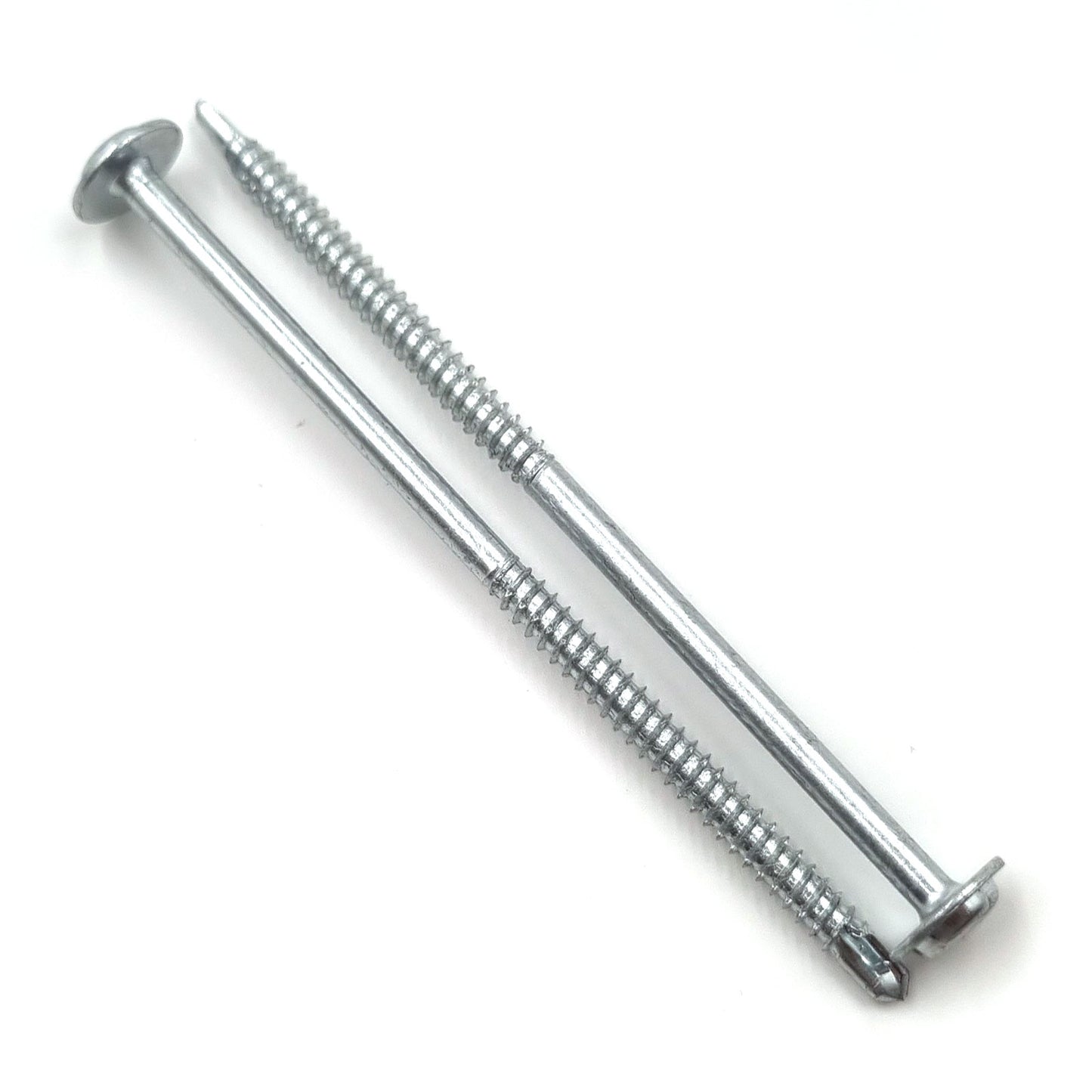

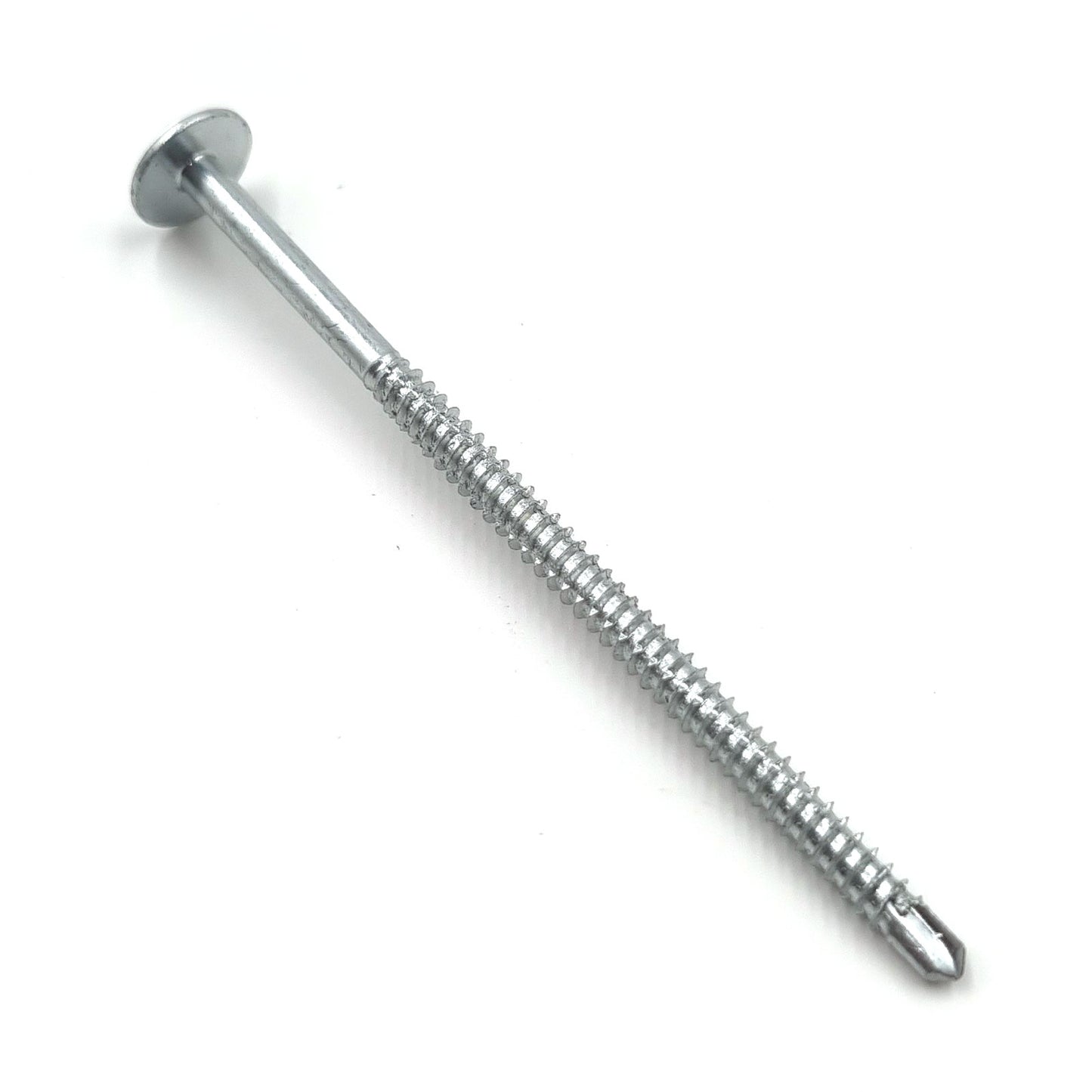

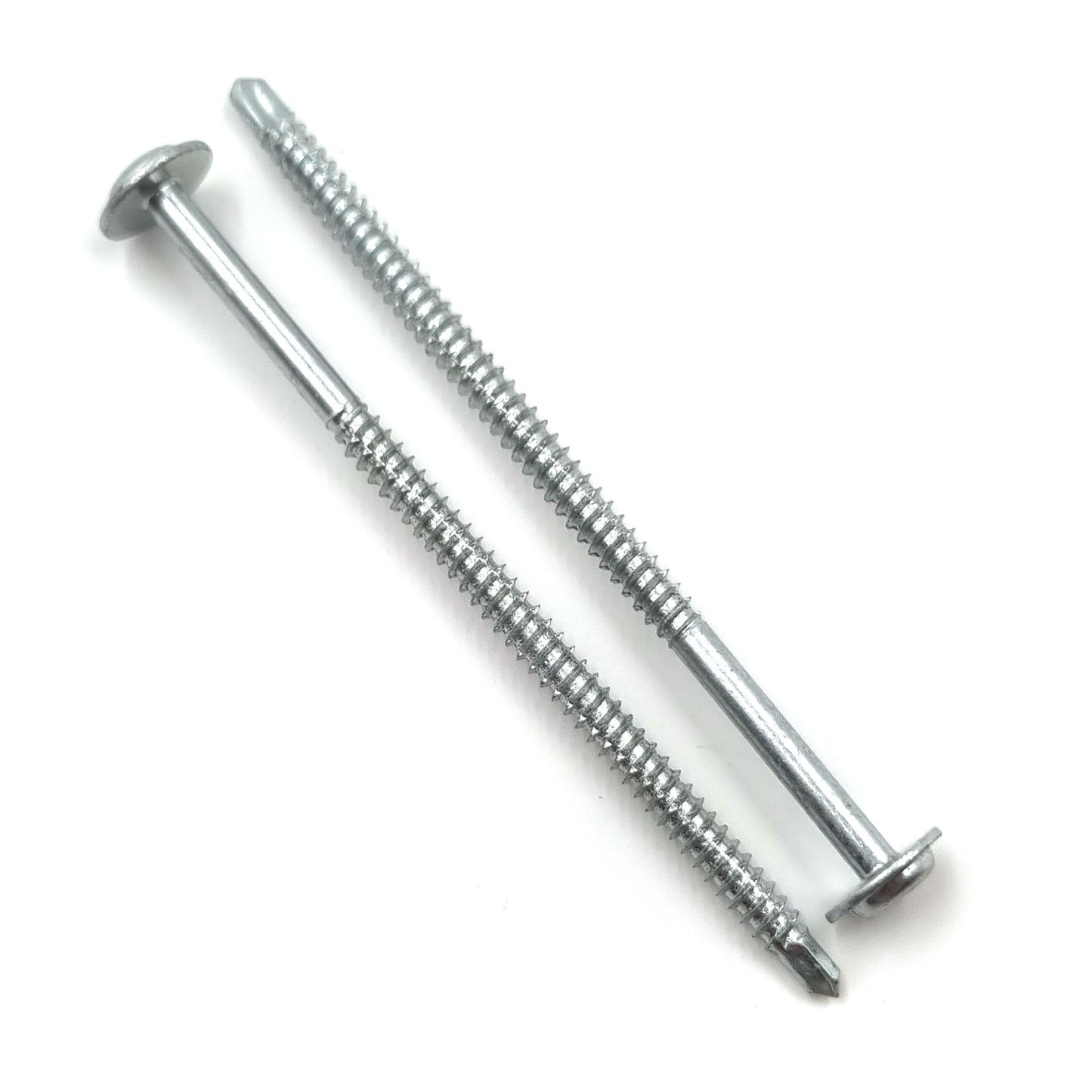

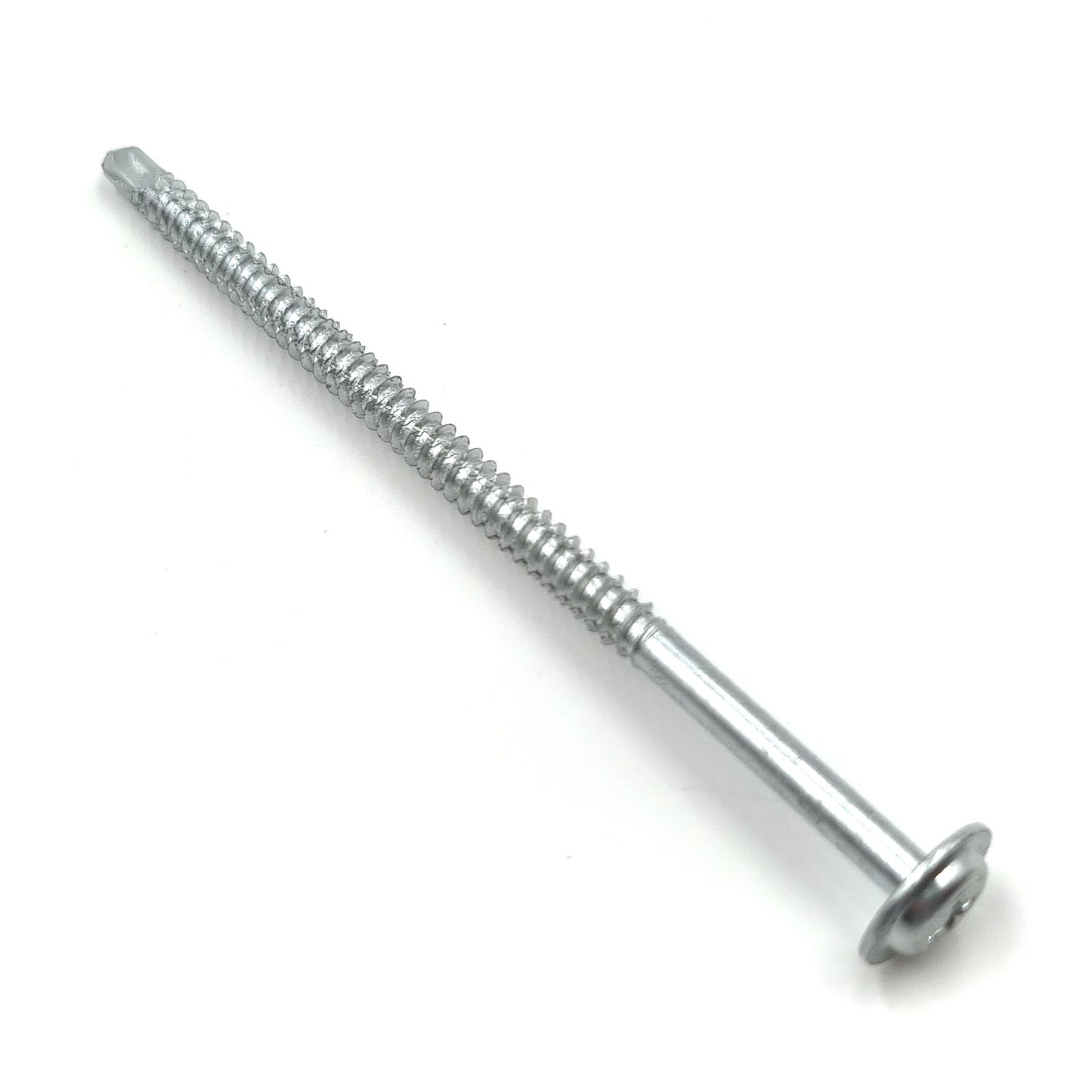

Effective Thread Length	Fully-threaded (screws up to 80mm), Partially-threaded (95mm screws and above)
Application	Baypole Assembly
Pack Size	200
